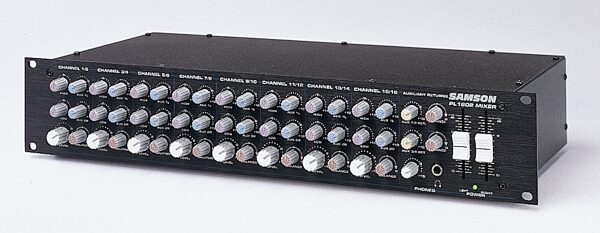

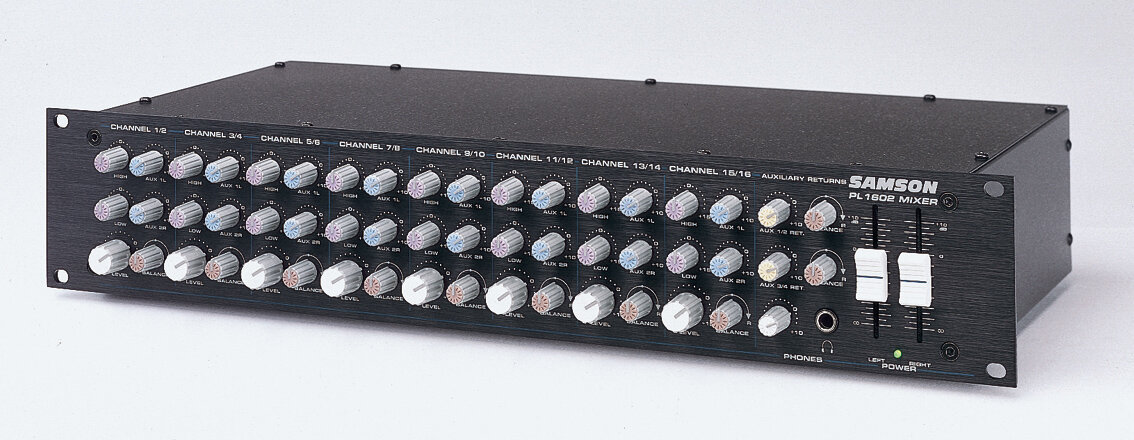

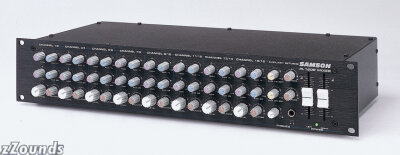

Samson PL1602 Rackmount Mixer

A great way to add more inputs with mixing capability to keyboard setups, small live sound systems, techno bands, and multimedia situations, the PL1602 is a highly practical audio tool for all kinds of professionals. Transparent audio and useful features make this mixer an ideal add-on for any kind of application.

Features
Versatile, compact 16-channel, 2-bus line mixer in 2 rack spaces.

Ideally suited to recording setups, live use, project recording, and install applications.

2 balanced mic inputs for more possibilities.

Level and balance controls on each channel.

2-band EQ on all channels.

Input trim controls on mic channels.

2 Aux sends on each channel.

2 stereo effects returns.

Front panel stereo headphone out with dedicated level control.

2 balanced main L/R outputs using 1/4 in. TRS connectors.

6 channel inserts and 2 main bus inserts for greater flexibility.

Technical Info

Channel Section
Total harmonic distortion (with 30 kHz LPF): < 0.05%
Residual noise (with 30 kHz LPF, VR min): -85 dB
Frequency response (±1 dB): 20 Hz to 20 kHz
Max. gain (Mic in to main out): 69 dB
Ch-to-ch crosstalk (1 kHz): -70 dB
Headphone output level (32 .loaded): 100 mW

Equalization
10 kHz High (shelving): ±15 dB
100 Hz Low (shelving): ±15 dB

General
Dimensions (W x D x H): 19 x 9 x 3.5 in. (480 x 230 x 88mm)
Weight: 8.8 lbs. (4 kg)
