This product is no longer available at zZounds.
Shop our website for related products:

(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

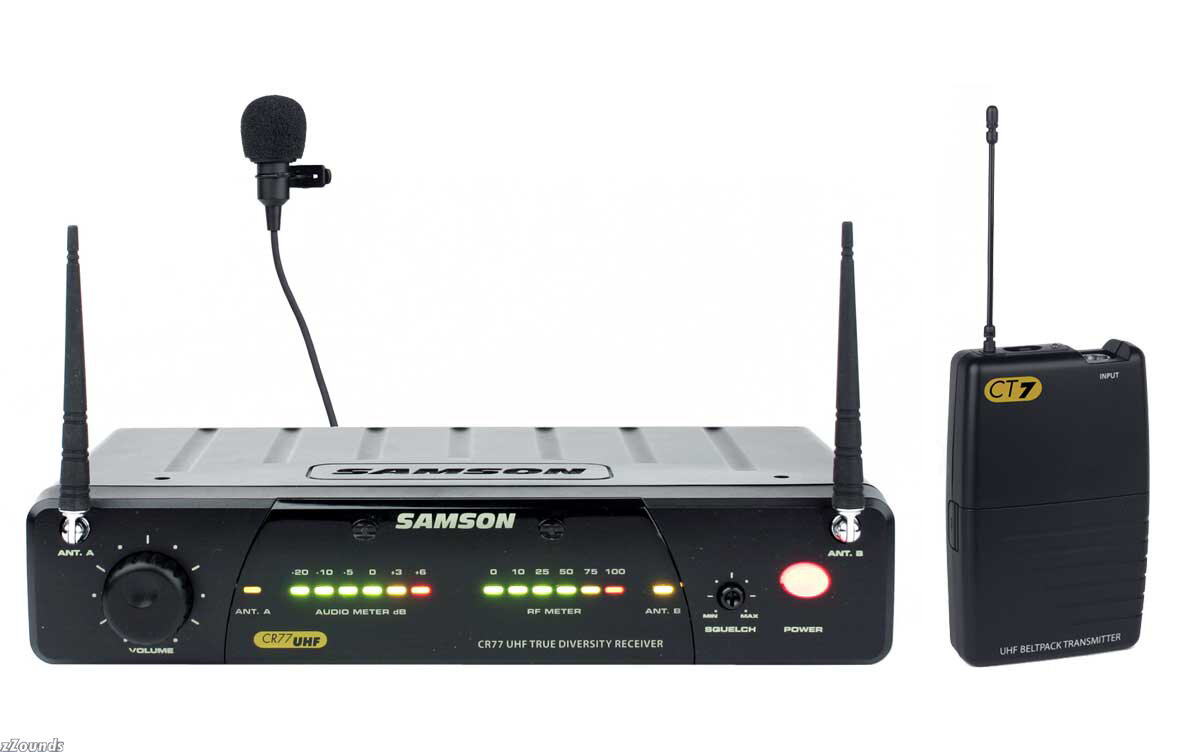

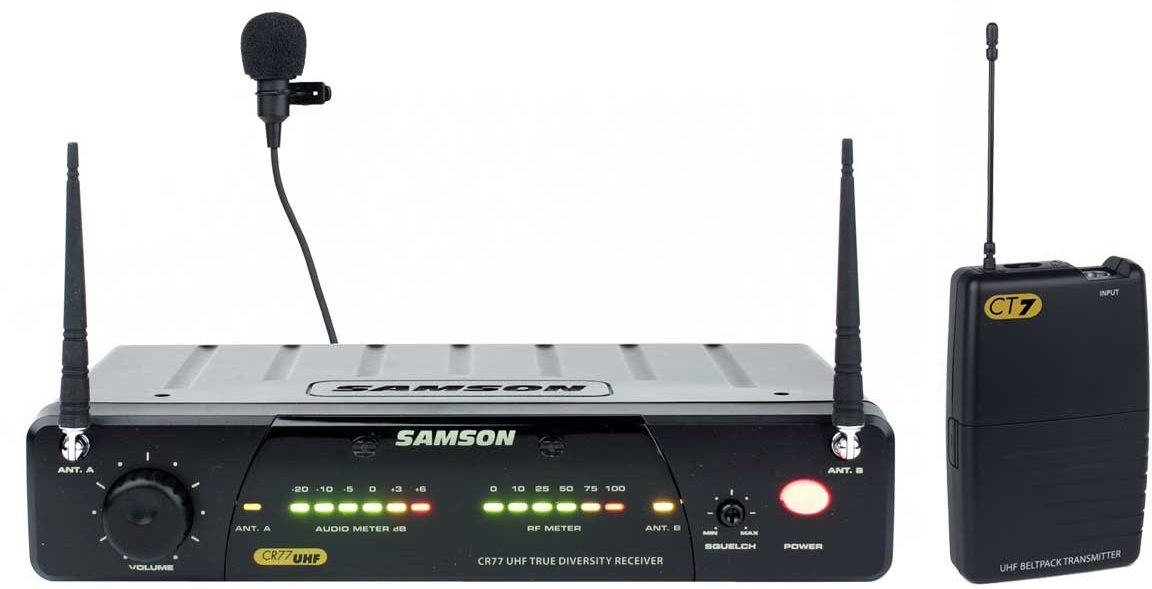

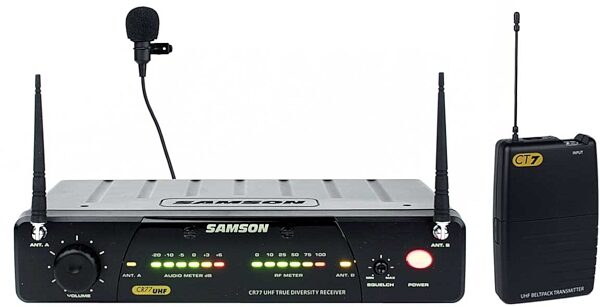

Samson Concert 77 UHF TD Wireless with MT350 Omnidirectional Lavalier Transmitter

Includes: CR77 receiver, CT7 transmitter, and MT-350 mic. 10 People rated this product: Rate and Review This Product
Roll Over to Enlarge Main

Product Description

Samson Technologies was founded 20 years ago when they introduced some of the first affordable wireless technology ever. The latest line of wireless gear in that tradition: Concert 77. UHF quality diversity wireless that anyone can afford.

CR77 Wireless Receiver
This true-diversity half-rack unit with PLL frequency control works with all Concert 77 wireless systems. Rugged, durable and crystal clear with incredible range. UHF (Ultra High Frequency) means clearer frequencies with less interference. Diversity reception means no dropouts. Concert 77 represents sophisticated wireless technology at great prices.

CT7 Belt-Pack Transmitter
For use with all other Concert 77 Systems. This compact and simple-to-use belt-pack has on/off and level control.

MT-350 Microphone
Audio-Technica MT350 omni directional lavelier with 2.5 mini connector is for use with AL1 Samson Airline transmitter.

Features
True Diversity UHF Wireless System with PLL Frequency Control

Multi-segment Audio level, RF level and A/B Antenna Operation LED meters

Squelch control eliminates carrier signal noise and RF interference

Tuned molded antennas for accurate reception

XLR and unbalanced 1/4 in. outputs with mic/line level output switch zZounds is an authorized dealer of Samson products.
Receiver (CR77)
Type of Reception: Single Superheterodyne, True Diversity

Oscillation Type: Synthesized PLL Frequency Control

D-emphasis: 50 msec

IF Frequency: 10.7 MHz

Antenna: 1/4 Wavelength Rod

In/Out: DC Inlet, Balanced Output, Unbalanced Output

Display (LED): Antenna A/B (Green), Power On (Red), Peak (Yellow), RF Level (5 pc)

Level Controls: Volume, Squelch

Operating Voltage: 12 Volts + 10 %

Current Consumption: 160 mA (at all LED lights)

Receiving Frequency Range: 801 - 805 MHz

Sensitivity: 18 dB @ THD 2%

Squelch Sensitivity: 0 - 40 dB (Adjustable)

Selectivity: 150 kHz (AF Out Ratio -60 dB)

S/N Ratio (Overall): 90 dB (w/ IHF-A fi lter)

Residual Noise: 90 dBv (w/ IHF-A fi lter)

Band Mute: 50 kHz / 100 kHz (RF IN: 46 dBu EMF)

AF Frequency Response: 50 Hz - 15 kHz (3 dB overall)

Audio Output Level - Unbalanced: 0 dBv

Audio Output Level - Balanced: -20 dBm (Line), -40 dBm (Mic) Switch
Selectable

Audio Output Impedance/Unbalanced: 5 k Ohms

Audio Output Impedance/Balanced: 600 Ohms

Dimensions: 8.5 in. (w) x 1.75 in. (h) x 4.6 in.(d) 216 mm (w) x 44 mm (h) x 116 mm (d)

Weight: .75 lb / 340 g

Transmitter (CT7)
Oscillation Type: Synthesized PLL Frequency Control

Pre-emphasis: 50 msec

Antenna: 1/4 Wave Length Wire (permanently attached)

Input: TB3M QG (Mini XLR) Connector

Maximum Input Level: 3 V p-p

Battery: Duracell MN 1604 9-volt alkaline

Switches/Controls: Power On/Off, Audio On/Off, AF Level

Display (LED): Battery Low/Mid/High (<5.3V/5.3-7V/7V)

Operating Voltage: 9 Volts +20%/-40%

Current Consumption: 47 mA

RF Power: 10 mW

Frequency Stability: + 20 kHz

Spurious Ratio: 2.5 nW

Deviation: 20 kHz (16.5 kHz-23.5 kHz)

T.H.D. (Typical): 0.5%

AF Frequency Response: 50 Hz - 15 kHz (3 dB overall)

Battery Life: 12 Hours
Samson Warranty
Samson Warranty
If you have additional warranty questions, please call the manufacturer at 631-784-2200
Our extended 30-Day 100% Satisfaction Guarantee applies on this product. Buy it, and if it isn't just right for you, return it!
