This product is no longer available at zZounds.

(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

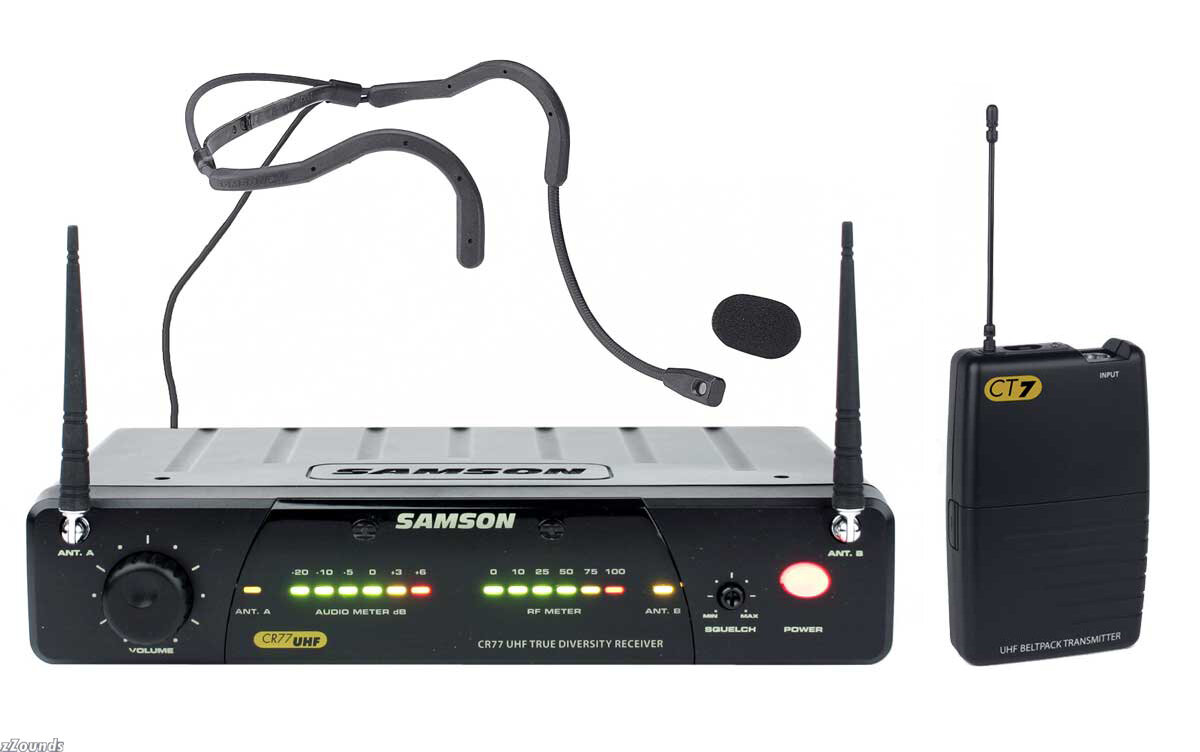

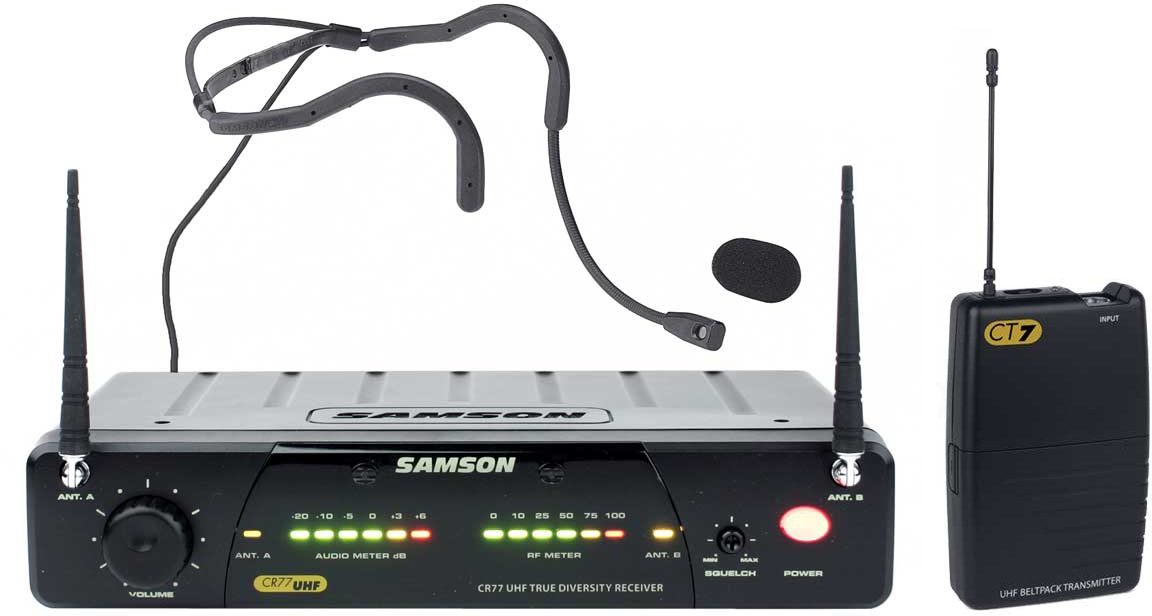

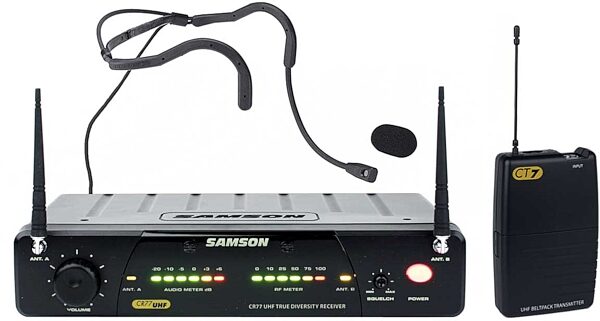

Samson Concert 77 UHF TD Wireless with QV Headset Transmitter

Includes: CR77 receiver, CT7 transmitter, and QV mic. 11 People rated this product:

Rate and Review This Product

Roll Over to Enlarge

Main

overview specifications documents

Manufacturer's Description for Samson Concert 77 UHF TD Wireless with QV Headset Transmitter

Samson Technologies was founded 20 years ago when they introduced some of the first affordable wireless technology ever. The latest line of wireless gear in that tradition: Concert 77. UHF quality diversity wireless that anyone can afford.

CR77 Wireless Receiver
This true-diversity half-rack unit with PLL frequency control works with all Concert 77 wireless systems. Rugged, durable and crystal clear with incredible range. UHF (Ultra High Frequency) means clearer frequencies with less interference. Diversity reception means no dropouts. Concert 77 represents sophisticated wireless technology at great prices.

CT7 Belt-Pack Transmitter
For use with all other Concert 77 Systems. This compact and simple-to-use belt-pack has on/off and level control.

Headset System
Concert 77 is the perfect affordable wireless system for fitness instructors, public speakers, anyone who needs a hands-free microphone. Includes the Samson Qv Vocal headset for performance.

Qv Microphone
The Qv headset mic allows drummers, keyboardists and other musicians to perform "hands free" vocals without affecting their playing technique. It produces a full-range sound with a enough definition to ensure that every word is heard clearly, even at higher volume levels.

Qv Features:
Sophisticated condenser mic element

Hypercardioid pattern helps eliminate feedback

50 Hz to 18 kHz frequency response for a balanced, full-range sound

Withstands high sound pressure levels

Lightweight and comfortable design

Adjustable metal gooseneck for easy mic positioning

Locking detachable P3 connector reduces cable/connection problems

Features
True Diversity UHF Wireless System with PLL Frequency Control

Multi-segment Audio level, RF level and A/B Antenna Operation LED meters

Squelch control eliminates carrier signal noise and RF interference

Tuned molded antennas for accurate reception

XLR and unbalanced 1/4 in. outputs with mic/line level output switch zZounds is an authorized dealer of Samson products.

Channel Frequencies
Channel U1: 801.375 MHz
Channel U2: 801.875 MHz
Channel U3: 803.125 MHz
Channel U4: 803.750 MHz
Channel U5: 804.500 MHz
Channel U6: 804.750 MHz

Receiver (CR77)
Type of Reception: Single Superheterodyne, True Diversity

Oscillation Type: Synthesized PLL Frequency Control

D-emphasis: 50 sec

IF Frequency: 10.7 MHz

Antenna: 1/4 Wavelength Rod

In/Out: DC Inlet, Balanced Output, Unbalanced Output

Display (LED): Antenna A/B (Green), Power On (Red), Peak (Yellow), RF Level (5 pc)

Level Controls: Volume, Squelch

Operating Voltage: 12 Volts + 10 %

Current Consumption: 160 mA (at all LED lights)

Receiving Frequency Range: 801 - 805 MHz

Sensitivity: 18 dB @ THD 2%

Squelch Sensitivity: 0 - 40 dB (Adjustable)

Selectivity: 150 kHz (AF Out Ratio -60 dB)

S/N Ratio (Overall): 90 dB (w/ IHF-A fi lter)

Residual Noise: 90 dBv (w/ IHF-A fi lter)

Band Mute: 50 kHz / 100 kHz (RF IN: 46 dBu EMF)

AF Frequency Response: 50 Hz - 15 kHz ( 3 dB overall)

Audio Output Level - Unbalanced: 0 dBv

Audio Output Level - Balanced: -20 dBm (Line), -40 dBm (Mic) Switch
Selectable

Audio Output Impedance/Unbalanced: 5 k Ohms

Audio Output Impedance/Balanced: 600 Ohms

Dimensions: 8.5 in. (w) x 1.75 in. (h) x 4.6 in.(d) 216 mm (w) x 44 mm (h) x 116 mm (d)

Weight: .75 lb / 340 g

Transmitter (CT7)
Oscillation Type: Synthesized PLL Frequency Control

Pre-emphasis: 50 sec

Antenna: 1/4 Wave Length Wire (permanently attached)

Input: TB3M QG (Mini XLR) Connector

Maximum Input Level: 3 V p-p

Battery: Duracell MN 1604 9-volt alkaline

Switches/Controls: Power On/Off, Audio On/Off, AF Level

Display (LED): Battery Low/Mid/High (<5.3V/5.3-7V/7V)

Operating Voltage: 9 Volts +20%/-40%

Current Consumption: 47 mA

RF Power: 10 mW

Frequency Stability: + 20 kHz

Spurious Ratio: 2.5 nW

Deviation: 20 kHz (16.5 kHz-23.5 kHz)

T.H.D. (Typical): 0.5%

AF Frequency Response: 50 Hz - 15 kHz (3 dB overall)

Battery Life: 12 Hours

Brochure

Samson Warranty

Samson Warranty

If you have additional warranty questions, please call the manufacturer at 631-784-2200
