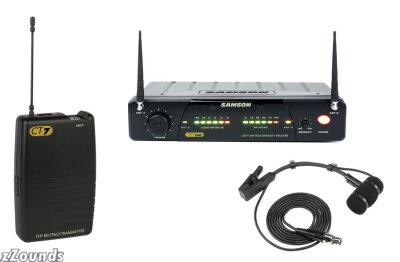

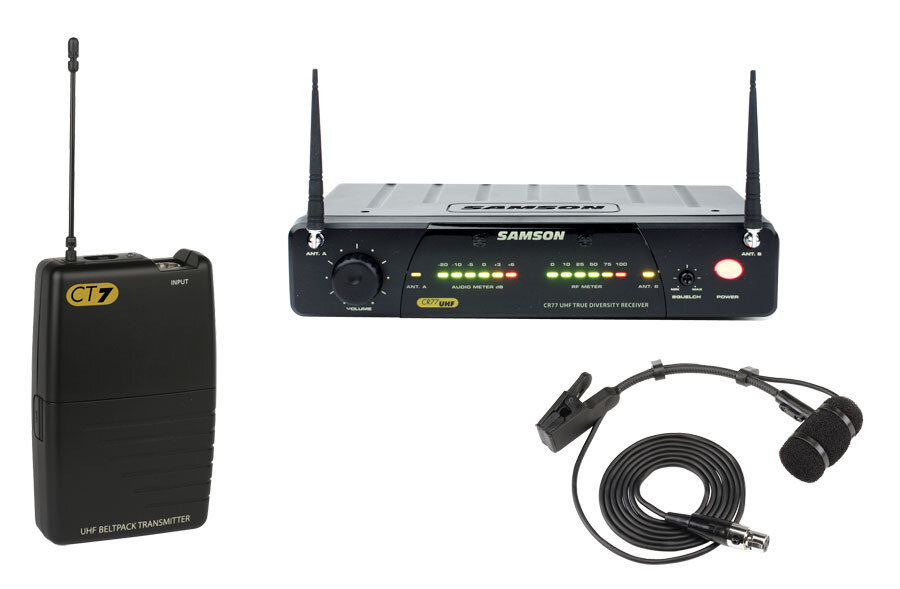

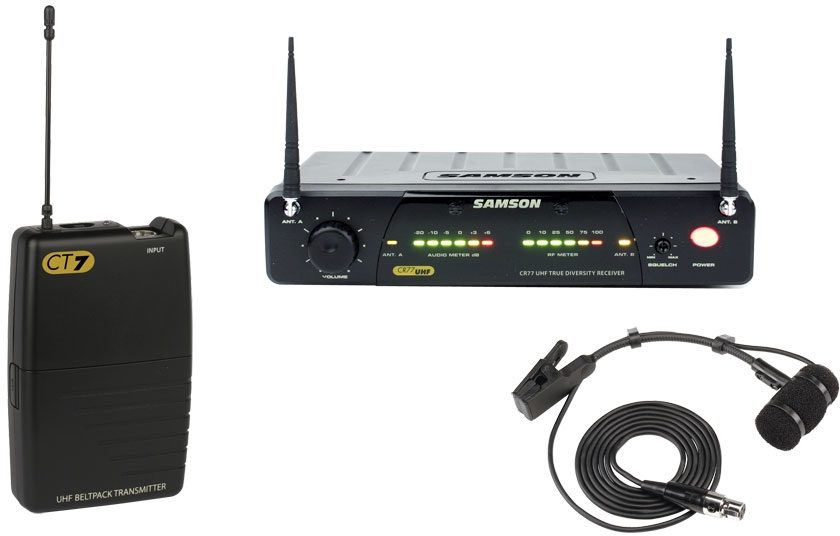

Samson Concert 77 UHF TD Wireless System with HM40 Wind Instrument Microphone

The new Concert77 system is a UHF wireless solution ideal for any professional application. UHF means Ultra High Frequency, which translates to crystal clear operation with no interference, traditionally available on only the most expensive systems. Now UHF performance and reliability is affordable thanks to Concert77.

The HM40 is a mini condenser designed for horns, rich and clear, focused, with the abilty to handle serious SPL.

The new CT7 belt-pack transmitter is configured as wind instrument system thanks to the popular locking P3 input connection. The CT7 also features a three-segment battery indicator, separate power and audio on/off switches, adjustable AF level (audio gain), and 12-hours of battery life on a single 9-volt battery.

The CR77 true-diversity half-rack UHF receiver is the core of the Concert77 system. The new synthesized PLL frequency control circuitry keeps the signal locked and true while dual tuned molded antennas with LEDs monitor the true-diversity operation. The CR77 features a front panel display with large multi-segment Audio level and RF level LED meters, and a large rotary volume knob allows easy adjustment of audio output. The rear panel features balanced XLR and un-balanced 1/4-inch outputs allowing flexible connection options. Two CR77 receivers can be rack mounted together in a single space rack adapter available as an added accessory.

Concert 77 Features
True diversity UHF wireless system with PLL frequency control

Multi-segment audio level, RF level and A/B antenna operation LED meters

Squelch control eliminates carrier signal noise and RF interference

Tuned molded antennas for accurate reception

XLR and unbalanced 1/4 in. outputs with mic/line level output switch

HM40 Features
Designed for wind instruments

High output miniature condenser mic element

Cardioid pickup pattern

Sturdy clip and flexible goose neck

Excellent for live performance and recording

P-3 three-pin mini XLR connector

Features
True Diversity UHF Wireless System with PLL Frequency Control

Multi-segment Audio level, RF level and A/B Antenna Operation LED meters

Squelch control eliminates carrier signal noise and RF interference

Tuned molded antennas for accurate reception

XLR and unbalanced 1/4 in. outputs with mic/line level output switch

Technical Info

Channel Frequencies
Channel U1: 801.375 MHz
Channel U2: 801.875 MHz
Channel U3: 803.125 MHz
Channel U4: 803.750 MHz
Channel U5: 804.500 MHz
Channel U6: 804.750 MHz

With CT7 bodypack transmitter and HM40 cardioid condenser mic with clip for wind instruments.
