The VK-8 Combo Organ puts the enhanced Virtual ToneWheel sound of the flagship VK-77 in an attractively priced single-manual design with a cool new "waterfall" style keyboard. But it doesn't stop there: The VK-8 also sports rotary speaker modeling based on COSM technology, new orchestral voices, and a D-Beam controller - making it the new leader in combo organs.
Features
61-note single manual combo organ with enhanced Virtual ToneWheel technology
Cool waterfall keyboard with velocity-sensitive keys plays like classic organs-great for glissandos
Sophisticated rotary speaker modeling with overdrive effect

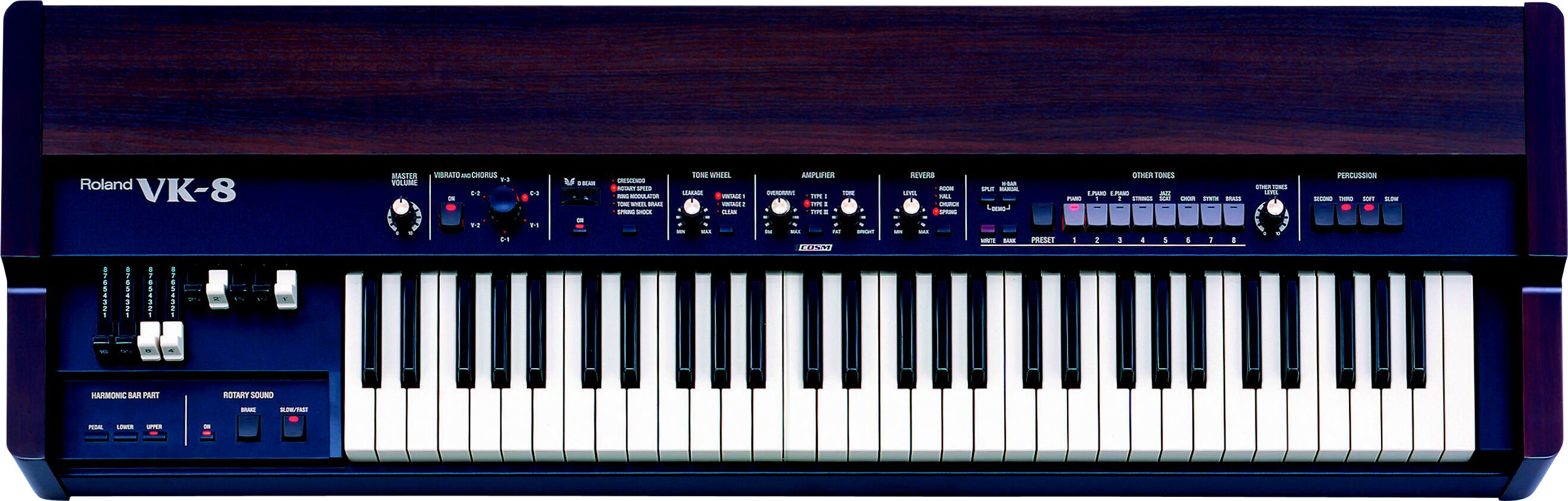

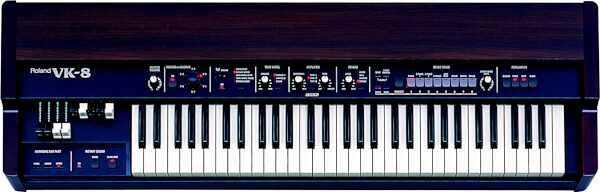

Traditional panel layout: 9 harmonic bars, Vibrato/Chorus knob, and new Percussion button
D-Beam controller with Preset templates for more expressive performance
New! Orchestral voices for a wider sonic palette (e.g. piano, strings, choir, etc.)
Onboard reverb and chorus effects
2 MIDI inputs for connecting a MIDI keyboard or optional PK-7 pedalboard - enjoy full polyphony while playing pedals and keys!
Authentic solid wood cabinet and vintage keys
Technical Info
Specifications
Keyboard
Waterfall keyboard: 61 keys (with velocity)
Sound Generator
Organ: Virtual Tone Wheel Method
Other Tones: PCM Sound Generator
Parts
Upper Organ, Lower Organ, Pedal Organ, Other Tones
Maximum Polyphony
Organ: Full polyphony
Orchestral: 64 voices
Organ
Tone Wheel;: Vintage 1, Vintage 2, Clean
Leakage Level
Vibrato and Chorus: V-1, V-2, V-3, C-1, C-2, C-3
Percussion: Second Third, Soft, Slow
Amp Simulator: Type I , Type II, Type III
Overdrive
Tone
Reverb: Room, Hall, Chrch, Spring, Reverb Level
D Beam: Crescendo, Rotary Speed, Ring Modulator, Tone Wheel Brake, Spring Shock
Other Tones
Piano, Electric Piano 1, Electric Piano 2, Strings, Jazz Scat, Choir, Synth, Brass
Effects: Chorus, Reverb
Internal Memory
Preset Memory: 64 (User memory)

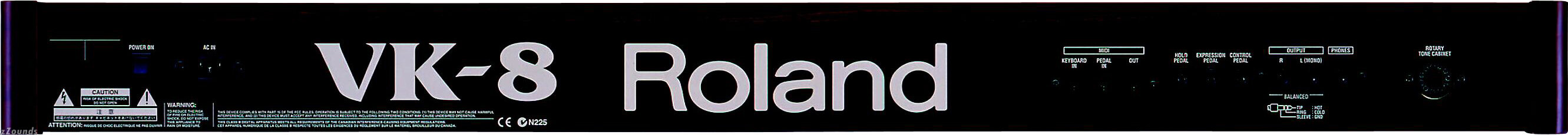

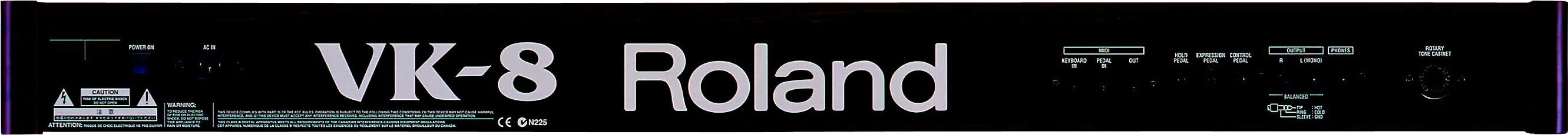

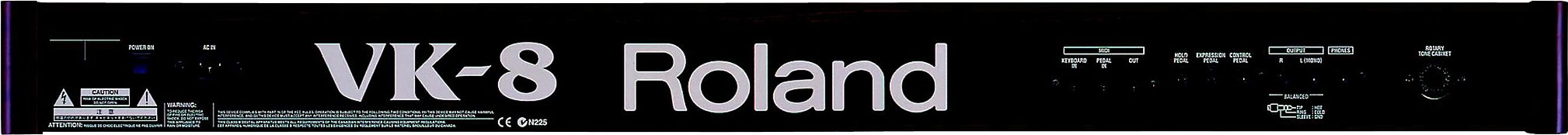

Connectors
AC Inlet
MIDI Connector
(Keyboard In, Pedal In, Out)
Hold Pedal jack
Expression Pedal jack
Control Pedal jack
Output jack, (L (Mono)/R): 1/4 in. TRS phone type
Phones jack: Stereo 1/4 in. phone type
Rotary Tone Cabinet connector
Power Consumption
15 Watts
Finish
Top Panel: Simulated Walnut
Side Panel: Natural Wood Walnut Finish
Dimensions: (W x D x H) 1160 x 344 x 109 mm, 45-11/16 x 13-9/16 x 4-5/16 in.
Weight: 32 lbs. (14.5 kg)
Accessories included: Owner's Manual, Edit Mode Quick Reference, Power Cable
