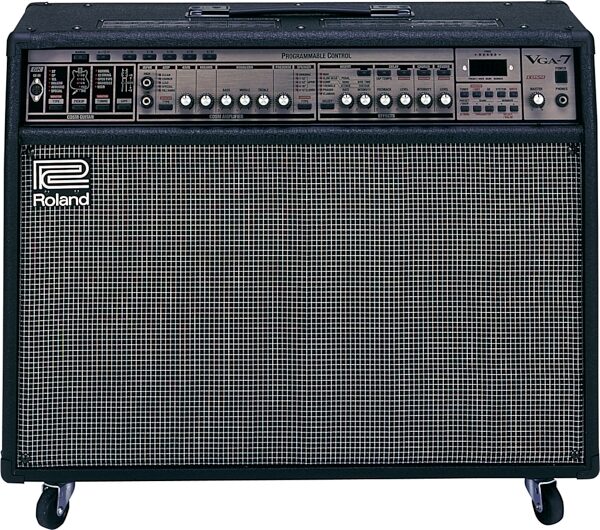

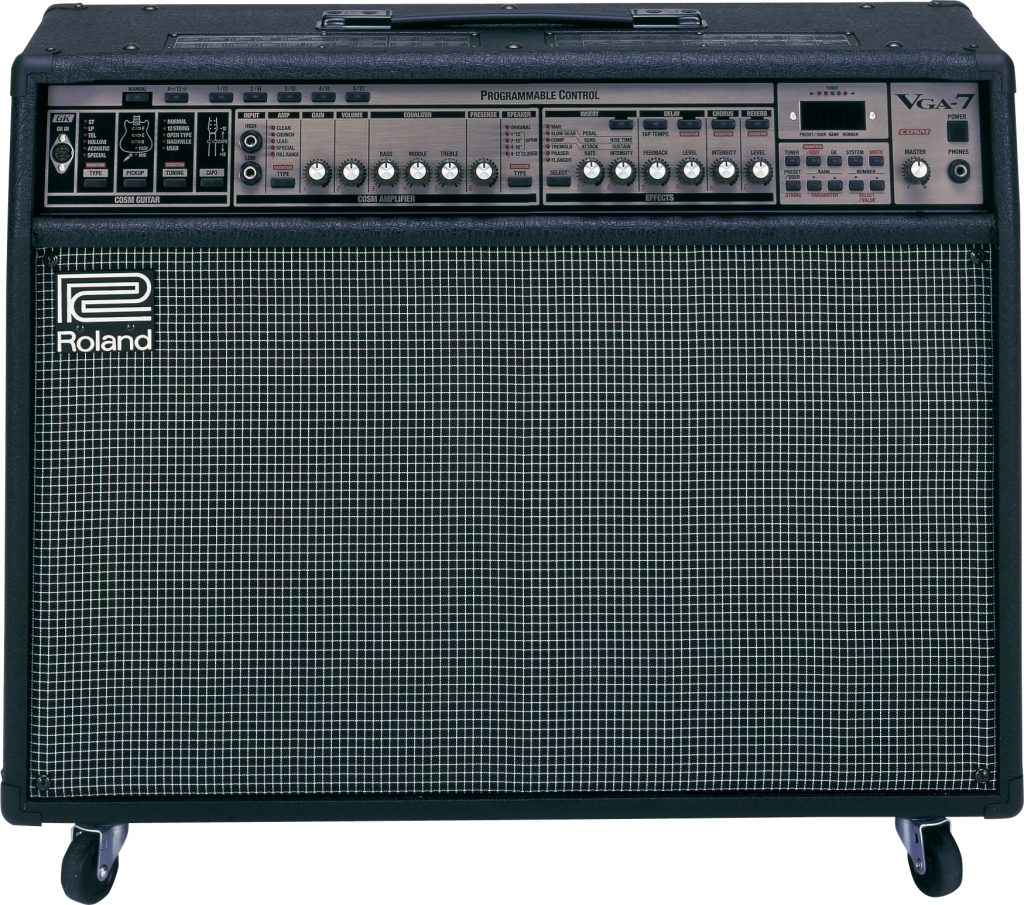

Digital modeling guitar amplifier with analog-style controls for superb ease-of-use 20 distinct COSM amp models including vintage and modern tube amps, solid state and acoustic instrument amps, plus speaker cabinet simulations.
Features
Ý Gain, Volume, 3-band EQ and Presence controls customized for each amp model
Ý COSM Guitar Modeling simulates 26 guitar types Ö electric, acoustic, hollow-body, and "guitar-meets-synth" Ö using any steel-string electric or acoustic guitar
Ý 80 preset memories plus 80 user memories with extensive foot control options
Ý GK-Ready 13-pin input plus standard 1/4 in. guitar input for direct access to amp/speaker cabinet modeling sections
Ý 65W + 65W/ 2x12" stereo configuration
Technical Info
Rated Power Output: 130 W (65 W + 65 W) / 8 .+ 8 .
Patches: 160 (Preset: 80 + User: 80)
Speakers: 30 cm (12 in.) x 2 Horn Tweeter x 1
Display: 7 segments, 3 lines (LED)
Controls:
TYPE Button, PICKUP Button, TUNING Button, CAPO Button
TYPE Button, GAIN Knob, VOLUME Knob, SPEAKER Button
Equalizer: BASS Knob, MIDDLE Knob, TREBLE Knob, PRESENCE Knob
Effects: EFX ON/OFF Button, SELECT Button, CONTROL Knob x 2
Delay: ON/OFF Button, TAP TEMPO Button, FEEDBACK Knob, LEVEL Knob
Chorus: ON/OFF Button, INTENSITY Knob
Reverb: ON/OFF Button, LEVEL Knob, Tuner Button, Variation/ Edit Button, GK Button, System Button, Write Button, Preset / User Button, Bank Down Button, Bank Up Button, Number Down Button, Number Up Button, Manual Button, Direct Number Button (A/B, 1-5), Master Knob, Power Switch
Indicators: TUNER

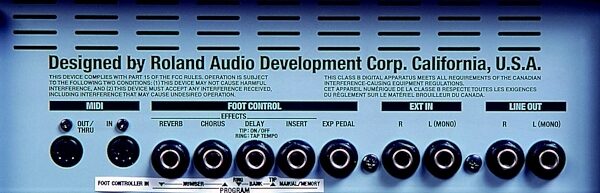

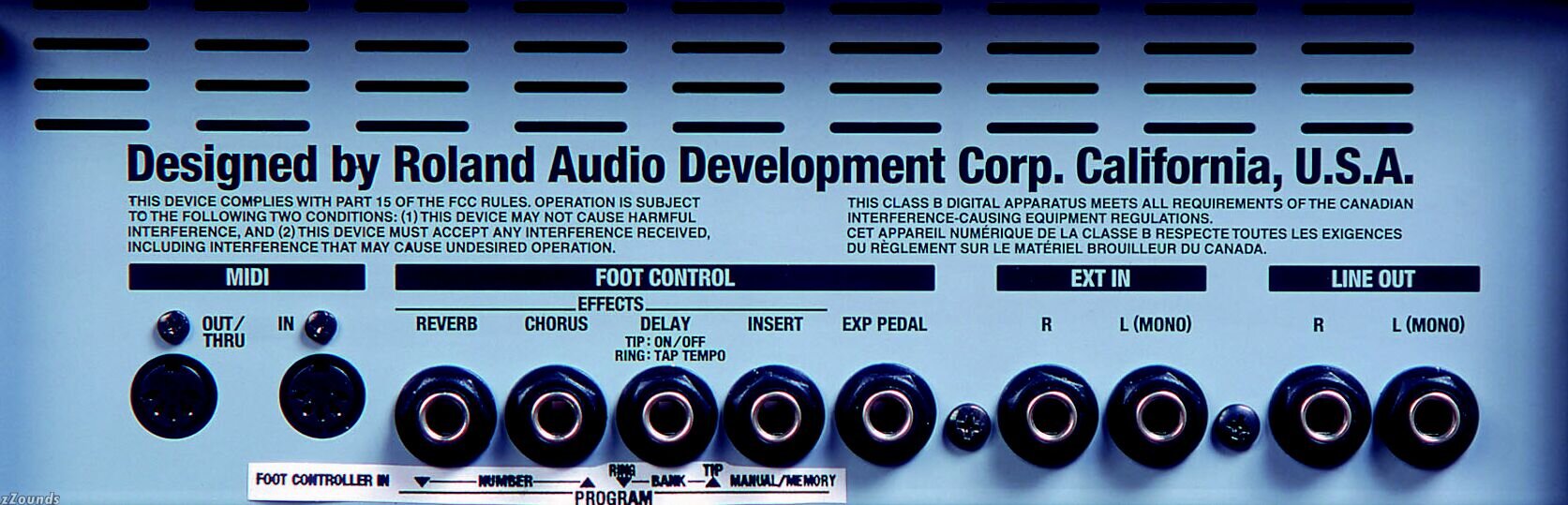

Connectors: GK INPUT Connector, INPUT Jacks (HIGH, LOW), HEADPHONE Jack, EXT INPUT Jack (L/MONO, R), LINE OUT Jack (L/MONO, R)
FOOT Control: EXPRESSION PEDAL Jack, EFX / MANUAL-MEMORY Jack, DELAY / BANK Jack (TIP: ON/OFF / BANK UP, RING: TAP TEMPO / BANK DOWN), CHORUS / NUMBER UP Jack, REVERB / NUMBER DOWN Jack
MIDI Connectors: IN, OUT/THRU
Power Supply: AC 117 V, 230 V, 240 V (50 Hz / 60 Hz)
Power Consumption: 160 W (117 V, 230 V, 240 V)
Dimensions (H x W x D) - (including casters): 640 x 770 x 300mm (25-Õ x 30-3/8 x 11-13/16 in.)
Dimensions (H x W x D) - (excluding casters): 585 x 770 x 300mm (23-1/16 x 30-3/8 x 11-13/16 in.
Weight: 37.6 kg (82 lbs. 15 oz.)
