Roland TD9 Percussion Sound Module

The TD9 is the anchor of Roland’s new mid-line V-Drums kits. With hundreds of new sounds, real-audio songs and patterns onboard, plus new Scope and Quick Rec/Quick Play practice functions, full V-Hi-Hat (VH11) compatibility, and three-way ride triggering available, the TD9 raises the bar significantly in its price range.

Features

Expressive new sounds, real-audio songs and patterns

Scope function with graphical LCD display

USB host for audio-file (.WAV) playback

Fast, Friendly, Fun

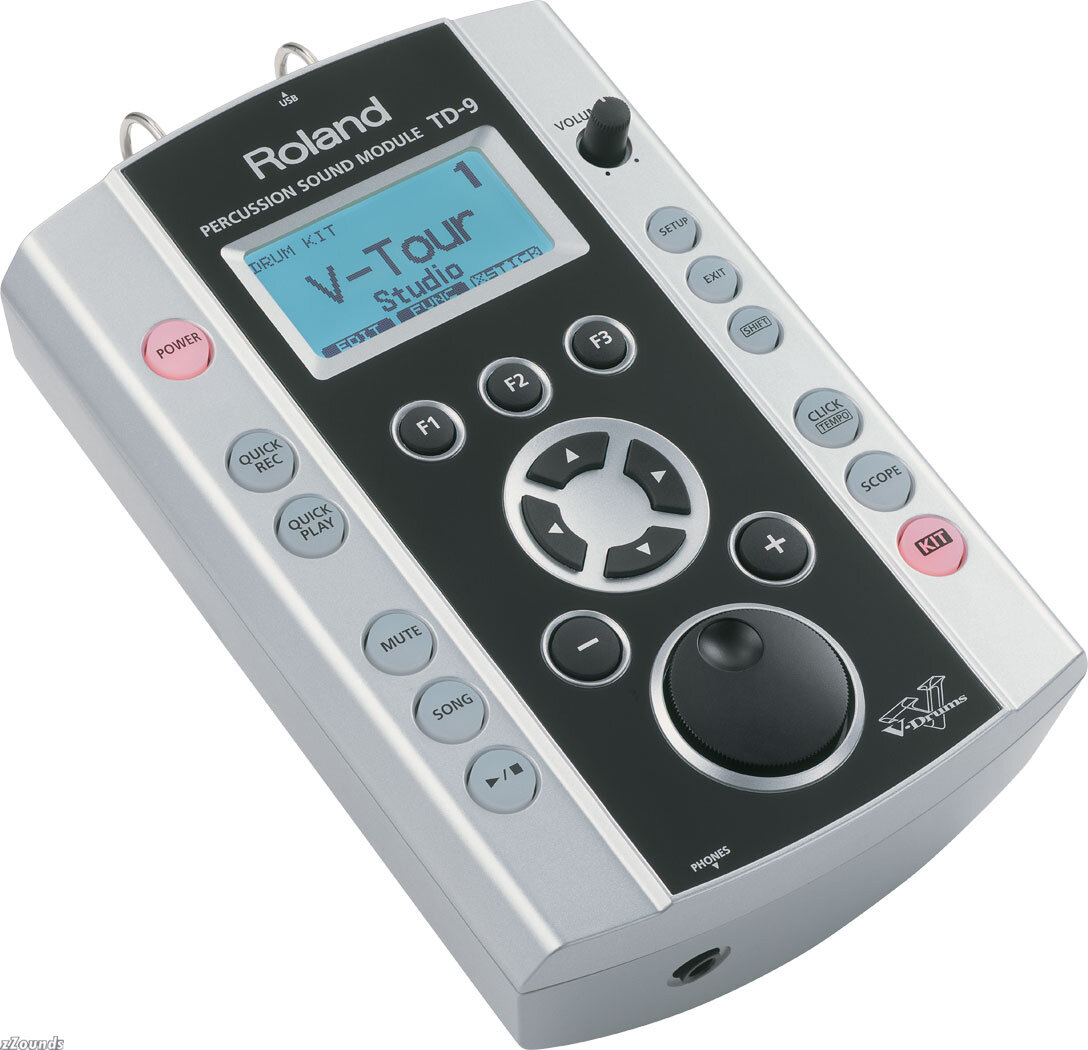

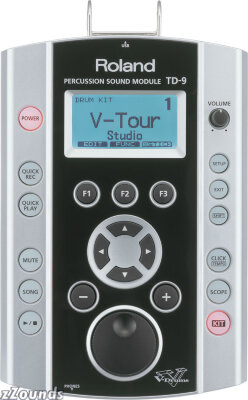

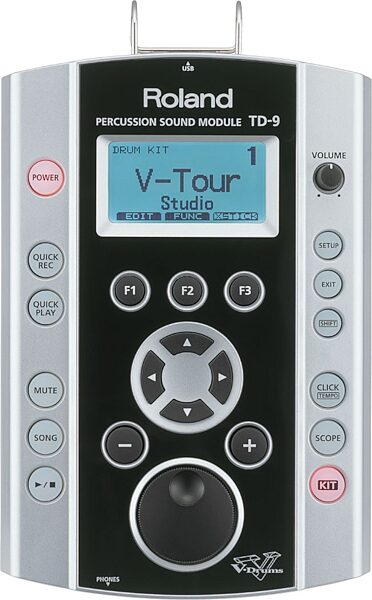

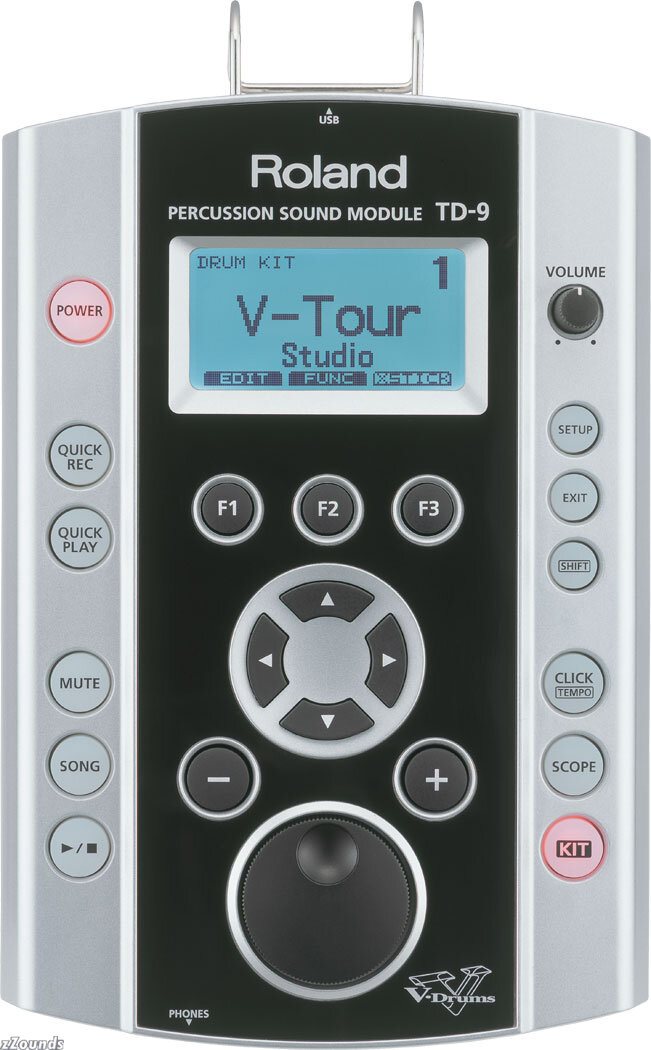

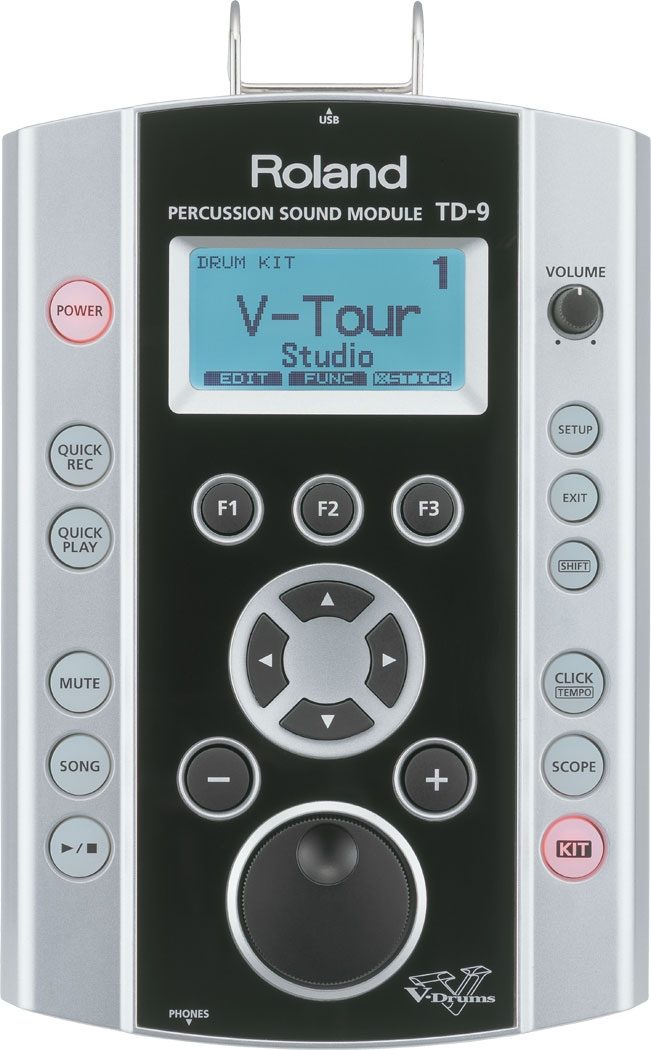

No more squinting at a small screen — the TD9 is outfitted with a luxurious, large backlit display with accompanying oversized buttons and controls. Its friendly, icon-based user interface makes editing sounds and customizing kits fast and fun.

Interactive Innovation

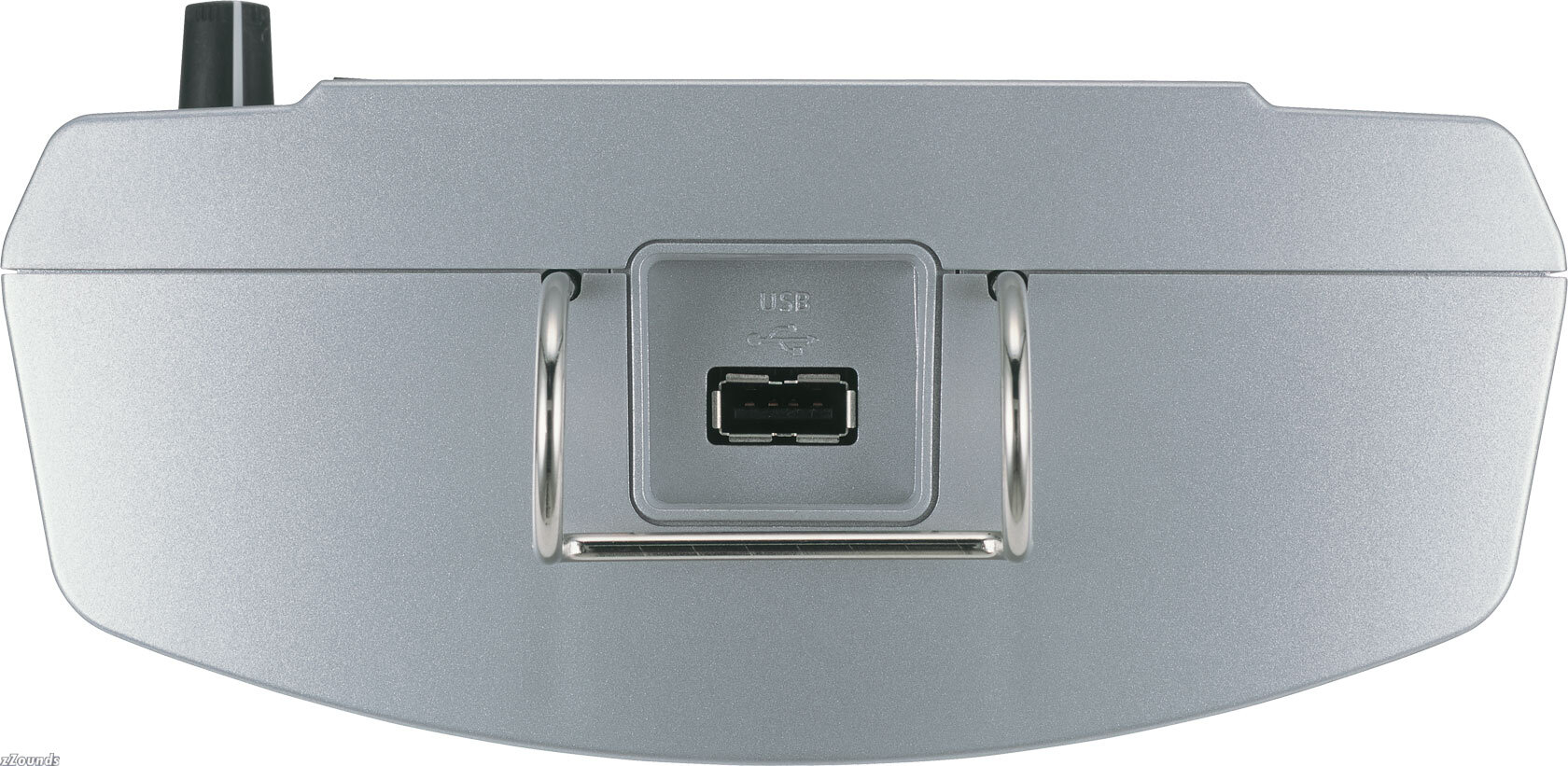

Play along with real-audio backing songs to build your musical experience base. Use the USB port to play along with audio files of your choice (.WAV), back up your data, or save a “quick record” performance. The “Quick Record” and “Quick Play” features allow you to immediately record and play back solo drum parts, or drum parts performed with the backing songs. Special connecting cable allows for fast, clean and easy connection to the pads.

Technical Info

Instrument
Drum Instruments: 522

Drum Kits: 50

Instrument Parameters:
- KICK: Head Tuning, Muffling
- SNARE: Head Tuning, Muffling
- TOM: Head Tuning, Muffling
- HI-HAT: Cymbal Size, Fixed Hi-Hat
- CYMBAL: Cymbal Size, Sustain
- OTHERS: Pitch, Decay

Effect Types: Ambience (9 types), 2-Band Equalizer

Ambience Parameters: Room Type, Room Size, Wall Type, Mic Position, Room Shape

Mixer Parameters: Volume, Pan

Percussion Set: 1

Song:
- Preset Songs: 50
- Parts: 4
- Play Function: One shot, Loop, Repeat
- Tempo: 20-300

Quick Rec:
- Resolution: 480 ticks per quarter note
- Recording Method: Real-time
- Maximum Note Storage: Approx. 32,000 Notes

Audio File Format: WAV

Display: 128 x 64 dots Graphic Type LCD (backlit LCD)

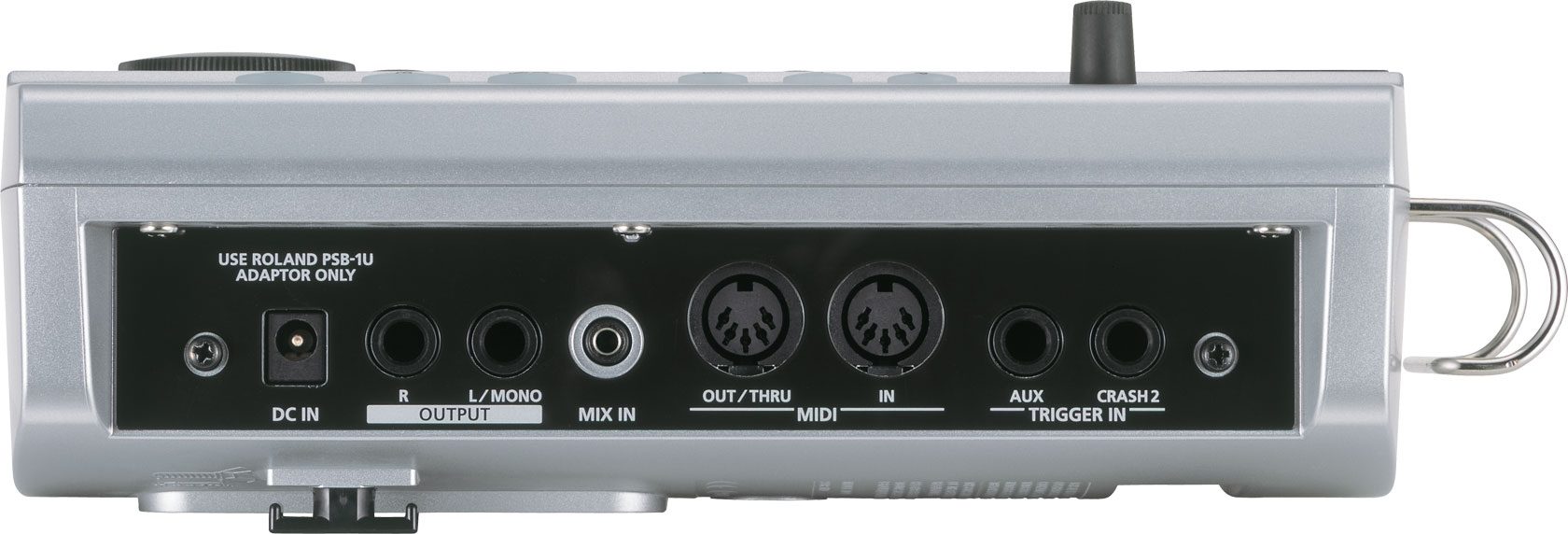

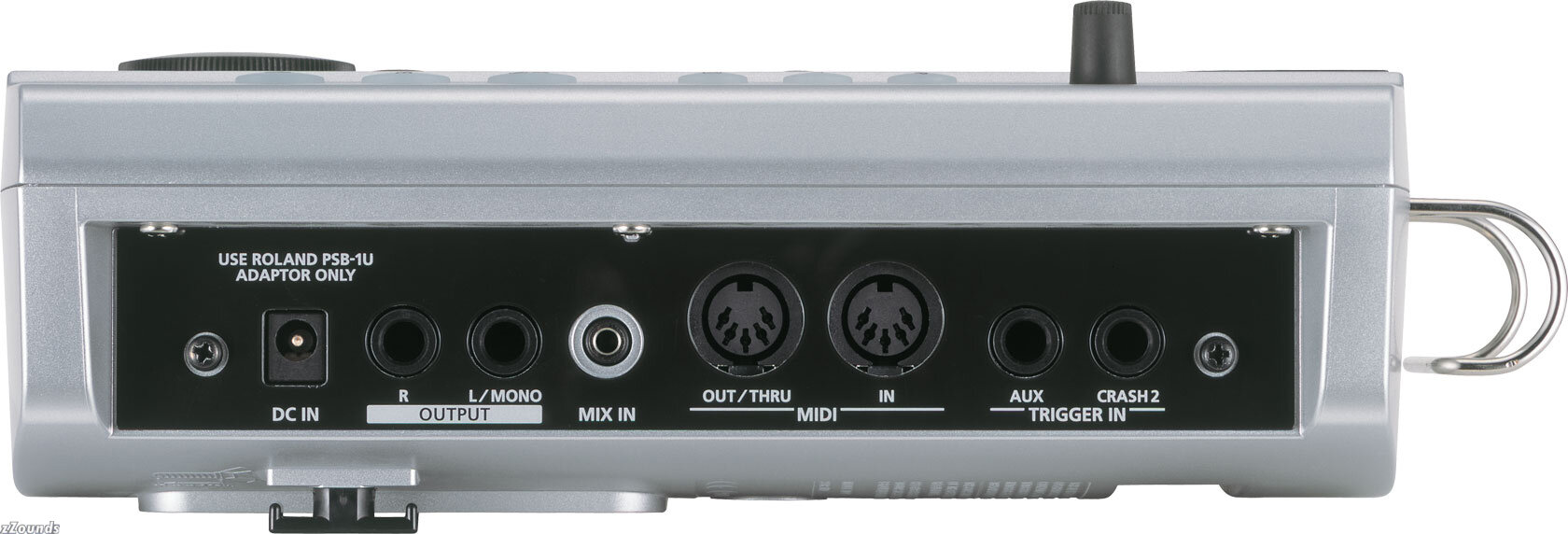

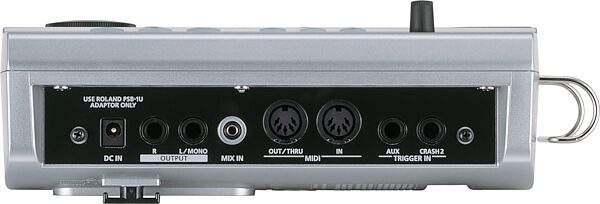

Connectors: Trigger Cable connector (DB-25 type), (Kick, Snare, Tom 1, Tom 2, Tom 3, Hi-Hat, Crash 1, Ride, Ride Bell, Hi-Hat Control), Extra Trigger Input Jacks: 2 (CRASH2, AUX) (Stereo 1/4 inch phone type), Output Jacks (L (MONO), R) (Stereo 1/4 inch phone type), Phones Jack (Stereo 1/4 inch phone type), Mix in Jack (Stereo miniature phone type), MIDI Connectors (IN, OUT/THRU), USB Connector (for USB Memory)

Output Impedance: 1.0 k ohms

Power Supply: AC Adaptor (DC 9V)

Current Draw: 500 mA

Accessories: Owner's Manual, Quick Start Guide, AC Adaptor (PSB-1U), Special Connection Cable, Wing Bolt (M5 x 10) x 2, Sound Module Mounting Plate

Options: Pads (PD-8, PDX-8, PD-85, PD-105, PD-125), Cymbals (CY-5, CY-8, CY-12R/C, CY-14C, CY-15R), Kick Triggers (KD-8, KD-85, KD-120), Hi-Hats (VH-11), Hi-Hat Control Pedal (FD-8), Stand (MDS-9), Cymbal Mount (MDY-10U), Pad Mount (MDH-10U), Personal Drum Monitor (PM-10, PM-30), V-Drums Accessory Package (DAP-3), V-Drums Mat (TDM-10)

With its sleek new interface, all your favorite functions are only a click away. Dial-up a kit and make edits in seconds! Quick Record and Quick Play let you save and share your inspiration with others, and USB-loadable songs/patterns add context to practice sessions. 12 pad/control jacks. Includes AC adapter and mounting bracket.
