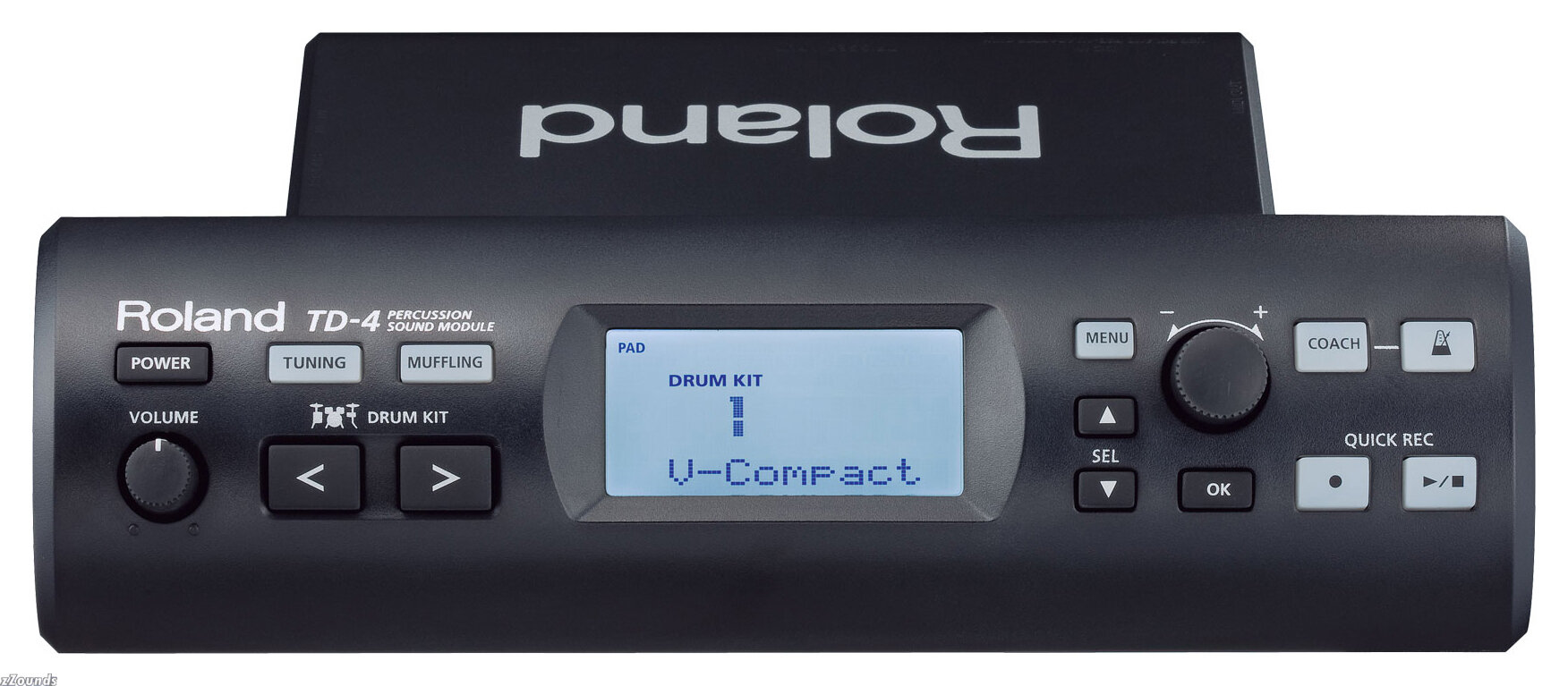

Roland TD4 Percussion Sound Module

With four times the wave memory of its predecessor, the TD4 is loaded with great drum and percussion instruments and kits. Kits can be customized with virtual tuning and muffling for the kick, snare and toms. Natural ambience effects can be adjusted as well.

Features
Wave-expanded sound module with 125 instruments and 25 kits

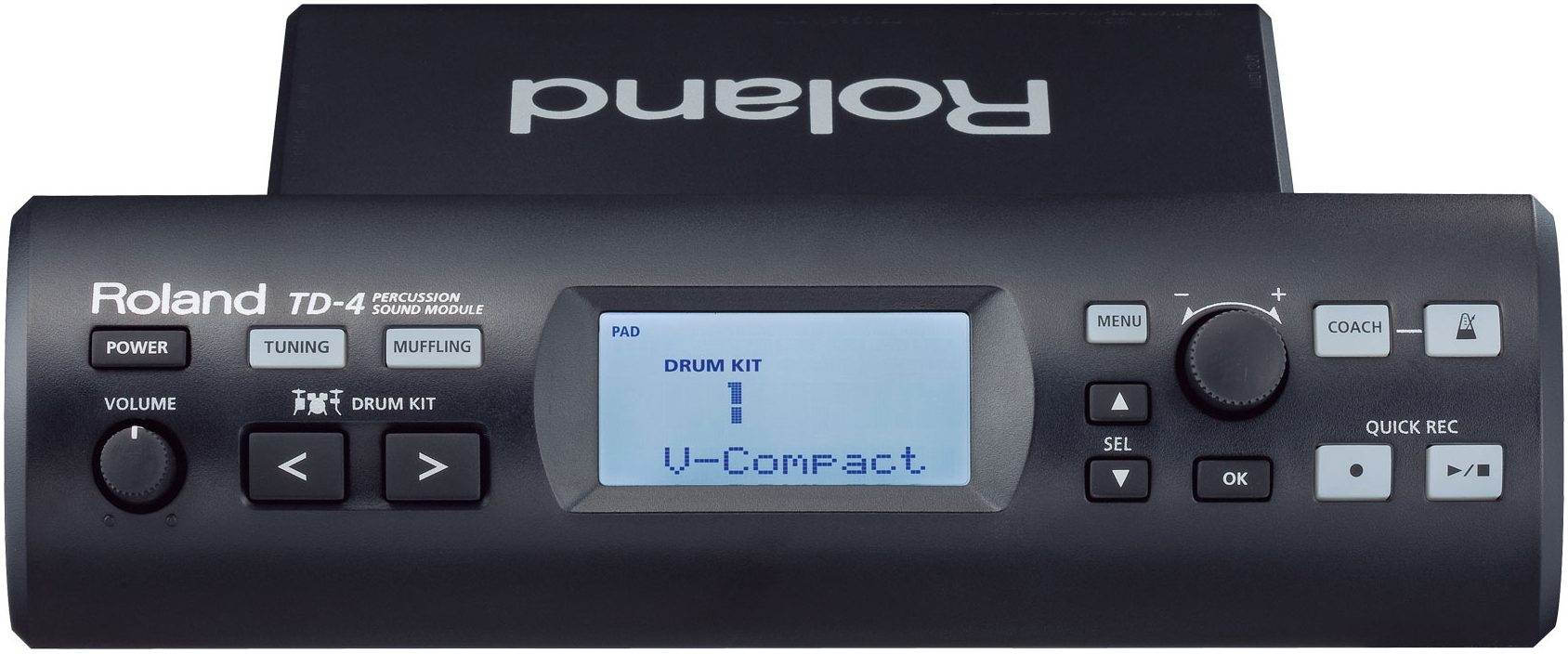

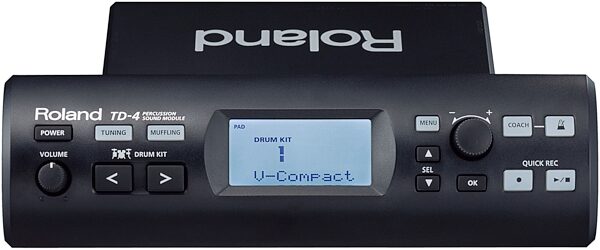

Tuning and Muffling for the kick, snare and toms can be adjusted via the buttons and dial on the front panel

Coach Mode with new exercises, such as Warm Ups and Tempo Check for building your accuracy and endurance

Quick Rec function for recording your performance with just one button

Mix In connector for playing along with external audio sources

Technical Info

Instruments:
- Drum Instruments: 125

Drum Kits: 25

Instrument Parameters: KICK, SNARE, TOM, PERC: Tuning, Muffling

Mixer Parameters: Pad Volume, Pan, Kit Volume, Cross Stick Volume

Ambience Types: 9

Rhythm Coach Functions: Warm Ups, Time Check, Tempo Check, Quiet Count, Auto Up/Down

Quick Rec:
- Resolution: 96 ticks per quarter note
- Recording Method: Real-time
- Maximum Note Storage: approx. 9,000 Notes

Display: Custom (backlit LCD)

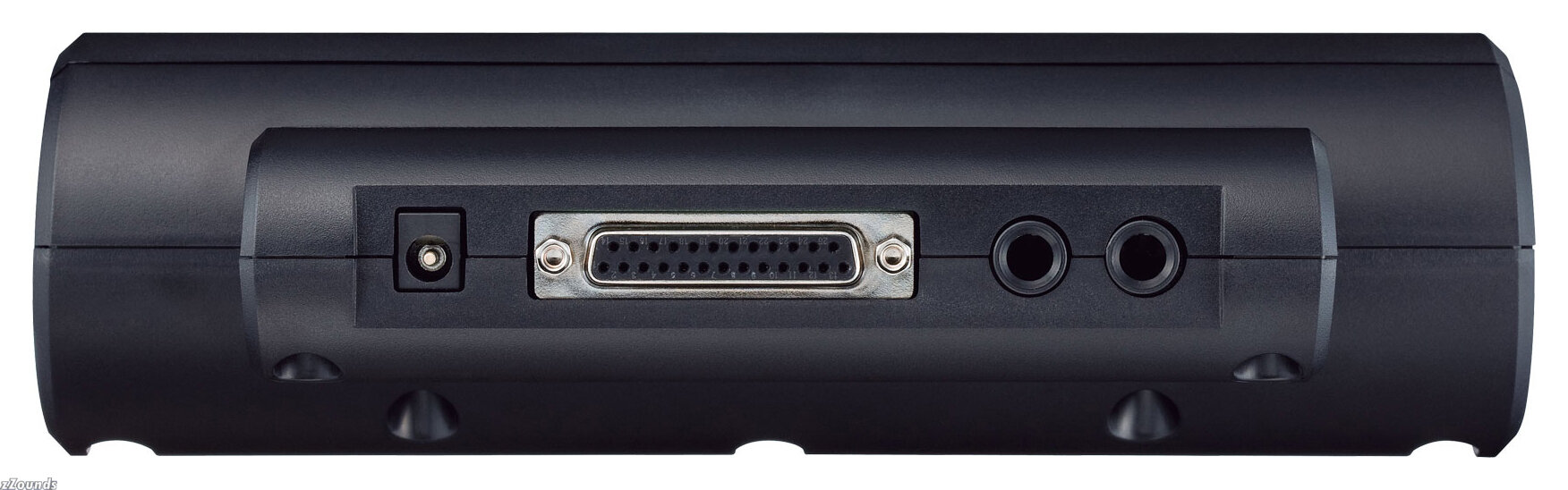

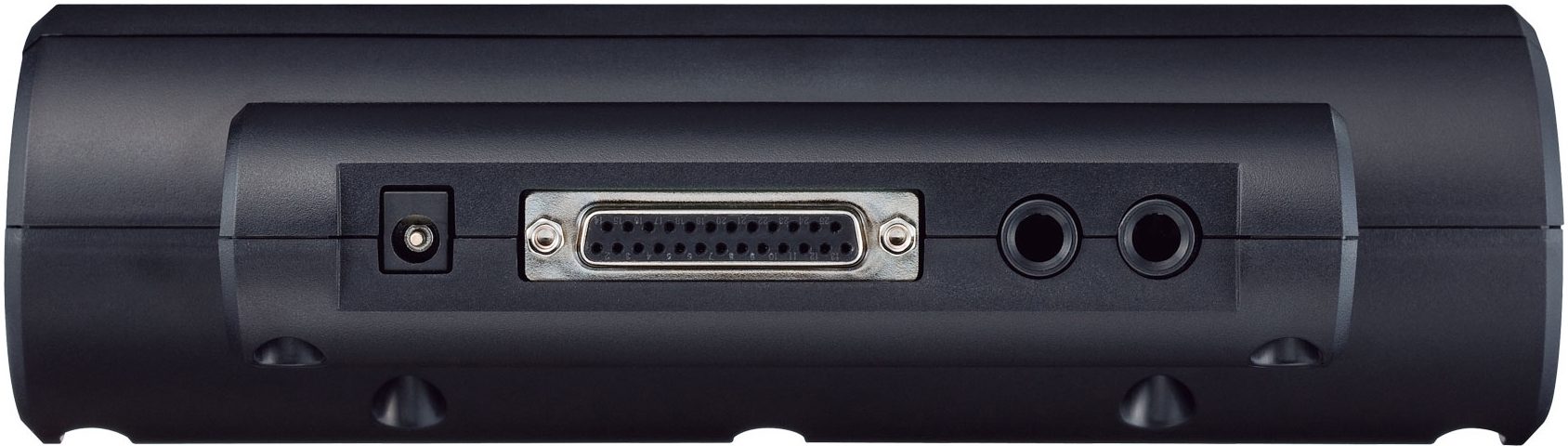

Connectors: Trigger Input connector (DB-25 type), (Kick, Snare, Tom1, Tom2, Tom3, Hi-Hat, Crash1, Crash2, Ride, Hi-Hat Control), Output Jacks (L (MONO), R) (Stereo 1/4 inch phone type), Phones Jack (Stereo 1/4 inch phone type), Mix in Jack (stereo miniature phone type), MIDI OUT Connector

Output Impedance: 1.0 k ohms

Power Supply: AC Adaptor (DC 9 V)

Current Draw: 500 mA

Accessories Included: Owner's Manual, AC Adaptor (PSB-1U), Special Connection Cable, Wing Bolt (M5 x 10) x 2, Sound Module Mounting Plate

Optional Accessories:
Pads: PD-8, PDX-8, PD-85, PD-105, PD-125, Cymbals: CY-5, CY-8, CY-12R/C, CY-14C, CY-15R, Kick Triggers : KD-8, KD-85, KD-120, Hi-Hats: VH-11, Hi-Hat Control Pedal: FD-8, Stand: MDS-4, Cymbal Mount: MDY-10U, Pad Mount: MDH-10U, Acoustic Drum Trigger: RT-10K, RT-10S, RT-10T, Personal Drum Monitor: PM-10, PM-30, V-Drums Accessory Package: DAP-3, V-Drums Mat: TDM-20/TDM-10
