An Entirely New V-Drums Experience

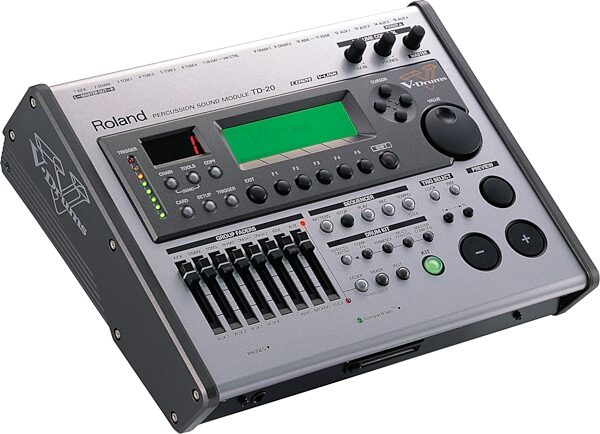

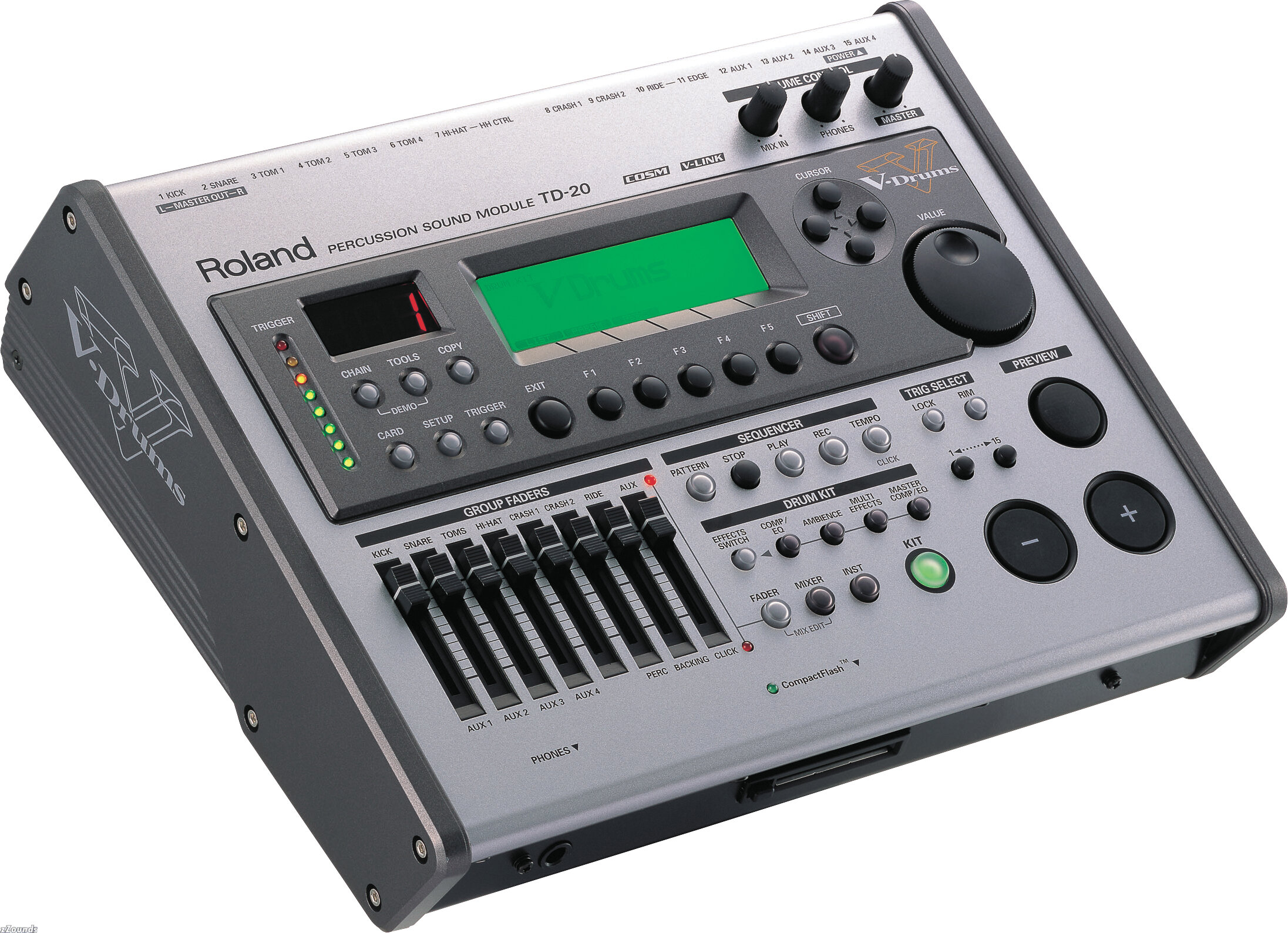

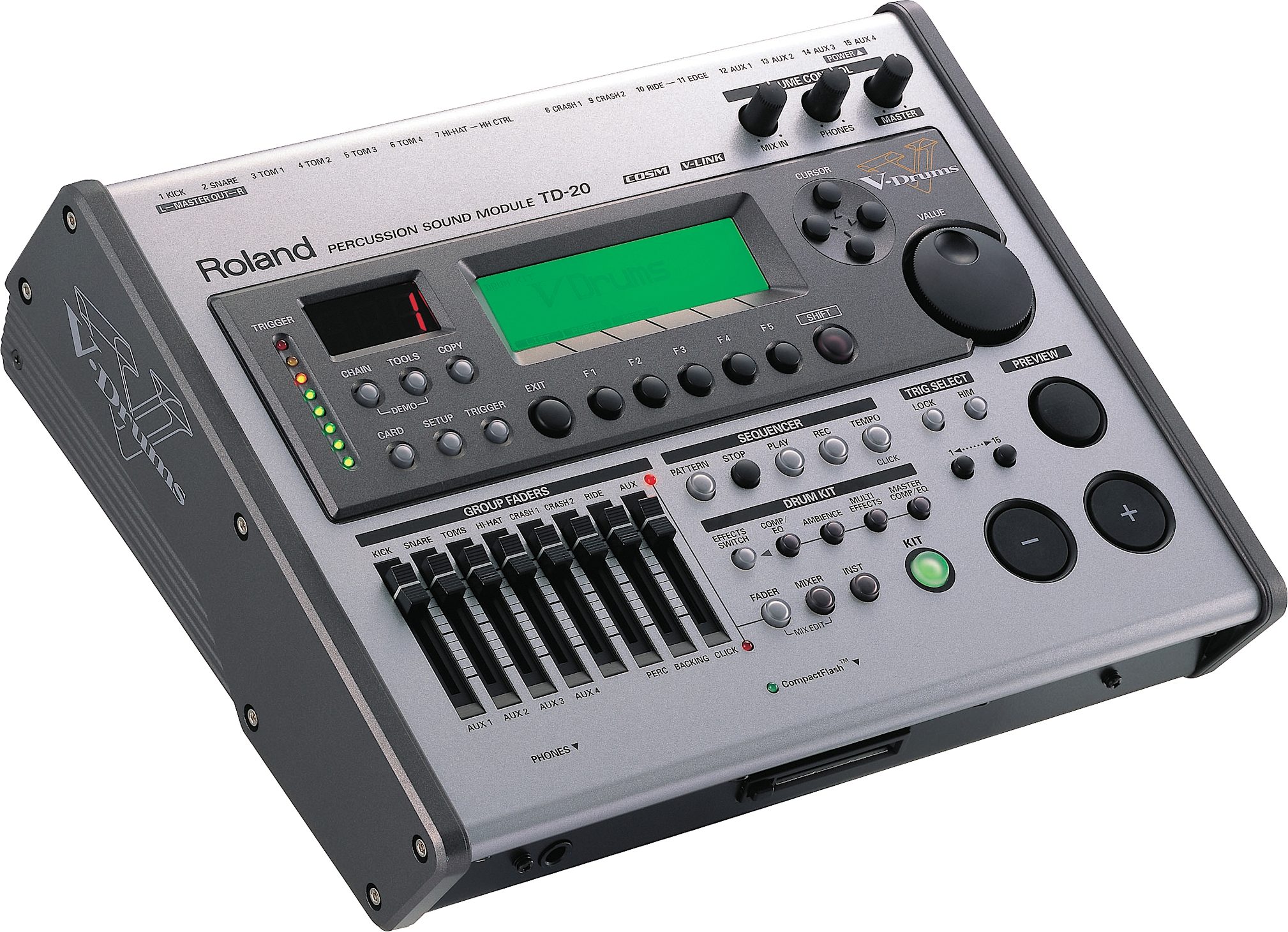

Without a doubt, the new TD-20 is Roland's best percussion sound module ever, offering the ultimate sonic quality, over 500 new sounds, plus superb expressiveness and dynamic range when used with the new PD-125BK/105BK V-Pads and VH-12 V-Hi-Hat. With the superior sensitivity, drummers can play more naturally and without having to adjust their playing technique. The TD-20 includes the ability to vary the rim shot and bass drum sounds depending on how you play, plus new interval control for better snare drum rolls and more realistic cymbal swells. Close your eyes. Listen to every articulation and sound being faithfully re-created until the moment your cymbal fades away, and you'll swear this is a real acoustic set.
More Powerful V-Editing
The TD-20 gives drummers even greater modeling power using Roland's latest COSM technology. Vastly expanded for unlimited expression, the TD-20's V-Editing starts from careful analysis of an entirely new set of drum sounds. The result captures every nuance of the real thing-including every moment of drum vibration and complete customization capabilities. For example, drummers can now select from several types of kick beaters including felt, wood and plastic. The cymbal size can also be changed, along with the type of 'sizzle' (i.e. rivets or chain), and the microphone position. The TD-20 even lets drummers add realistic snare drum 'buzz' (the resonance created on the tom and bass drum) that matches the type of snare drum selected. It's the subtle nuances like these that really make the difference during performance and recording.
Enhanced Performance Features
Whether used live or in the studio, the TD-20 offers a host of powerful features designed to make life easy. Eight group faders are provided for adjusting the relative levels of each part (snare, kick, hi-hat, etc.), while 15 individual compressors and EQs let you sculpt each sound to perfection. The TD-20 also includes a 5-part sequencer loaded with preset backing patterns and plenty of room for your own?plus onboard Ambience effects, a stellar multi-effects processor and more. A new Mastering Room lets you add compression and EQ on the overall sound, while 10 analog outputs and a S/DPIF digital output give drummers plenty of options when mixing live or in the studio.
Convenient CompactFlash Storage and More
New to the TD-20 is a CompactFlash slot, which can be used for storing custom drum kits and sequencer patterns with optional memory cards. An expansion bay located on the underside means there's room for upgrades down the road. The TD-20 also features Roland's V-LINK technology. Using an optional video editor from Edirol, drummers can trigger images or change cameras from the pads or kick.
Technical Info
Specifications
Sound Generator: Variable Drum Modeling
Maximum Polyphony: 64 Voices
Instruments:
- Drum Instruments: Over 500
- Backing Instruments: 262
Drum Kits: 50
Drum Kit Chains: 16 chains (32 steps per chain)
Instrument Parameters:
- V-EDIT: Shell Material, Shell Depth, Head Type, Head Tuning, Muffling, Strainer Adjustment, Snare Buzz Level, Beater Type, Cymbal Size, Sizzle (cymbal), Tambourine (hi-hat), Mic Position
- EDIT: Pitch, Decay
Ambience Parameters: Studio Type, Room Size, Wall Type, Mic Position
Mixer Parameters: Volume, Pan, Output Select
Effect Types: Pad Equalizer x 15, Pad Compressor x 15, Multi-Effects, Master Compressor, Master Equalizer, Reverb/Chorus (for backing part)
Percussion Groups: 8
Sequencer:
- User Patterns: 100
- Parts: 6
- Play Functions: Oneshot, Loop, Tap
- Tempo: 20-260
- Resolution: 192 ticks per quarter note
- Recording Method: Real-time
- Maximum Note Storage: Approx. 20,000 Notes
- Click Instruments: 20
Display: 64 x 240 dots (backlit graphic LCD), 8 segments, 3 characters (LED), Trigger Level Indicator (LED)

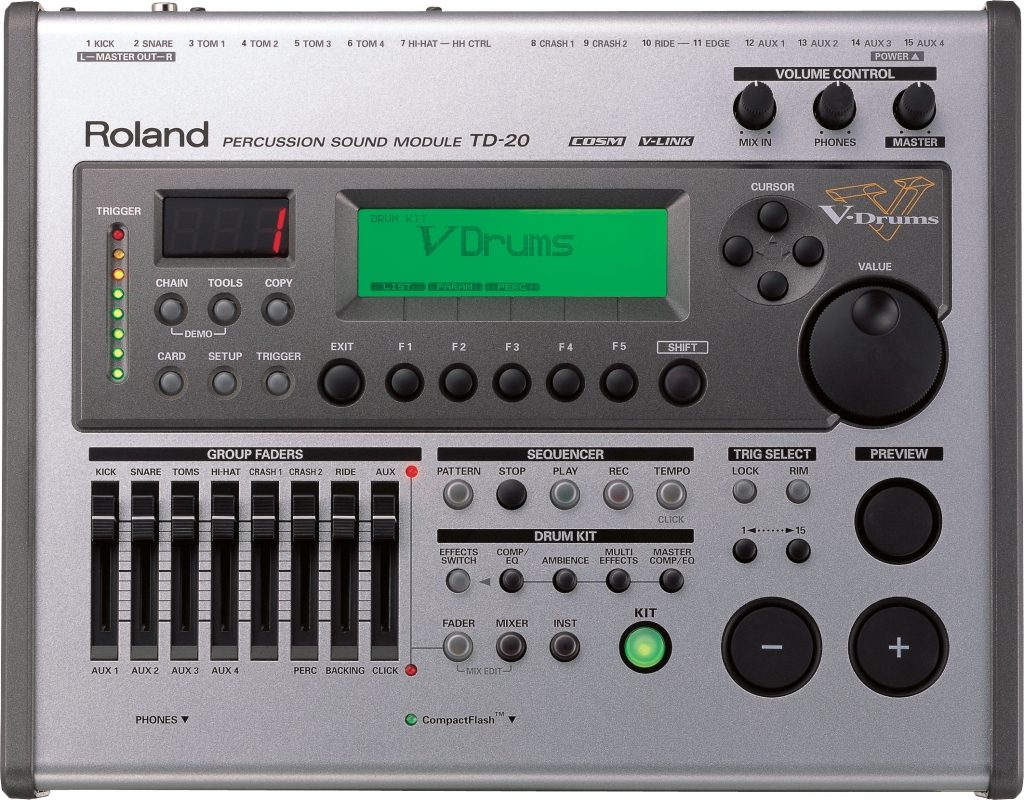

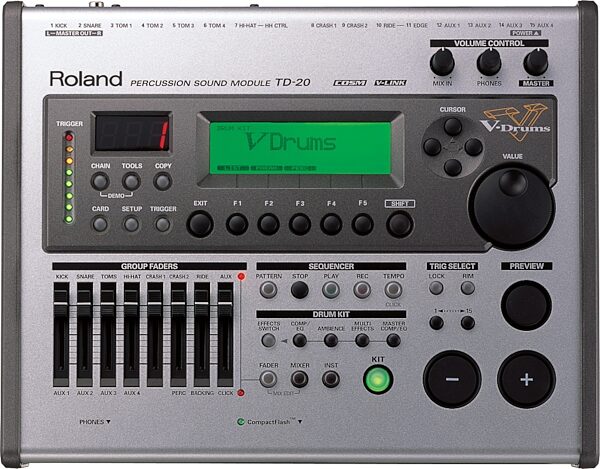

Faders: 8
Preview Button: Touch Sensitive

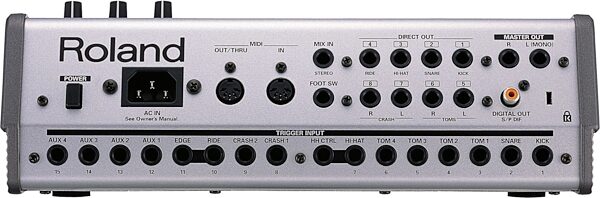

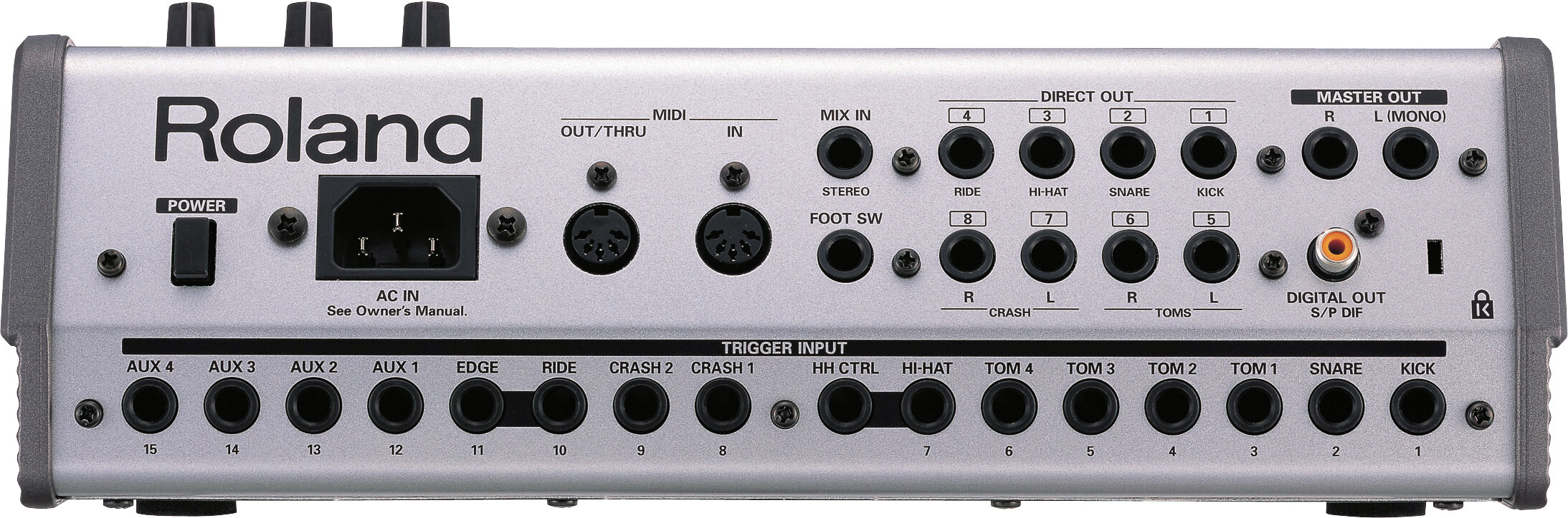

Connectors: Trigger Input Jacks x 14, Hi-Hat Control Jack (VH-12, FD-7), 3-way Triggering Jack, Master Output Jacks (L(MONO), R), Direct Output Jacks x 8, Digital Output Jack (S/PDIF COAXIAL), Phones Jack (Stereo 1/4 inch phone type), Mix in Jack (Stereo 1/4 inch phone type), MIDI Connectors (IN, OUT/THRU), Foot Switch Jack (1/4 inch TRS phone type), CompactFlash Card Slot
Output Impedance: 1 kOhms
Power Supply: AC 117 V, 230 V, 240 V
Current Draw: 16 W
Dimensions (W x D x H): 12-1/8 x 10-1/8 x 4-3/16 in. (307 x 256 x 105 mm)
Weight 2.9 kg / 6 lbs 7 oz
Accessories: Quick Start, Owner's Manual, Power Cable
