Roland GKKITGT GR-Synth Driver GK2AH and Hardware (Internal Mounting)

Newly redesigned and easy to use, the GK-2AH pickup mounts on your guitar to connect to the VG-88, VG-8, GR-33, GR-30, and GI-10. Its slim design allows it to easily mount onto almost any steel string guitar, electric or acoustic. It allows you to control the synth volume and provides control over the mix of the guitar and synth sounds. The control unit mounts to your guitar's strap button and a metal bracket mounts the pickup to the control unit.

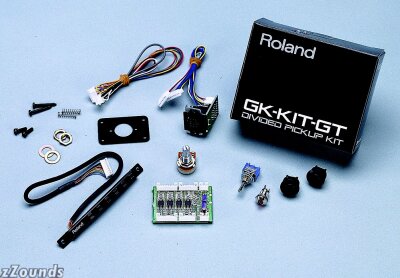

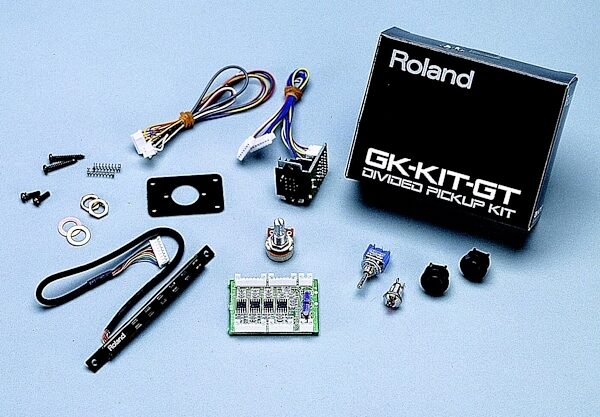

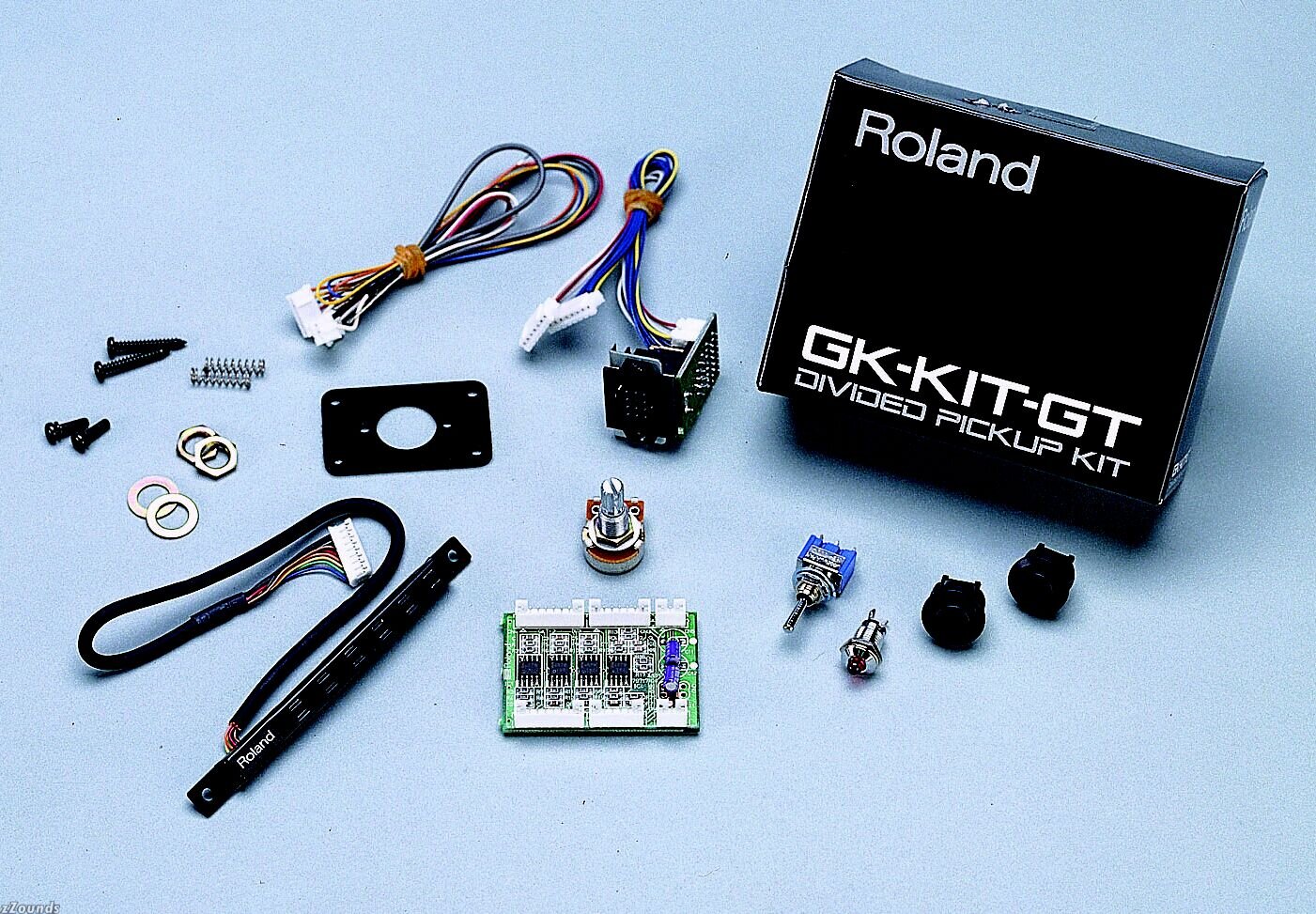

This kit includes all parts for permanent installation of a GK-2A Divided Pickup into an electric guitar: a GK-2A Divided Pickup, circuit board, switches, power indicator LED, 13-pin connector, wiring and hardware. Professional installation is required.

Features:
Divided guitar pickup for use with Roland V-Guitar System, GR-33 Guitar Synthesizer, or BOSS GK Effect Pedals

3-position switching between divided pickup, natural bass pickup, or mix of both

Mounts on any electric or steel-stringed acoustic guitar

Technical Info

Connectors: Guitar In, GK Out (13-pin)

Dimensions: 80 W x 77 D x 34mm H (3-3/16 x 3-1/16 x 1-3/8 in.)

Weight: 70 g (2.5 oz.)
