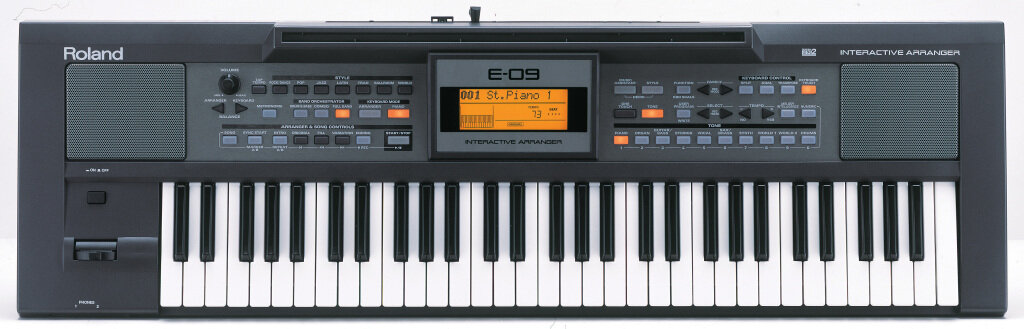

Roland E09 Interactive Arranger

Its price might say "low end," but the E-09's sounds and styles are nothing but first class. Building on the success of Roland's popular E-series arrangers, the E-09 ushers in a brand-new look, feel, and sound for the family. With its new high-quality sound engine, pro-style appearance, and powerful specifications -- including a newly designed library of sounds and interactive styles -- the E-09 raises the quality standard for entry-level arrangers.

Features
Newly designed musical styles, including Western, Middle East, and Asian

High-performance speaker system onboard 7.5 W + 7.5 W

New high-quality sound engine; GM2 compliant

64-voice polyphony

800-plus tones, 70 drum kits

47 Multi-FX plus reverb and chorus

16-Track recorder with Easy Mode

Friendly Music Assistants, One-Touch settings

International Appeal
With a global array of interactive musical accompaniments onboard, the E-09 puts a world of colorful and authentic music under your fingertips. Master programmers from around the world have created special Styles for the E-09, spotlighting the Western, Middle Eastern, and Asian cultures.

Low Profile, Big Sound
The E-09 introduces a new professional-grade industrial design to the E family. Its black metallic finish, coupled with a slim, streamlined chassis design, makes the E-09 eye catching and easy to transport. Despite its slim physique, the E-09 outputs an impressively big sound from its built-in stereo speaker system. You can enjoy playback three ways with the E-09: through headphones, through the built-in speakers, or through external amps and sounds systems via its line outputs.

16-Track Recorder
Music teachers and students will find the onboard 16-Track Recorder useful when learning how to play a song. You can record your performance with or without the arranger accompaniment, and students then can refer to the recording as a guide. Is the song or the teacher's performance too fast? Just slow down the tempo. Need to listen or practice the same section a couple of times? Use the marker/repeat function to specify a region to play repeatedly. Study and have fun with the E-09.

Technical Info

Keyboard: 61 keys (with velocity)

Sound Generator
Maximum polyphony: 64 voices

Parts: 16 parts + keyboard part

Wave memory: 32 M bytes equivalent

Tones: 614 + 256 (GM2), drum sets: 61 + 9 (GM2)

Effects: multi-FX: 47 types, reverb: 8 types, chorus: 8 types

Transpose: -12 to + 12 (in semitones)

Arranger
Tempo: 20 to 250

Styles: 130 Styles

Band orchestrator: 3 types: Drum & Bass, Combo, Full Band

User program: 100 program

One touch setting: 2 setting / style

Control: start/stop, sync start, intro original, fill in, variation, ending, tap tempo, Melody Intelligence: 18 types, Music Assistant: 130 types

Metronome
Signature: 1/4, 2/4, 3/4, 4/4, 5/4, 6/4, 6/8, 9/8

Song Controls
Tracks: 16

16-track recorder mode: 4 easy modes (ALL, Keyboard, Single, Punch In/Out)

Control: start/stop, reording, reset, rewind, forward, marker A-B, repeat A-B

Others
Rated power output: 7.5 W + 7.5 W

Speaker dimension: 10cm

Controllers: pitch bend/modulation lever: 1

Display: large backlit custom LCD

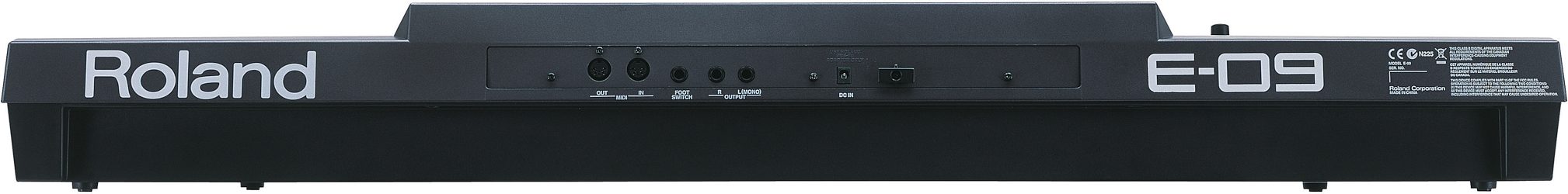

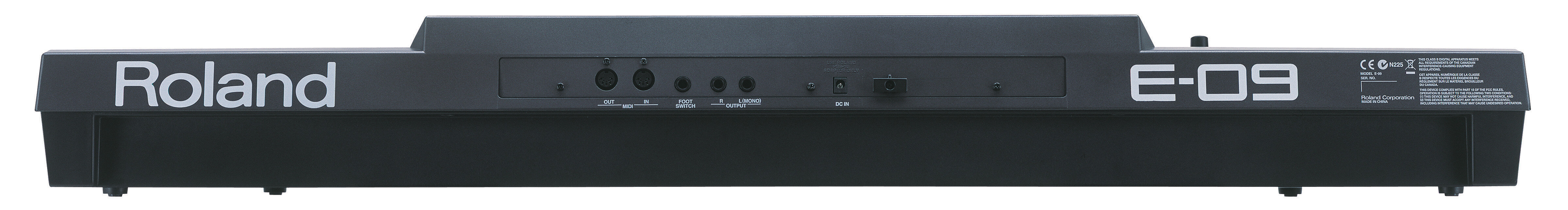

Connectors: output jacks (L/MONO, R), headphones jack 1/2, MIDI connectors (IN, OUT), foot switch jack

Power supply: DC 9 V (AC adapter)

Current draw: 2,000 mA

Accessories: music rest, owner's manual, AC adapter (PSB-1U)

Options: keyboard stand: KS-12, pedal switch: DP Series, foot switch: BOSS FS-5U

Size and Weight
Width: 1,045 mm; 41-3/16 in.

Depth: 320 mm; 12-5/8 in.

Height: 128 mm; 5-1/16 in.

Weight: 7.3 kg; 16 lbs. 2 oz. (excluding AC adaptor)

  Roland E09 Interactive Demo

Don't let the slim chassis fool you; there's some serious power under the hood! You get 61 velocity-sensitive keys, 64-voice polyphony, over 800 tones, and 47 multi-effects. There's plenty of International appeal, with custom song styles for Western, Middle-Eastern, and Asian music. Capture your compositions with the 16-track recorder, then play them back through the onboard sound system.
