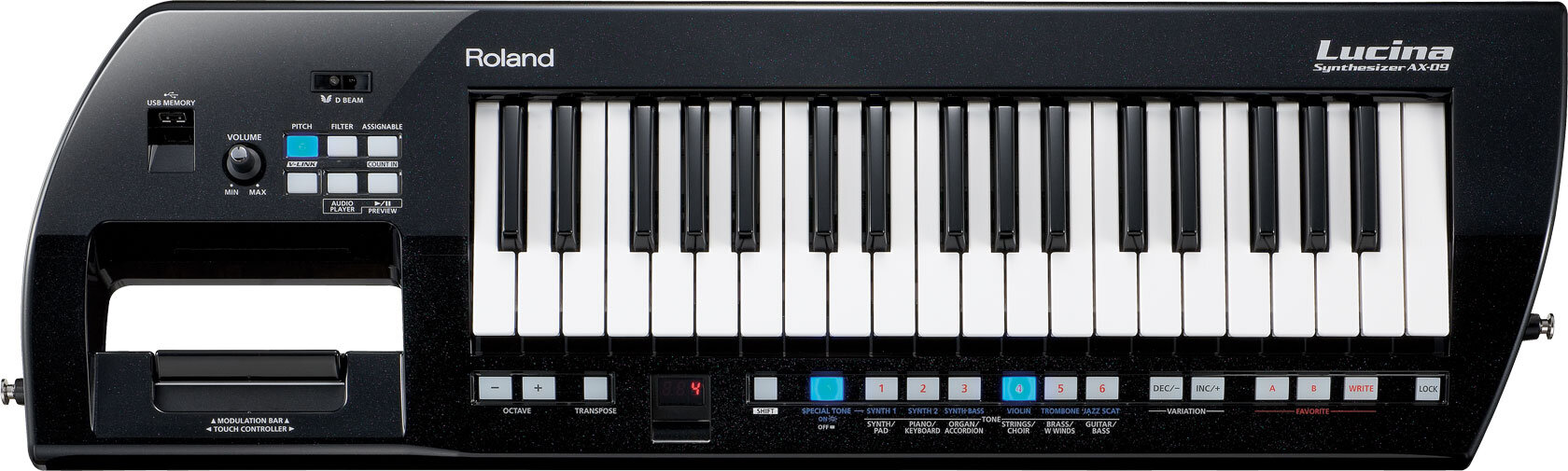

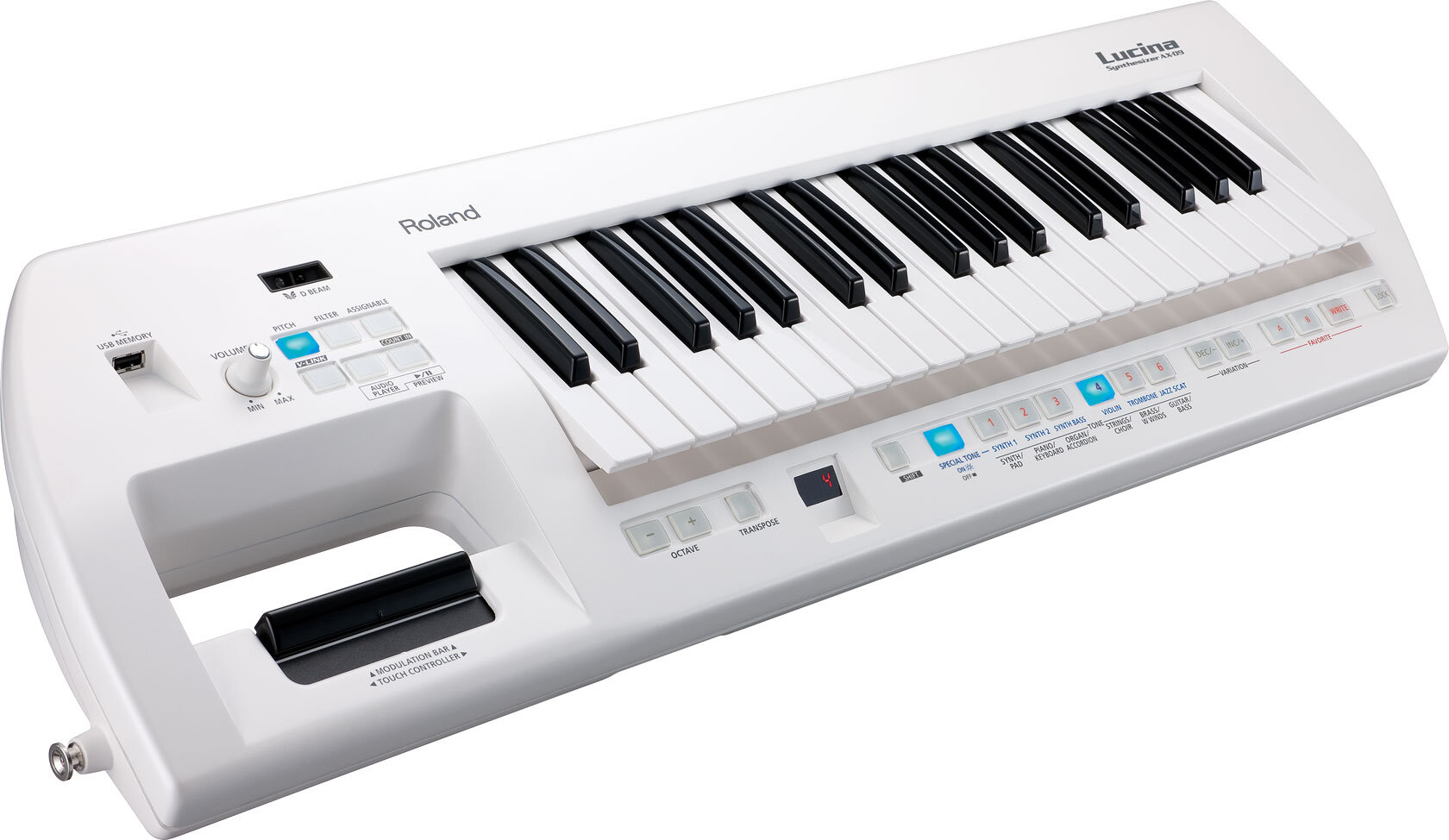

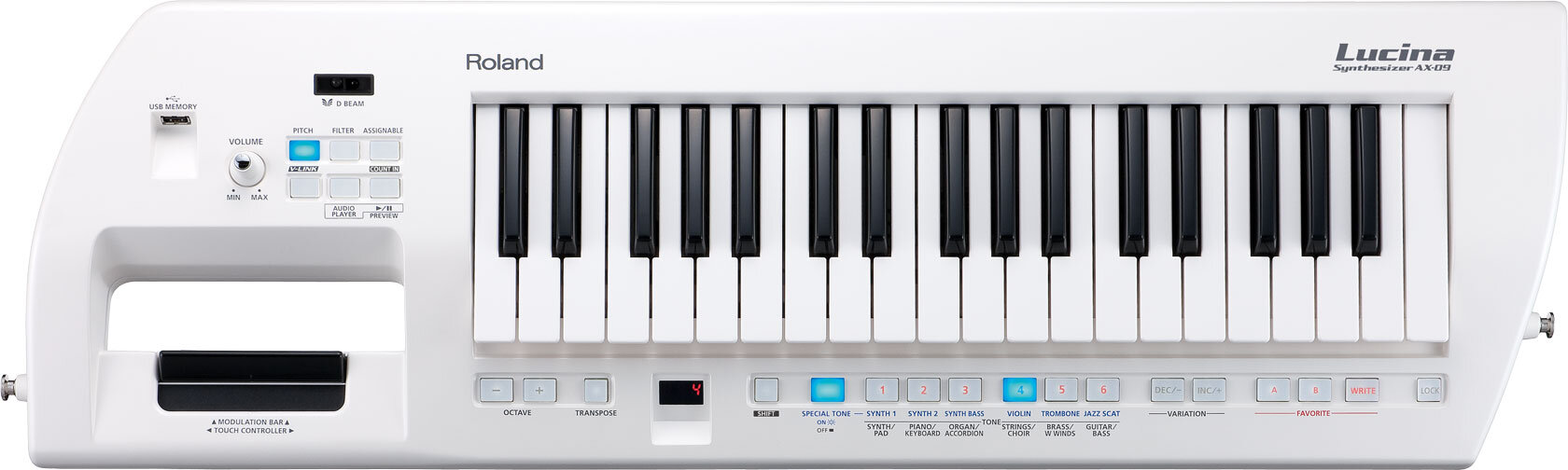

Roland AX-09 Lucina 37-Key Synthesizer

Take a journey through the sonic universe with this keyboard's 150 high-quality sounds.

(11) Read 5 reviews for this product | Rate and Review This Product

Ships to:

Click to Enlarge

Black Sparkle

overview specs docs

Product Description

zZounds is an
authorized Roland dealer

Who says keyboardists need to hide behind their gear? Liberate yourself and roam free with the Lucina AX-09 synthesizer. Lucina is compact, lightweight, and loaded with great sounds, all easily selectable with the onboard Category buttons. Plug in a USB stick and add backing tracks to your performances with the Audio Player function, or plug in an MP3/CD player and jam along with your favorite songs. This ultra-light synth is designed to fit all musicians -- even kids. It's super easy to use yet it packs a heavyweight musical punch with its stellar sounds and expressive controls.

Features

- Stylish, lightweight, compact design
- Easy-to-use, intuitive user interface
- 150 high-quality sounds that cover a wide stylistic range
- 37-note velocity-sensitive keyboard, 128-voice polyphony
- External-In Jack and USB-Memory Audio Player function
- Runs on AC or battery power

Great Sounds

Lucina is packed with dozens of high-quality sounds that span a wide stylistic range - from scorching synth leads to silk-smooth pads. Find the perfect sound quickly with the Category buttons, and press the Preview button to hear the currently selected sound with a pre-programmed riff. Assign your top 12 sounds to the Favorites bank for instant, one-button recall. Volume and reverb level settings can be stored with each Favorite.

Battery Power

Plug into traditional power with an AC adaptor (included) or roam free with batteries. Jam for hours* with eight standard AA batteries installed (Ni-MH AA rechargeable batteries). A battery-strength indicator lets you know when battery power is getting low so you never miss a note onstage.

Audio Player

The built-in Audio Player feature lets you sound like an entire band. Simply load up a USB stick with your favorite songs in MP3, WAV, or AIFF format, plug it into Lucina's USB port, select the song you want, press Play, and jam along!

Hands-On Control

Put a personal stamp on your performances with the expressive controllers built into Lucina. Wave your hands over the invisible D Beam for dramatic effects, and dig your fingers into the Modulation Bar and Touch control to bend, twist, and sculpt each sound you play.

Power Supply: PSB-1U Power Cord (Included)

*Approximately four hours of continuous use per 8-battery load. zZounds is an authorized dealer of Roland products.

Keyboard: 37 Keys (with velocity)

Sound Generator Section

Maximum Polyphony: 128 Voices

Parts: 1 Part

Tones: 150 Tones (Regular Tones 144, Special Tones: 6)

Audio Player Section (playable formats)
MP3:
- Format: MPEG-1 audio layer 3
- Sampling Frequency: 44.1 kHz
- Bit Rate: 32/40/48/56/64/80/96/112/128/160/192/224/256/320 kbps, VBR (Variable Bit Rate)

WAV, AIFF:
- Sampling Frequency: 44.1 kHz
- Bit Depth: 8/16/24 -bit

Others
Controllers: D Beam Controller, Modulation Bar, Touch Controller

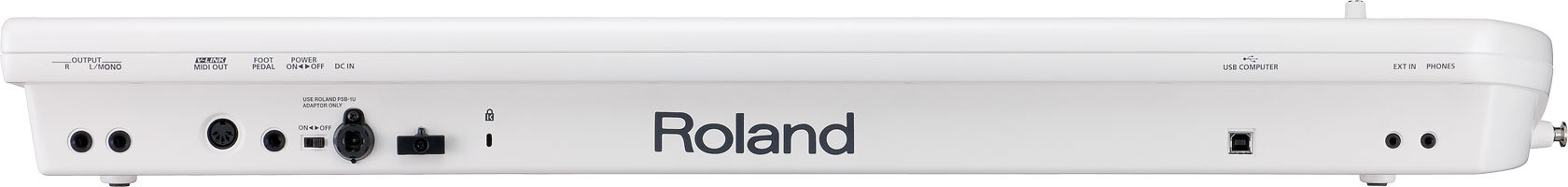

Connectors:
- OUTPUT Jacks (L (MONO), R) (1/4 inch phone type), PHONES Jack (Stereo mini type), EXT IN Jack (Stereo mini type), FOOT PEDAL Jack (Assignable)
- USB COMPUTER Connector (for USB MIDI), USB MEMORY Slot, MIDI OUT Connector (V-LINK), DC IN jack

Display: 7 segments, 3 characters (LED)

Power Supply:
- AC Adaptor

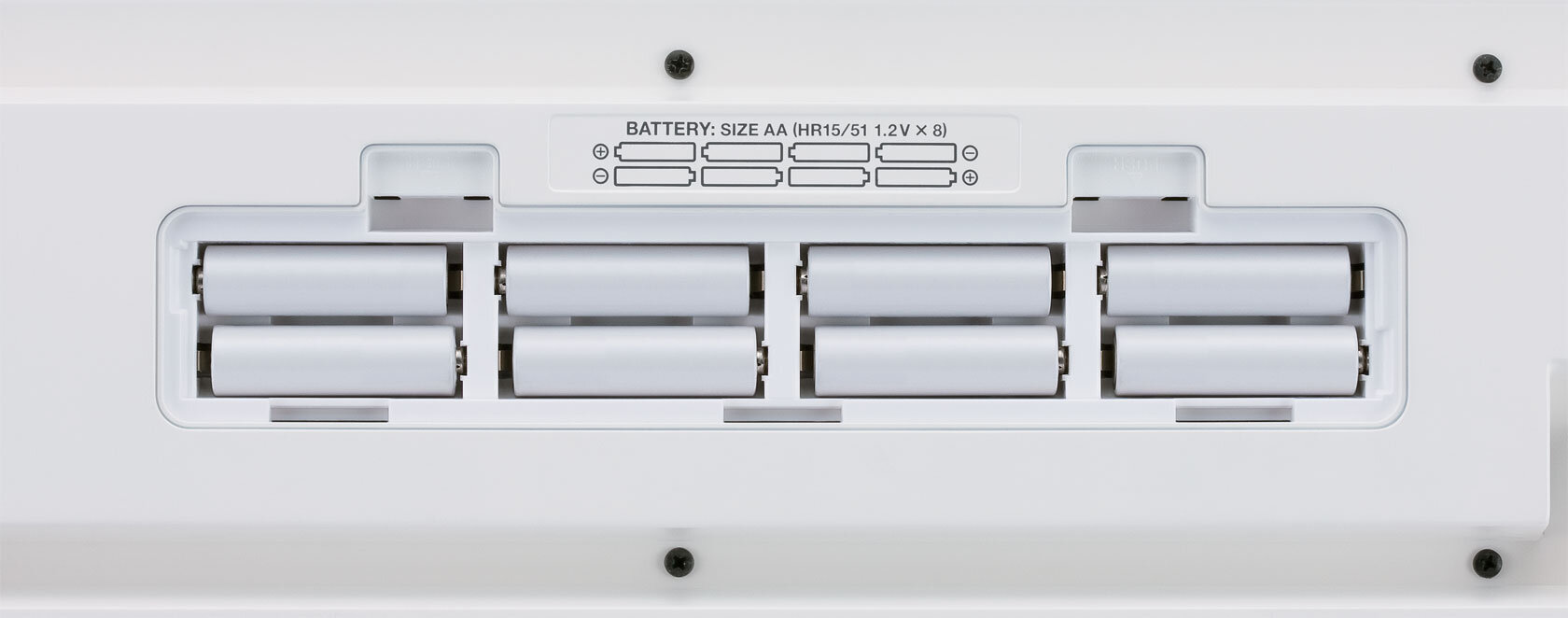

- Ni-MH AA SIZE Rechargeable Battery x 8
- * Do not use alkaline batteries or zinc-carbon batteries.
- * Batteries sold separately.

Current Draw: 600 mA

Battery Life for Continuous Use:
- Ni-MH Rechargeable batteries: approximately 4 hours
- (This figure will vary depending on the actual conditions of use.)

Accessories
- Owner's Manual, Quick Guide, Tutorial DVD, Strap, Panel Sticker, USB MEMORY Connector Cap, AC adaptor ( PSB-1U (S) )

Options
- Pedal Switch: DP Series, Expression Pedal: EV-5, USB Memory

Size and Weight
Width:
- 832 mm
- 32-13/16 inches

Depth:
- 245 mm
- 9-11/16 inches

Height:
- 95 mm
- 3-3/4 inches

Weight:
- 3.7 kg
- 8 lbs. 3 oz.

Use USB memory sold by Roland. We can not guarantee operation if other products are used.

In the interest of product improvement, the specifications and/or appearance of this unit are subject to change without prior notice.

Power Supply: PSB-1U Power Cord (Included)

Dimensions and Weight in Packaging
Pearl White: Shipping Weight: 13 lbs; Shipping Dimensions: 39 x 13 x 6 in
Black Sparkle: Shipping Weight: 13 lbs; Shipping Dimensions: 38 x 13 x 6 in
