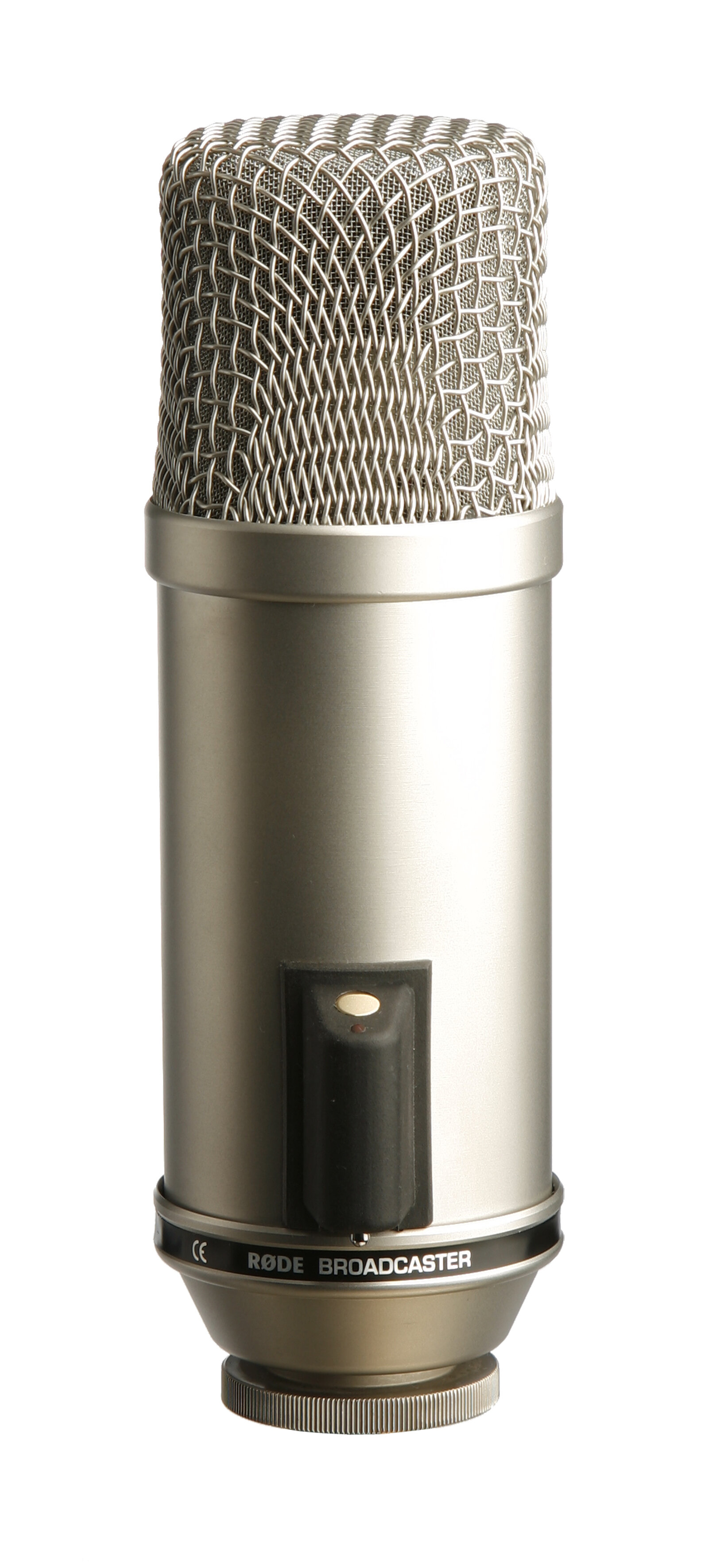

Rode Broadcaster Condenser Microphone

Like its name suggests, this RODE microphone was specifically designed for 'ON-AIR' applications where wide frequency response and low distortion are demanded.

Winner of the Radio World/US National Association of Broadcasters (NAB) 'What's Cool' award in 1998, the Broadcaster has become an industry standard when studio sound quality is required for on air applications.

Utilising an Australian designed and manufactured RODE 1-inch externally biased condenser transducers, the Broadcaster features a switch-able high pass filter to remove low frequency rumble.

A unique 'ON-AIR' LED indicator can be switched on or off by shorting contacts on the 5 pin audio connector. This feature allows console operators to warn the 'Talent' that the mic is live.

Features
- HF2 1-inch capsule with gold plated diaphragm

- On-Air indicator LED

- Ultra low noise

- Voice tailored low-cut feature

- Internal pop filter

- Rugged stainless steel body

Technical Info

Specifications
Power: P48 (48V), P24 (24V) phantom supply

Acoustic Principle: Pressure gradient

Directional Pattern: Cardioid - end address

Frequency range: 20 Hz-20 kHz

Output impedance: 40 Ohm

Signal noise ratio: 80 dB SPL (A - weighted per IEC651)

Equivalent noise: 14 dB SPL (A - weighted per IEC651)

Maximum SPL: 128dB SPL (@ 1kHz, 1% THD into 1KOhm load)

Maximum output voltage: +2dBu (@ 1kHz, 1% THD into 1KOhm load)

Sensitivity: -34 dB re 1 Volt/Pascal (20 mV @ 94 dB SPL) +/- 2 dB @ 1kHz
Weight: 577gm

Dimensions (HxWxD): 167 x 50 x 50 mm

Included Accessories: 5 pin 'on air' indicator adaptor, RM2 stand mount and ZP1 zip pouch

Optional Accessories: WS2 windshield, PSA1 studio arm, DS1 desk stand and Tripod
