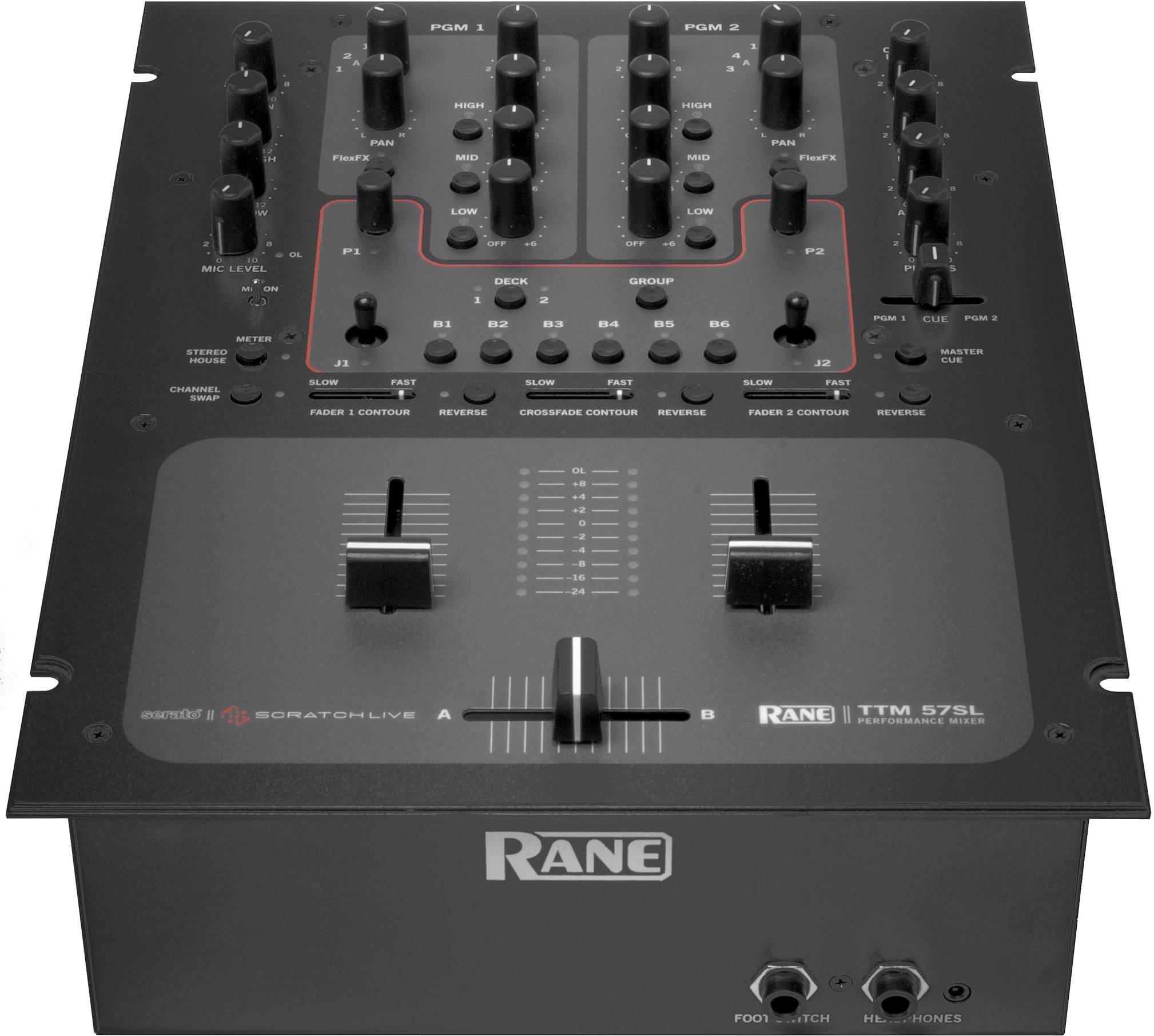

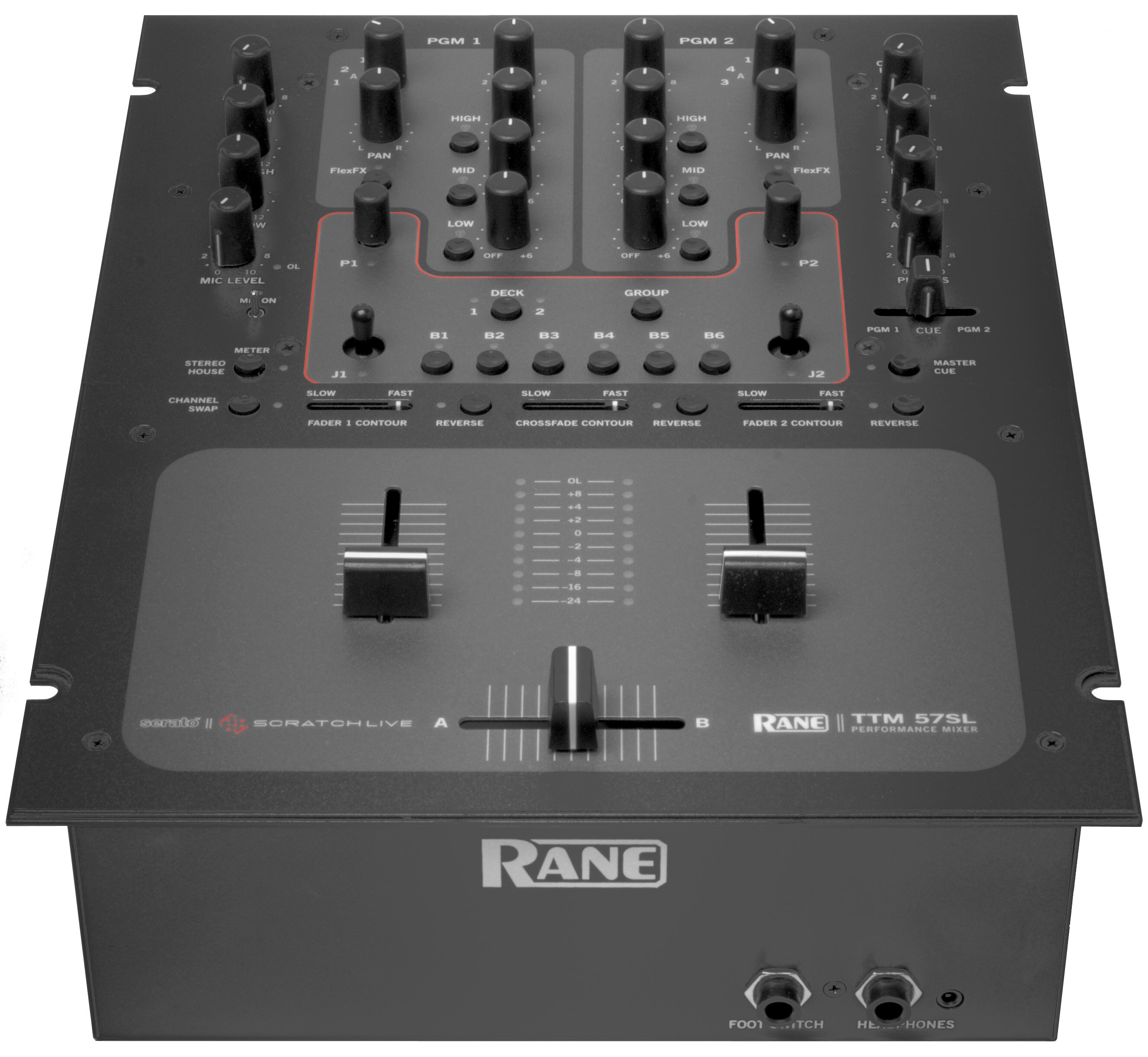

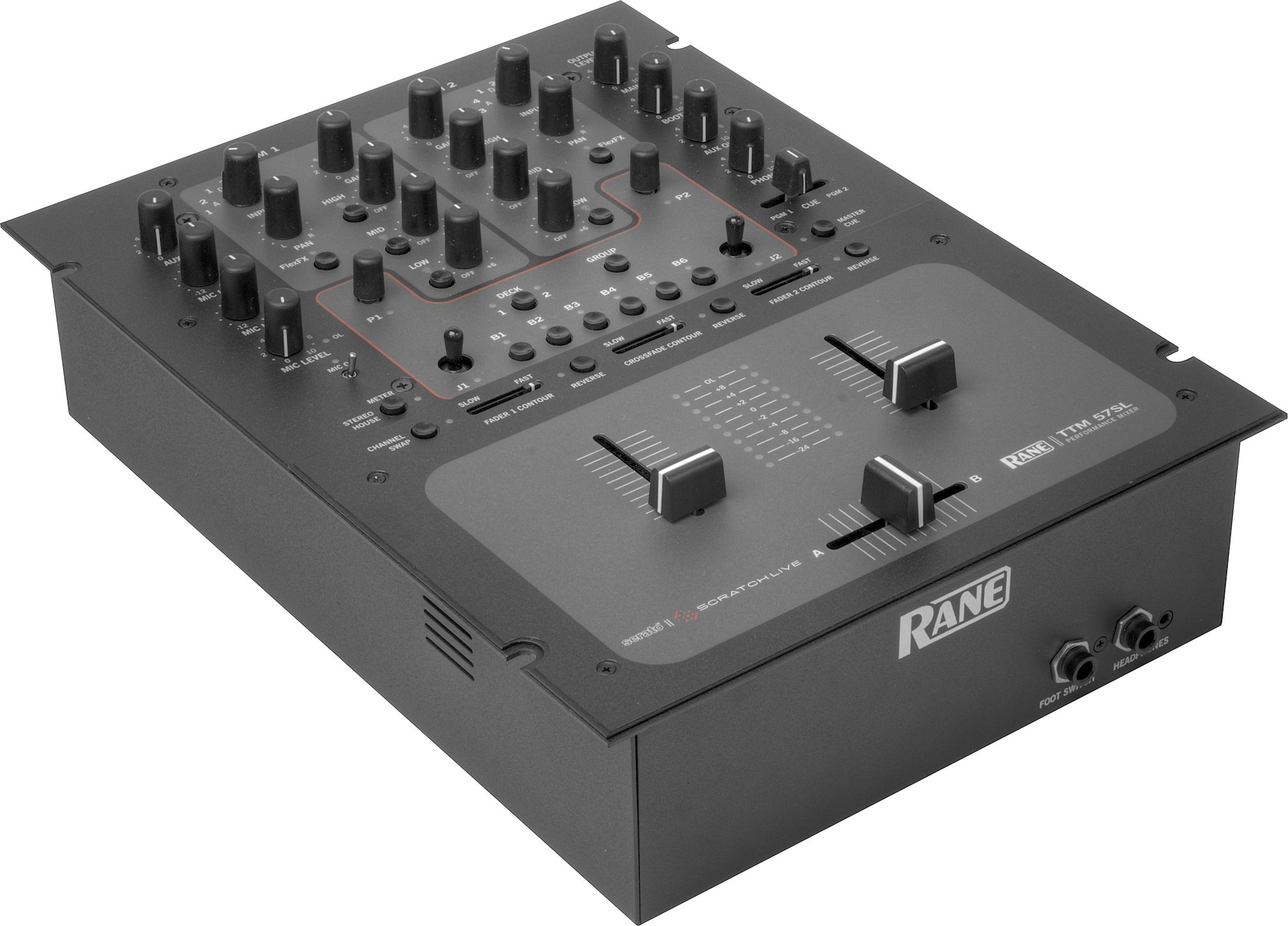

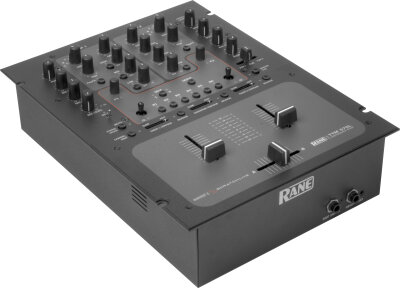

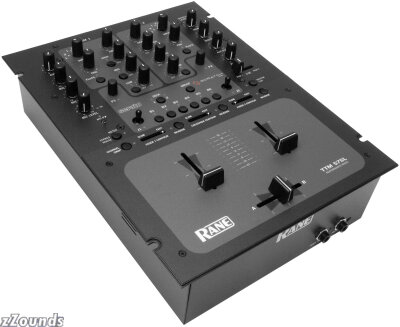

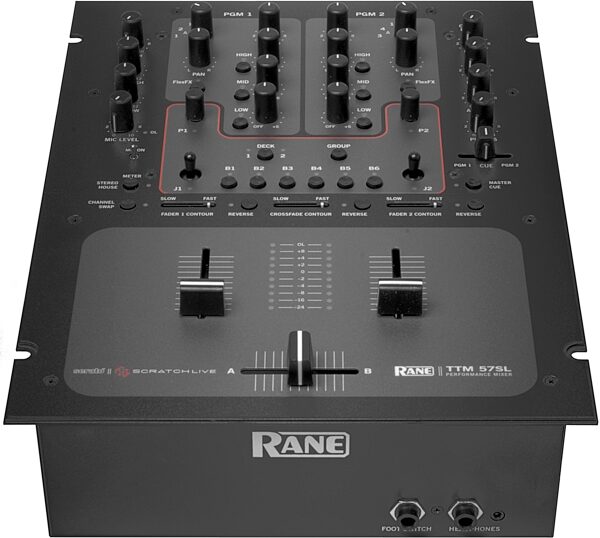

Rane TTM57SL DJ Mixer

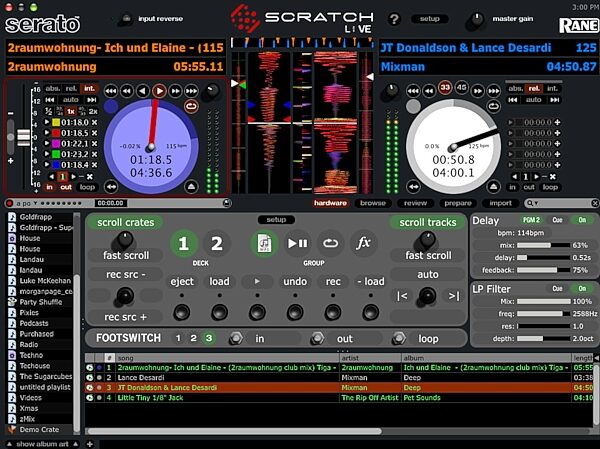

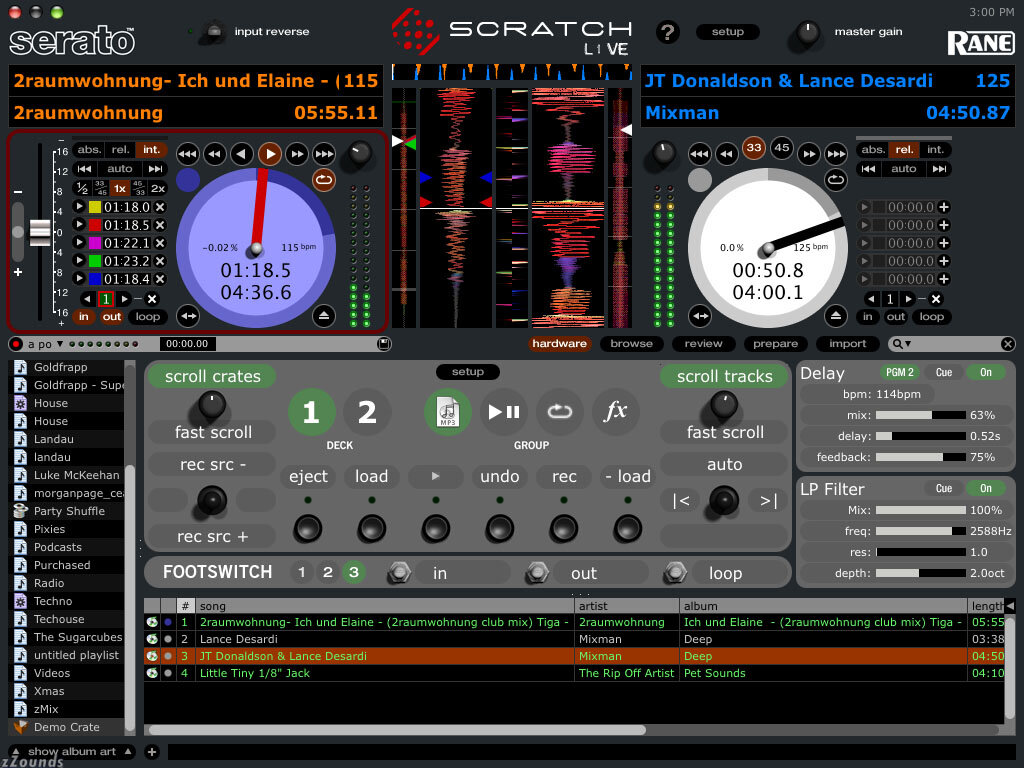

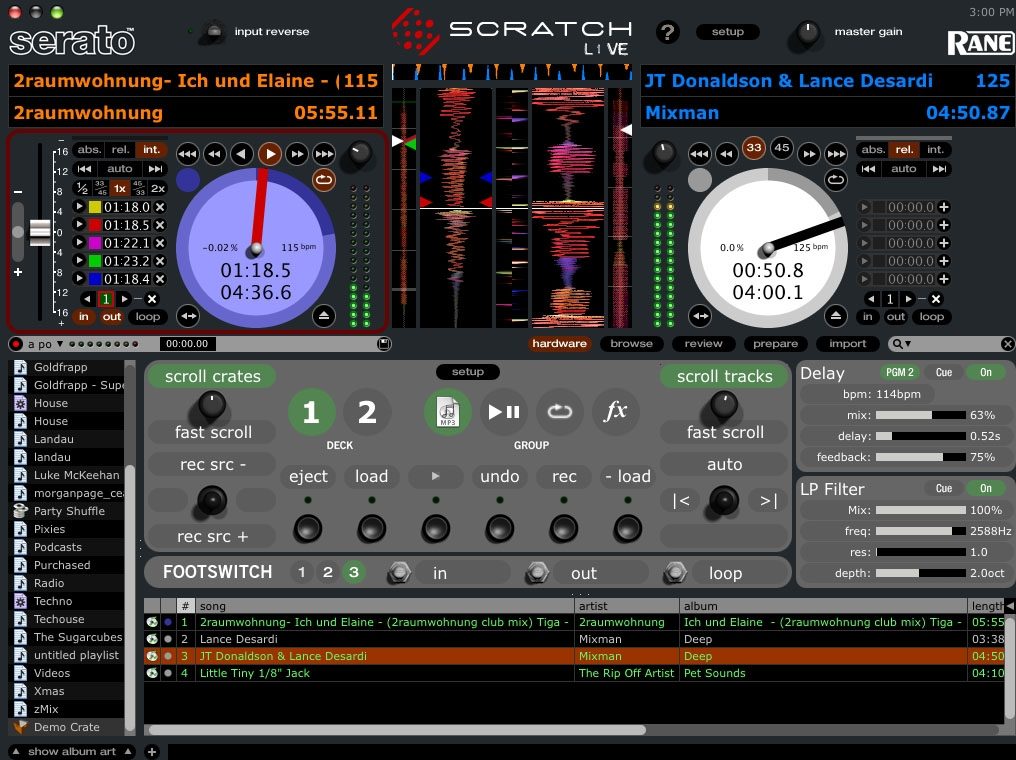

The TTM57SL combines the best Rane and Serato have to offer in a single, high performance mixer. Finally a mixer that fully integrates mixer hardware, software and software controls in one powerful package. The TTM57SL combines all the performance and features of the Rane TTM 56 with Serato Scratch LIVE software. Rane didn't stop there -- they also included internal effects with 6 stereo insert points.

The TTM57SL comes with 2 pieces of control vinyl, 2 control CDs, Scratch LIVE software and an extensive color manual.

Simultaneously
Play a combination of digital and analog sources

Play up to 2 digital files controlled by vinyl or CD while recording your mix

Or, record two stereo sources when not using vinyl or CD control

Cue analog and digital sources

Operate standalone as a no-compromise performance mixer

Applications
Battle/Live Performance DJ

Night Club

Mobile DJ

Radio/Broadcast DJ

Mixtape DJ

Podcasting

Remix Project Studio / Post Production

Features:
2 Input Buses

PGM 1 selects: Analog 1, Analog 2, Digital 1, Digital 2

PGM 2 selects: Analog 3, Analog 4, Digital 1, Digital 2

All analog inputs are phono or line capable

Input Gain and Left/Right Pan controls

3-band, full cut Tone controls with Kill switches

Magnetic faders for Channel Faders and Crossfader

Non-contact magnetic position sensor technology. No travel noise - No bleed - Ever!

Independent Contour and Reverse controls

Microphone Input with Engage switch, Level control and 2-band Tone control

3 sets of Outputs, each with independent Level controls:
Main Out on XLR (balanced)
Booth Out on 1/4" TRS (balanced)
Auxiliary Out on RCA (unbalanced)

Assign Program 1, Program 2 or Both to external FlexFx loop

Internal LFO Filter and Echo Effects with 6 possible insert points

Pre- or Post-channel faders for Program 1 and Program 2

Main Mix

Auxiliary Input Bus

Headphone Cue Monitor includes Cue Pan, Main Mix select and Level

8 Channels of Streaming Audio

16-bit/44.1 kHz Streaming Audio

4 channels from computer: Stereo source Digital 1 and Digital 2

4 channels to computer: Stereo Record 1 and Record 2

Stereo Recording:
Record 1 and Record 2 may record:
Pre- or Post-channel faders for Program 1 or Program 2
Main Mix
Auxiliary Input Bus

Vinyl / CD Control Inputs

Stereo Record 1 may be used for 4-channels of control

Select Analog 1 or Analog 2 for Control Input 1

Select Analog 3 or Analog 4 for Control Input 2

Additional "soft" mixer controls used by Scratch LIVE & internal effects

Foot switch input (Inputs on Tip and Ring; foot switch not included)

Deck 1-2 switch

Group switch

B1 - B6 programmable switches

P1 - P2 programmable Encoders with push switches

J1 - J2 programmable Joysticks with push switches

USB firmware updates

Internal universal switching power supply (100-230 VAC)

Technical Info

Unit size: 13.5 in. H x 10 in. W x 4 in. D (34.3 cm x 25.4 cm x 10.2 cm)

Weight: 8.5 lb (3.8 kg)

Shipping Size: 7.75 in. H x 12.75 in. W x 19.25 in. D (19.7 cm x 32.5 cm x 49 cm)

Weight: 12 lb (5.5 kg)

Analog and digital mixer in one! Use your CD or vinyl turntable to control digital file playback. Includes Serato Scratch Live software for Mac/PC. Play and record 2 stereo channels at once via USB. Two-channel mixer switchable for digital or line/phono inputs. Three-band EQ with kill. Mic input. Onboard effects. XLR, 1/4", and RCA outs. Includes 2 controller LPs and CDs.
