4 Stereo unbalanced RCA jacks
- Phono or Line level input
Rear panel switches for each input
- Phono Response
RIAA +/-1 dB, Gain: 30 dB at 1 kHz
- Max Phono Input
- Max Line Input
24-bit, 48 kHz; Dynamic range 101 dB A-weightedDACs
24-bit, 48 kHz; Dynamic range 107 dB A-weightedDigital Signal Processing
48 kHz, 32-bit floating pointUSB Audio
Six Stereo Record, Four Stereo Playback; 48 kHz, 32-bit floating point
FlexFX Return Stereo unbalanced 1/4" TS (tip-sleeve) phone jack
Stereo unbalanced 1/4" TS phone jackMic Input
Balanced 1/4" TRS & XLR combination jack
- Tone Controls
2-band, High and Low
- Mic-Line level switch
Choose Line to connect wireless receiverLine Outputs: Frequency Response
20 Hz to 20 kHz +/-0.25 dB, Line in to Line out
<0.01 re 0 dBFS, 20 to 20 kHz, 20 kHz BW
- Unbalanced jacks (RCA & FlexFX)
Maximum 4 Vrms
- Balanced jacks (Main and Booth)
Maximum 8 VrmsInternal Universal Power Supply
100 to 240 VAC, 50 Hz to 60 Hz, 15 W maxUSB Power
Mixer is self-poweredUnit Size
: 14.25" x 10.5" x 4" (36.2 cm x 26.7 cm x 10.2 cm)
10 lb (4.3 kg)
Shipping Size 7.75" H x 15" W x 19.25" D
(19.7 cm x 38.1 cm x 49 cm)
14 lb (6.4 kg)
Scratch Live System RequirementsPLEASE NOTE:
These are the minimum requirements to run Scratch Live. For best performance and for use in professional situations we recommend you buy a higher spec computer. We also recommend Intel processors.
- Available 2.0 USB port.
- 1024 x 768 screen resolution.
- 5400 RPM hard drive. 7200 RPM for high-resolution audio playback.
- 2 GB RAM (a large library will like more RAM).Mac
- Intel 1.83 GHz Core Duo or better.
- OSX 10.5.8 or higher.WINDOWS
- Intel processor, 2.2 GHz Core Duo or better.
- Windows XP with Service Pack 3 or higher.
- Windows Vista with Service Pack 2 or higher.
- Windows 7, recommended over Vista.Note 2:
If you are using Scratch Live 2.x's more system intensive features such as DJ FX or AUX Deck plugins and are having issues you may need a higher spec computer for best results or make sure you have optimized your system: Windows 7 and Vista / Mac OS X.
- Dimensions and Weight in Packaging

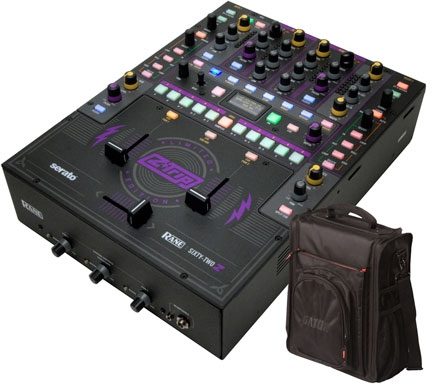

- with Free Gator G Club Mixer Bag
- Shipping Weight: 18 lbs
- Base Item
- Shipping Weight: 15 lbs
