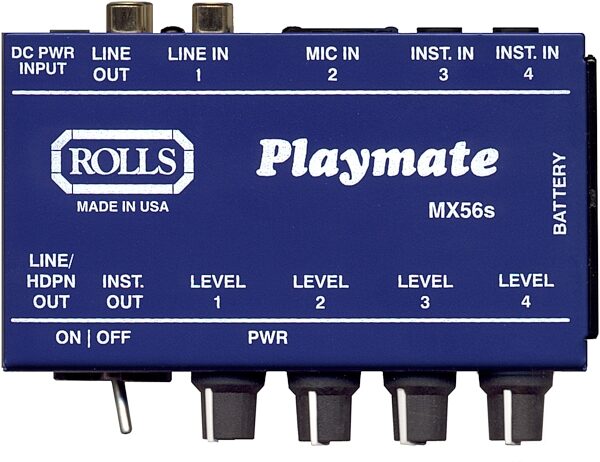

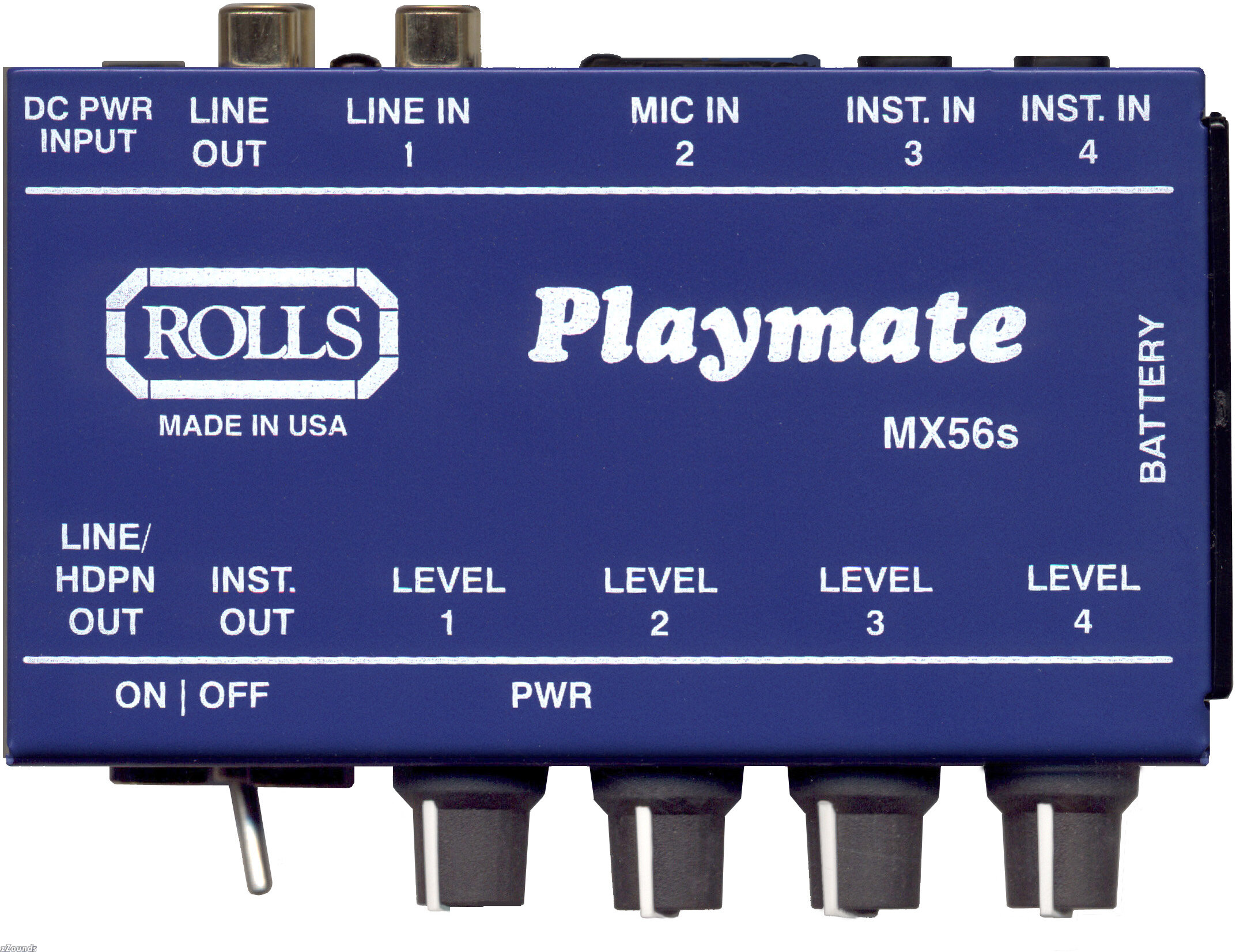

Rolls MX56S Playmate Mixer

Many small groups wish to practice using their home stereo system — the MX56s provides a way to mix a vocalist, a CD or cassette player, and a couple of instruments together, and send the signal to a stereo system power amp or a regular sound reinforcement amplifier.

The MX56s has two 1/4 in. unbalanced inputs, one XLR balanced Mic input, and a stereo RCA (mixed to mono) input. Outputs are dual RCA and individual 1/4 in. instrument and line-level outputs. The MX56s has a power LED and power switch, and comes with a battery. The AC adapter is optional.

Technical Info

Connectors: Input: 2; 1/4 in. unbalanced, 1; XLR balanced, 1; Stereo RCA
Output: 1; Stereo RCA (signal mixed to mono), 1/4 in. TRS Stereo Headphone/Line, 1/4 in. TS Instrument Level
Max Gain:
Ch1; 38 dB
Ch2; 46 dB
Ch3; 32 dB
Ch4; 44 dB
Max Output: +7 dB
S/N Ratio: >80 dB
THD: <.05%
Size: 4.15 x 2.46 x 1.55 in.
Weight: 2 lbs.
