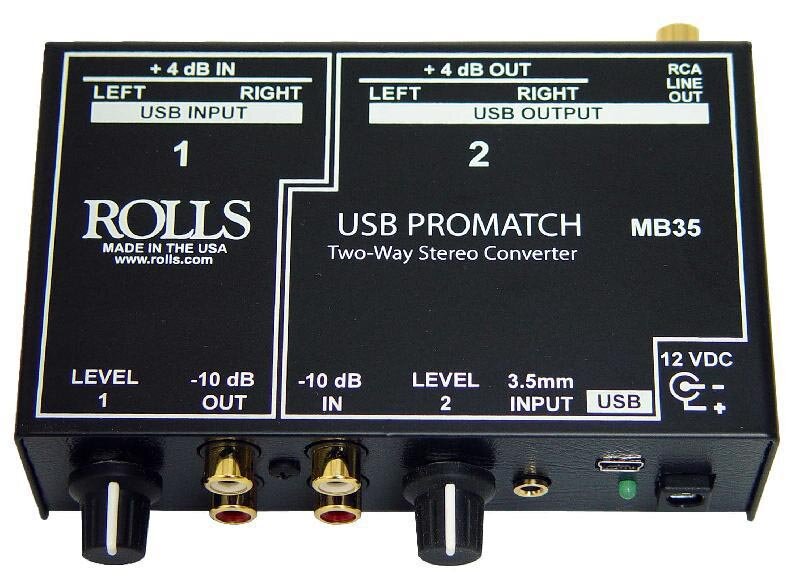

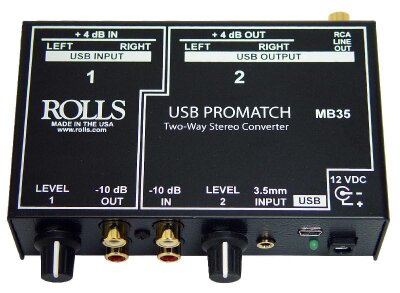

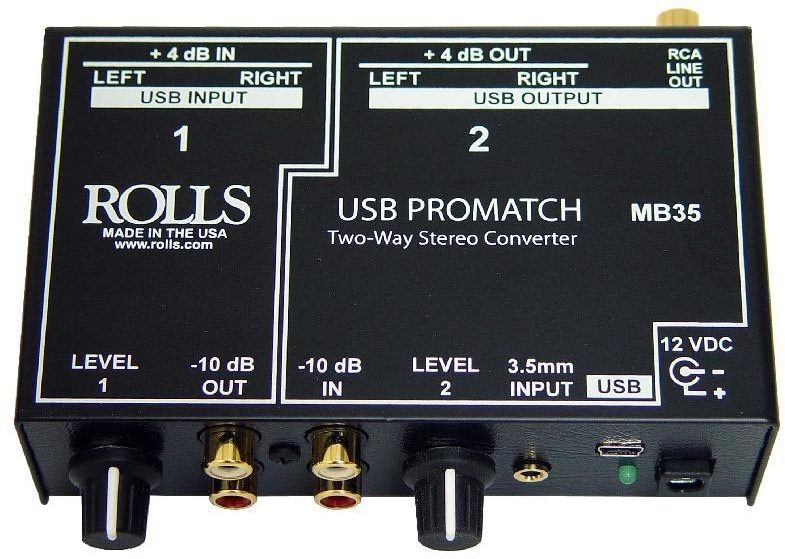

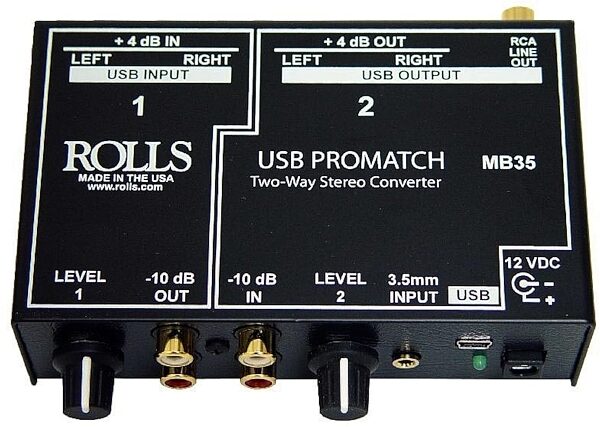

Rolls MB35 Promatch USB Direct Box Level Matcher

The MB35 converts stereo consumer level signals to professional line level signals - and vice versa. It may also serve as a balanced inline level control by patching the four RCA jacks together. IMPORTANT USB NOTE: When connecting the USB, your computer should recognize the connection. Rolls offer no support for using or setting up the USB, or interfacing with applications.

Features
Stereo Direct Box

Stereo RCA to stereo XLR

Stereo Level control for each channel

Works as stereo balanced line level control

1/8 in. Headphone level to line level adaptor

USB input/output for connection to USB 1.0 or USB 2.0

USB Mini-Plug Output

USB uses BurrBrown chip set

Technical Info

Max Out: Balanced: +18 dB, Unbalanced: +12 dB

Max In: Balanced: +22 dB, Unbalanced: +22 dB

Input Impedance: RCA : 100k Ohm, XLR: 10 k Ohm, 1/8 in. stereo: 10k Ohm

Output Impedance: RCA: 100 Ohm, XLR: 100 Ohm balanced

Noise Floor: -88 dB

Gain: +4 dB In: -8 dB, -10 dB In: + 20 dB

THD: .003%

Power: 12 VDC adapter (center negative)

Size: 4.15 x 2.46 x 1.55 in.
