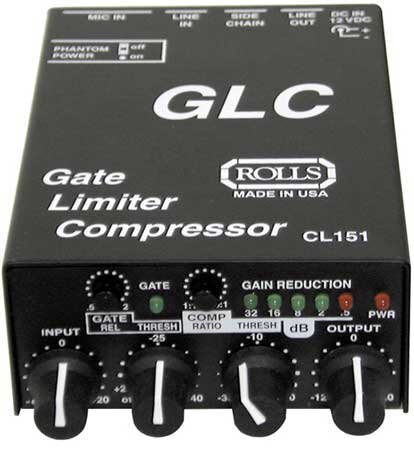

The Rolls CL151 is a very versatile processor and can be used in any application where you need single channel mic or line level input processing. It is primarily designed for connecting studio mics to the inputs of hard disc recorders and has all the input stage processing power you need and an unbalanced 1/4 in. line level output.
Features
- Single channel mic preamp
- Both balanced XLR and unbalanced 1/4 in. inputs
- Switchable phantom power
- Noise gate
- Soft-knee compressor/limiter with Threshold, Ratio, and Output controls
- Gate and Gain Reduction LEDs
- Operates on the supplied AC adapter
Technical Info
Max Input:
XLR: -10 dBm
Balanced 1/4 in.: +14 dBV Balanced
Max Out: +14 dBV Balanced
Noise Floor: -72 dBV, Out Level Min, Gate Off
Phantom Power: 12 VDC
Frequency Response: 10 Hz - 30 kHz, +0 -3 dB
Gate Release Time: 150 mS - 1 S
Gate Attack Time: 5 mS
Comp Attack Time: 5 mS
Comp Release Time: 800 mS
Power: 12 VDC 150 mA adapter (center negative)
Weight: 1 lbs. (.45 kg)
Size: 4.15 x 2.46 x 1.55 in.
