Rain Recording Sketch Pak Mobile Computer Recording Package

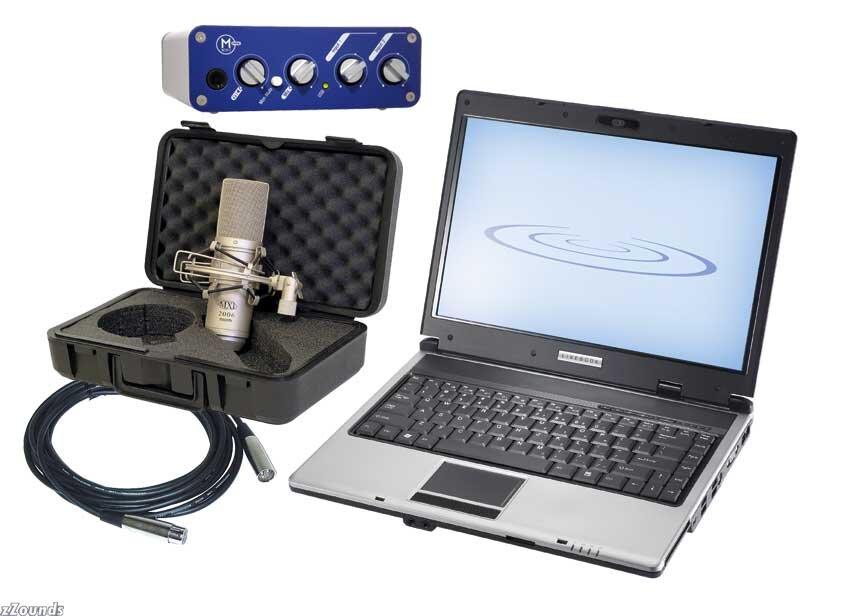

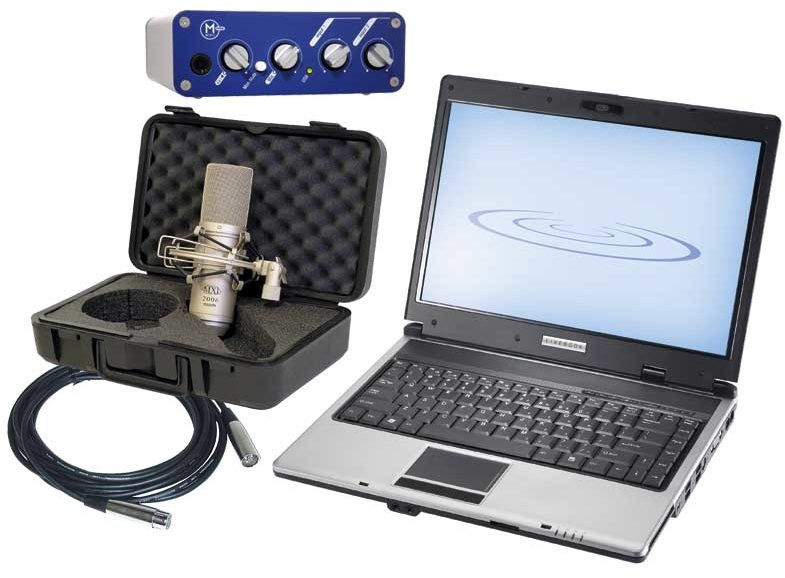

The Rain Recording Sketch PAK Mobile Recording Package includes a Rain Recording Livebook Sketch SK2 Laptop Computer with an Intel Core Solo 1.6GHz processor, 1GB RAM, 80GB Hard Drive, a CD-RW/DVD-ROM drive, and a 14.1 WXGA+ TFT display. Also included is a Digidesign M Box Mini USB Audio Interface with ProTools LE software, and a Marshall MXL 2006 Studio Condenser Microphone with a shockmount and a Whirlwind MC20 20 Foot Microphone Cable. Everything you need for a great start in computer-based recording!

Technical Info

Rain Recording Livebook Sketch SK2 Laptop Computer Specifications:
CPU: Intel Core Solo 1.6GHz T1300 667FSB 2MB L2

Chipset: Mobile Intel 945PM & ICH7-M

Video: Embedded Intel 945GM

Sound System: Built-in Azalia audio chip, Built-in Stereo Speakers and Microphone

Memory: 1GB DDR2 677 MHz 1 x SODIMM Dual Channel RAM

Display: 14.1 in. WXGA (1280x800) TFT LCD Color Shine and Crystal Shine

PC Card Slots: PCMCIA Type II/I

Storage: 80GB ATA 8MB Buffer 5400RPM

Optical: CD-RW / DVD-ROM Combo

Modem: Azalia V.90 Modem

Wired LAN: 10/100/1000 built-in/Realtek Fast Ethernet Controller

Input Devices: Touch pad with 2 click buttons, 88 key keyboard

Battery: Li-Ion 6 cell Smart Li-Ion battery 64W/Hrs, 4 Hours., Built-in gauge IC

I/O Ports:
1 VGA Port for external display
4 USB 2.0 ports
1 S-Video composite TV output
1 1394 B type jack
2 Audio jacks: head phone or SPDIF, Mic-in
1 RJ-11 for modem
1 RJ-45 for LAN
1 PCMCIA Type II Slot
1 4-in-1 Card Reader
1 Port Bar III Connector

Internal Microphone

Built-in Camera

Dimensions: 13.2 x9.9 x 0.89~1.4 in.

Weight: 5.5 lbs. With 6 cell battery

Mbox 2 Mini Specifications
Award-winning Pro Tools LE recording, editing, and mixing software

Comprehensive Pro Tools Ignition Pack audio tool collection

Professional sound quality (up to 24-bit/48 kHz)

2 simultaneous analog inputs and outputs

1 XLR analog input for connecting a microphone

2 1/4 in. line- or instrument-level (DI) analog inputs for connecting guitars, basses, keyboards, synthesizers, and/or drum machines

Zero-latency monitoring

Compact design for maximum portability

Powered by USB (USB 1.1 connection)

Front-panel volume control and monitor mute switch

2 1/4 in. analog monitor outputs

Stereo headphone output

48V phantom power

What’s Included;
Mbox 2 Mini
USB cable
Pro Tools LE software DVD-ROM installer (includes electronic versions of user guides)
Registration information card

Marxhall MXL 2006 Specifications
Type: Condenser pressure gradient mic with large 25mm diaphragm capsule

Frequency Range: 30Hz-20kHz

Polar Pattern: Cardioid

Sensitivity: 18mV/Pa

Impedance: 150 Ohms

S/N Ratio: 78dB (Ref. 1Pa A-weighted)

Equivalent Noise Level: 16dB (A weighted IEC 268-4)

Maximum SPL for 0.5% THD: 130dB

Power Requirements: Phantom Power 48V ±4V

Current Consumption: <3mA

Size: 50mm x 190mm

Weight: 1.3 lb.

Metal Finish: Silver
