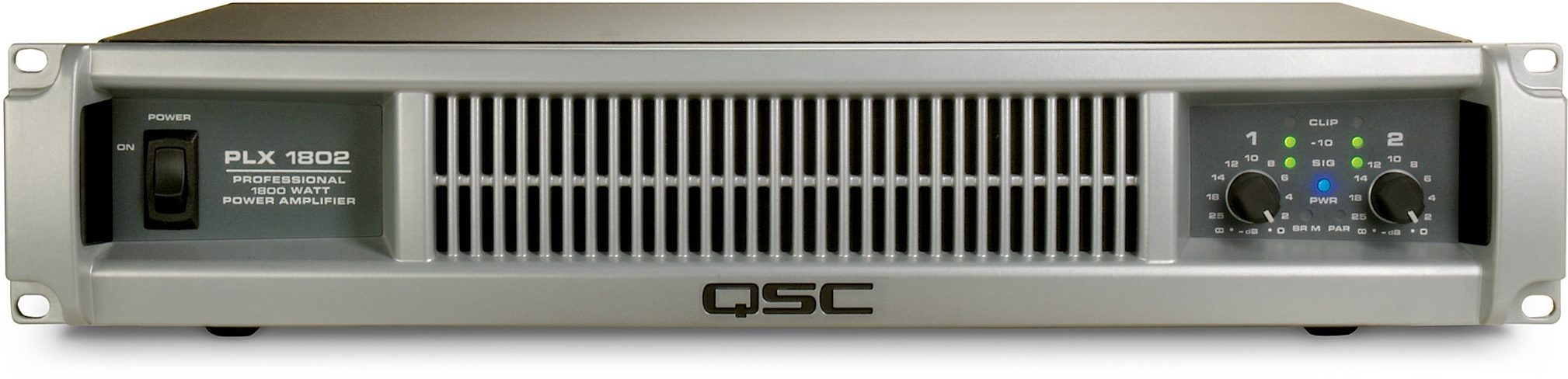

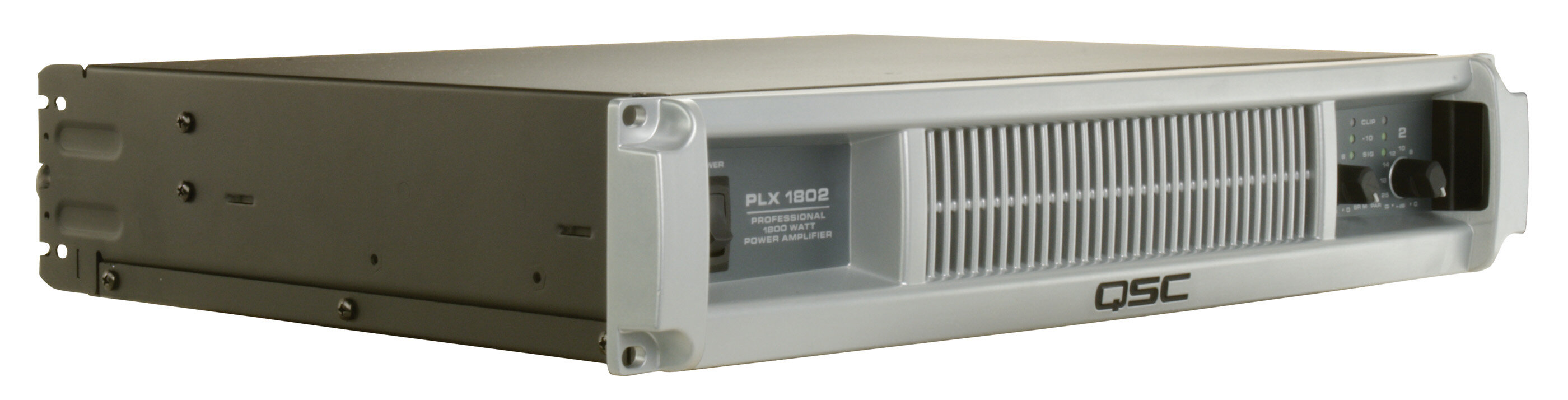

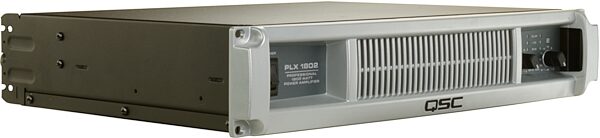

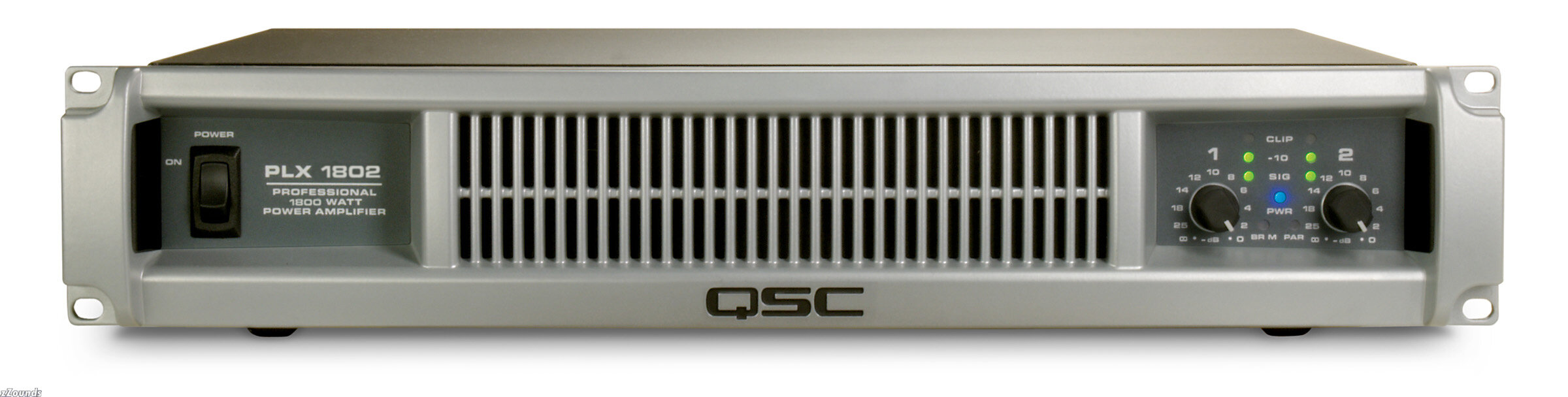

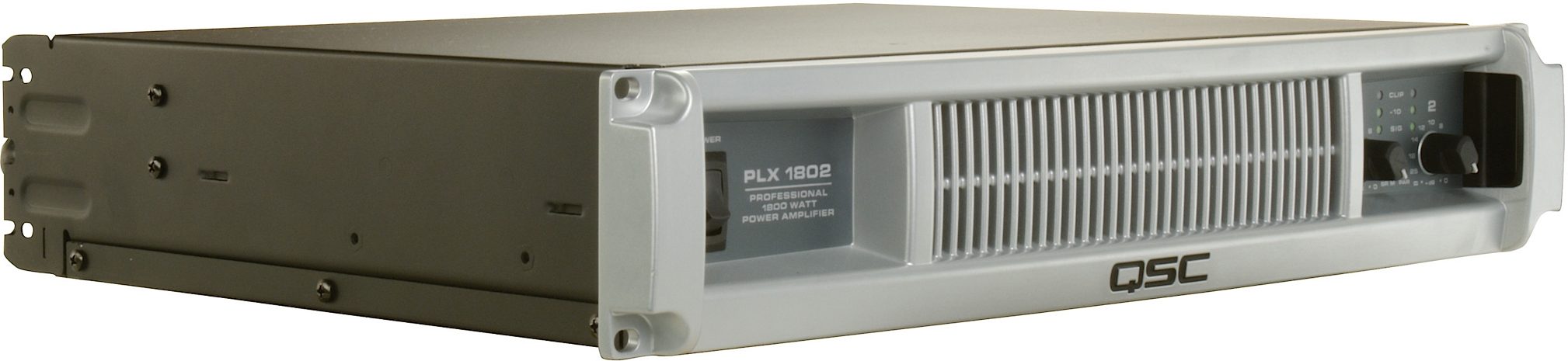

QSC PLX1802 Lightweight Power Amplifier

Manufacturer's Description for QSC PLX1802 Lightweight Power Amplifier

The PLX1802 series is a premium quality, high-power amplifier designed for the most demanding live performance uses. Built on the third generation of QSC PowerLight technology, the PLX1802 combines light weight, superlative audio quality and proven QSC reliability. With a power rating up to 1,800 watts, the PLX1802 is capable of providing plenty of clean, undistorted output to the most power hungry speaker systems.

Features:
- Cooling design exhausts hot air out the front, keeping the rack cool
- Flow-through heat sinks require no filters that could become clogged
- Front panel LED power, clip, -10 dB, and signal present indicators for system monitoring and troubleshooting. Bridge and parallel mode LED indicators
- Speakon NL-4 output connectors provide a positive-locking speaker connection. Ch 1 output uses all 4 wires for single-cable connection to bi-amplified speakers
- 21-position front-panel gain controls for precise, repeatable amplifier adjustment

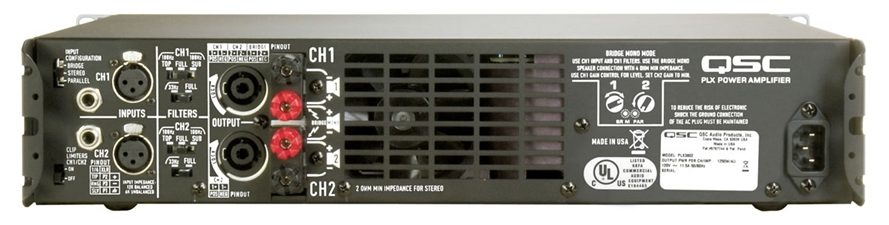

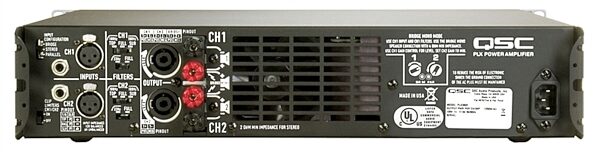

- Balanced XLR inputs with parallel TRS connectors accommodate all common input connectors and support loop-through operation
- Patented PowerLight power supply technology with other patents pending

PLX2 performance
The PLX1802 is the right choice for users who need to drive up to four loudspeakers from each amplifier channel (2 ohm loading), or when extremely high power bridge mono operation is required. This model feature built-in subwoofer processing, filter switches, and front panel indications of bridge mono status.

Mechanical
The PLX1802 amplifier has the refined, rugged good looks usually associated with high performance racing cars, competition bikes, professional power tools, and high power machinery. A solid, cast-aluminum front panel adds professional style to any rack while also acting as an integral I-beam, rigidly tying the chassis together for years of on-the-road reliability.

Additional mechanical touches such as the side stiffening rails, rear rack ears and cable tie anchor points attest to QSC's years of experience and attention to detail. QSC has even designed the integrated front handles so the amplifier slides into a rack without scraping the installers fingers on the rack sides. The exterior appearance of the PLX1802 conveys what's inside - simply and truly, 21 pounds of the most advanced professional power amp on the planet.

PowerLight Technology
PowerLight switchmode technology replaces a large, heavy AC transformer (typically 20 lbs. / 9 kg) with a highly efficient and lighter-weight active design. Conventional AC transformers provide 60 energy pulses per second. The PowerLight supply delivers 100,000 pulses per second. More pulses make it easier to provide on-demand power for the amplifier's output section. The power supply doesn't "sag" so bass notes stay full and powerful while the high end remains crisp and clean.

Audio Quality
The audio power circuitry inside the PLX1802 achieves performance normally associated with studio reference amplifiers. In order to reduce crossover distortion, precision bias tracking makes minute adjustments as amplifier temperature changes. The benefit is cleaner high-frequency and more consistent sound no matter how hard the amplifier is driven. The higher power models use QSC-exclusive class H output circuitry, a form of audio "turbocharging" that increases maximum power without affecting the basic audio quality. zZounds is an authorized dealer of QSC products.

Weight: 21 lbs/9.5 kg

Power:
330 watts stereo at 8 ohms
575 watts stereo at 4 ohms
900 watts stereo at 2 ohms
1200 watts bridged to mono at 8 ohms
1800 watts bridged to mono at 4 ohms

Note: Register your new product online with QSC and receive a Free 6-Year Extended Warranty upgrade (a $99 value).

Dimensions and Weight in Packaging

Shipping Weight: 27 lbs

Shipping Dimensions: 24 x 18 x 6 in
