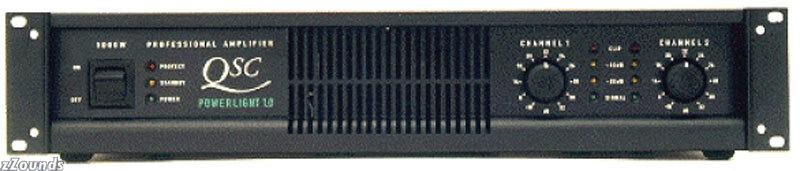

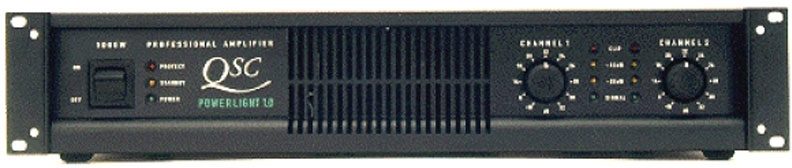

QSC Powerlight 1.0 Power Amplifier

The QSC PowerLight 1.0 is an advanced professional audio amplifier featuring uncompromised audio performance.

A new high frequency power supply, utilizing QSC's PowerWave Switching Technology, has been combined with the rugged audio amplification circuits of traditional QSC amplifiers to produce an amplifier with incredible reliability, thermal capacity and audio performance. The PowerLight 1.0 is rated at 210 watts/channel into 8 ohms, 350 watts/channelinto 4 ohms, and 500 watts/channel into 2 ohms making it ideal for powering midrange and high frequency drivers and smaller, passive, full-range speaker systems. Increased power supply regulation maintains excellent low impedence performance. Outstanding audio performance and reliability, high efficiency design, networkability, and light weight make this amplifier ideal for all critical sound system applications.

With PowerLight technology, PowerLight amplifiers take your sound to a whole new level. Not only does it give you tighter bass and clean transparent highs, PowerLight also cuts waste heat and boosts reliability. PowerWave is a revolutionary switching power supply technology that provides ample current to the audio power circuitry by charging the supply rails 230,000 times a second though an ultra-low impedance circuit. So unlike amplifiers that use conventional supplies, the audio signal is never starved prematurely and remains crisp and clean.

PowerLight Series amplifiers also boast a set of useful features. Individually selectable clip limiters lower distortion and protect speakers, and a standby mode allows remote AC control.

Features
500 watts per channel at 2 ohms

350 watts per channel at 4 ohms (guaranteed minimum specs)

Advanced thermal management system

Clip Limiter (user defeatable) - reduces distortion, protects loudspeakers

PowerWave Switching Technology for improved audio performance

Detented gain controls with 2 dB steps for easy resetting

Comprehensive LED status arrays

Full complementary class AB output circuit for low distortion

Variable speed fan, for quiet operation

DC, sub audio, and thermal overload protection

Patented Output Averaging shortcircuit protection

Neutrik 'Combo' (XLR & 1/4-inch) and barrier balanced input connectors

Stereo/bridging/parallel input switch

Touch proof binding post output connectors

Remote AC power control

Data port for MultiSignal Processing

Technical Info

Output Power (per channel)
8 ohms, 20 Hz to 20 kHz, 0.1% THD, 200 watts

8 ohms, 1kHz, 1% THD, 210 watts

4 ohms, 20 Hz to 20 kHz, 0.1% THD, 325 watts

4 ohms, 1 kHz, 1% THD, 350 watts

2 ohms, 1 kHz, 1% THD, 500 watts

Output Power (bridged mono)
8 ohms, 20 Hz to 20 kHz, 0.1% THD, 650 watts

4 ohms, 1 kHz, 1% THD, 1000 watts

Distortion (SMPTE-IM)
Less than 0.05%

Distortion (typical):
less than 0.01% THD

4 Ohms to 8 Ohms: 20Hz-20kHz, 10 dB below rated power 1.0 kHz and below, full rated power

Frequency Response
20 Hz to 20 kHz, �0.15 dB

8 Hz to 100 kHz, +0/-3 dB

Damping Factor
Greater than 350

Dynamic Headroom
1.9 dB at 4 ohms

Noise
108 dB below rated output (20 Hz to 20 kHz)

Sensitivity
1.00 Vrms for rated power (8 ohms)

Voltage Gain
40 (32 dB)

Input Impedance
10K unbalanced, 20K balanced

Controls
Front: AC Switch, Ch 1 and Ch 2 Gain Knobs, Ch 1 and Ch 2 Clip Limiter Switches

Back: Parallel/Stereo/Bridge Switch, Remote A.C. Power Control Terminal Strip

Indicators

PROT: Red LED CLIP: Red LED, 1 per channel STANDBY: Yellow LED LEVEL -10: Yellow LED, 1 per channel PWR-ON: Green LED LEVEL -20: Yellow LED, 1 per channel SIG-PRESENT: Green LED, 1 per channel

Connectors (each channel)
Input: Barrier strip and Neutrik Combo XLR and 1/4-inch input

Speakers: Touch proof binding posts

Data Port: HD15 female

Cooling
Variable speed fan, rear-to-front air flow.

Amplifier Protection
Full short circuit, open circuit, thermal, ultrasonic, and RF protection. Stable into reactive or mismatched loads.

Load Protection
On/off muting. DC-fault power supply shut down.

Output Circuit Type
Complementary linear outputs.

Power Requirements
120, 240 Vac, 50-60 Hz

Power Consumption
Normal Operation: 4 ohms per channel: less than 6.0 amps, 120 Vac (720 VA) maximum (full power, 2 ohms per channel): 20.5 amps, 120 Vac (2460 VA)

Dimensions (WxHxD)
19.0 x 3.5 x 17.9 in. (48.3 x 8.9 x 45.5 cm) rack mounting, 2 spaces with rear support ears

Weight
18 lbs. (8.2 kg) net, 24 lbs (10.6 kg) shipping
