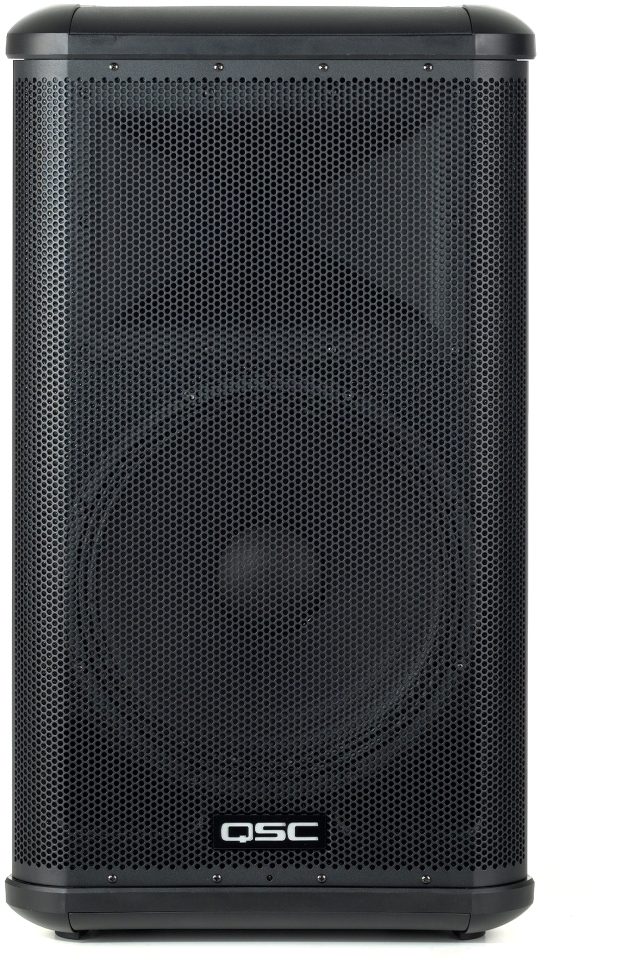

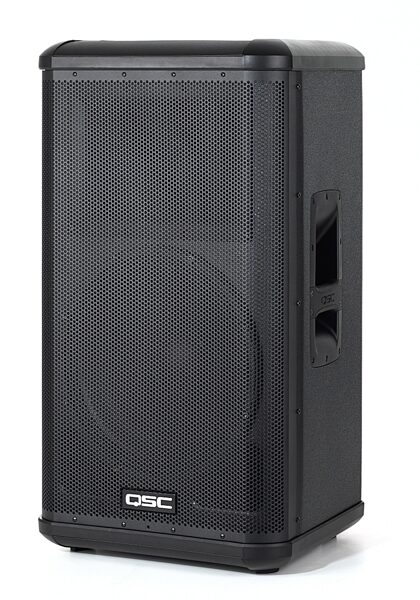

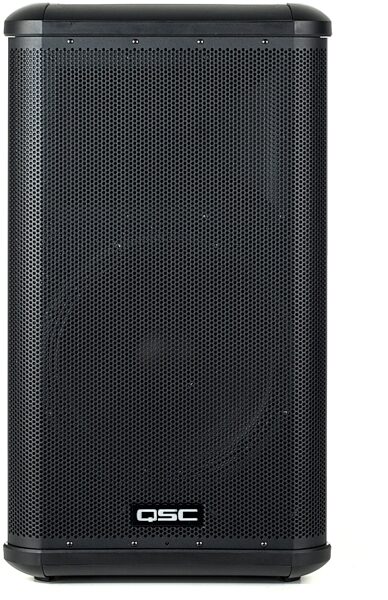

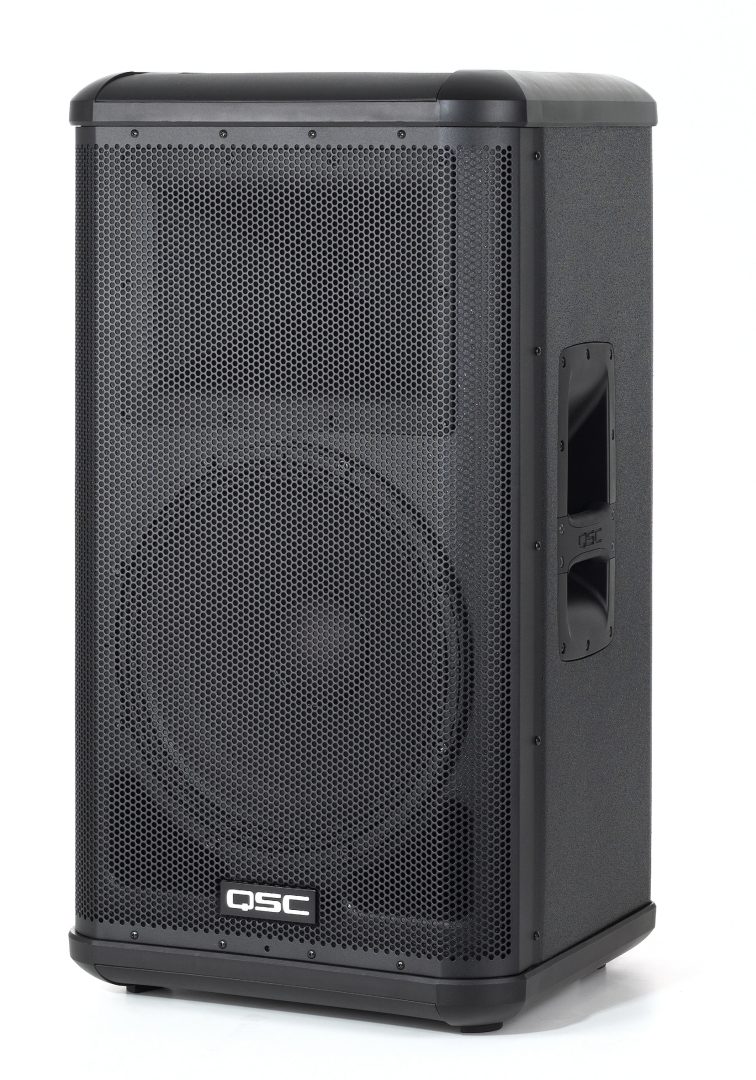

QSC HPR152F 2-Way Powered Speaker (1x15 in.)

The bi-amplified 15 in. 2-way HPR152F is a versatile speaker that's at home in nearly any sound reinforcement setting. A high-power low-frequency driver with a 3 in. voice-coil provides extension down to 50 Hz. The 1.75 in. (diaphragm) compression driver on a 90 x 60 degree horn delivers smooth high frequencies up to 20 kHz. A 500 watt (400 LF / 100 HF) power module includes a 100 Hz high-pass filter (HPF) for use in subwoofer-equipped systems.

Applications
General sound reinforcement

Live performance

Mobile DJ and dance music

A/V presentation

Now with a 6-year warranty upgrade FREE!

Technical Info

Configuration: 15 in. 2-way -- 15 in. cone transducer with 3 in. voice coil and 1.75 in. diaphragm compression driver

Frequency response (-6 dB): 53 Hz - 18 kHz

Frequency range (-10 dB): 50 Hz - 20 kHz

Nominal coverage, -6 dB: 90 x 60 degrees

Maximum SPL (1 meter): 135 dB peak

Amplifier
Power output: 400W LF Class H; 100W HF Class AB+B

Input impedance: 22k balanced; 11k unbalanced

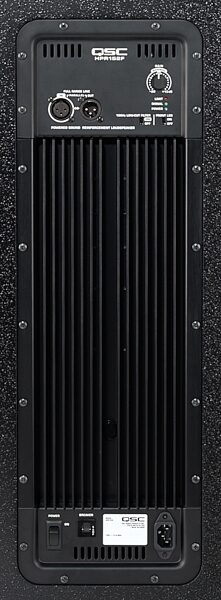

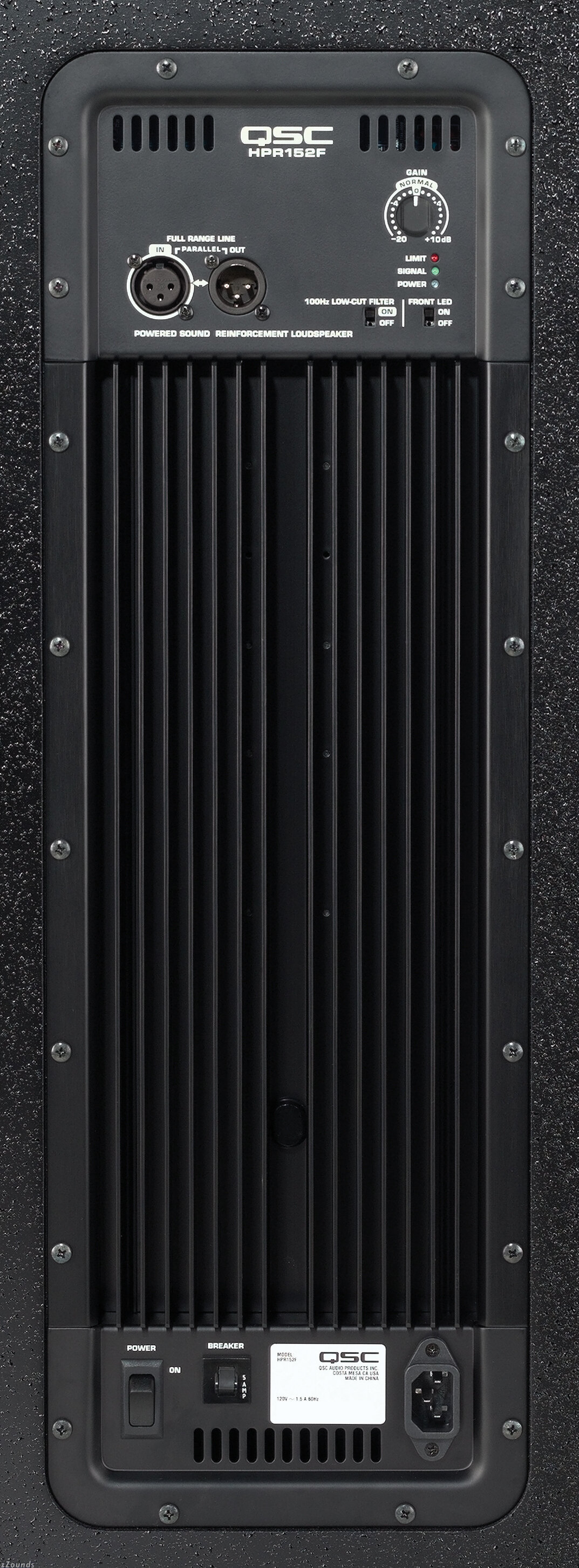

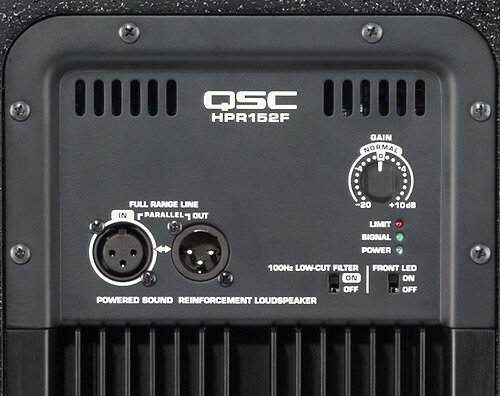

Controls: gain, low-cut filter, front LED on/off, power, circuit breaker

Indicators: power, signal, limit

Cooling: convection

Amplifier protection: thermal and output power limiting

Current consumption at 120 VAC (1/8 power EIA noise): 1.8A

Enclosure: painted birch plywood

Finish: black textured paint

Grille: powder coated 16 gauge steel

Connectors: balanced female XLR line level input, balanced male XLR full range line level output

Dimensions: 19 in. W x 32 in. H x 18 in. D (485mm x 813mm x 455mm)

Net weight: 100 lbs. / 45.5 kg
