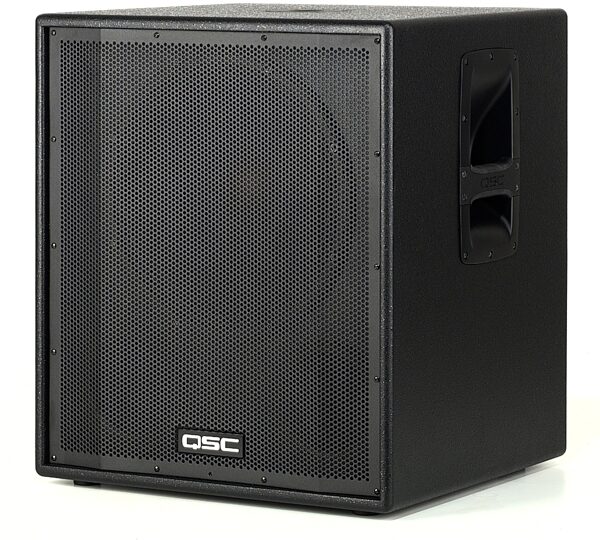

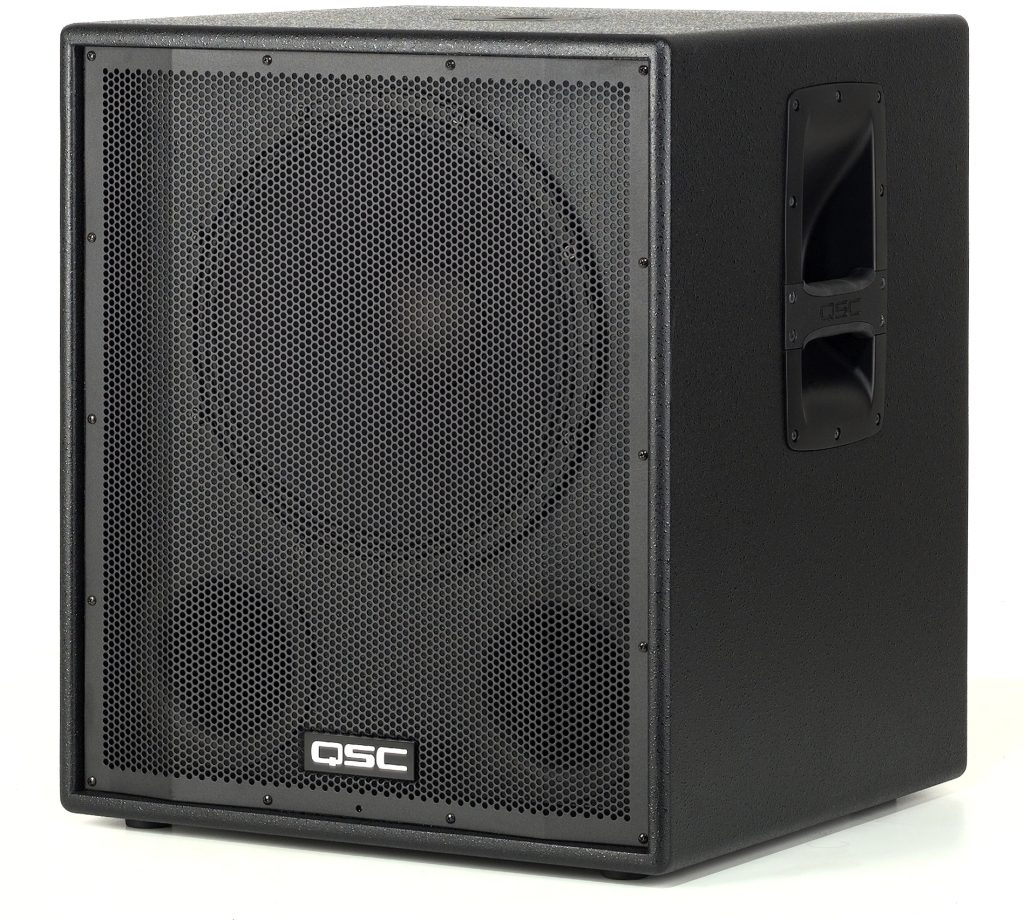

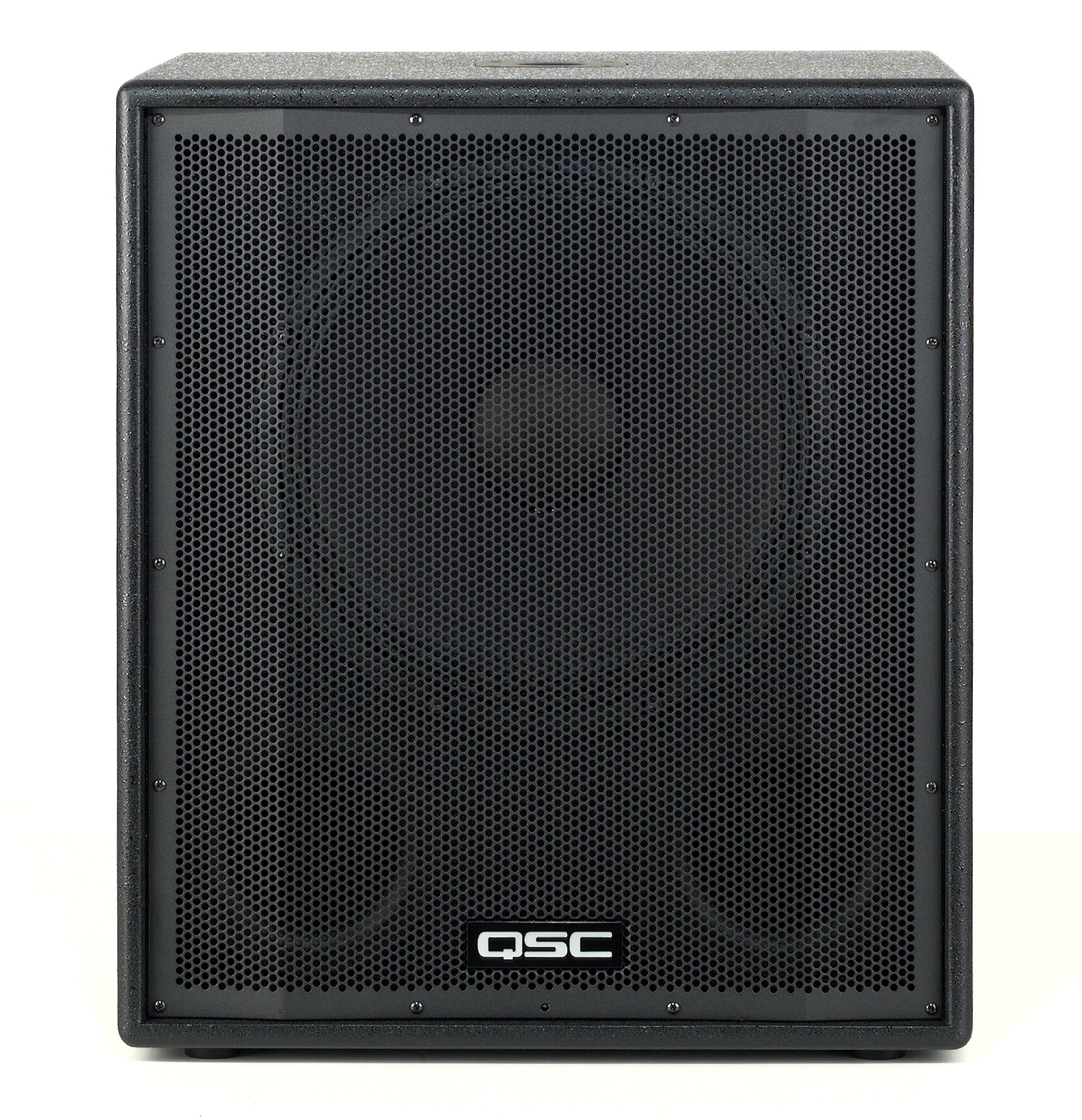

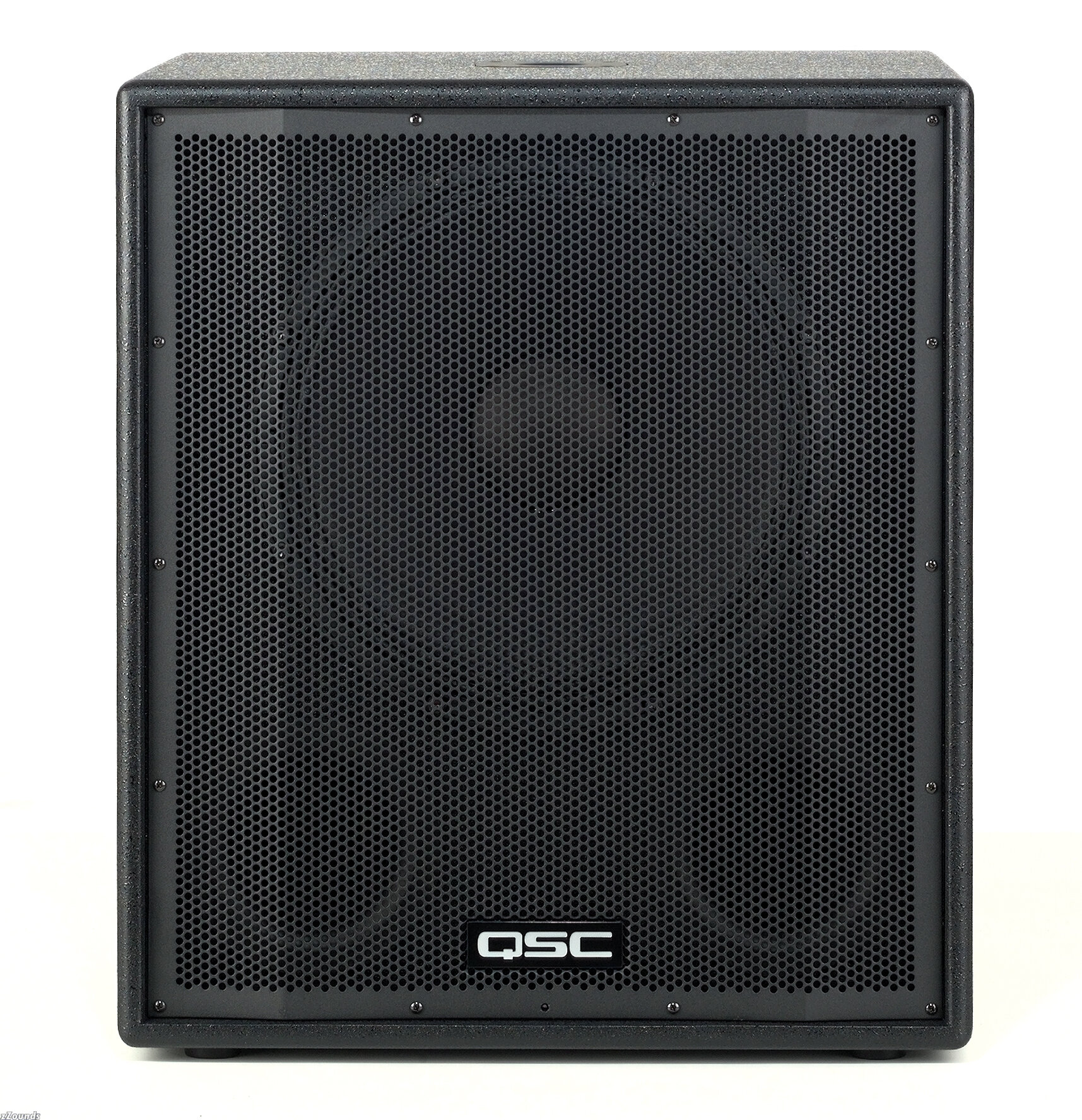

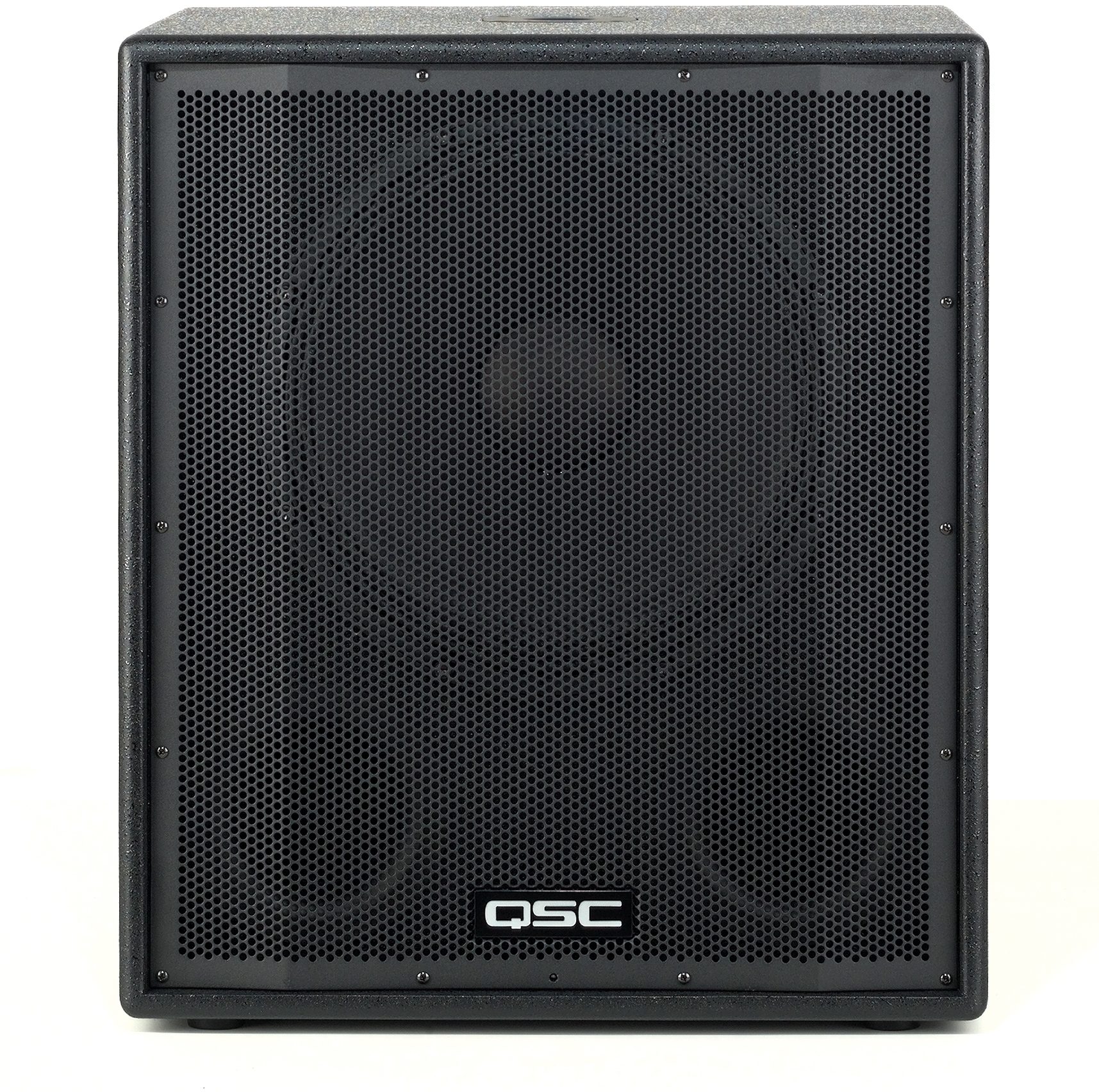

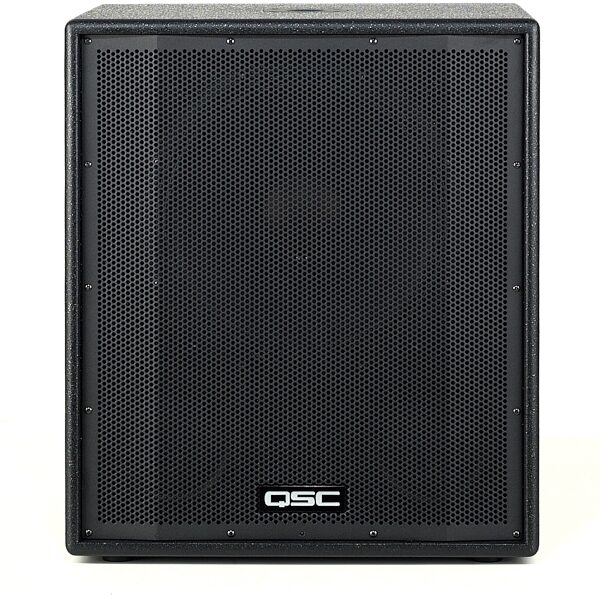

QSC HPR151W Powered Subwoofer (1x15 in.)

For high-level dance music or reinforcement of bass instruments and kick drum, an HPR series subwoofer will add low-frequency extension and power to any sound system. When the requirement is for compact size and tight, punchy low-end, the single 15 in. HPR151W subwoofer is the answer. The 700 watt power module is capable of producing 133 dB peak SPL with frequency response down to 43 Hz and sound quality that rivals many 18 in. subwoofers. A top-mounted 35mm pole socket is provided for use in sub/satellite systems.

Applications
Live sound reinforcement of bass, kick-drum, etc.

Higher-SPL dance music

Now with a 6-year warranty upgrade FREE!

Technical Info

Configuration: 15 in. cone transducer with 3 in. voice coil

Frequency response (-6 dB): 47 Hz - 110 Hz

Frequency range (-10 dB): 43 Hz - 140 Hz

Nominal coverage, -6 dB: N/A

Maximum SPL (1 meter): 133 dB peak

Amplifier
Power output: 700W class H

Input impedance: 22k balanced, 11k unbalanced

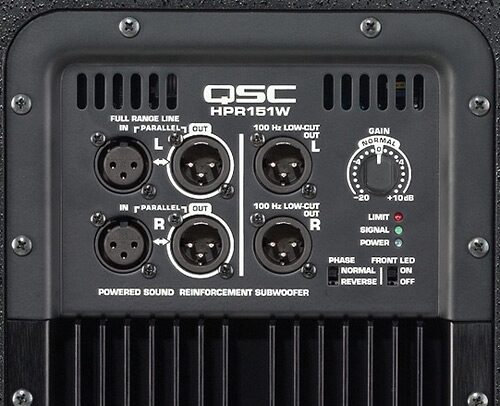

Controls: gain, front LED on/off, power, circuit breaker, phase

Indicators: power, signal, limit

Cooling: convection

Amplifier protection: thermal and output power limiting

Current consumption at 120 VA (1/8 power EIA noise): 2.2A

Enclosure: painted birch plywood

Finish: black textured paint

Grille: powder coated 16-gauge steel

Connectors: balanced female XLR line level inputs x 2 (L+R), balanced male
XLR full range line level outputs x 2 (L+R), balanced male XLR low-cut line level outputs x 2 (L+R)

Dimensions: 22 in. W x 25 in. H x 20.75 in. D (559mm x 635mm x 525mm)

Net weight: 98 lbs. / 44.5 kg
