This product is no longer available at zZounds.
We recommend this product instead:
PreSonus DigiMax FS 8-Channel ADA Converter with Microphone Preamps
-
- New from $599.00
- List: $749.00
- SAVE: 20%
- Blowouts save up to $69.05!
- 4 payments of $149.75
- Only 3 left!
Loaded with direct outputs and inserts on every channel, the DigiMax FS is the perfect hardware expansion for your FireStudio 1818 or any digital recording system with optical light pipe expansion capability. Learn More...
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)
PreSonus DigiMAX 96k 8-Channel Microphone Preamp with Limiters, EQ, Digital Output
EQ enhance, pad, and 48V phantom power on every channel.
Additional Images:
Loading...
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
Description
Docs

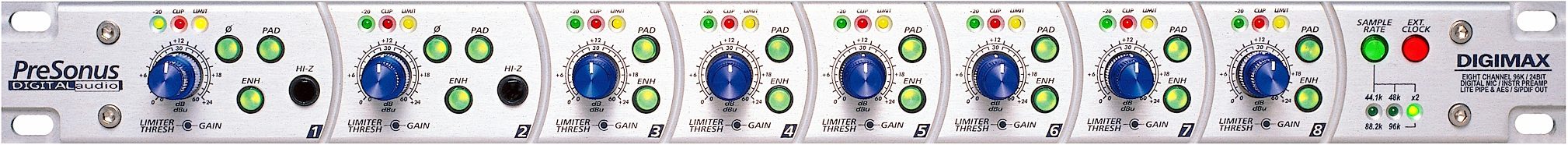

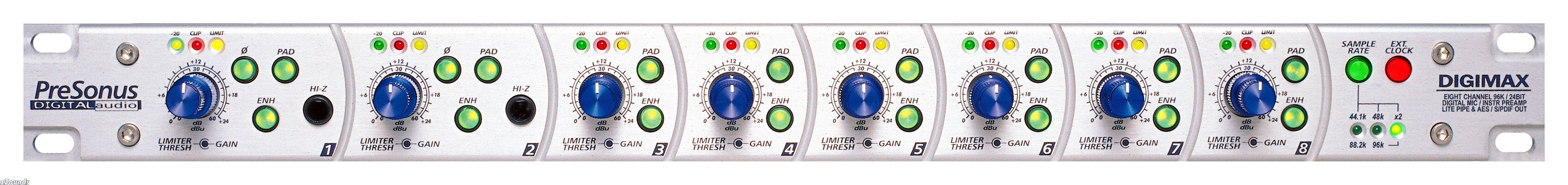

8-Channel Mic Preamp with Digital Output
Now with 96k sampling rate*, the DigiMAX is the newest member in the award winning family of Presonus micpre's. Combine 8 channels of pristine mic preamplification with 24 simultaneous digital and analog outputs, and the DigiMAX 96k seamlessly fits into any digital recording situation. The DigiMAX 96k is the perfect front-end for DAW's as well as adding mic pre's to digital mixers and sound cards.
* Over AES/EBU or S/PDIF digital output cables ONLY.
Features
Number of Channels : Eight
Input Impedance, XLR Input : 1.3k Ohms
Input Impedance, 1/4" Instrument Input : 1M Ohms
Connectors : Eight XLR, Two 1/4" Instrument Inputs on Channel One and Two
Panel Controls
Gain : 0dB to +40dB
Limiter : 0dB to Off
Phase Reverse (Channel One and Two Only) : On/Off
EQ Enhance Button : On/Off
Meters
Signal Present LED : -20dBu
Clip LED : +22dBu
Limit LED : Limiter Active
Output
1/4" TRS Impedance Balanced : 51 Ohms
ADAT LightPipe Digital Optical : 24-bit
AES/EBU (4 Pair, Stereo) : 24-bit
S/PDIF (4 Pair, Stereo) : 24-bit
Digital
Sampling Rates : 44.1, 48, 88.2 and 96kHz
Performance
THD + Noise (Unweighted) : 0.009%
Noise Floor : -94dBu
Signal to Noise : >98dB
Analog Dynamic Range : >120dB
Power Supply Rejection : >98dB
Amplifier Type : Dual Servo
Power Supply
Type : Linear, External
Power : 80 Watts
Input : 100/120/220/240V AC (Factory Configured)
Physical
Size : 1U Rack
Dimensions : 19" W x 1.75" H x 7" D
Weight : 15 lbs.
Chassis : Steel
Panel : Aluminum
Now with 96k sampling rate*, the DigiMAX is the newest member in the award winning family of Presonus micpre's. Combine 8 channels of pristine mic preamplification with 24 simultaneous digital and analog outputs, and the DigiMAX 96k seamlessly fits into any digital recording situation. The DigiMAX 96k is the perfect front-end for DAW's as well as adding mic pre's to digital mixers and sound cards.
* Over AES/EBU or S/PDIF digital output cables ONLY.
Features
Technical Info
InputNumber of Channels : Eight
Input Impedance, XLR Input : 1.3k Ohms
Input Impedance, 1/4" Instrument Input : 1M Ohms
Connectors : Eight XLR, Two 1/4" Instrument Inputs on Channel One and Two
Panel Controls
Gain : 0dB to +40dB
Limiter : 0dB to Off
Phase Reverse (Channel One and Two Only) : On/Off
EQ Enhance Button : On/Off
Meters
Signal Present LED : -20dBu
Clip LED : +22dBu
Limit LED : Limiter Active
Output
1/4" TRS Impedance Balanced : 51 Ohms
ADAT LightPipe Digital Optical : 24-bit
AES/EBU (4 Pair, Stereo) : 24-bit
S/PDIF (4 Pair, Stereo) : 24-bit
Digital
Sampling Rates : 44.1, 48, 88.2 and 96kHz
Performance
THD + Noise (Unweighted) : 0.009%
Noise Floor : -94dBu
Signal to Noise : >98dB
Analog Dynamic Range : >120dB
Power Supply Rejection : >98dB
Amplifier Type : Dual Servo
Power Supply
Type : Linear, External
Power : 80 Watts
Input : 100/120/220/240V AC (Factory Configured)
Physical
Size : 1U Rack
Dimensions : 19" W x 1.75" H x 7" D
Weight : 15 lbs.
Chassis : Steel
Panel : Aluminum
What Our Customers Say About zZounds
"zZounds has been a great supplier for years!" - customer on November 16, 2009
PreSonus DigiMAX 96k 8-Channel Microphone Preamp with Limiters, EQ, Digital Output Reviews
10 out of 10
PreSonus DigiMax 96k Customer Review
Feature:
I loved the EQ button on each channel. Definitely gives you another option tonally when you are tracking.
Quality:
Big and beefy feeling. Definitely smokes the Focusrite Octopre which feels a lot lighter plus its made in China whereas the Digimax is made in the USA.
Value:
It's the best eight channel preamp I've heard for the money.
Sound:
I am amazed how great the preamps are in this box. And the limiters are definitely worth the extra money. Great value and sounds freaking killer too!
Support:
Had to leave a message but they called me back promptly. I wish more companies were like this one.
I loved the EQ button on each channel. Definitely gives you another option tonally when you are tracking.
Quality:
Big and beefy feeling. Definitely smokes the Focusrite Octopre which feels a lot lighter plus its made in China whereas the Digimax is made in the USA.
Value:
It's the best eight channel preamp I've heard for the money.
Sound:
I am amazed how great the preamps are in this box. And the limiters are definitely worth the extra money. Great value and sounds freaking killer too!
Support:
Had to leave a message but they called me back promptly. I wish more companies were like this one.
Submitted: 06/25/2003
9 out of 10
"Great preamp, except for the digital outs!"
Feature:
The digital output is poorly designed. You can only get four channels onto the lightpipe-out at 96 kHz! The Focusrite is better at this. The pad feature is great and VERY well implemented in circuitry. The "enhance" feature is downright silly- the whole point of multitracking is that you don't HAVE to use EQ or (much) dymanics while recording.
Quality:
Well made. Presonus is great about repair and providing parts when necessary.
Value:
Good value.
Sound:
Good sound. The actual front end to the preamp is a TI INA163, which is top-notch. Unfortunately, noise performance is disappointing compared to the Focusrite octopre.
Support:
Absolutely fantastic customer support.
Overall:
Very well designed; the preamp itself is nice and compact.
The digital output is poorly designed. You can only get four channels onto the lightpipe-out at 96 kHz! The Focusrite is better at this. The pad feature is great and VERY well implemented in circuitry. The "enhance" feature is downright silly- the whole point of multitracking is that you don't HAVE to use EQ or (much) dymanics while recording.
Quality:
Well made. Presonus is great about repair and providing parts when necessary.
Value:
Good value.
Sound:
Good sound. The actual front end to the preamp is a TI INA163, which is top-notch. Unfortunately, noise performance is disappointing compared to the Focusrite octopre.
Support:
Absolutely fantastic customer support.
Overall:
Very well designed; the preamp itself is nice and compact.
Submitted: 03/05/2004
