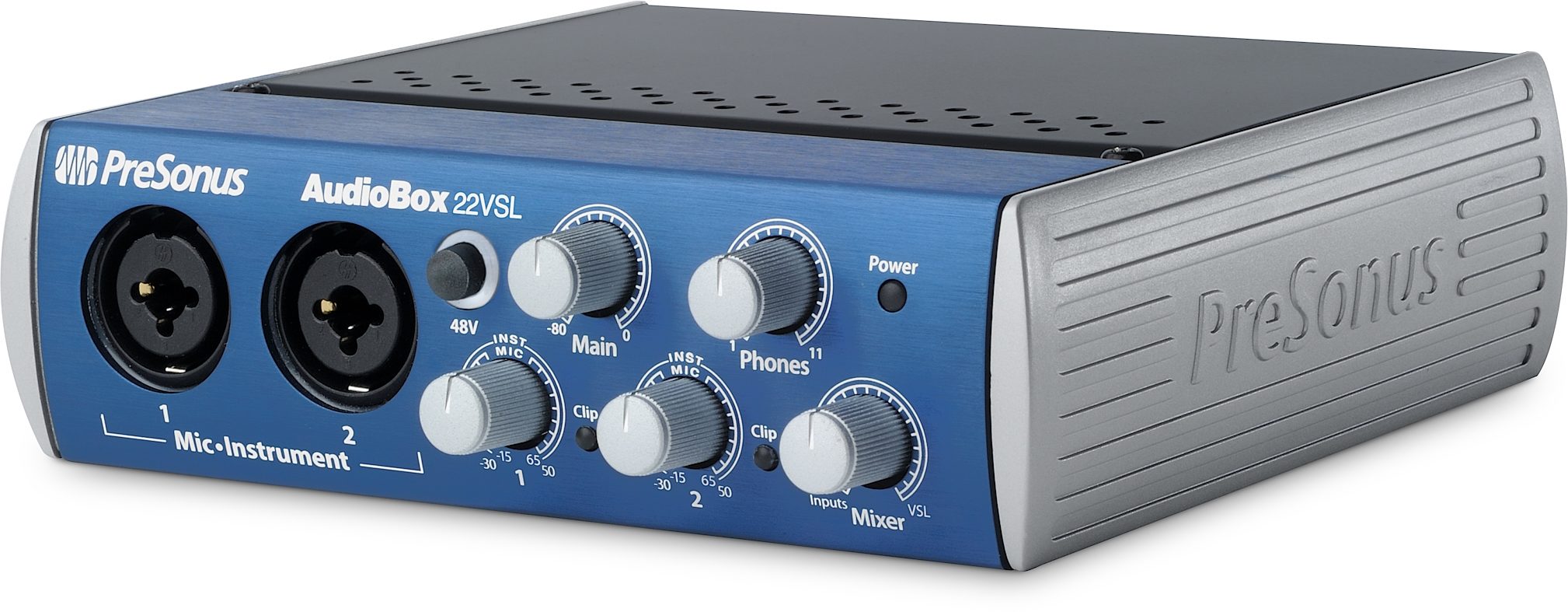

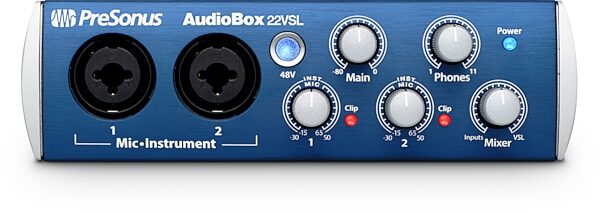

PreSonus AudioBox 22VSL USB Audio Interface

No longer available at zZounds
Perfect for beginners, this USB interface from PreSonus is a smaller, more manageable interface with all of the same great features as the bigger units.

Think of the 2-in, 2-out AudioBox 22VSL as a 2x2 StudioLive mixer! Same Class A XMAX preamps and 24-bit, 96 kHz converters. Same Fat Channel compression, limiting, semi-parametric EQ, high-pass filter, reverb, and delay effects - all with inaudible latency. Now you can monitor while recording with real-time effects! Bus-powered, compact, and rugged, AudioBox 22VSL ships with PreSonus Studio One Artist DAW (Mac/Windows) but works with virtually any recording software.

Features:

- 24-bit / 96k 2 x 2 USB 2.0 recording interface
- 2 Class A XMAX mic / instrument preamps
- 2 instrument inputs
- 2 balanced main outputs
- Near-zero-latency monitoring with extensive signal processing
- VSL (Virtual Studio Live): 4 x 2 DSP mixer with StudioLive 16.0.2 Fat Channel dynamics processing and EQ for each analog input and its DAW return and two stereo effects buses with reverb and delay
- Over 50 Fat Channel DSP presets for enhancing instrument and vocal recordings
- Headphone amplifier
- Analog monitor mixing with playback/Input mix control knob
- Clip lights for both channels
- Globally switchable phantom power
- MIDI I/O
- Bus-powered via USB
- Rugged metal chassis
- Rack-mountable in 1/3 rack space
- Includes Studio One Artist software with unlimited track count

Microphone Inputs

Connector Type: Combo, XLR, female, balanced
Mic Preamp EIN: -129 dB, 20 kHz BW, max gain, Rs=40, A-wtd
Frequency Response: 20 Hz - 20 kHz, +/-0.3 dB, unity gain
THD+N: 0.005%, 0 dBu, 1 kHz, unity gain, 20 kHz BW, A-wtd
S/N Ratio: 94 dB, 0 dBu, 1 kHz, unity gain, 20 kHz BW, unwtd
Gain Control Range: -15 dB to +65 dB
Input Max Headroom: +10 dBu, < 0.5% THD
Input Impedance: 1.7 k
Phantom Power: +48 VDC, 10 mA total

Instrument Inputs

Connector Type: Combo, 1/4-inch TS, female, unbalanced
Frequency Response: 20 Hz - 20 kHz, +/-0.3 dB, unity gain
THD+N: 0.006%, 0 dBu, 1 kHz, unity gain, 20 kHz BW, A-wtd
S/N Ratio:
89 dB, 0 dBu, 1 kHz, unity gain, 20 kHz BW, unwtd

Gain Control Range: -30 dB to +50 dB
Input Max Headroom: +15 dBu, < 0.5% THD
Input Impedance: 1 M

Analog Outputs

Connector Type: 1/4-inch TRS, female, impedance balanced
Frequency Response: 20 Hz - 20 kHz, +/-0.2 dB
THD+N: 0.002%, 1 kHz, 20 kHz BW, A-wtd
S/N Ratio: 107 dB, 1 kHz, max gain, 20 kHz BW, unwtd
Output Level: +10 dBu
Output Impedance: 51

Headphone Outputs

Connector Type: 1/4-inch TRS, female, stereo
Maximum Power: 30 mW/ch @ 60 load
Frequency Response: 20 Hz - 20 kHz, +/-0.5 dB, max gain
THD+N: 0.08%, 1 kHz, max gain, 20 kHz BW, A-wtd
S/N Ratio: 90 dB, 1 kHz, max gain, 20 kHz BW, unwtd

Power

Type: USB bus-powered, +5 VDC, < 500 mA

Digital

Host Interface: USB 2.0 high-speed
Bit Depth: 24-bit
Sample Rates: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Latency: 2.8 ms - 6 ms, analog in to out.
ADC Dynamic Range: 114 dB, 48 kHz sample rate, A-wtd
DAC Dynamic Range: 114 dB, 48 kHz sample rate, A-wtd

Physical

1/3U rack-mountable (with optional 3UMR rack-mounting system)
Road-rugged construction with all-metal chassis and metal knobs
Weight 1.6 lb. (0.7 kg)
Powered via USB bus--no wall wart!

System requirements:

Below are the minimum computer-system requirements for the AudioBox 1818VSL.

Windows

- Windows Vista, Windows 7 (32- and 64-bit)
- Intel Pentium 4 1.6 GHz processor or AMD Athlon 64 3000+ (Turion) (2.8 GHz or faster recommended)
- 1 GB RAM (2 GB or more recommended)

Macintosh

- Mac OS X 10.6 (Snow Leopard) or later (32- and 64-bit)
- Intel Core 1 Solo 1.5 GHz processor (Intel Core Duo or Intel Xeon processor recommended)
- 1 GB RAM (2 GB or more recommended)
- Windows and Macintosh Systems
- USB 2.0 Port
- Internet connection recommended
- DVD-ROM drive (required to install Studio One Artist)

Note that the speed of your processor, amount of RAM and size and speed of your hard drive will greatly affect the overall performance of your recording system. Also, a more powerful system (faster processor with more RAM) will allow for lower latency (signal delay) that you might experience while monitoring audio or MIDI signals.

Monitor resolution for both PC and Macintosh should be no lower than 1024x768 pixels.

For support or warranty questions, please contact the manufacturer:
Phone: 225-216-7887
Web: https://support.presonus.com

Reviewers gave this product an overall rating of 5 out of 5 stars. (2 ratings)
Submitted March 7, 2012 by Theodore Morris in Valparaiso, IN

"Great Bit of Hardware!"

Overall: 5 out of 5 stars
(see rating details)
I bought this little device about a month ago and it is well worth the money, for the extra $50 over the standard AudioBox USB, you get 96k sample rate and the virtual studio live software. This little piece of software really helps with live mixing and monitor talkback, and you can even print effects from VSL into your DAW of choice. Along side this I also own a Presonus Firestudio Project which works great for drums and overhead pickup. Highly recommend this to anyone getting into the field of Audio Recording and production!

Musical Background:

Lead Producer of Alley Recording Studio's, Valparaiso, IN, 10 years of field experience

Musical Style:

Indie, Rock, Alternative
14 of 14 people (100%) people found this review helpful. Did you?
Thanks for your opinion!
