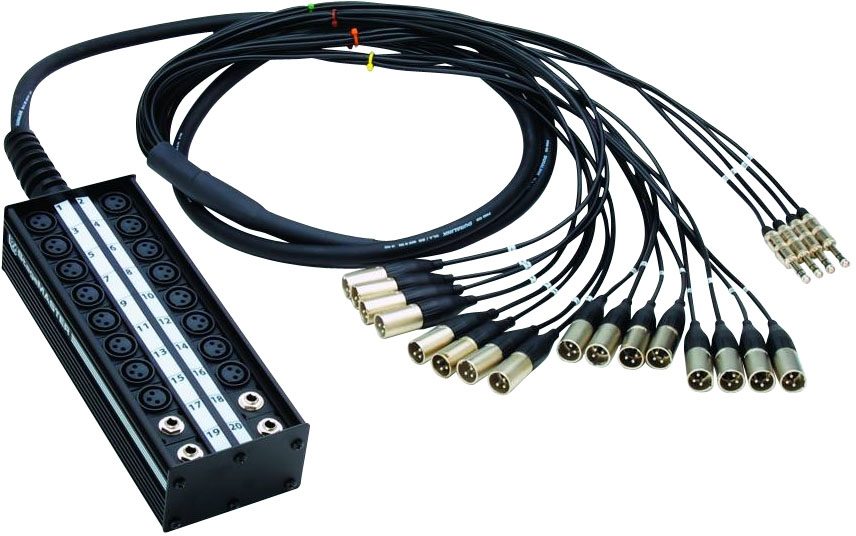

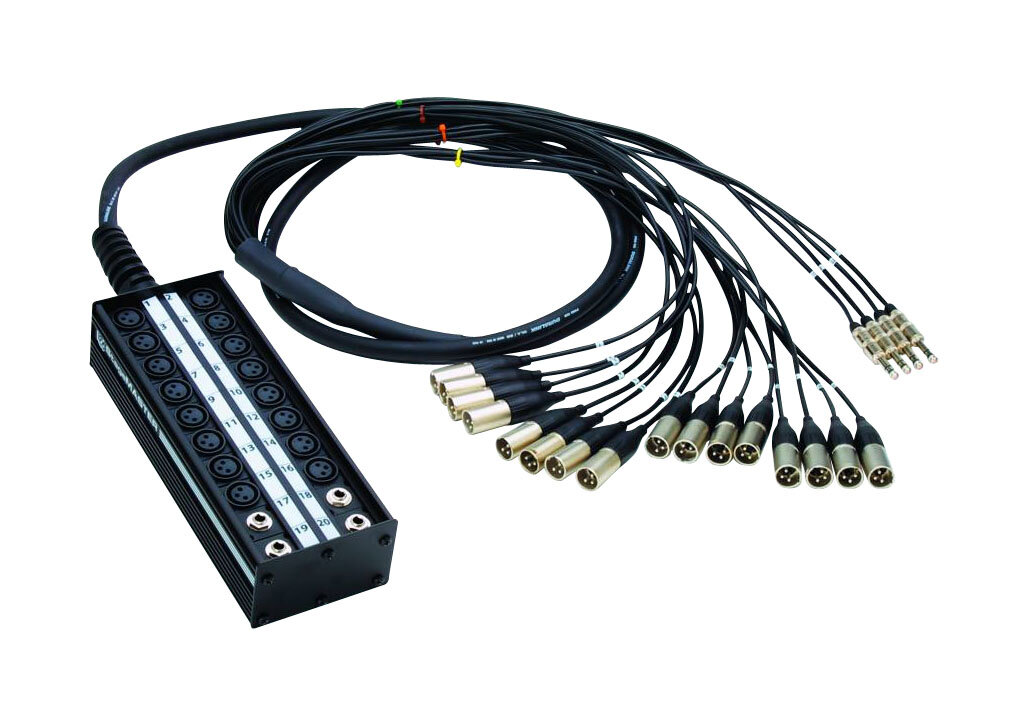

Pro Co Stagemaster 16 X 4 Snake

30-Day 100% Satisfaction Guarantee Applies On This Item - Buy it, and if it isn't just right for you, return it!

About This Product!

Description

Docs

From Our Catalog

Re-engineered from the stagebox to the connectors for even greater reliability, the StageMaster multi-pair cables are an ideal choice for church groups, fixed installations, schools, and "one-nighter" portables. The rugged design features the latest in connectors and a cable that is extremely flexible for easy coiling. All StageMaster snakes are backed with a 3-year, limited warranty.

Features:
Reliable "no solder" contact points eliminate highly resistive connections

Sturdy strain relief at the stagebox helps ensure a long life of reliable use

New compact stagebox is strong, lightweight, and virtually unbreakable, while offering better access to individual cables

Pro Co's flexible Duralink "A" wire provides a clean, low-distortion signal and highly flexible cable

Durable XLR inputs and 1/4 in. outputs

Technical Info

Warranty: 3-Year Limited

Stage Box: Extruded Aluminum

Termination: Insulation Displacement

Connector Retention: Spring Detent

Strain Relief: ABS

Conductor Gauge: 24 AWG (.20 sq. mm)

Stranding: 7 x 32 (7 x .254 sq. mm)

Insulation: .012 in. (.305 mm) polypropylene

Shield: Aluminum/Polyester tape wrapped 100% coverage

Capacitance: Paired Conductors 21 pF/ft.

Capacitance: Conductors Tied to Shield 38 pF/ft.

• Understanding Speaker Cables
• Manual
• Understanding Instrument Cables
• Understanding Microphone Cables
• Wiring Guide

Rugged design and high quality makes this an ideal choice for church groups, fixed installations, schools, and portable systems. Backed with a 3-year limited warranty.
