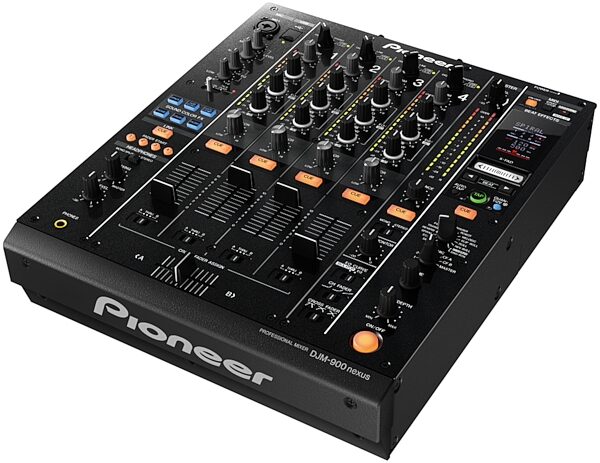

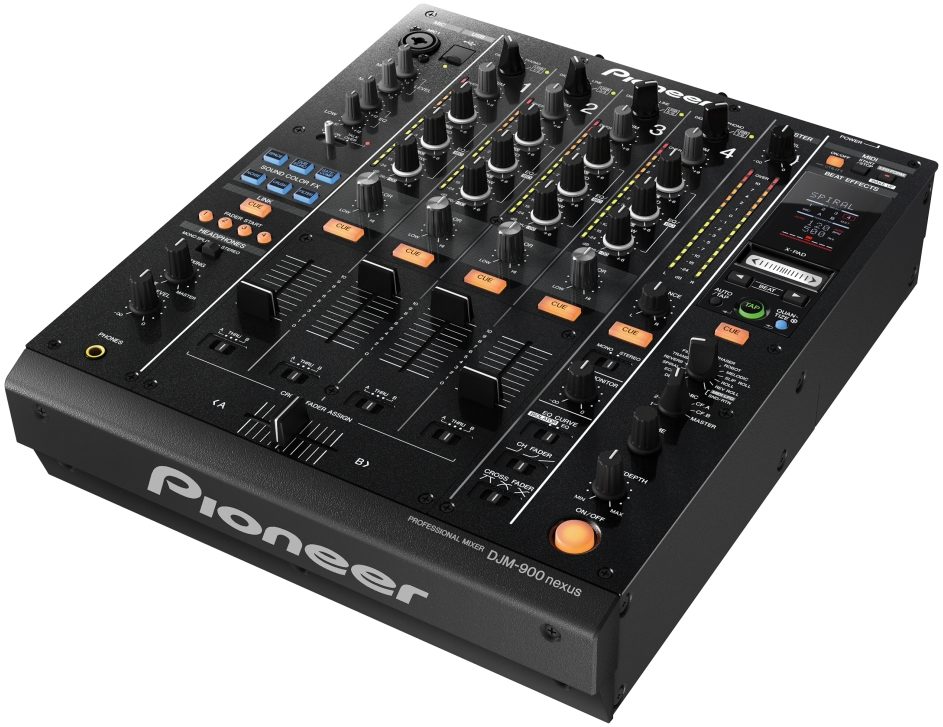

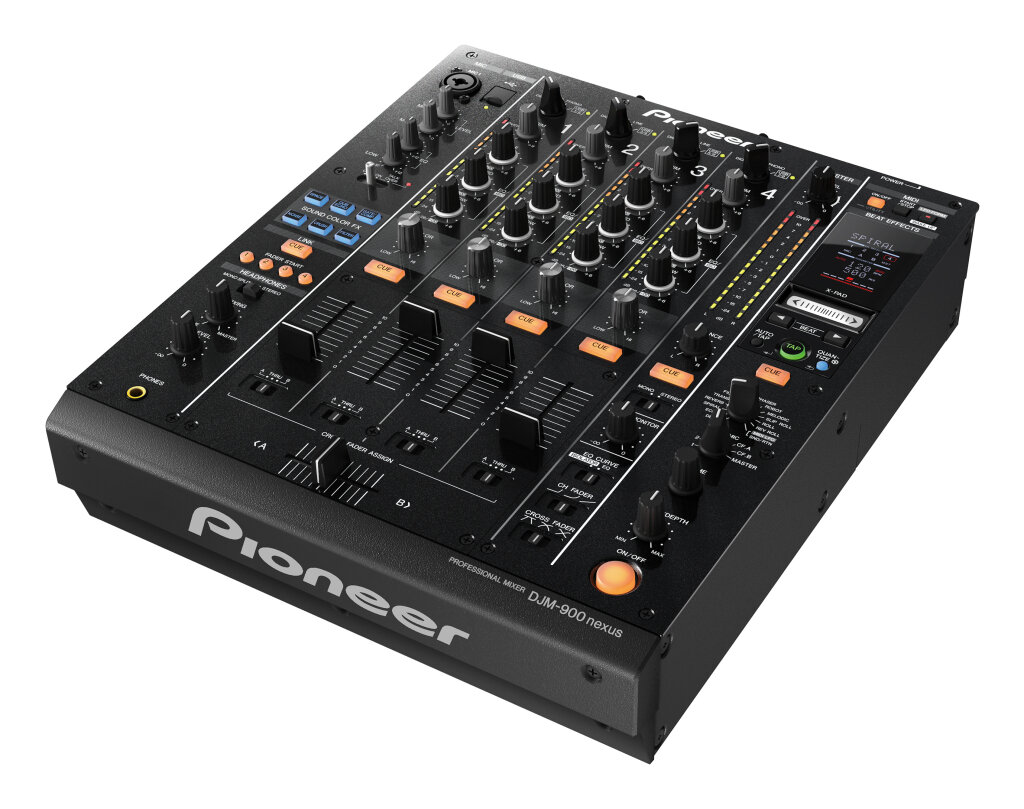

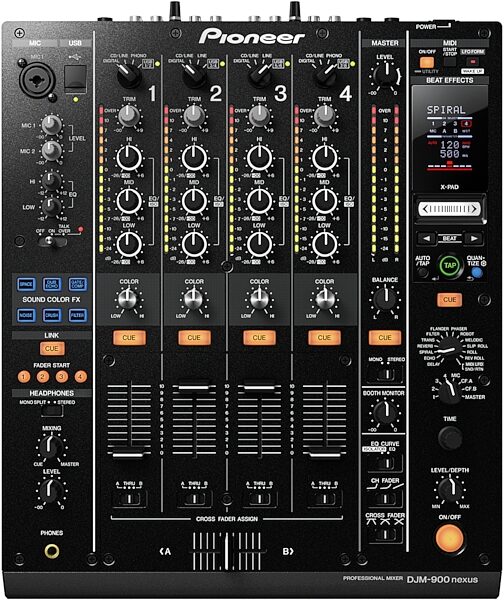

The Pioneer DJM-900nexus 4-Channel DJ Mixer is a versatile, yet powerful, industry-standard DJ mixer. This club-ready mixing box packs all the features you need to connect two turntables, four CDJs, a laptop running DJ software, or any combination thereof, and start mixing your sets today. Ideally suited for a setup using Pioneer CDJs -- you can sync up to four at once using Pro DJ Link -- the DJM-900nexus works with just about any DJ setup, whether you're streaming 96 kHz/24-bit audio from a laptop via USB, or going old-school with turntables.
Professional Mixing Power

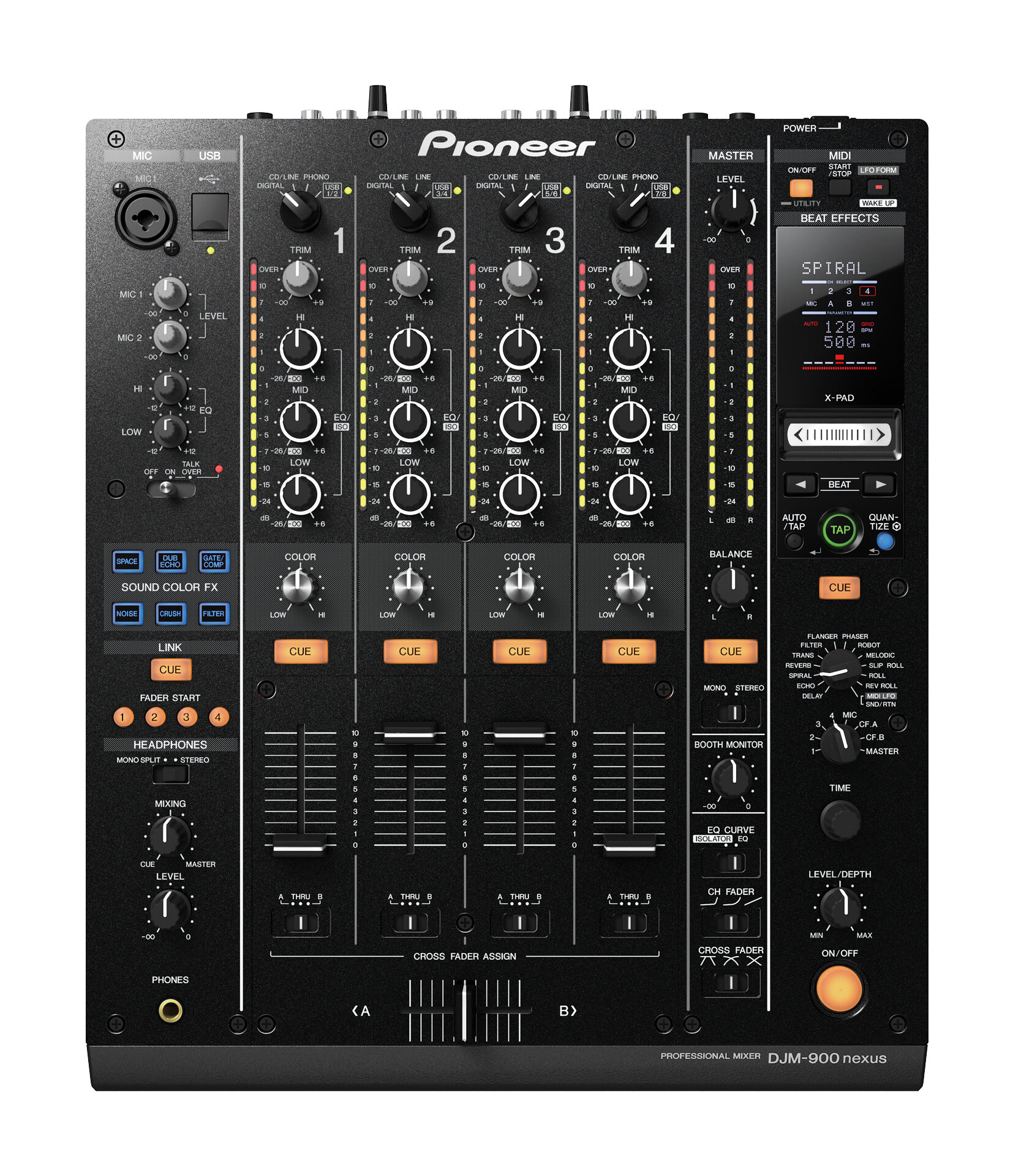

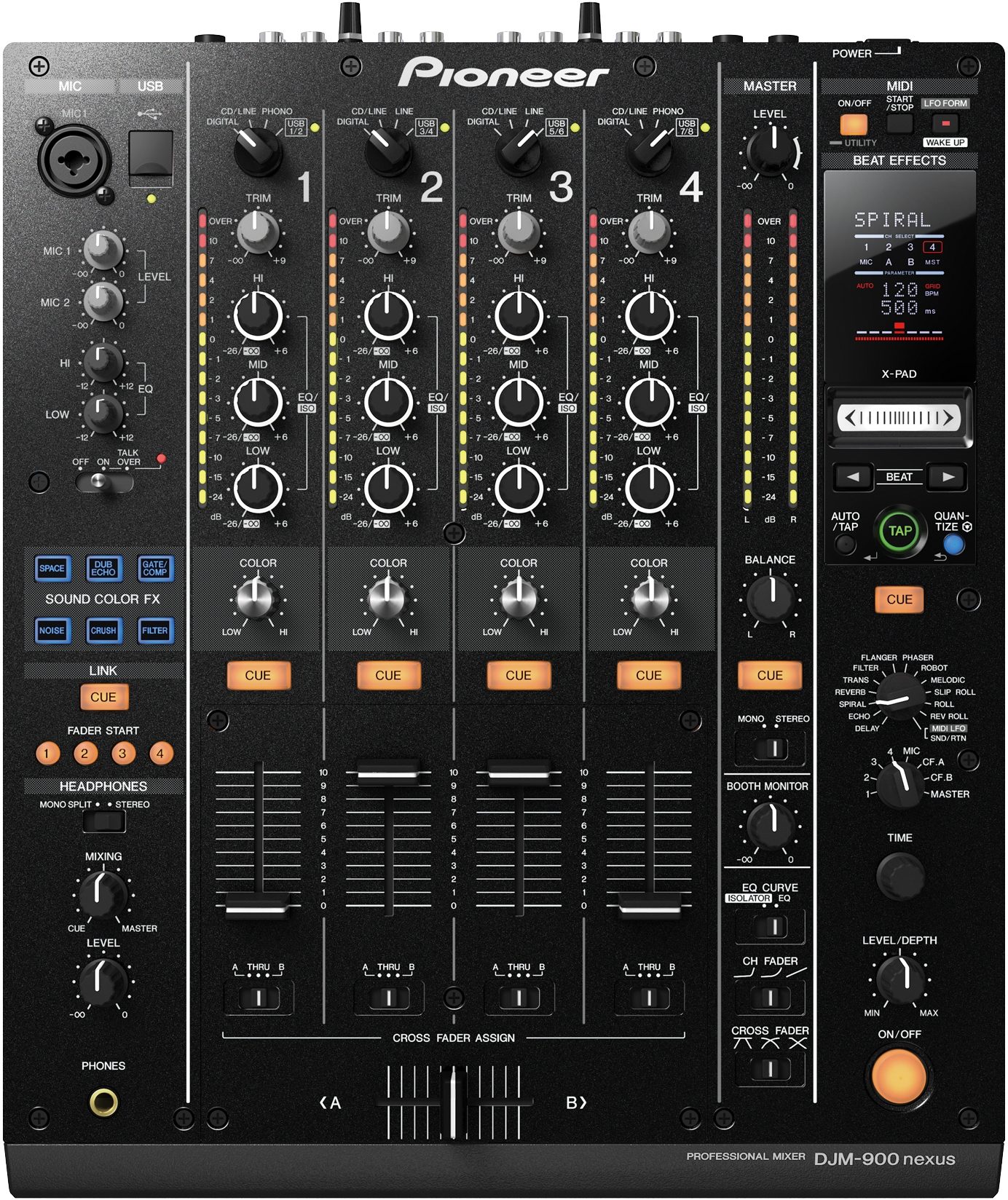

Pioneer has long been the industry standard for DJ mixers in club environments, and the DJM-900nexus continues this rich tradition. It's a 4-channel mixer with a premium-quality USB soundcard built in, and both analog and digital inputs and outputs. Each channel has its own 3-band EQ with three selectable crossfader curve types, which help to give your sets a unique character. There's a collection of 19 onboard effects, including beat-based effects that you can manipulate on the fly with the X-Pad touch-strip and the tempo Tap pad.
Ready to Integrate with Any DJ Setup
Beyond its cutting-edge DJ tools and performance-oriented layout, a key strength of the DJM-900nexus is it's versatility. It works well with traditional media like vinyl or CD, and integrates with laptops running Traktor or other DJ software. You can synchronize up to four Pioneer CDJs at once, or synchronize two CDJs and two decks from DJ software on a laptop, etc. You can also connect to a DVS (digital vinyl system) and use time-coded vinyls or CDs for scratch emulation while spinning MP3s from your computer. Input selectors are provided for each channel at the top of the unit so you can quickly swap out DJs between sets.
- Four channel DJ mixer with effects
- Three band EQ per channel with three selectable channel fader curve types
- Includes 19 effect types including 13 beat-based effects
- Manipulate beat-based effect parameters on-the-fly with the X-Pad touch-strip and Tap pad

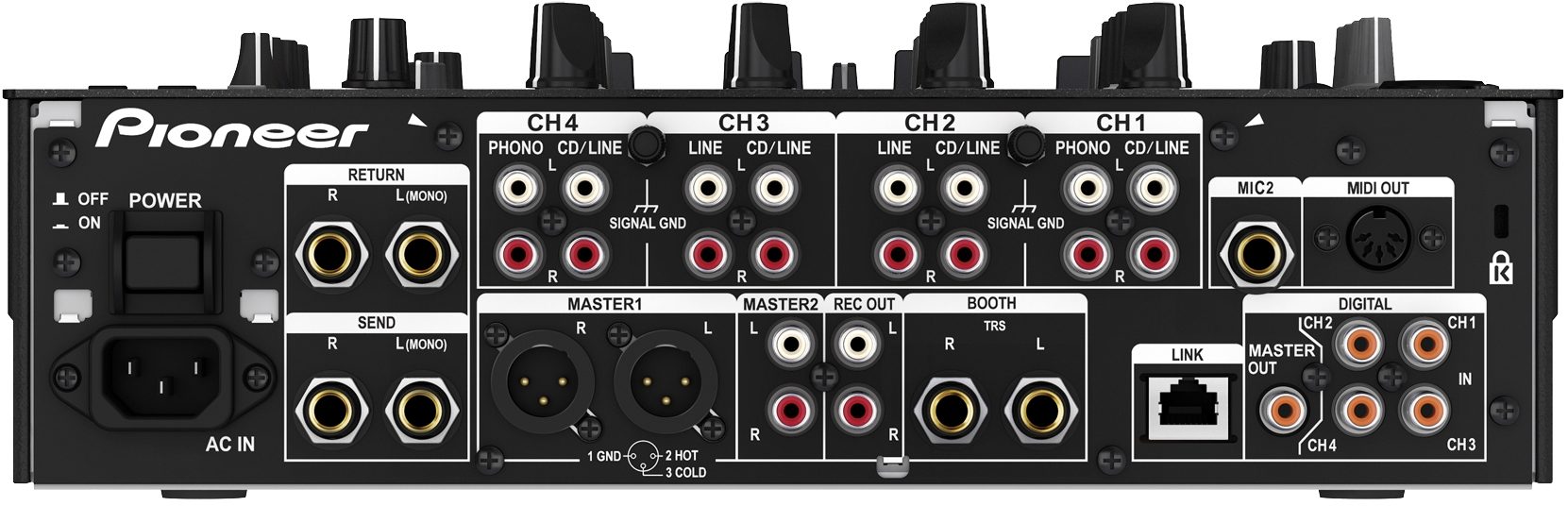

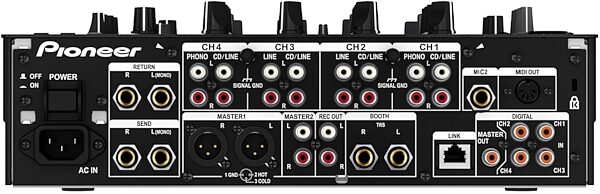

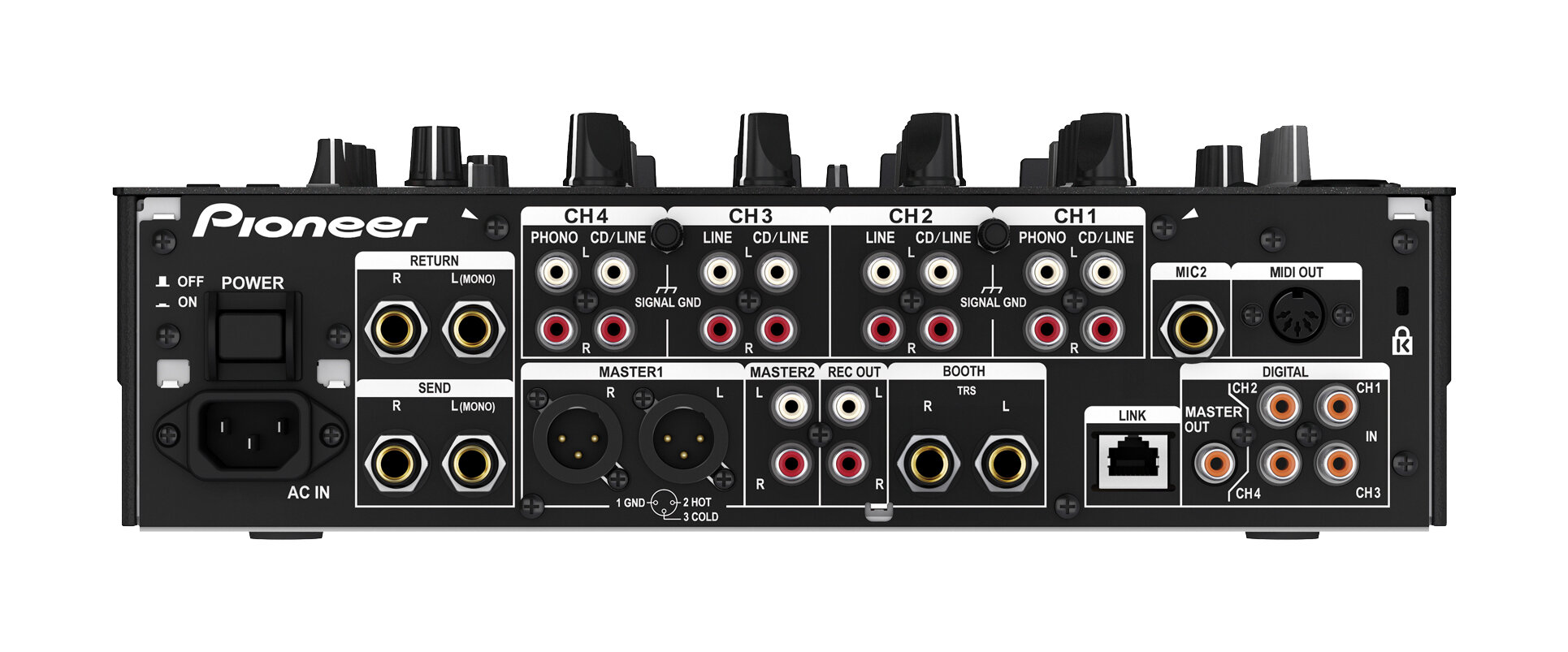

- Six line stereo RCA inputs for connecting CDJs
- Two phono stereo RCA inputs for connecting turntables
- Four stereo digital S/PDIF inputs
- 1/4 inch/XLR combo and 1/4 inch microphone inputs
- Stereo 1/4 inch send and return for connecting an external effects loop
- Stereo RCA and XLR master outputs
- Stereo RCA outputs for connecting to an external recording device
- Stereo digital S/PDIF output
- Stereo 1/4 inch booth monitor outputs
- 1/4 inch headphone output
- USB port for connecting to Mac or PC computers
- LAN for connecting Pro DJ Link devices
- MIDI output for controlling external devices
- Durable carbon rail crossfader design
- No electronics beneath the crossfader improve the water-resistance of this model
- P-LOCK Fader Cap system prevents fader caps from slipping
- 24-bit, 96 kHz internal soundcard
- 32-bit D/A converters and 24-bit A/D converters
- Features an auto standby mode to save energy when not in active use
zZounds is an authorized dealer of
The Pioneer DJM-900nexus is a high performance digital mixer designed for today's professional DJ performers. An ideal combination with Pioneer's CDJ line of players, the Pioneer DJM-900nexus offers a multitude of features that includes a variety of onboard effects, increased sound quality, and direct PC or Mac connection to enable any DJ to perform to their utmost potential.
Multitude of Effects
The Pioneer DJM-900nexus follows Pioneer's traditional control layout enabling an easy transition to the mixer. As with other Pioneer mixers, the DJM-900nexus features a variety of advanced sound effects that allow DJs to have more creative expressions while mixing their music. Three Sound Color FX, two Beat Effects and an X-Pad control were added to the mixer to enhance the user's performance.
- - Sound Color FX - The Pioneer DJM-900nexus includes Space, Dub Echo and Gate/Comp in addition to Filter, Crush and Noise for its Sound Color FX. At any time with a simple twist of the knobs, DJs can quickly add their choice of audio effects bringing numerous combinations and arrangements to currently played music.
- - Beat Effect - A total of 13 effects can be added by the user at any time to the beat effects is accomplished through a selectable knob located on the right side of the mixer.
- - X-Pad - A touch screen control bar that enables quick access, control, and manipulation of the thirteen built-in beat effects. With a touch and/or slide of the X-Pad control, the user can change the parameters of each effect for further creativity in performances.
Part of the Pioneer DJM-900nexus's design attribute is combining functionality with great sound quality. The mixer utilizes high quality components that ensure the best possible audio output when connected to other components.
- - Built-in 24bit/96kHz High Performance USB Sound card - Pioneer developed an onboard USB sound card that can simultaneously handle input and output audio signals from up to four (4) stereo sources through a single USB port1. The sound card supports 24-bit/96kHz high resolution signal processing, and can input and output all audio signals with no degradation of sound quality. Once connected to a PC or Mac, the settings utility tool can be used to customize the mixer's output signal path to suit various purposes, such as DJ play, song recording or production2. Furthermore, smooth transfers between DJs are possible with the easily accessible USB ports on the top surface of the mixer.
- - Sound Quality Design - The Pioneer DJM-900nexus is equipped with the same audio input and output circuits as Pioneer's flagship DJM-2000 to achieve the most accurate audio reproduction from connected sources. The 32-bit digital to analog converter supports all outputs of the mixer, including the master audio outputs, booth outputs as well as headphones. Additionally, the built-in high performance 32-bit digital signal processor (DSP) suppresses any digital and analog circuit noise by way of high quality balanced hybrid operation amps and full balanced output circuits.
With more DJs continuing to use their personal computers as part of their rig, the Pioneer DJM-900nexus is ready for a direct connection to a laptop PC or Mac, increasing its convenience and functionality.
- - PRO DJ Link - Via an Ethernet (LAN) cable, the mixer can quickly link to the Pioneer PRO DJ Link compatible CDJ-2000 and CDJ-900 players (with firmware version 4.00 or later3) or a personal computer running Pioneer's rekordbox software, giving users fast access to a song's beats per minute (BPM) and beat location information, resulting in a precise beat matching capability. Furthermore, the built-in quantize mode compensates for Beat Effect operation timing errors automatically, so effects are matched perfectly.
- - TRAKTOR Functionality - Using a USB connection with a PC or Mac, the four decks (players) inside TRAKTOR can be connected simultaneously with the mixer, enabling enhanced flexibility with the software. In addition, the mixer is also Traktor Scratch4 certified for Traktor Scratch PRO / DUO 2, allowing scratch control functionality when using a time code disc5.
- - Time Code Output - Through its USB port, the mixer can output time code disc signals for DVS (Digital Vinyl System) software6 when used with a Pioneer CDJ player or analog record player. DJ play using DVS software can be done without difficult and complicated connections7.
The DJM-900nexus is equipped with additional features that add to the user's DJ play.
- - High performance channel faders - The slide mechanism supports the fader knobs with two metal shafts for both longevity and smooth operation Furthermore, the mechanism's design minimizes the effects of moisture or dust particles on the mixer's performance capabilities.
- - Integrated input selector - Enables users to simultaneously switch all channel inputs.
- - Indicators - The DJM-900nexus is equipped with a "USB connection indicator" to display the status of sound card and PC or Mac communications as well as a "USB audio input indicator" to display audio inputs from a PC or Mac.
- - Industry's First MIDI Signal Output8 - The DJM-900nexus features the industry's first musical instrument digital interface (MIDI) signal output that changes at beat-by-beat intervals. The mixer also includes a "MIDI LFO function" to control external devices such as effectors.
- - Assignable MIDI Functionality - Nearly all knobs and buttons operation information can be assigned to control other devices. The mixer can also be used as a MIDI controller.
- - Switching 3-Band EQ/Isolator - Each channel of the mixer is equipped with a switchable 3-band EQ (+6dB to -26dB) and 3-band Isolator (+6dB to -()()dB).
- - P-LOCK Fader Cap - Keeps the fader channel and crossfader knobs (caps) locked preventing them from physically slipping off during use.
- - Auto Standby - Automatically senses the presence of active operation and input signals and switches to standby mode when inputs are not detected for a long period of time.
1 Compatible with both Windows and MacOS. When operated with Windows, 3 or more stereo terminals can be allocated only if ASIO compatible software is used
2 Installation of the driver and settings utility software from the included CD-ROM to a PC is required to use the USB sound card functionality
3 Firmware for CDJ-2000 and CDJ-900 planned to be released end of Feb. 2011, end of Mar. 2011, respectively.
4 Traktor Scratch can be used without connecting a sound card
5 A CD/record containing prerecorded time code for the purpose of controlling DVS software
6 DJ software for playing music files stored on a PC matched to the playback location and playback tempo of the time code disc
7 Not compatible with Scratch LiveTM made by Serato
8 As a DJ mixer. February 2011 current, Pioneer study

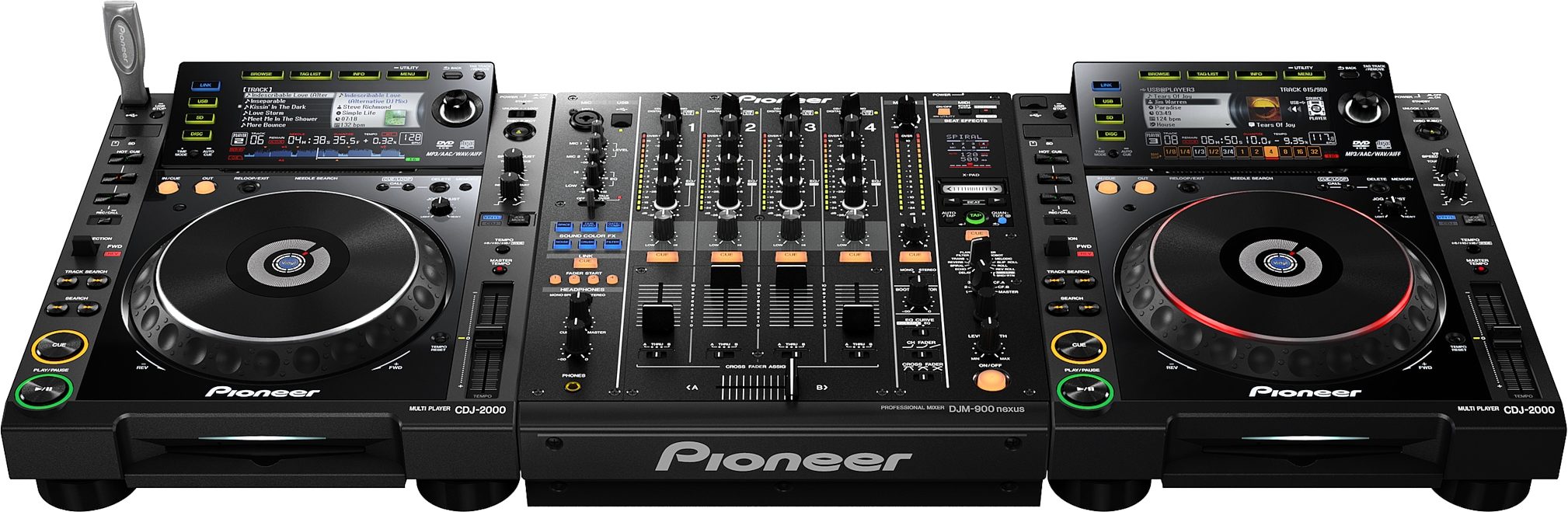

Note: CDJ-2000 turntables NOT included.
