Pioneer DJM-2000 4-Channel DJ Mixer

No longer available at zZounds
Establish your own unique sound with the professional DJM-2000 4-Channel DJ mixer from Pioneer, which features an industry-first 5.8-inch color display.

With an innovative touch screen and arsenal of remixing FX, the DJM-2000 forms the ultimate club mixer. No less than six individual effects processors lay the foundation for hundreds of music manipulation combinations, so a DJ can always create their own unique sound.

The DJM-2000 takes advanced features - thought only possible in software - and reinvents them in the physical world. Its intuitive layout will feel natural to existing Pioneer DJM users allowing creativity to flow whilst keeping its technical complexity under the skin.

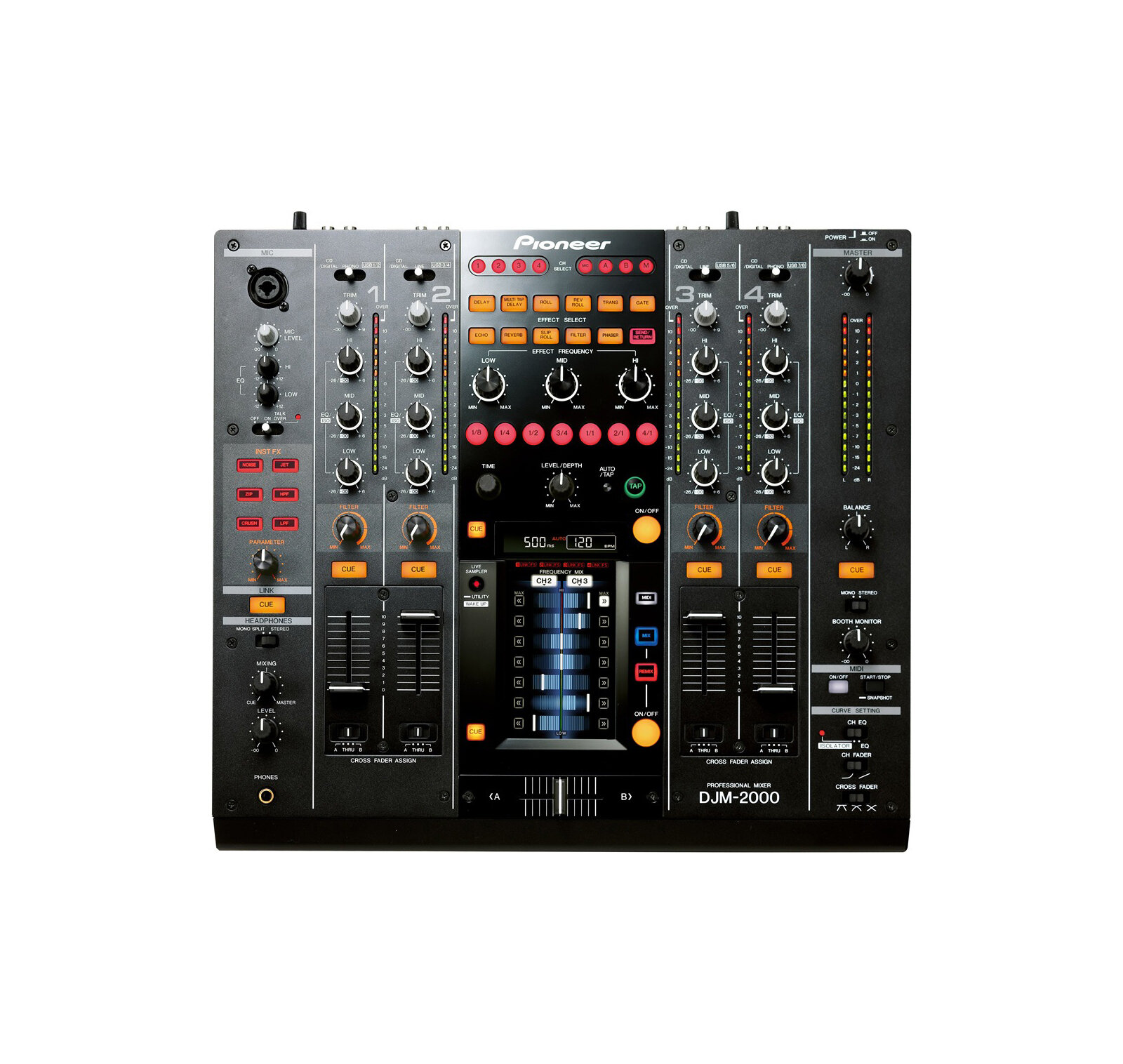

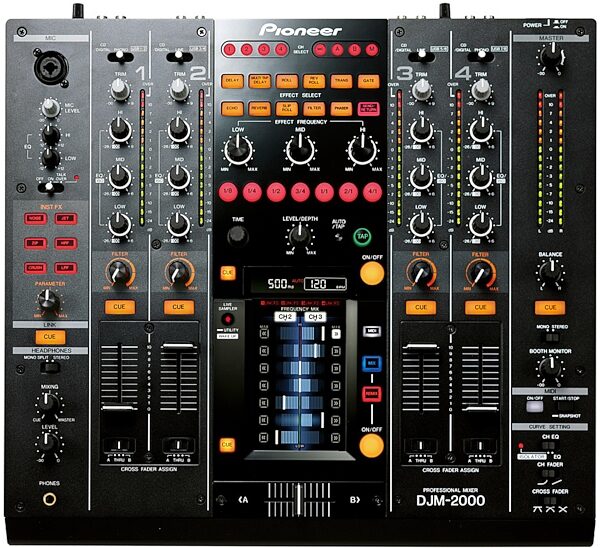

The DJM-2000 inherits a larger foot print than its predecessors to accommodate a sectioned layout of features as well as cosmetically match the Pioneer CDJ series of digital media players. On the top center section of the mixer resides its EFX capabilities to give DJs a bounty of digital effects. Located on each side of the middle section is its audio mixing controls for connection of up to four digital or USB sources. Across the middle section, Pioneer added INST FX (Instant Instrument FX) functions which allow DJs to further alter and create more sound effects. And, at the bottom center of the mixer is a large LCD touch display that provides DJs a window for remixing beats and adding effects with the ease of a simple touch of the screen.

Industry First Multi-Touch Panel

A first in the industry for audio mixers, the DJM-2000 incorporates a full-color 5.8-inch LCD multi-touch panel for adding audio effects. Users can simultaneously manipulate read more the displayed controls on the panel by touching different areas of the screen. Three different performance modes are available including:

Frequency mix - Enables more precise mixing within seven frequency ranges. For example, users can enhance the bass region within the music they're mixing.

Sidechain remix - DJs can create seven different dynamic audio effects with touches and movements on the screen.

MIDI mode - Allows the user to assign various controls displayed on the LCD screen to control DJ software via MIDI. Four types of MIDI modes are available for more performance flexibility.

Evolved Beat Effects

A section of the mixer resides an Evolved Beat Effects adopted from earlier versions of the DJM series of mixers to generate a multitude of sound effects. Numerous buttons were added for selecting multiple effects and beat parameters for additional performance capabilities. Further manipulation of the sound effects can be made using the Effect Frequency knobs that changes the low, mid and high frequency bands of the music. Turns of the knobs enhances the effects to each frequency band, i.e., an echo added specifically to the vocals of the music or a doubling of the hi-hat rhythm, providing incredible performance options.

Instant Instrument FX

The INST FX (Instant Instrument FX) provides six additional audio effects that include Noise, HPF, LPF, Jet, Zip and Crush. Each of the effects can be induced into the channel with a turn of the Filter knob. Additionally, the Parameter knob allows the effects to be fine tuned.

Pro DJ Link

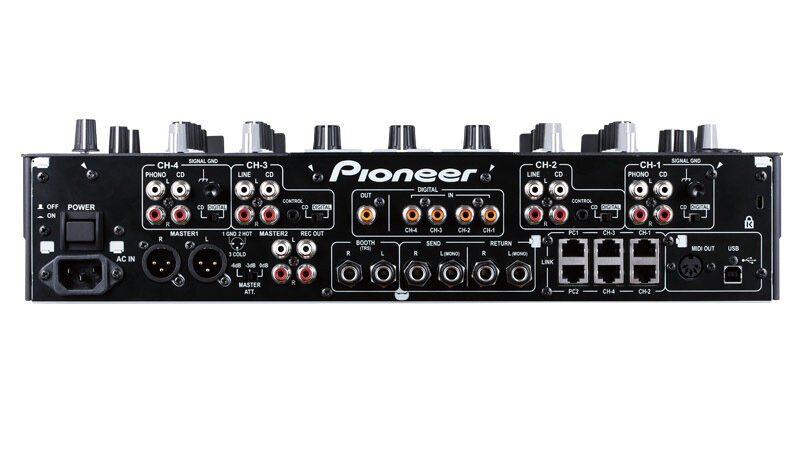

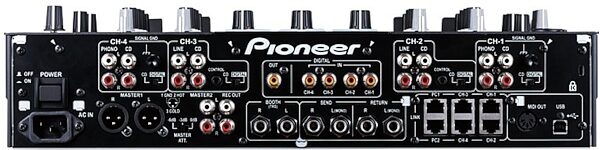

When used specifically with Pioneer's CDJ-2000 or CDJ-900 turntables via Pro DJ Link, the DJM-2000 becomes an even more powerful musical tool. The mixer incorporates four Ethernet ports in the back of the unit allowing up to four of the most recent CDJ turntables to be connected (via LAN cables) while sharing only one music-filled SD card1 or USB storage device. In addition, up to two laptop computers pre-installed with Pioneer's music management software rekordbox(TM) can be interfaced with the DJM-2000 via LAN cables, in cases that two DJs are transitioning for their individual performances.

Live Sampler

A cool feature of the mixer is its Live Sampler capability which allows the sound from a microphone or from the Master output to be recorded directly into the mixer. The "sampled" sound can instantly be transferred via LAN cable to a CDJ-2000/900 for scratching.

Link Monitor

When linked with the CDJ-2000 player, the mixer informs the DJ of its connected status. The JOG rings of the turntable changes in color based on the current on-air status or channel number connection, providing quick visual indications to the DJ.

USB interface

The DJM-2000 features a USB audio interface2 that allows direct computer connection without the need for an external sound card. Up to four audio sources can be assigned to each channel providing even more flexibility. For additional convenience, the Master output can be connected directly to a computer for recording3 of performances.

Sound Quality

Continuing the prestigious reputation of Pioneer mixers, the DJM-2000 provides excellent sound quality. By utilizing balanced hybrid op-amp and a perfectly balanced output circuit in the analog processing stage, Pioneer managed to significantly decrease induced noise resulting in a dynamic range of 107dB with 0.004% THD for an extremely clean and powerful sound.

Additional Features:

- Switching 3-Band EQ/Isolator - Equipped with a switching 3-band EQ (+6dB to -26dB) and 3-band Isolator (+6dB to -()()dB) on each channel
- Digital In - Permits audio signal of each channel with no deterioration in sound quality
- Fader Start Play - Connection with CDJ player(s) with PRO DJ LINK or control cable allows the mixer to start the turntable by switching faders
- Talk Over - Lowers the volume of the music when a connected microphone is used
- Peak Level Meter - Displays input levels at a glance
- Cross fader Assign function - Allows the flexible assignment of the input on each channel to the cross fader
- Fader Curve Adjust function - Allows changes to cross fader and channel fader curves

1 SD cards are only compatible with the CDJ-2000.
2 Compatible with Windows or Mac. When using Windows, three sources or more can be assigned only when using ASIO compliant software.
3 CD-ROM included. The USB audio interface function can be used after software is installed on the computer.
read less

No. of Channels: Audio 4-channels, Mic, 1-channel

Input Terminals: CD/LINE 6RCA), PHONO 2RCA), DIGITAL IN 4COAXIAL), MIC 1 (On top, XLR & 1/4-inch general-purpose phone1)

Output Terminals: MASTER OUT 2RCA 1XLR 1), BOOTH OUT 11/4 inch PHONE), HEADPHONE MONITOR OUT 1On top, 1/4 inch PHONE), REC OUT 1RCA), DIGITAL OUT 1COAXIAL)

Other Terminals: SEND 11/4 inch PHONE), RETURN 11/4 inch PHONE), MIDI OUT 15P DIN), CONTROL 23.5MINI JACK), USB B Port 1, LINK Terminal 6 (LAN Cable)

Sampling Rate: 96 kHz

D/A Converter: 32 bit

A/D Converter: 24 bit

Frequency Performance 20 Hz 20 kHz

Total Harmonic Distortion: 0.004% or less

Signal/Noise Ratio: 107 dB (LINE)

Headroom: 19 dB

Power Source: AC 120 V 60 Hz

Power Consumption: 42 W

Max External Dimensions: 16.9 in (W) 16.1 in (D) 4.3 in (H)

Weight: 18.7 lbs

For support or warranty questions, please contact the manufacturer:
Phone: 800-421-1404
Web: https://support.pioneerdj.com/

Reviewers gave this product an overall rating of 5 out of 5 stars. (26 ratings)
Submitted November 18, 2010 by a customer from gmail.com

"INCREDIBLE!"

Overall: 5 out of 5 stars
(see rating details)
Verified Customer zZounds has verified that this reviewer made a purchase from us.
This will last me until they come out with a new one! Pioneers outdoes themselves every time!
Sound
I have by far, NEVER, EVER, used a mixer with the capabilities and quality like the djm- 2000. This thing is in a whole different category of its own. I owned the djm-800 and upgraded to this 3 months ago when it came out. I thought the djm 800 was incredible. The sound quality is superb. Im a House Music dj and have been for the past 6 years on a professional level. I have it hooked up to 4 cdj-2000's and must say this is the ULTIMATE combination in the professional dj world!
Features
The new digital multi-zone mixing option is by far the most creative thing on the mixer. Being able to manipulate different parts of a song and applying effects to just that part was an unheard of idea till they came out with this mixer.
Ease of Use
It is a complicated mixer. BUT, use it for a few hours and mess around with it and you will see that your creativity has no boundaries. Your mixes have never sounded this good!
Quality
Excellent craftsmanship. The screen does not have a gloss screen and your fingers dont leave streaks on it.
Value
You get what you pay for!
Manufacturer Support
no need yet
The Wow Factor
Sexiest mixer I have ever used. With 4 cdj-2000's next to it this thing is a best!

Musical Background:

Pro DJ

Musical Style:

House
7 of 9 people (78%) people found this review helpful. Did you?
Thanks for your opinion!

No longer available at zZounds

In most cases, a product is unavailable because it has been discontinued by the manufacturer
