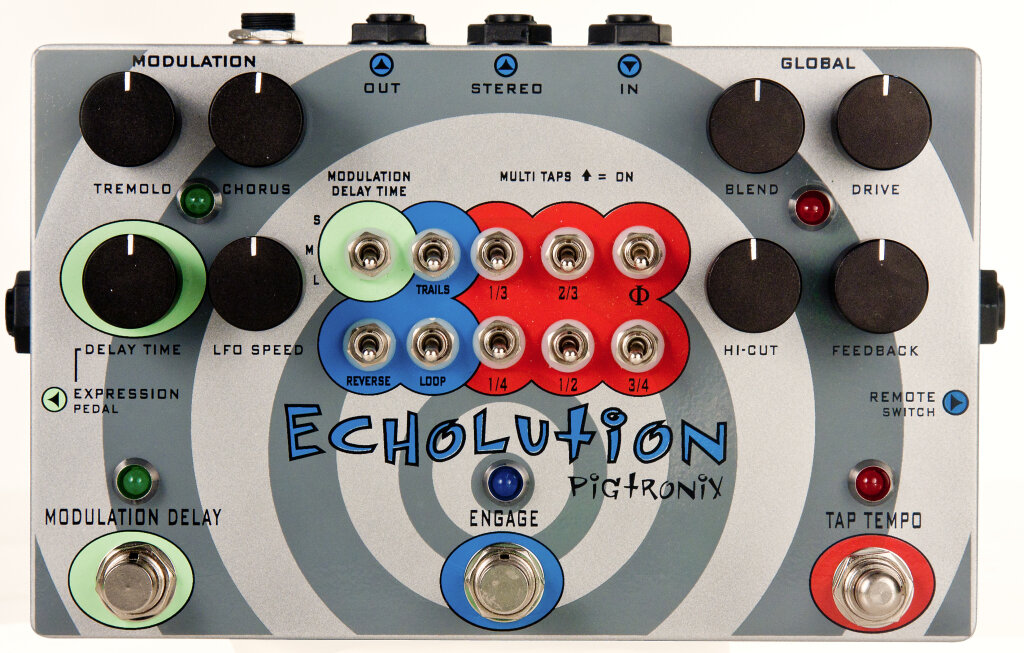

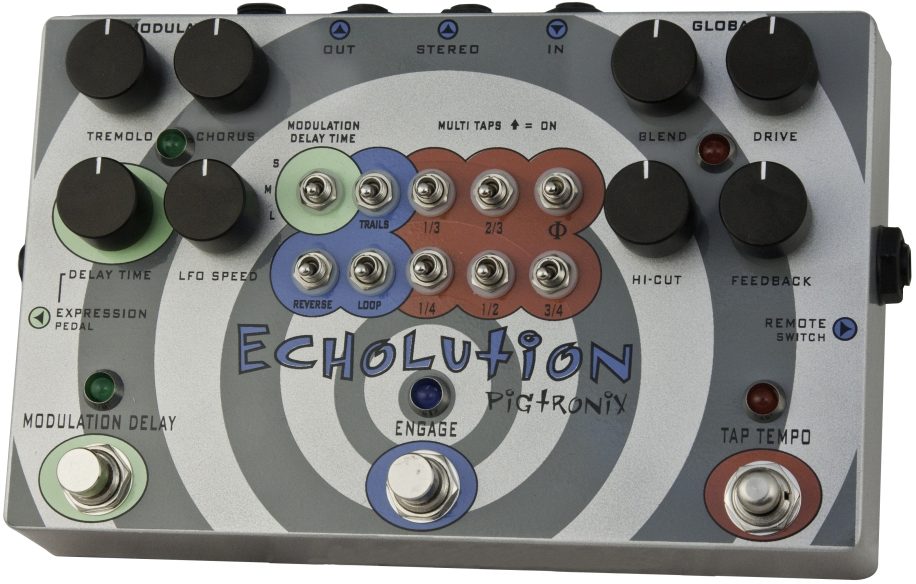

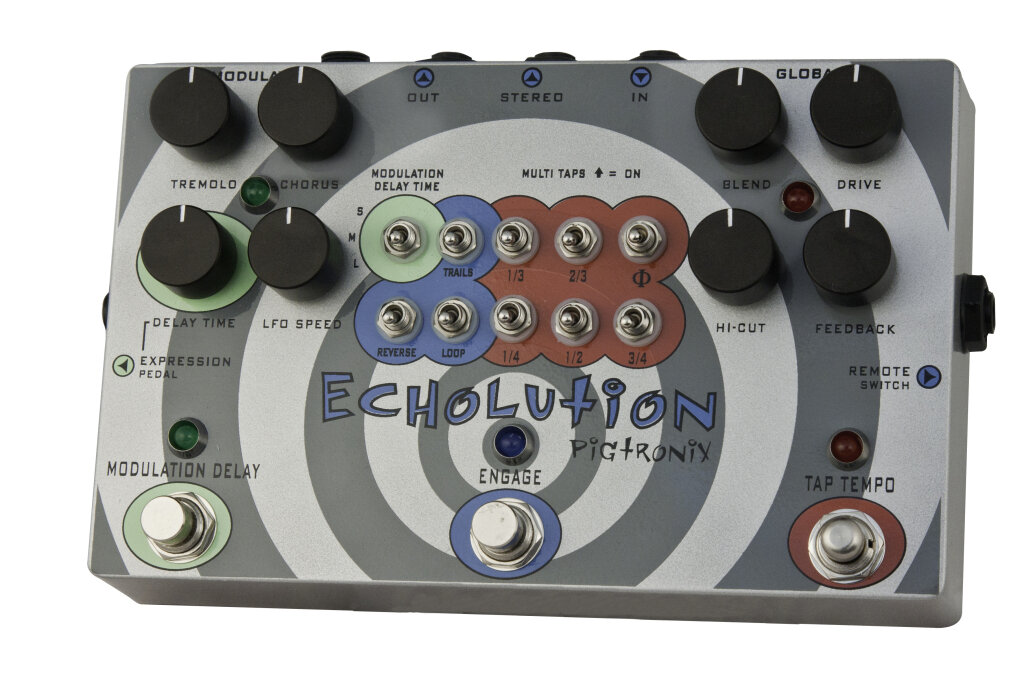

Pigtronix Echolution Multi-Tap Delay Pedal

Product Description

Echolution is the world's finest delay pedal. A hybrid of analog and digital technology, Echolution's ethereal tape echo sound can be manipulated by a creative arsenal of features. Virtual tape heads at fractions of the master delay time add up to six delays at once, all synced to a master clock. Echolution drenches your tone in analog goodness with a world class pre-amp driving a pair of proprietary non-linear tape emulation filters, a hi-cut stage and stereo outputs. The echoes are further massaged by chorus (pitch modulation) and tremolo (amplitude modulation) circuits with independent depth controls and a shared LFO.

Independent Tap Tempo and Modulation modes allow you to switch between different sounds on the fly, with a maximum delay time of 12 seconds. An updated precision tap tempo algorithm matches the beat with only two stomps and an expression pedal jack allows for external adjustment of delay time in the modulation mode.

The Modulation mode operates over three distinct time ranges, providing easy access to a huge array of delay based effects. The short setting (10ms-120ms) provides stereo chorus, reverb and slapback sounds. The medium setting (100ms-1.2sec) covers classic BBD and tape echo territory with lush modulation and rich dub tone. The long setting (1sec-12sec) allows for epic sound on sound jams, sampling, reverse playback and rhythmic multi-tap patterns.

The Multi-Tap toggle switches introduce any combination of five additional echoes at musical fractions of the master delay time. This is like having up to 6 delay pedals in a row! The fractions can be based on quarter notes and triplets or aligned to the Golden Ratio using the PHI switch. The Golden Ratio is a naturally occurring spiral rhythm that is found throughout the universe. It is observed in the shapes of galaxies, sea shells, DNA, the Egyptian Pyramids as well as in the work of many great musicians.

Other thoughtful features include a stereo blend control that mixes the pure analog input signal with the echo signal, a Trails switch that allows echoes to fade gradually after the effect is bypassed and an input Drive control, which can push the echoes into massive saturation. True stereo outputs provide breathtaking 3D sound when used with two amps or direct into a mixer. The Echolution contains a Loop feature that freezes the content of the delay line and repeats the captured audio. When the loop function is engaged, all of the modulation and multi-tap functions remain active, allowing you to warp and manipulate the sample beyond all recognition and then back again to its original sonic form. The Echolution can also operate its delay line in Reverse for backward sounds that are truly psychedelic. Reverse and Loop Functions are both switchable via a two button TRS remote switch.

Echolution is a musical instrument that will expand your mind and your music.

Features

- Unique Analog / Digital Hybrid Architecture

- Switchable Tap Tempo and Modulation Delay

- Analog LFO Modulation for Chorus and Tremolo

- Reverse and Loop Modes with Remote Switching

- 6-Part Multi Tap with (Phi) Golden Ratio switch

- Trails switch lets echoes fade naturally after bypass

- Capable of Self Oscillation without digital clipping

- Non-Linear Filters provide analog saturation

- Pigtronix 15VDC power supply included

- Circuit Design by Howard Davis

- True Stereo Outputs

zZounds is an authorized dealer of Pigtronix products.

- Input Impedance: 1 Mohms

- Output Impedance: 150 ohms

- Power Supply: DC 15V 300mA AC Adaptor (included)

- Current Draw: 285mA (DC 15V)

- Size: 7.4 x 4.6 x 1.5 in.

- Weight: 1 lb.

- Included Accessories:

- Owner's Manual

- Power Supply

Dimensions and Weight in Packaging

Base Item

Shipping Weight: 3 lbs

Shipping Dimensions: 12 x 8 x 4 in
