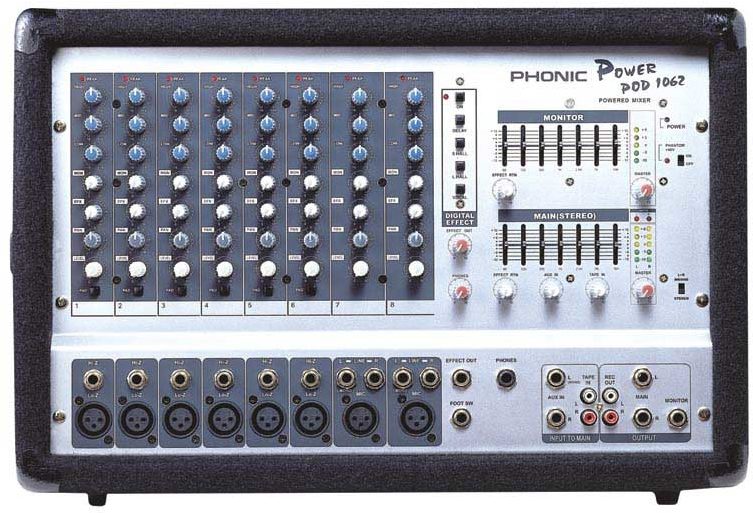

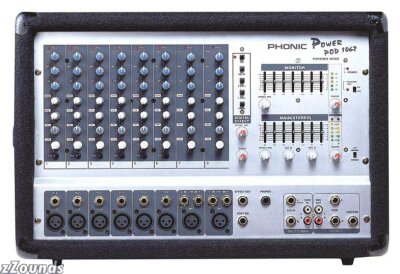

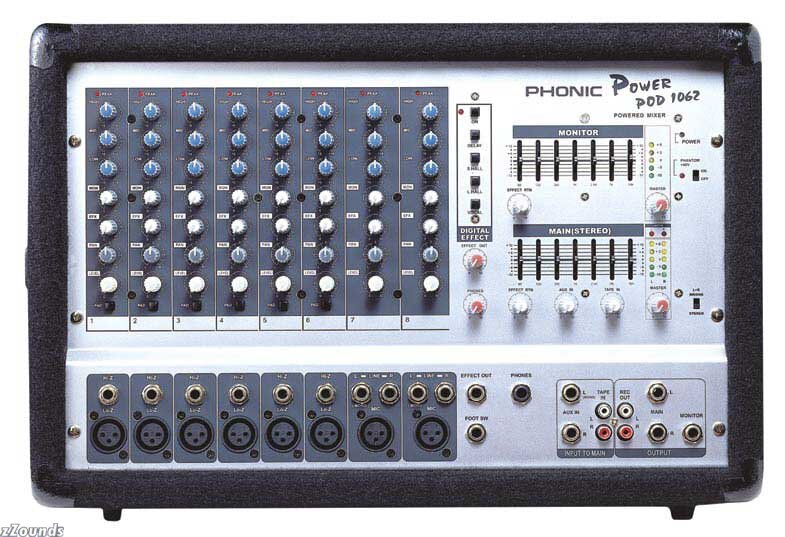

Manufacturer's Description for Phonic PowerPod1062 Powered Mixer with EFX
The Phonic Powerpod1062 Powered Mixer provides a great deal of power to the main stereo speakers - 300 watts per channel (at 4 ohms, bridgeable to 600 Watts at 8 Ohms)! Features include 8 balanced microphone inputs with switchable phantom power for condenser microphones, built-in digital effects, 7-band graphic EQs for the mains and the monitors, and 3-band EQ on each channel. The Powerpod1062 is a great Choice for people who want more power from the main speakers, but don't need any power for stage monitoring.
Features
Built-in 300W+300W/4 Ohms amplifier (bridge operation 600W/8 Ohms)
255 types of digital effect allow the user to add reverb or ambiance to the mix
8 balanced mic inputs
10 balanced/unbalanced TRS 1/4 in. jack line inputs
Gain, 3-band EQ and pan control on all input channels
Tape input/record output via RCA (phono) connectors
2 built-in limiters prevent excessive input level to amp modules
3-channel 7-band graphic equalizers, stereo for front of house, mono for monitor
Headphone amp with stereo 1/4 in. connector and dedicated level control
zZounds is an authorized dealer of
Phonic products.
Power Amp
Output power in watts
Number of Power Channels: 2
Limiters: 2
@THD<0.5%, 1KHz
8 Ohms per channel: 200
4 Ohms per Channel: 300
8 Ohms Bridged: 600
Inputs
Balanced Mono Mic/Line Channels: 8
Balanced Mic/ST Line Channels: 2
Tape Input: 1
Aux In: 1
Outputs
Main L/R Stereo: 2 x TRS, unbalanced
Aux Sends: 2 x TRS, unbalanced
Phones: 1
Channel Strips
8 Total
Aux Controls: 2
Pan/Balance Control: Yes
LED Indicators: Peak
Volume Controls: Rotary
Master Section
Aux Send Masters: 2
Effects Return to Monitor: Yes
Rotary Faders: Moni, Main L/R
Metering
Number of Channels: 3
Segments: 5
Phantom Power Supply
+48VDC
Switches: Global
Built-in Effect Processor
4 programs
Built-in Graphic EQ
ST+1, 7-band
Center Frequencies: 60, 120, 360, 1K, 2.5K, 7K, 16K Hz
Range: ±12dB
Noise
(20Hz to 20KHz bandwidth, IHF-A weighted, line inputs to main L/R outputs, all channels assigned, panned L/R)
Master Output, All Faders Down: <-78dBu
Power Amp Output, All Faders Down: <-63dBu
THD+N
Power Output, 1KHz, 20Hz to 20KHz: @100 watts, 4 Ohms <0.5%
Any Output, 1KHz @ +14dBu, 20Hz to 20KHz, Channel Inputs: <0.3%
CMRR
1 KHz @ -60dBu, Gain at Maximum: 80dB
Crosstalk
(1KHz @ 0dBu, 20Hz to 20KHz bandwidth, channel in to main L/R outputs)
Channel Fader Down, Other Channels at Unity: <-63dB
Frequency Response
(Mic input to output)
20Hz ~ 20KHz, line level o/p @ +4dBu into 600 Ohms: +0/-2dB
20Hz ~ 20KHz, power amp o/p 1 watt into 8 Ohms: +0/-2dB
Maximum Levels
Mic Preamp Input: +10dBu
All Other Inputs: +22dBu
Balanced Outputs: +28dBu
Unbalanced Outputs: +22dBu
Impedance
Lo-Z Input (Mic in): 2.2K Ohms
Hi-Z Inputs (Line in): 5K Ohms
All Other Inputs: >10K Ohms
RCA 2T Outputs: 1.2K Ohms
All Other Outputs: 560 Ohms
Equalization
3-band, ±15dB
Low EQ: 80Hz
Mid EQ: 2.5KHz
Hi EQ: 12KHz
Microphone Preamp E.I.N.
150 Ohms Terminated, Maximum Gain: <-122dBm
Other
Power Consumption: 300 watts
Power Requirements: 100-120VAC, 220-240VAC 50/60Hz
Dimensions (WxHxD): 18.9 x 12.8 x 11 in. (480 x 325 x 280 mm)
Weight: 47.4 lbs. (21.5 kg)
Phonic Warranty
Phonic Warranty
Phonic offers warranty of one year on all speakers and three years on all other parts and items. Warranty covers parts and labor.
If you have additional warranty questions,
please call the manufacturer at 813-890-8872
