Phonic HelixBoard17 USB Mixer

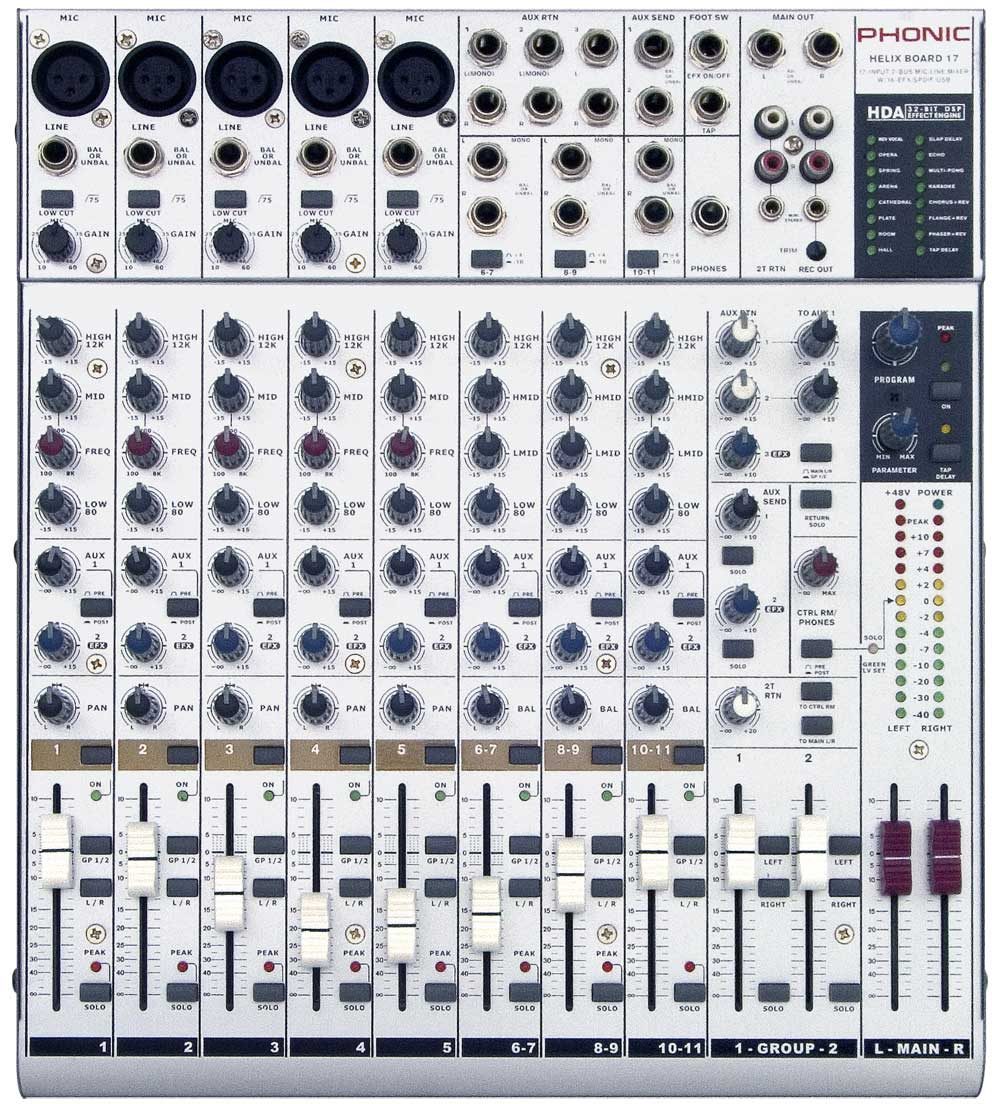

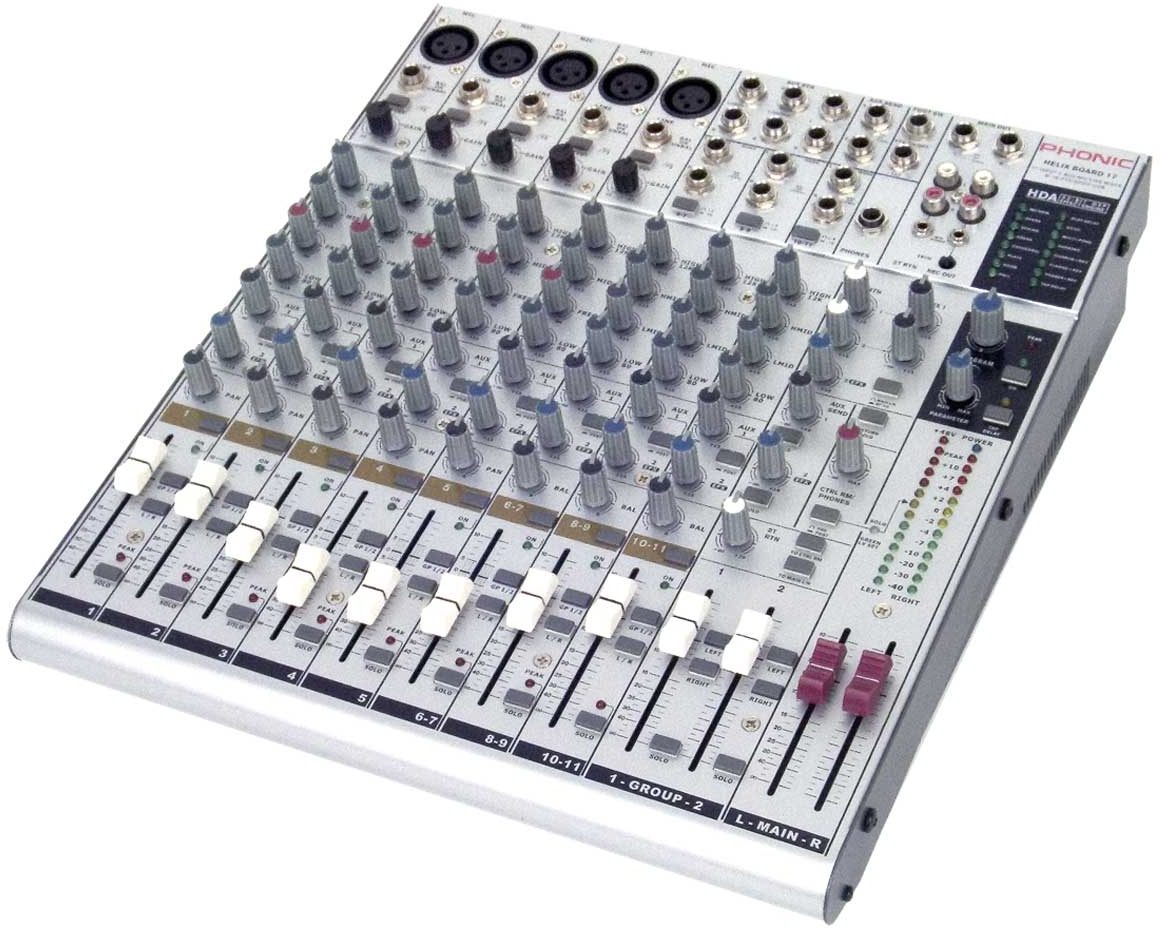

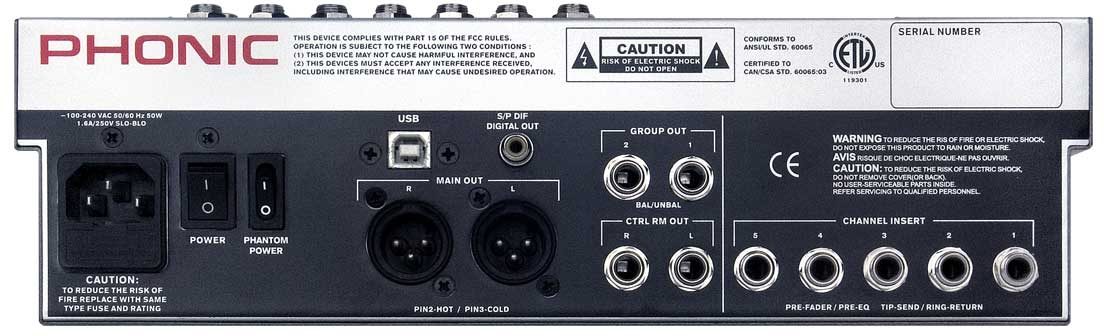

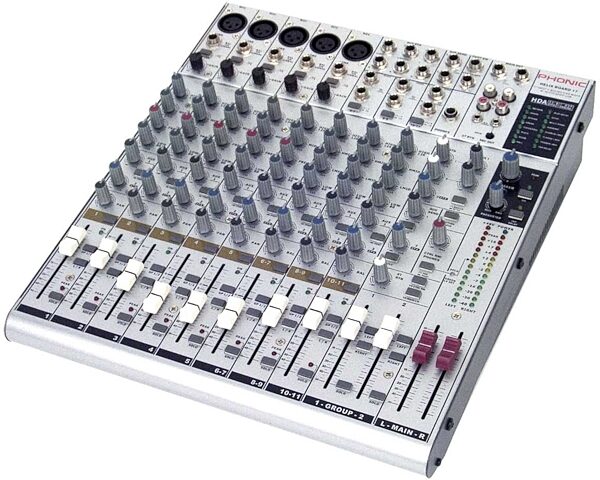

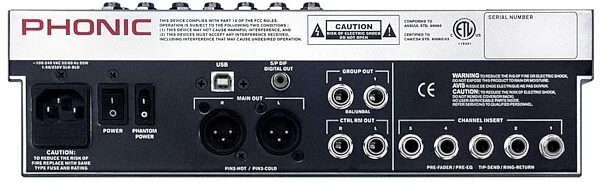

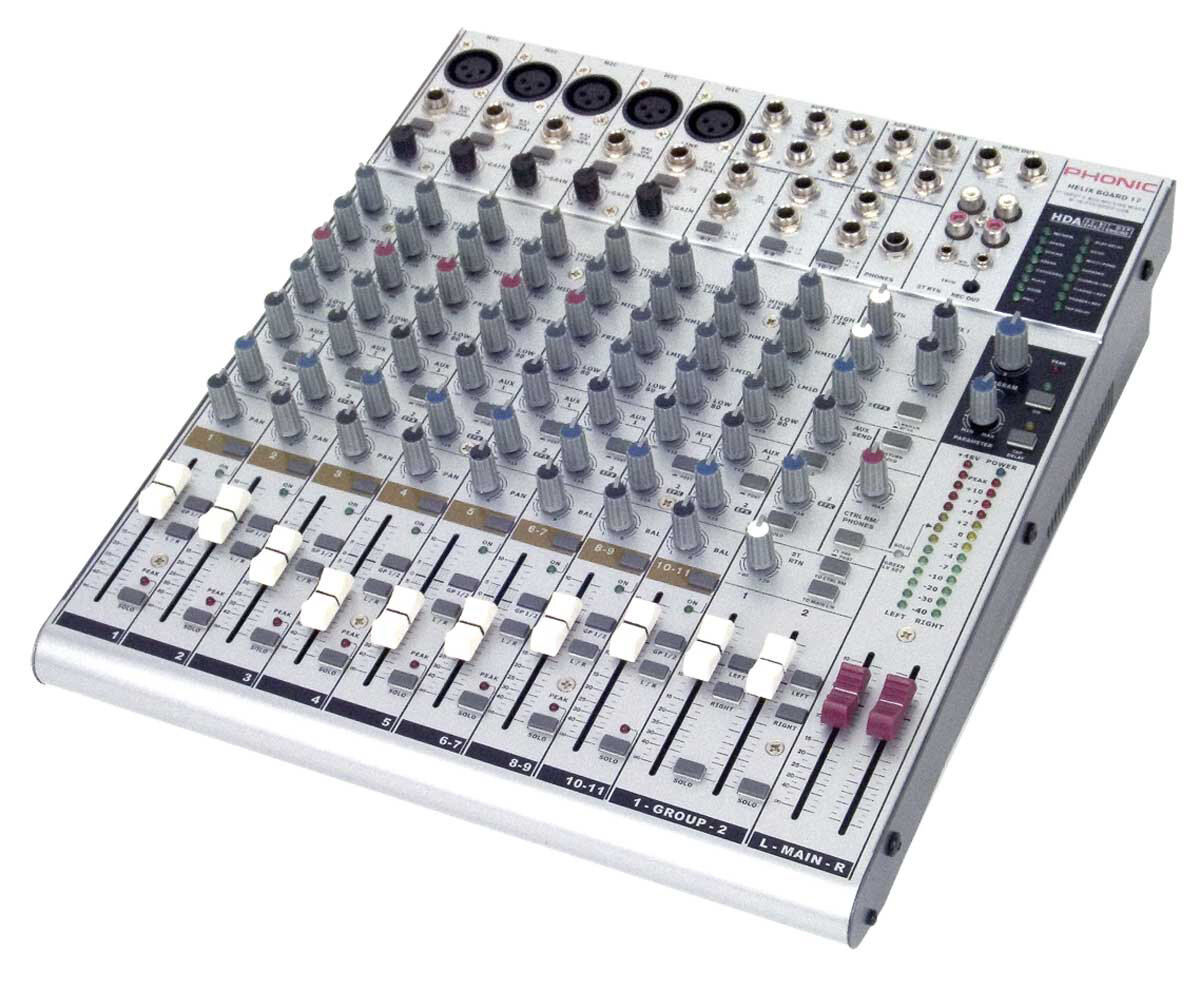

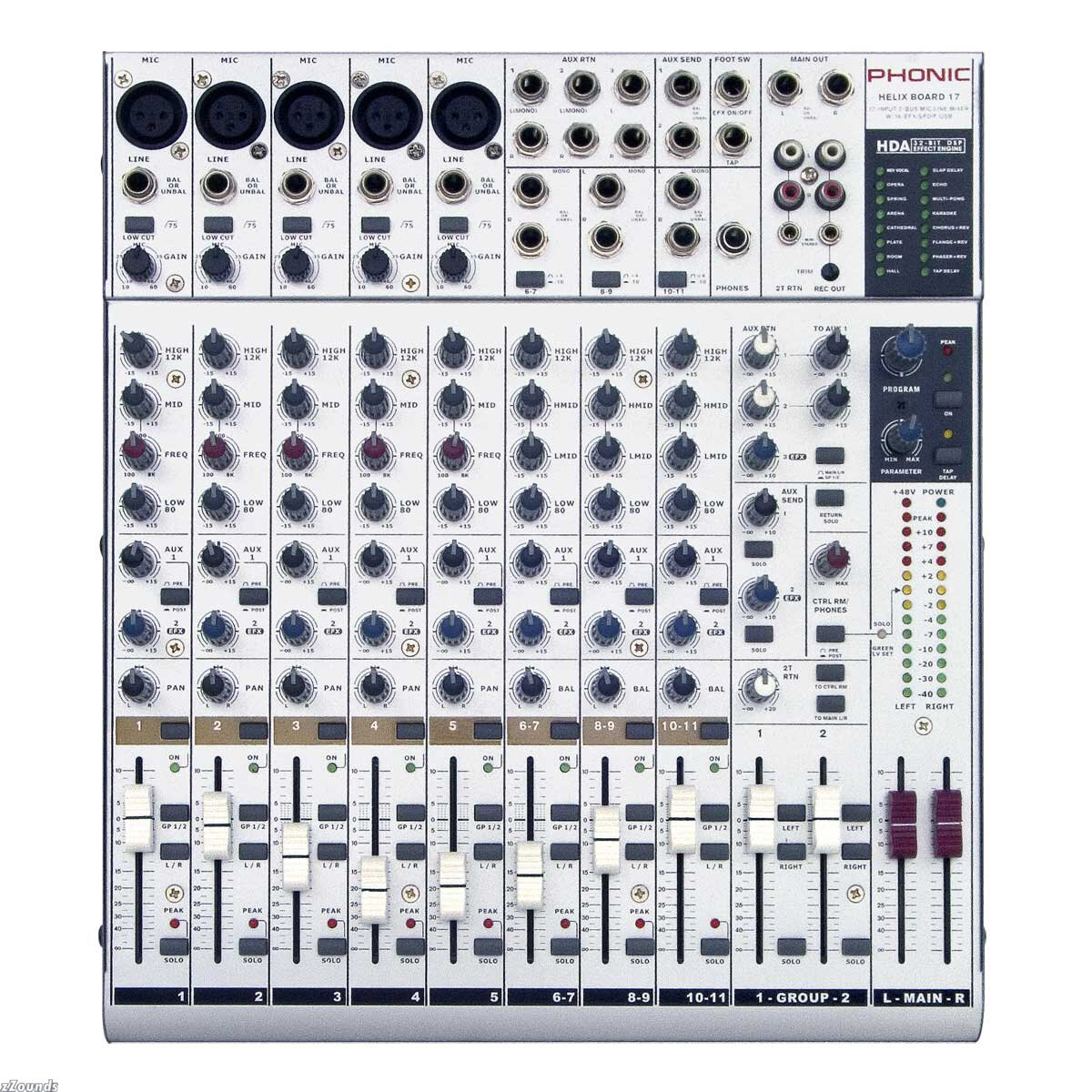

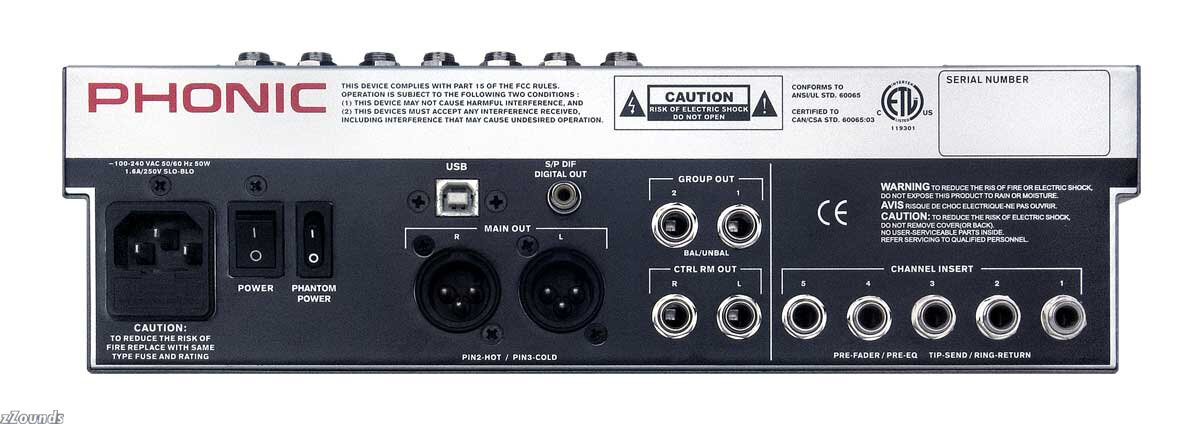

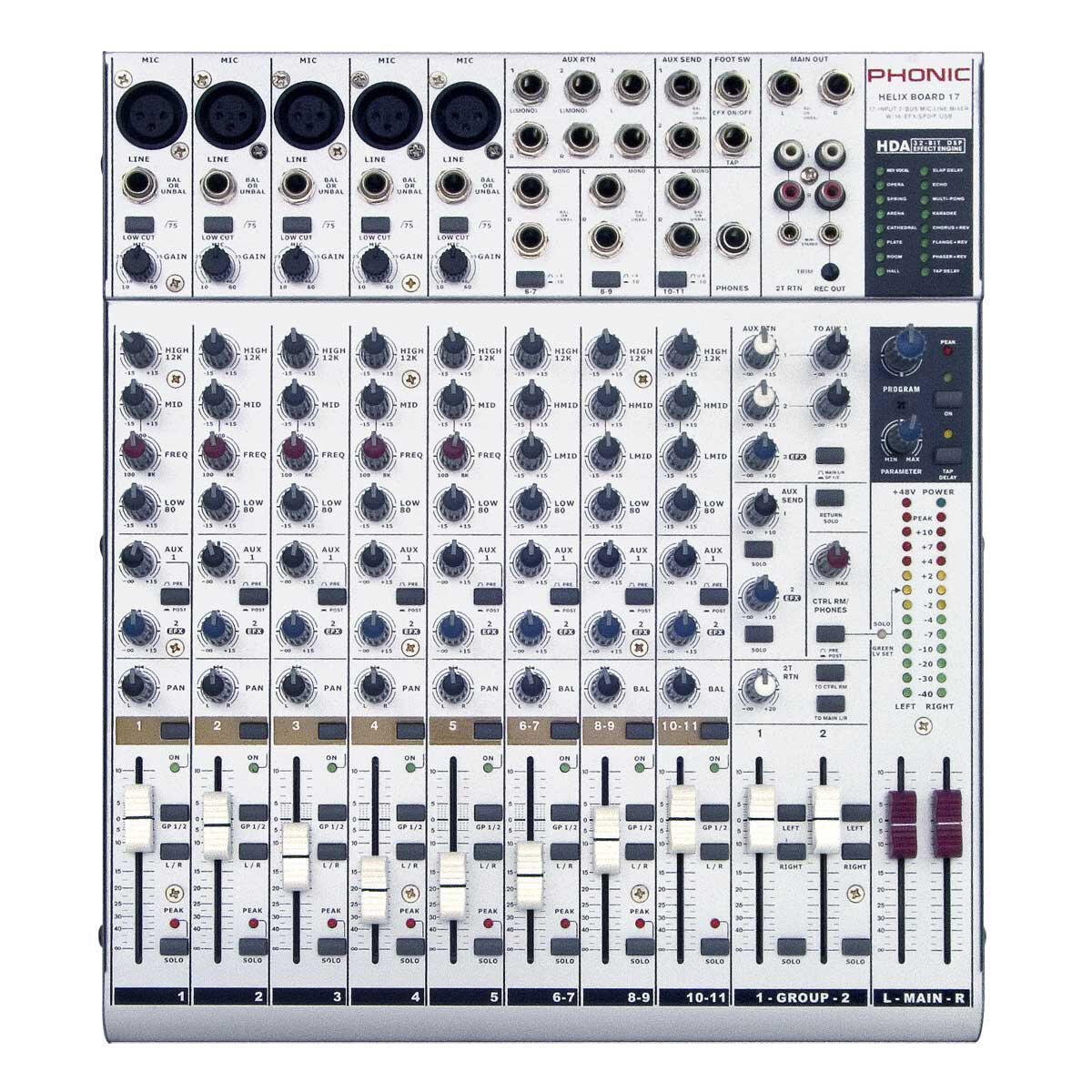

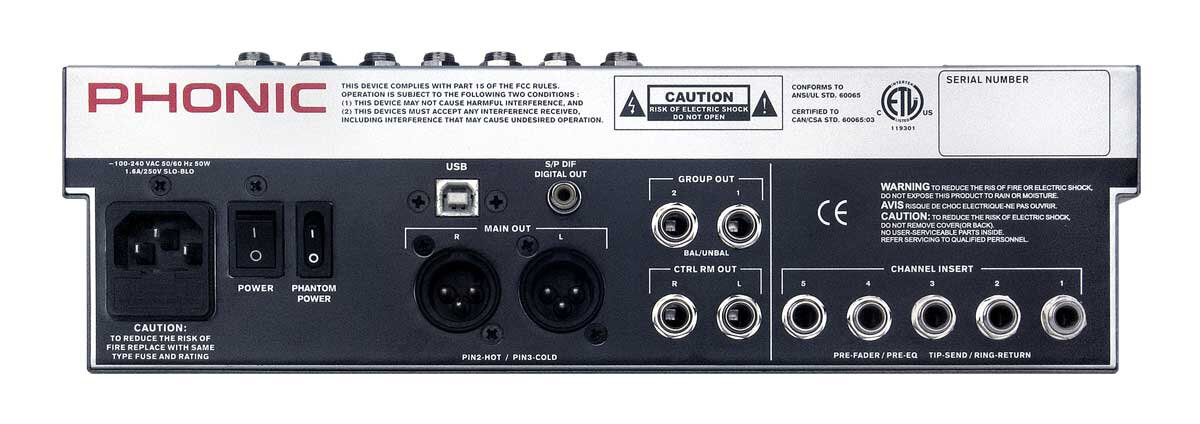

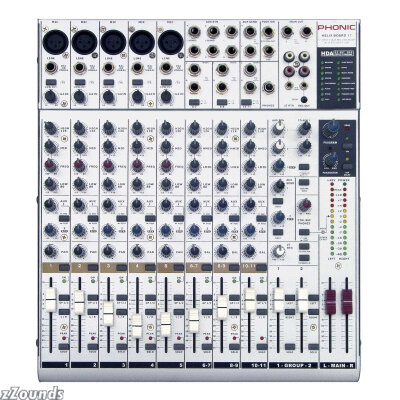

The HelixBoard17 is a 17-input compact mixer with five Mic/Line input channels, three paired stereo input channels and two true subgroups with main L and R routing switches. It has main XLR outputs, two AUX sends, control room outs, and stereo RCA input/output jacks with trim control for level matching while recording.

Connect a HelixBoard to your computer's USB port to get live, CD-quality sound (16-bit stereo with 44.1 kHz sampling rate). Low latency playback lets you record directly to your computer and monitor in real-time. HelixBoard mixers assure perfect audio quality when multi-track recording by allowing you to monitor previously recorded audio files through your headphones while recording another track. HelixBoard mixers are compatible with most PC or Mac computers and no drivers are required. Combine the digital audio capabilities of the Helix Board 17 with audio workstation software, and there's no limit to what you can do.

Features

USB interface for sending your mixer's main stereo signal to your computer

Plug and play operation under Windows and Mac OS, no additional drivers required

44.1 kHz S/PDIF digital out

24-bit digital stereo multi-effect processor with 16 programs plus one main parameter control, tap control and foot switch

Technical Info

Audiophile-quality & ultra low noise

Mic/Line channels with inserts and phantom power

3 stereo channels with 4-band EQ

3-band EQ with swept mid-range plus low cut on each mono channel

2 Aux sends, one with Pre/Post switch

24-bit digital stereo multi-effect processor with 16 programs plus one main parameter control, tap control and foot switch

2 true subgroups with main L and R routing switches

3 stereo aux returns, 2 with effect to monitor level control

Solo feature on each input and output

Record output with trim control for recording level matching

Convenient mini stereo I/O for MD, MP3 player/ recorder, input with level control

Built-in switching power supply with universal connector, 100-240VAC, 50/60Hz

Integrated USB Port to transfer audio directly between the mixer and your computer

16-bit stereo simultaneous input and output over USB

Plug and play operation under Windows and Mac OS, no additional drivers required

44.1 kHz S/PDIF digital out

Stereo USB mixer with 17 inputs. Built-in 24-bit effects. Five mic pres, 3 stereo line channels, 2 true subgroups. Mac OS X/Windows XP compatible. Includes rackmount kit.
