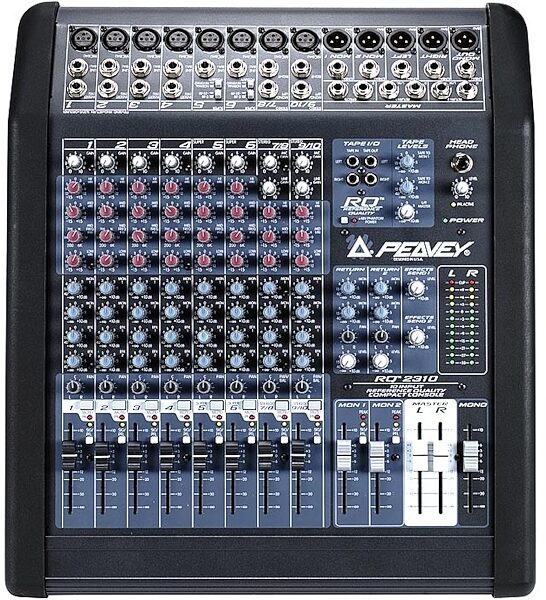

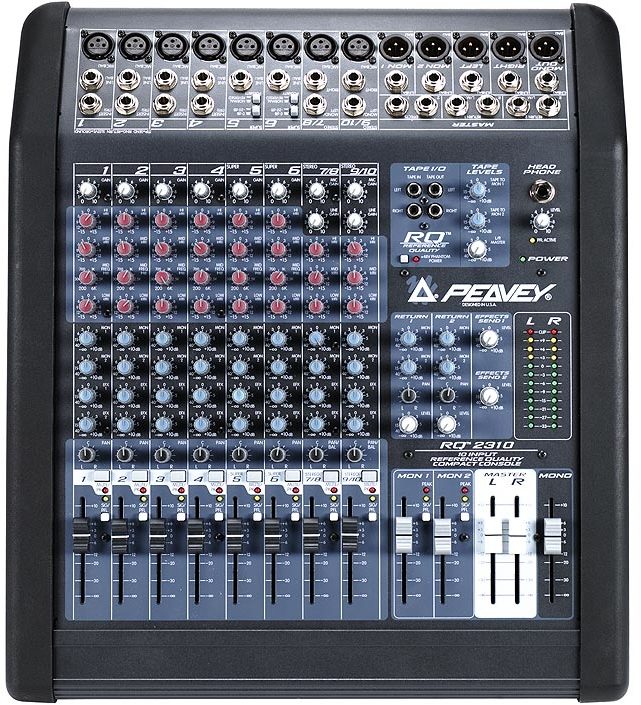

Peavey RQ2310 8-Channel Mixer

Great features & a great look. 10 People rated this product:

Rate and Review This Product

Roll Over to Enlarge

Main

overview specifications documents

Manufacturer's Description for Peavey RQ2310 8-Channel Mixer

Great features & a great look. Whether for a home project studio or mixing live sound, the RQ 23 Series has all the features you need plus Peavey reliability. The RQ 2310 features 8 XLR inputs, each with an insert and 48 V phantom power (the RQ 2314 has 12 and the RQ 2318 has 16). The channel EQ allows for excellent control with its sweepable mid frequency.

All of the RQ 23 Series miders have two stereo returns with separate volume for the monitor sends and pan allowing for some really creative miding options. The output section on these feature packed mixers has XLR balanced connectors for the left, right and mono outputs. Each of the channels has two indicators one for signal present and one for clipping, which allows you to see distortion on the channel BEFORE ANYBODY HEARS IT. Each input also features PFL for monitoring the channel and mute to allow you to turn off a channel without losing your fader setting. The RQ 23 Series brings home all the features you want at a price that you will like.

Features

8 low noise (reference quality) microphone inputs

Two channels with stereo line inputs

3-band EQ with mid-sweep on channels 1-6

3-band EQ on channels 7 & 8

Inserts on channels 1-4

Pad and polarity on channels 5 & 6

Mute and PFL on each input

LED clip, signal, PFL and mute indicated

Two pre-fader monitor sends with 60 mm master fader

Two post-fader effects sends

Two stereo effects returns

Precision 60 mm faders on input channels

Left, Right, Monitor 1 & 2 and Mono outputs with 1/4 inch unbalanced and

XLR balanced connectors

Rugged console design zZounds is an authorized dealer of Peavey products.

Specifications

Gain Mic Input Gain Adj. Range: 10 dB to 56 dB
Mic Input to L/R Bal Output: 78 dB (Max Gain)
Mic Input Longest Path: 93 dB (Max Gain)

Line Input Gain Adj. Range: -10 dB to 46 dB
Line Input to L/R Output: 60 dB (Max Gain)
Line Input Longest Path: 73 dB (Max Gain)

Stereo Input Gain Adj. Range: 10 dB to 46 dB
Stereo Input to L/R Output: 36 dB (Max Gain)
Stereo Input Longest Path: 46 dB (Max Gain)

Aux Return to L/R Bal. Output: 34 dB (Max Gain)

Frequency Response Mic Input to L/R Output: 11 Hz to 42 kHz +0 dB / - 1 dB

Total Harmonic Distortion (THD) < 0.008% 20 Hz to 20 kHz Mic to L/R Output: (10 Hz - 80 kHz BW)

Equivalent Input Noise (E.I.N.) -129 dBu (Input terminated with 150 ohms)

Crosstalk Greater than 80 dB Adjacent Input Channels (20 Hz to 20 kHz)
Greater than 70 dB Left to Right Outputs (20 Hz to 20 kHz)

Common Mode Rejection Ratio (mic Input) 50 dB min (20 Hz - 20 KHz)
70 dB typ @ 1 kHz

Meters 12-segment, peak reading (0 dB = +4 dBu)

Signal/Overload Indicators Red LED lights 2 dB below clipping

Dimensions 4.45 x 16.158 x 18.93 in. (11.3 x 41.01 x 48.08 cm)

Weight 13.7 lbs. (6.21 kg)
