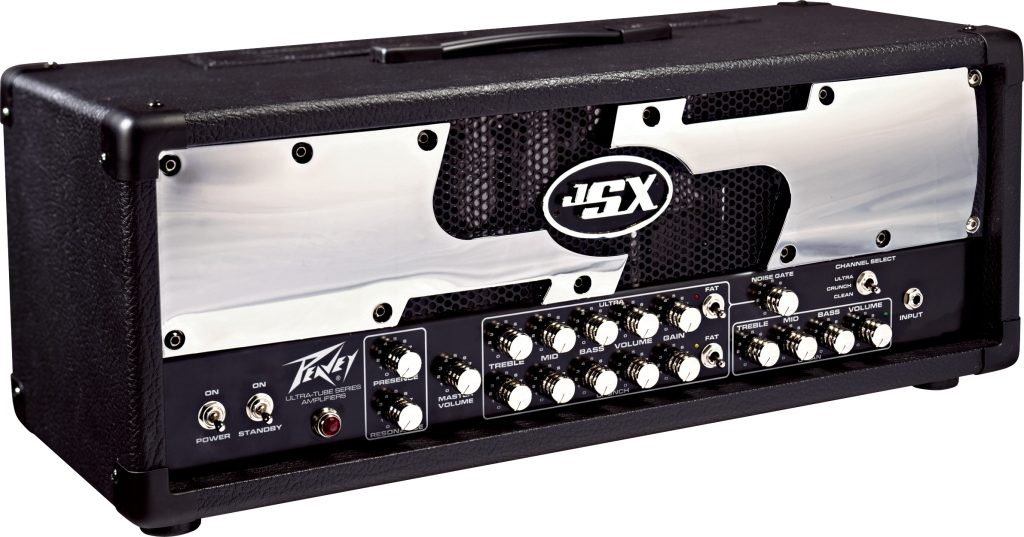

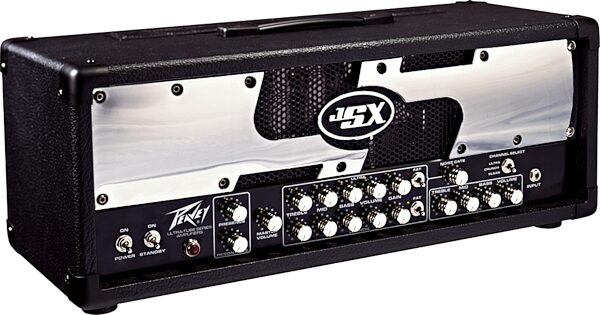

Peavey and Joe Satriani set out to create an amplifier that would give the widest range of EQ options and gain structures possible.
This amp delivers sounds ranging from the Classic 50 to vintage British to the modern Triple XXX and all tones in-between. The versatile and comprehensive control section supplies a master volume pot and independent volume knobs for each of the 3 channels (ultra, crunch and clean). Tone shaping is accomplished through passive controls for bass, mid and treble on the clean channel, while the ultra and crunch channels utilize active low, mid and high controls. The clean channel is pristine yet warm and is specifically voiced to work well with effects pedals. The ultra and crunch channels have gain controls and fat switches to further assist in taming this thunderous tube-powered beast while achieving killer sound. Global resonance and presence knobs increase control of high-end tones, while a noise gate on the crunch and ultra channels cuts down on the excess noise generated by running the gain and EQ controls on high settings. Since the gate is fully adjustable, you can really clamp down, leave it slightly open or just turn it off.
Features
120 watts into 16, 8, or 4 ohms (switchable)
Four EL34s and four 12AX7s
Power amp switchable to use EL34s or 6L6GSs
Three footswitchable channels
Clean channel: volume, bass, mid, treble
Crunch channel: gain and volume, bass, mid, treble EQ and FAT switch
Ultra channel: gain and volume, bass, mid, treble EQ and FAT switch
Noise gate control for both distortion channels
Master volume
Footswitchable effects loop with send and return controls
Resonance and Presence controls
Line out with level control
Footswitch included
Technical Info
Dimensions: 26.5 in. W x 10.875 in. H x 11 in. D (unpacked), 28.75 in. W x 14.25 in. H x 13.5 in. D (packed)
Weight: 63 lbs. (packed), 54.3 lbs. (unpacked)
