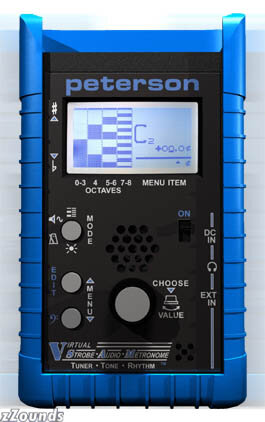

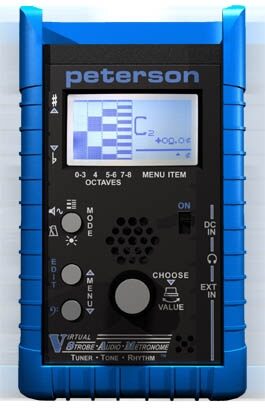

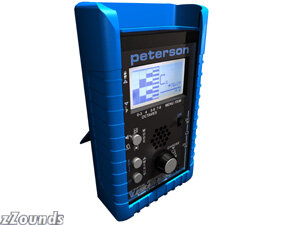

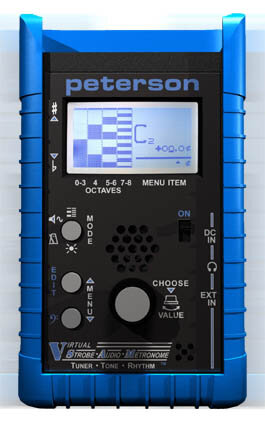

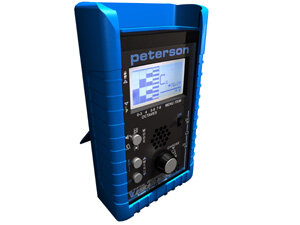

Peterson VSAM Virtual Strobe Chromatic Tuner and Metronome

Product Description

Virtual Strobe Technology with Tone Generator and Metronome!
Peterson introduces the "V-SAM", a combination of programmable Virtual Strobe tuner, Audio tone generator, and Metronome in a hand-held format. It marries the revolutionary (patent pending) Virtual Strobe TechnologyTM first introduced in the VS-1 tuner with new, brighter, high-contrast display. The V-SAM's "tuner mode" expands upon the Peterson VS-1 with an even wider variety of alternate temperaments and the ability to select temperament tonal roots.

In addition, the user can create and store custom temperaments and use them with the same flexibility as preset ones. The V-SAM automatically detects a note being played in real-time and is accurate to 1/1000th of a semitone. It can transpose displayed notes based on any of 12 scale notes. The ultra-wide 410.0 to 490.0Hz range of the V-SAM's Concert A pitch reference makes it the premium choice for "Early Music" instruments such as harpsichord, lute, recorder, and Baroque flute.

The "Bass Shift" feature allows effortless tuning of double bass (including instruments with fingerboard extensions), tuba, and euphonium. A built-in speaker is included for the audio tone generator/tuner, and a pre-amplified signal is provided to drive a P.A. or headphones. These new and expanded features permit definitive measurement and control of the intonation of orchestral instruments, allowing tuning and real-time scale rehearsal for stringed instruments such as violin, cello, and concert harp as well as all brass and woodwind instruments in all keys, all tonal roots, and all temperaments-a worldwide first!

The high-output tone generator within the V-SAM offers an unprecedented 10 octaves of audible tones, which conform to a selected preset or custom temperament and are adjustable in 0.1cent increments. This permits ear-training possibilities previously unavailable in a hand-held device.

The V-SAM's audio/visual metronome allows tap or dial-in tempo, adjustable beats per measure, beat subdivisions, and a stopwatch function. An exclusive "INTRO" feature automatically silences the audible output of the metronome after a pre-selected number of measures-perfect for setting a clean start and tempo without being "handcuffed" to the metronome beat for an entire song. All settings can be saved as power-on defaults.

The Peterson V-SAM is housed in a durable rubber boot with detachable, adjustable stand and powered by batteries or the supplied AC adapter, making it a very rugged yet portable device. Optional extras include a TP-1 clip-on pickup and a handsome, embroidered carrying case. The combination of Peterson's incredible Virtual Strobe Technology with full tuner programmability, audio tones, and feature-filled metronome makes the V-SAM a versatile resource for the busy Band Director and a "must have" for any classroom, practice room, or marching field!

Features

NEW! Strobe Tuner, Tone Generator and Metronome modes

NEW! Adjustable to all keys, tonal roots and temperaments- a worldwide first!

NEW! Savable settings such as temperament, key, metronome and default settings

NEW! Concert A Reference of 410 to 490Hz

NEW! Brighter, high contrast display

NEW! Built-in speaker for 10 octave audio tuner and metronome

NEW! Metronome with Tap Temo, Adjustable Subdivisions and Beats/Measure as well as new INTRO feature

Accuracy To 1/10 Cent (1/1000 Semitone)

Smooth, Instantaneous Tuning Response

Exclusive Virtual Strobe Technology

Quick-Touch Rotary Knob For Fast, Easy Use

Automatic Or Manual Note Selection

Selectable Historical Temperaments Including Just

Exclusive "Sweetened", Tempered Guitar Tuning

Extended Bass mode let's you tune down to 4HZ!

Large Note Display With Transposition To All Chromatic Keys

Adjustable Concert A Reference In 0.5 Hz Increments

Powered By 3 AA Batteries Or Included Smart Power 3VDC Universal Adapter (90VAC~240VAC)

Weighs In At Under 1.2 Pounds (approx. 0.5kg)--2.1 pounds US shipping weight

Built-In Microphone For Acoustic Instruments

Rubber Boot For Better Grip And Added Protection.

2-Way Stand Permits Flat, Angled, Or Vertical Wall Hung Positioning

Automatic Octave Register Adjustment - widest, most readable, strobe bands are automatically displayed for any octave. Unusable bands are automatically blanked.

Easy Note Display Transposition - to any of 12 chromatic keys. Peterson introduces a Fret Transposition Scale (FTS) for clearer key transposition with fretted instruments. zZounds is an authorized dealer of Peterson products.

Specifications

Size and Weight
Weight: 1.2lbs (544g)
Dimensions (H x W x D): 7.5 x 4.3 x 2.3 in. (19 x 11 x 6 cm).

Accuracy
Visual Strobe: 1/10th of one cent (1/1000th semitone).
Audible Tone: 1/10th of one cent (1/1000th semitone).

Range
Visual Tuner:
- Normal mode 31Hz (C1) to 6272Hz (G8).
- Bass Shift 8Hz (C-1) to 2033Hz (B6).

Audio Tuner:
- Normal mode 16Hz (C0) to 7902Hz (B8).
- Bass Shift 4Hz (C-2) to 2033 (B6).

Metronome: 40 - 240 beats/minute.

Temperaments
Equal
Pythagorean
Just Major
Quarter Comma Meantone
Kirnberger III
Werckmeister III
Young
Kellner
GTR sweetened guitar temperament
BAS Tempered Bass
E9 Tempered Steel Guitar
C6 Tempered Steel Guitar
P-1 User Programmable
P-2 User Programmable

Key Selection
The V-SAM can transpose to any chromatic key in any of its temperaments and also features transposition by numbers for quick non-standard guitar tunings and capo changes.

Backlit Display
The V-SAM's new improved screen makes tuning easy under all lighting conditions, when the backlight is not needed, it can be switched off to conserve battery life.

Protective Boot
The attractive, rugged rubber boot is easy to grip and provides extra protection. The pop-out stand enables adjustment of viewing angle and also allows the user to hold and operate the V-SAM with one hand.

Input
Built in microphone
1/4 in. Jack socket for electric instrument/pickup/microphone.

Output
Built-in high-powered speaker.
1/4 in. Jack socket for headphones or line-out tones/metronome to amplifier or P.A.

Power
Powered by 3 AA batteries or with 3.2v DC international adapter (included).

Optional Accessories
Carrying Case, TP-1 Clip-On Tuning Pickup, Pitch Holder tuner clamp.

Guarantee
The limited warranty covers defects in materials or workmanship for a period of 1 year.
