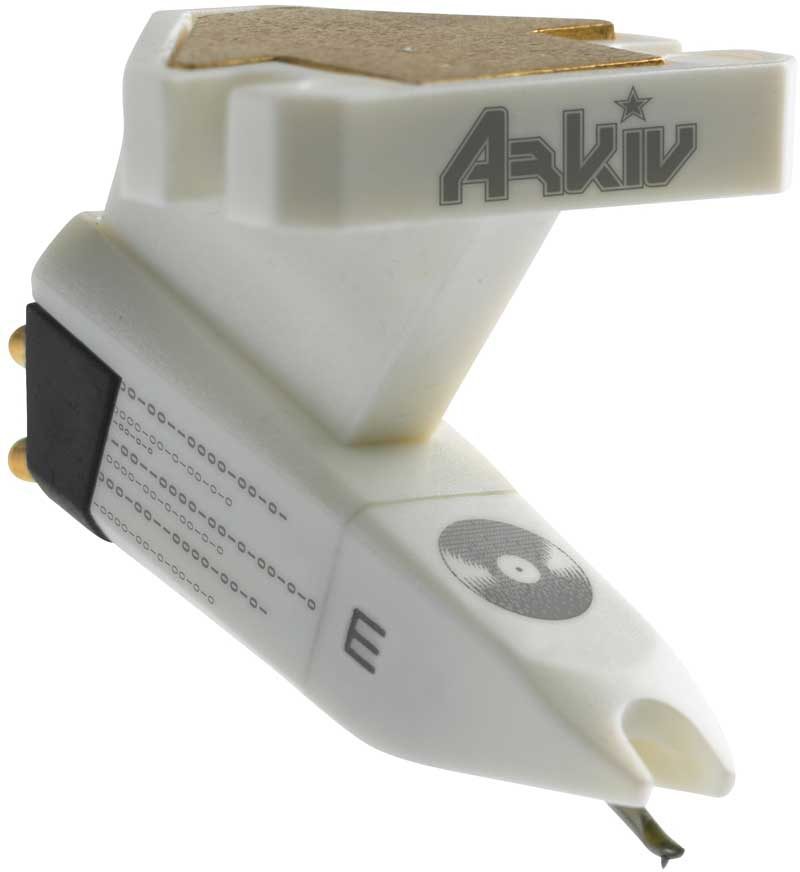

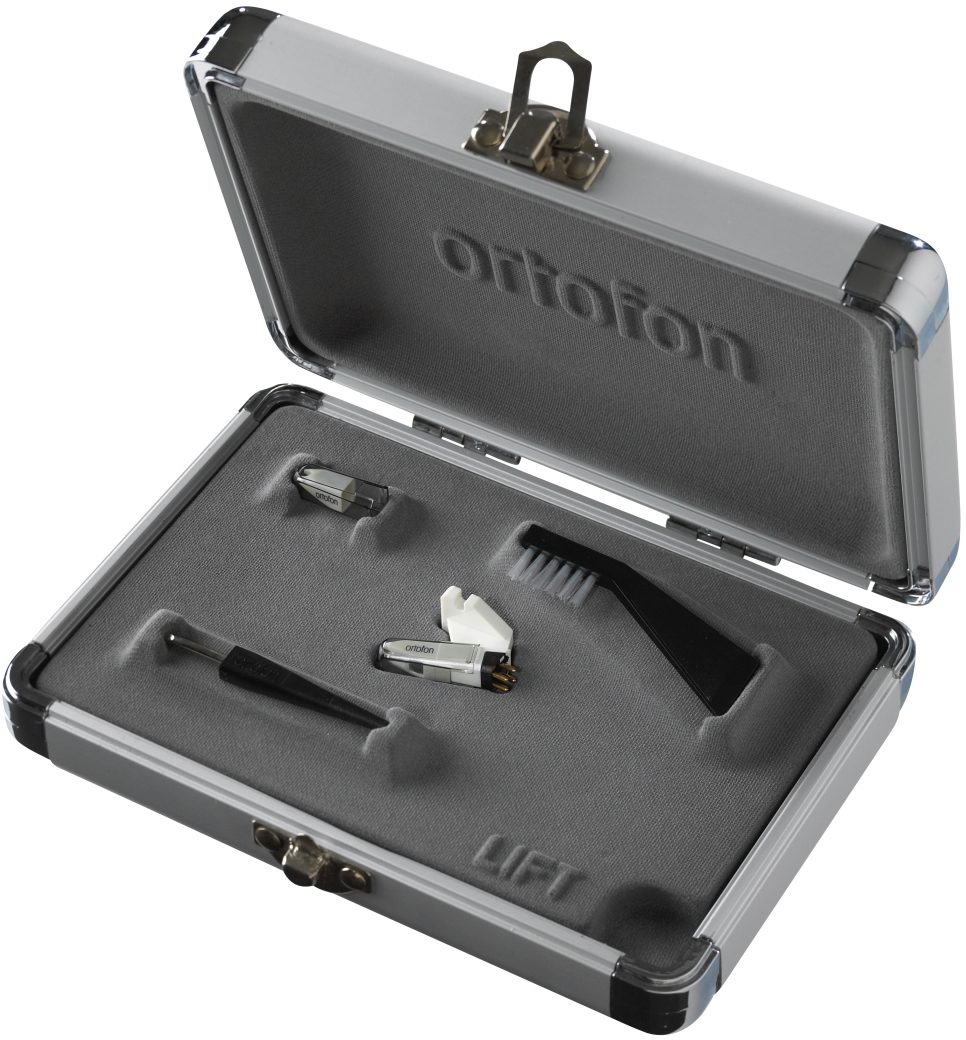

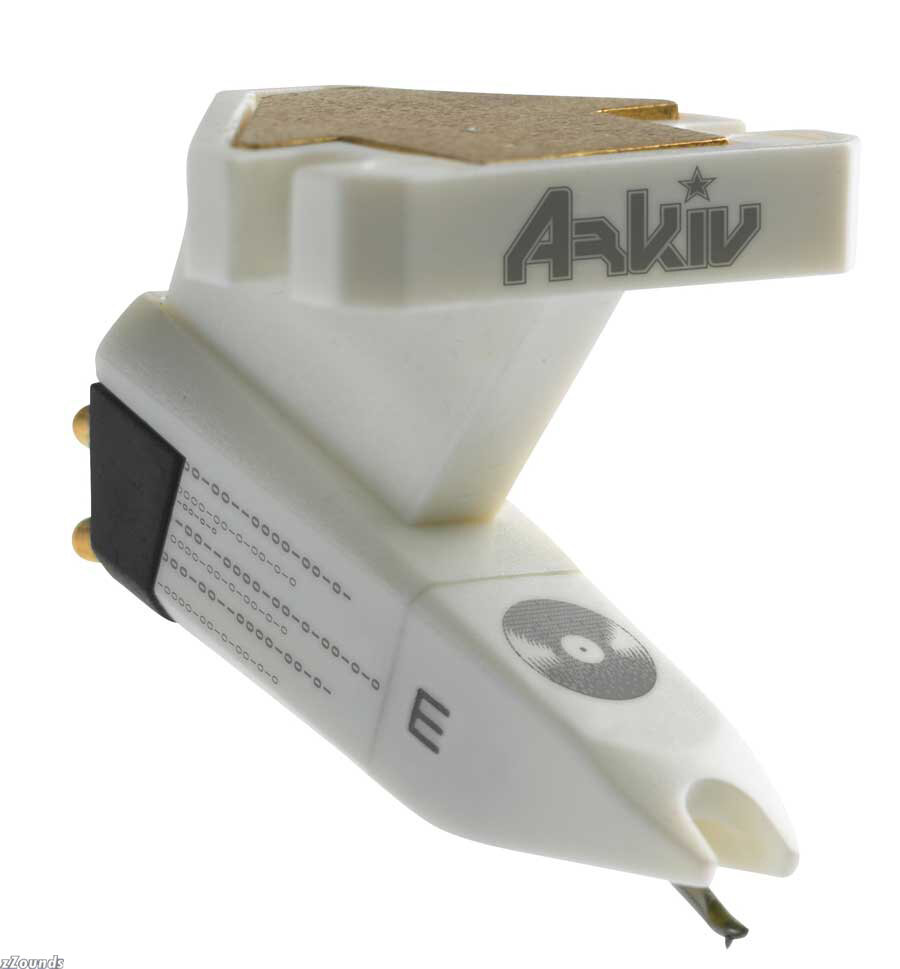

Ortofon OM Arkiv Cartridge Kit

The Ortofon OM Arikiv Cartridge answers the demand from DJs who want a cartridge that will translate that vinyl sound when recording to a digital format. The OM Arkiv Cartridge is specially designed to provide optimized sound quality specifically for recording purposes. The Arkiv boasts clear and accurate sound reproduction and remarkable stereo imaging, making it perfectly suited for sampling, transcription, and numerous other professional applications. The Arkiv ships with an elliptical stylus for more detailed sound reproduction.

Technical Info

Output voltage at 1000Hz, 5cm/sec: 6mV

Channel balance at 1kHz: 2 dB

Channel separation at 1kHz: 23 dB

Channel separation at 15kHz: 15 dB

Frequency range at -3 dB: 20-22,000 Hz

Frequency response: 20-20,000 Hz

Stylus type: Special Elliptical

Tracking force range: 2.0-4.0 g

Tracking force recommended: 3.0 g

Tracking angle: 20 degrees

Internal impedance, DC resistance: 750 Ohm

Internal Inductance: 450 mH

Recommended load resistance: 47 kOhm

Recommended load capacitance: 200-600 pF

Cartridge weight: 18.5 g
