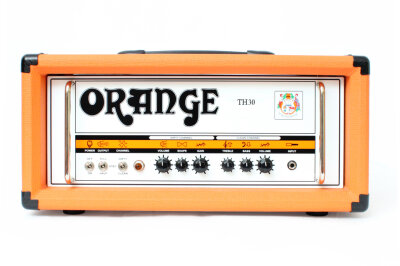

The Orange TH30H guitar amplifier head is one of the most colorful all-tube tone amps around! When you pair the TH30H with a solid speaker cabinet -- or run it direct to a recording console -- you'll immediately notice an astonishing richness of harmonic content.
See it in action with this demo from Orange:
Low, Adjustable Output
The Class A amp toggles between 7-, 15-, and 30-watt output, so that you can fine-tune the gain stage with whatever outboard speaker or recording interface you're using. Because the lower wattage allows you to open up this tube amp all the way without creating impractically loud volumes, the Orange TH30H really shines in the studio!
Two Channels -- Each With Lots of Character
The front panel of the TH30H head gives you a single input, and a switch to move between the Clean and Dirty channels. The Clean channel has Treble, Bass, Volume knobs, while the Dirty Channel can be tweaked for new tones via its Shape and Gain knobs. An FX Loop is accessible via the rear panel. A footswitch jack on the back allows you to switch between channels with a separately-available footswitch.
The Orange TH30H derives it tone from the careful balancing of 2 x ECC83 tubes in the Preamp stage, and 4 x EL84s in the output stage. The FX Loop is actually driven by a separate ECC81 as well.
Useful in Many Situations
Your TH30H has 2 x 1/4-inch speaker jacks on the back that each run a nominal 8 ohm impedance. There's also a single 16 ohm output.
Start Crafting Your Sound
The sound of the Orange TH30H is the result of relentless design and re-design over multiple decades of research and development. It is truly a great amplifier, from which a vast array of tones can be culled.
- Adjustable between 7-, 15-, and 30-watt output
- Clean and Dirty channels
- Treble, Bass, Volume knobs on The Clean channel
- Volume, Shape, and Gain knobs on Dirty channel
- FX Loop
- Channel switch footswitch jack
- 2 x 1/4-inch speaker output @ 8 ohms
- 1 x 1/4-inch speaker output @ 16 ohms
- 2 x ECC83 tubes in the Preamp stage
- 1 x ECC81 in the FX Loop
zZounds is an authorized dealer of
Orange Amplification products.
- DIRTY CHANNEL - Volume, Shape, Gain.
- CLEAN CHANNEL - Treble, Bass, Volume
- FX Loop
- Output: Class A Switchable between 30, 15 and 7 watts
- Valves: Preamp = 2 x ECC83, Ouput = 4 x EL84, Effects Loop = 1 x ECC81
- Speaker: 1 x 16 ohms, 2 x 8 ohms
- Dimensions (W x H x D): 55 x 24 x 24cm
- Weight: 15 kg
- Footswitch not included.
- Dimensions and Weight in Packaging
- Base Item
- Shipping Weight: 36 lbs
When you plug into the clean channel on the Orange TH30H Guitar Amplifier Head you will be presented with one of the most evenly voiced, glistening clean tones you have ever heard. Harmonics will jump out of your guitar that you did not know were in there and when switched to the dirty channel be prepared for a host of tone to appear and an amount of gain never before heard on an Orange that will inspire your music making beyond anything you have ever imagined.
The Clean Channel features a Gain, Shape and Master Volume. The shape control is an EQ control facilitating a variety of tones from classic rock through to scooped metal with all variations in between.
The power section of the TH30 is powered by a quartet of EL84 output valves and is rated at 30 Watts Class A. There is also the addition of a valve driven effects loop the TH30 is more than an amplifier it is the "sound in your head"
Footswitch not included.
