100% Digital Mixing. 4-Channel mixer. Sub Bass control.
overview
specifications
documents

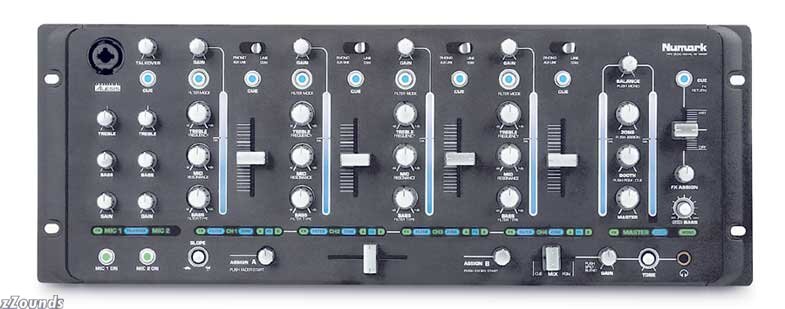

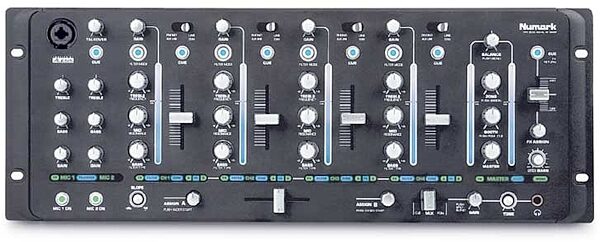

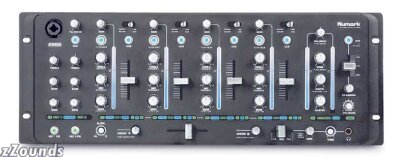

Numark PPD9000 4-Channel Rack Mixer with Sub Bass The PPD9000 is a professional rack mixer with radical new features including high performance 100% digital mixing, 4 channels, and Numark's new 'liquid' LEDs. The PPD9000 is the most advanced four channel mixer from Numark's Professional Products Division. Thanks to superior semiconductor design from Alesis, the PPD9000 delivers studio-grade fidelity. Utilizing a 100% digital design from input to output, the PPD9000 offers dual EQ modes and optional compressor/limiter settings that allow the user to increase the dynamic range of the audio and eliminate clipping on all channels. It also features Alesis Sub Bass Synthesis on a dedicated output channel, and a Vintage/Contemporary style output limiter with look-ahead peak limiting and vintage "tube warmth" on all inputs and outputs.
Features
100% digital and analog I/O. S/PDIF digital will interface with Numark's TTX1 turntable, CDN90, AXIS 9, and other digital gear Vintage/Contemporary style input limiter combines look-ahead peak limiting and vintage 'tube warmth' on master Alesis Sub-Bass Synthesis and subwoofer out Dual EQ/Filter Mode on each channel, EQ on mic inputs, Talkover on DJ mic Fully interchangeable and replaceable digital faders with slope control Headphone cue assignable to booth output Intuitive Monitor Send/Return, Programmable Fader Start
Input/Output 4 Phono / 8 Line / 4 S/PDIF digital stereo inputs (RCA) 2 x Mic Preamp (1/4 in. -XLR Neutrik combo jack) Master Out (XLR Balanced, RCA Unbalanced) with rear mounted analog master gain reduction Record Out (RCA analog, S/PDIF digital) Booth Out (1/4 in. Unbalanced) Zone Out (1/4 in. Unbalanced) Sub Woofer Out (mono, 1/4 in. Unbalanced) with adjustable LP filter
Specifications
Fidelity >100dB SNR (weighted), full path Frequency Response: 10Hz-20kHz +/-0.5dB <0.005% THD (Total Harmonic Distortion) Premium Quality, Low Noise Op-Amps
Digital 24-bit, 48kHz AD/DA Converters 24-bit, Digital Signal Processing Dual Mode Digital Filter, Digital Faders/Pots Programmable 3-band EQ Low Pass/Band Pass/High Pass with sweepable frequency and resonance (Q)
zZounds has verified that this customer bought this product from us.
"Great mixer"
Feature:
For the price, has 4 awesome sounding filters with adjustable resonance, lowpass/bandpass/highpass dial, Digital ins on all channels, digital outs, zone booth and main outs, silky faders. All digital signal path. Also, compressors on each individual channel, switchable to peak limitor if you prefer.
Quality:
A heavy, durable reliable mixer. Have taken it to 40+ gigs and still works like a charm.
Value:
For the price, a steal
Desirability:
This thing just plain looks sexy. Turn the lights off and watch it glow.
Sound:
Alesis made sound.
Ease of Use:
The line faders take getting used to because they are straight db instead of volume adjusted.
1 of 1 people (100%)
found this review helpful. Did you?
Thanks for your opinion!
Thank you. Your vote has been counted. Could you briefly tell us why the review was or was not helpful?
1 out of 10
"BAD SPDIF"
Quality:
sad sad because it would be nice to have a full on mixer to go head to head with the TTX! tables which i love. WHY O WHY couldn't they have better quality control.
Desirability:
lot sof features that are really nice and sexy
Sound:
if you really like the sound of clipping pops then be my guest
Support:
they had the "at least we're honest" attitude but i wonder even about that. The man i talked to said they were known to go out and buy equipment to test out but they never did. I wonder if my complaint ever got past that PR person's desk
Overall:
i got this mixer and I was hoping to hook my TTX1 using digital straight through to My pro grade MOTU. I thought i would start the digital chain right at the TTX1. I was really wrong. When connecting this unit to my Motu. I had horrible snaps,pops,clicks. with half the volume. Usually a sign of porr digital timing. By process of elimination i hooked my TTX1 directly up to my motu to make sure i had the right settings. IT sounded fine. I also hooked my CDJ100 to the motu with no problem. So i was thinking that it was out of sync to due to the slight delay from the first of the chain to the motu so i hooked my TTX1 to the PPD9000 with the analog out and then hooked the SPDIF to my motu. The magical pops,clicks and snapping returned.
Well to clarify more, These weren't small subtle vinyl pops ,and snaps. these were meter clipping noises that pinned my meters in the red. This would ruin a recording if i tried.
I went through every setting on it and compared sample rates specs and every thing to see if it was some mistake i was making. I didn't have any problem with anyother piece of equipment so i thought i had a faulty unit. i got the dealer to send me back another one and that did the same thing. I could hook it up with theanalog out but what's the point of a completely digital mixer if you have to hook it up analog. When you want to switch over to digital you only want to do it once.
Well as it seemed i had much correspodence with the a numark technician who said they couldn't replicate the problems i had and as much as he said they have been known to go out and buy equipment (like the MOTU)and test it he never did.
I think this is really said because it would be a another acheivment by numark but instead they decided not to go all the way and miss the mark because of their attitude. The technician said a it was a difference in bit depth, Which i thought he was incorrect
Style of Music: techno,hiphop,rock,
