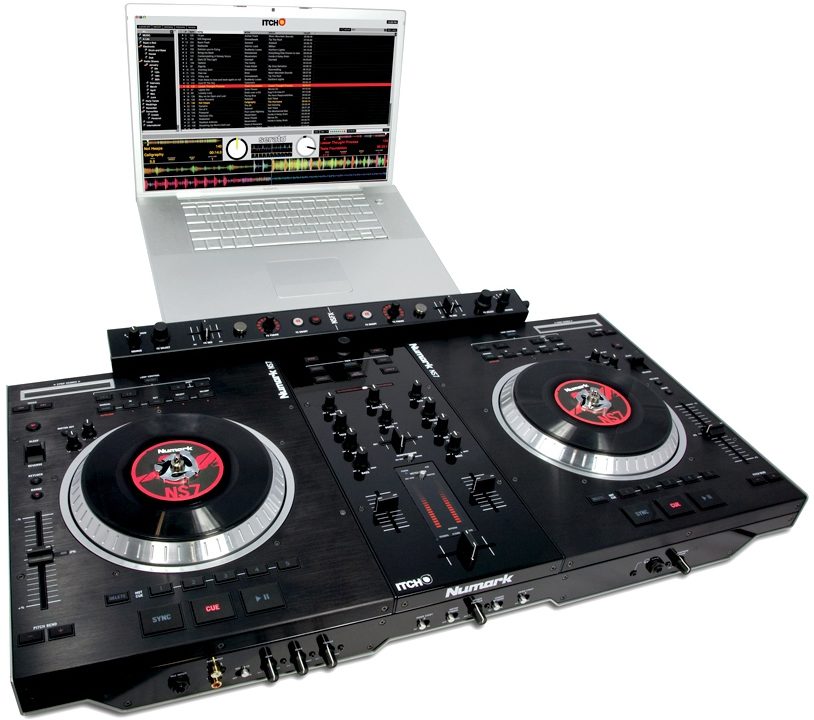

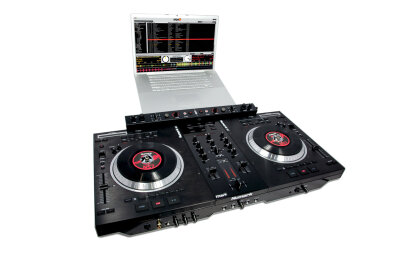

Numark NS7FX DJ Controller with NSFX Effects Section

zZounds' Take on Numark NS7FX

Take control of your digital audio with the tactile and powerful Numark NS7FX DJ Controller. It's an all-in-one controller and interface that maps seamlessly with Serato ITCH software (included) for natural, intuitive control over digital media.

Vinyl Platters

Numark designed their NS7FX DJ Controller to follow the layout and logic of the classic dual-deck and mixer setup equipped with seven-inch. motorized control platters; each with real, independently moving vinyl surfaces. Mixing, cueing, beat-matching, pitching, and scratching are all second-nature on the NS7FX, because the vinyl disc moves across the rotating platter base the same way an LP would on a direct-drive turntable. Bottom line, the Numark NS7FX feels like a traditional vinyl DJ setup, but has the flexibility and power of digital audio.

Premium Mixer and Audio Interface Included

Every component on the Numark NS7FX DJ Controller is premium, from the faders to the rugged, all-metal chassis. For the serious turntablist, the crossfader is every bit as essential as the turntable, and the NS7's mixer features a replaceable, adjustable CP-PRO crossfader and D-TYPE line faders for no-compromise performance. The final piece in the puzzle is the NS7FX's high-resolution audio interface. The NS7FX incorporates audiophile-grade internal circuitry and 24-bit digital-to-analog converters for crisp highs, creamy mids, and punchy bass.

One-To-One Serato Integration

While Serato LIVE revolutionized the laptop DJ world with its rock-solid timecode vinyl control, ITCH is the non-timecode controller-only version. Paired with the Numark NS7FX, it's the most direct control possible over Serato; no separate timecode interface required. Not requiring timecode discs or needles means less parts needing replacement. Because Numark developed the NS7 and NS7FX in conjunction with Serato, the controller presents a truly mouse-less DJing experience. Every slider, button and rotary encoder on the NS7FX (including sampling and looping control) is mapped to the corresponding controls in Serato, and dual LCD screens provide important feedback like track info, so DJs can browse through their audio library without even looking up at the computer screen. The "FX" in the NS7FX model name designates an entire bank of controls dedicated to Serato ITCH's awesome audio-manipulating effects, which are all easily time-synched with the foolproof beat-detection provided by the Serato software.

With total Serato ITCH control, premium components, audiophile sound, and the feel that only real vinyl and motorized platters can deliver, the Numark NS7FX DJ Controller will take any DJs performance to the next level.

Features of the Numark NS7FX
- High-resolution digital DJ controller with effects, built for Serato ITCH and compatible with Scratch LIVE libraries
- Direct-drive, motorized turntable platters with classic and modern feel settings
- Activate and control the effects in Serato ITCH
- Includes Serato ITCH DJ software
- Built-in audio with audiophile-grade circuitry, 24-bit interface
- Extensive loop, cue, and track-access controls
- Strip Search (patent pending) virtual-needle drop control
- Controls most MIDI applications without requiring a mouse or keyboard
- Rugged, all-metal construction
- Integrated laptop stand
- High quality, replaceable, adjustable CP-PRO crossfader and D-TYPE line faders
- Mix using either 33rpm or 45rpm speeds

Numark
For more than 30 years, Numark has been designing gear to meet the needs of all levels of DJ, from beginner to professional. They continue their tradition of innovation by producing breakthrough products for the ever-growing number of digital DJs.

Manufacturer's Description for Numark NS7FX DJ Controller with NSFX Effects Section

Designed by Numark in collaboration with Serato, NS7FX represents the pinnacle of digital DJ performance. NS7FX combines a premium mixer with two motorized, adjustable-torque turntables, real vinyl, and a professional audio interface to deliver a complete performance solution that will satisfy the most hardcore turntablist. NS7FX also includes powerful effects controls for hands-on manipulation of the wide range of effects built into the included Serato ITCH software.

Audio Quality

We took extraordinary care in selecting the components of the audio signal chain. NS7FX contains a host of professional audio connectors and a multichannel, 24-bit USB digital-audio interface.

The high-definition post-mix analog audio output features a minimized circuit path with containing only one audiophile-grade bipolar capacitor. This optimized design maximizes phase coherence, ensuring that audio is tight and punchy.

Serato Itch Software

Serato ITCH is already familiar if you use Scratch LIVE. The new program builds on Scratch LIVE's popularity and adds some key, new features. ITCH doesn't require a timecode interface, so the system can be as simple as, say, NS7FX and your computer! Since ITCH makes timecode a thing of the past, you won't need to worry about needles skipping or vinyl wearing out. You can load your Scratch LIVE crates, loops, presets, and cue points seamlessly in ITCH. NS7FX also works with most other MIDI DJ software and supports iTunes.

ITCH is a high-performance portable music system with internal mixing and platter-style playback control. Because it is designed specifically for use with hardware control, ITCH has a clean information display.

ITCH handles audio processing and mixing including channel fading, EQ, crossfading and track trim are processed for outstanding control and management of your tracks, ease of recording your set, clip-proof gain management, and BPM calculation using the power of your computer's processor.

Serato's unique color waveforms provide an easy identification of sound and changes in the track. ITCH can set and store cue-points. It offers three-range pitch control: +/-8%, +/-16%, and +/-50% with Key Lock for manipulation of pitch and tempo independently.

ITCH has library management tools for backup and restoring your music. Advanced input and mix recording capabilities include recording your mix or just the aux input for sampling. The software supports AIFF, WAV, MP3, and AAC audio files.

The History function in ITCH keeps a comprehensive record of every track played and exports sessions from your history to 'txt', 'csv', or 'm3u'. ITCH also has a Loop Roll function that provides a looping effect where the playhead jumps back to normal time when you release the loop. Built-in key support ensures that ITCH reads key tags from MP3 files and displays them in the 'key' column in your library.

Serato(TM) is a trademark of Serato Audio Research.
iTunes is a trademark of Apple Inc., registered in the U.S. and other countries.

*Computer not included.

Includes:

- NS7 performance software controller

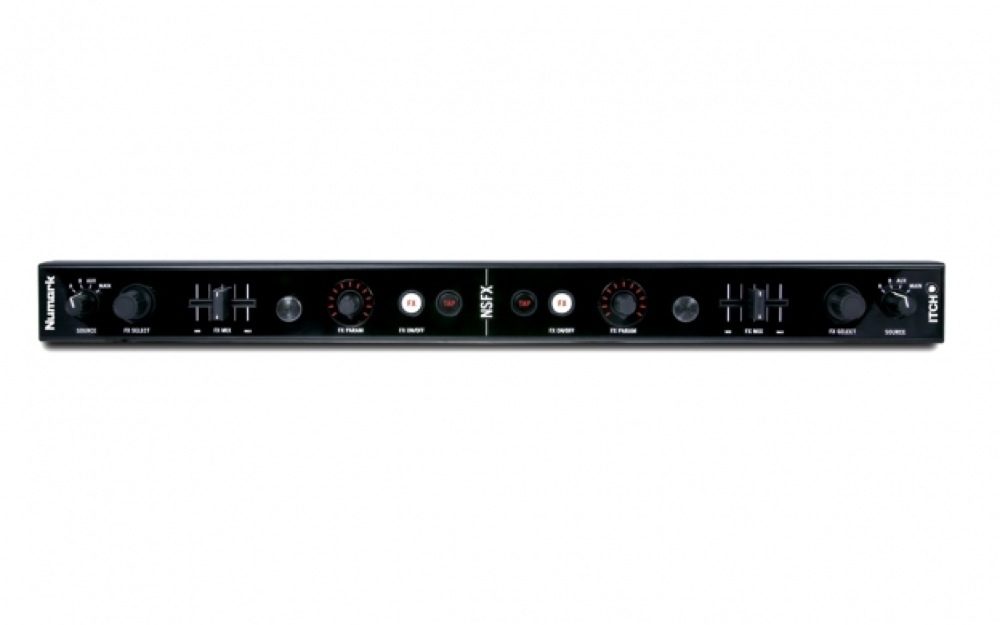

- NSFX effects controller
- Two turntable platters
- Spindle wrench
- Spindle screw
- Allen wrench
- Laptop stand
- USB cable
- Power cable
- Software CD
- Quick-start poster zZounds is an authorized dealer of Numark products.

Specifications
Audio Inputs:
- Mic (1/4" balanced)
- Stereo line (RCA)

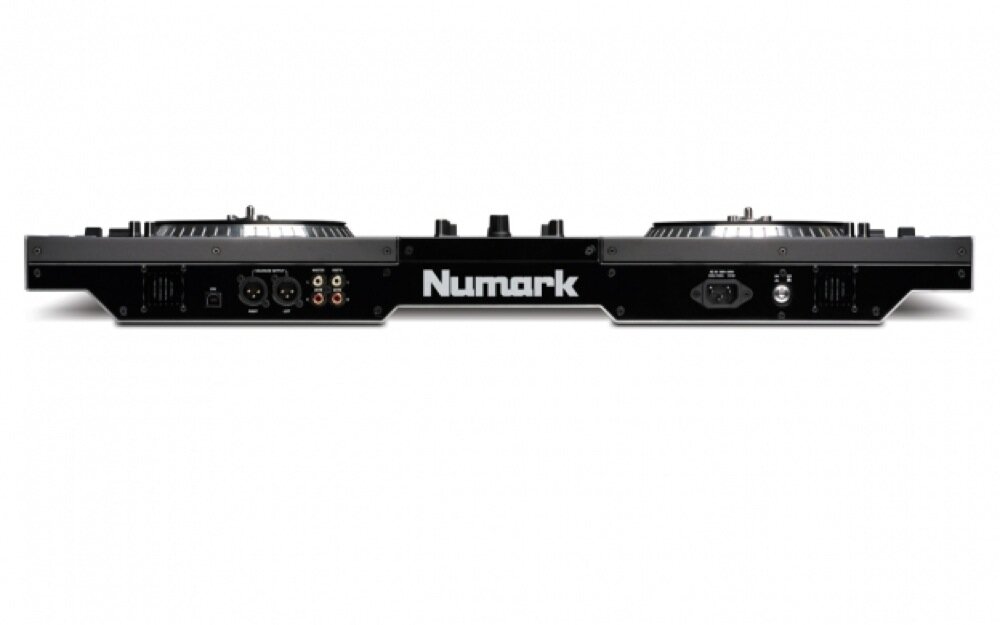

Audio Outputs:
- Master (Stereo XLRs)
- Master (Stereo RCAs)
- Booth (Stereo RCAs)
- Headphone (Stereo 1/4" and stereo 1/8")

ANALOG:
SNR (Full Signal Path):
- Balanced Outputs (Stereo XLR: Master): > 98 dB (A-weighted)
- Unbalanced Outputs (Stereo RCA: Master and Booth): > 98 dB (A-weighted)
- Headphone Outputs (Stereo: 1/4" and 1/8"): > 93 dB (A-weighted)

THD + N:
- Balanced Outputs (Stereo XLR: Master): < 0.01% (A-weighted)
- Unbalanced Outputs (Stereo RCA: Master and Booth): < 0.01% (A-weighted)
- Headphone Outputs (Stereo: 1/4" and 1/8"): < 0.01% (A-weighted)

Maximum Output:
- Balanced Outputs (Stereo XLR: Master): +26.3 dBu into > 1kO
- Unbalanced Outputs (Stereo RCA: Master and Booth): +14.25 dBu into > 1kO
- Headphone Output (Stereo: 1/4" and 1/8"): + 19 dBu into > 32O

Frequency Response: 22 Hz - 22kHz (+0/-0.5 dB)

DIGITAL:
- Sample Rate: 44.1 kHz
- Bit Depth: 24-bit

HARDWARE (NS7 only, with assembled and mounted platters):
Weight: 35.5 lbs. (16.1 kg)

Dimensions (W x D x H): 30" x 15 7/8" x 3 7/8" (762 mm x 403.2 mm x 98.4 mm)

Minimum System Requirements
Mac: OS X 10.4.11

Windows: XP SP2 or Vista
Core Duo 1.8GHz processor and 2.2GHz required for 64-bit Vista
2GB RAM and 4GB required for 64-bit Vista
USB port

Dimensions and Weight in Packaging

Base Item

Shipping Weight: 43 lbs

Shipping Dimensions: 36 x 23 x 12 in
