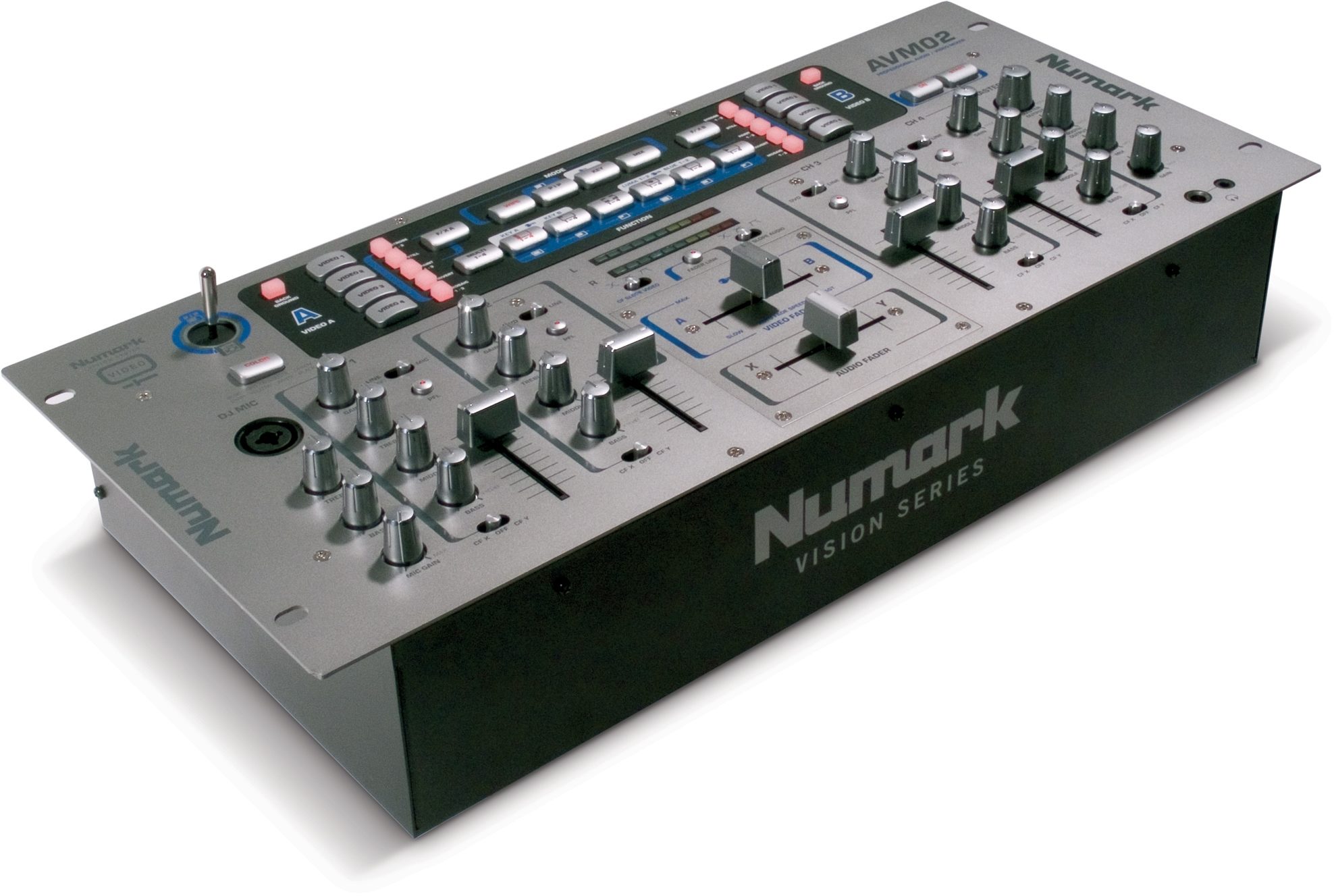

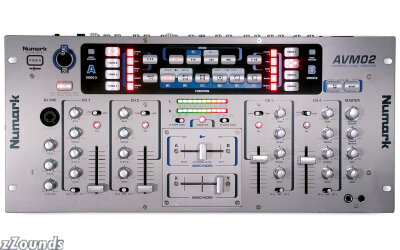

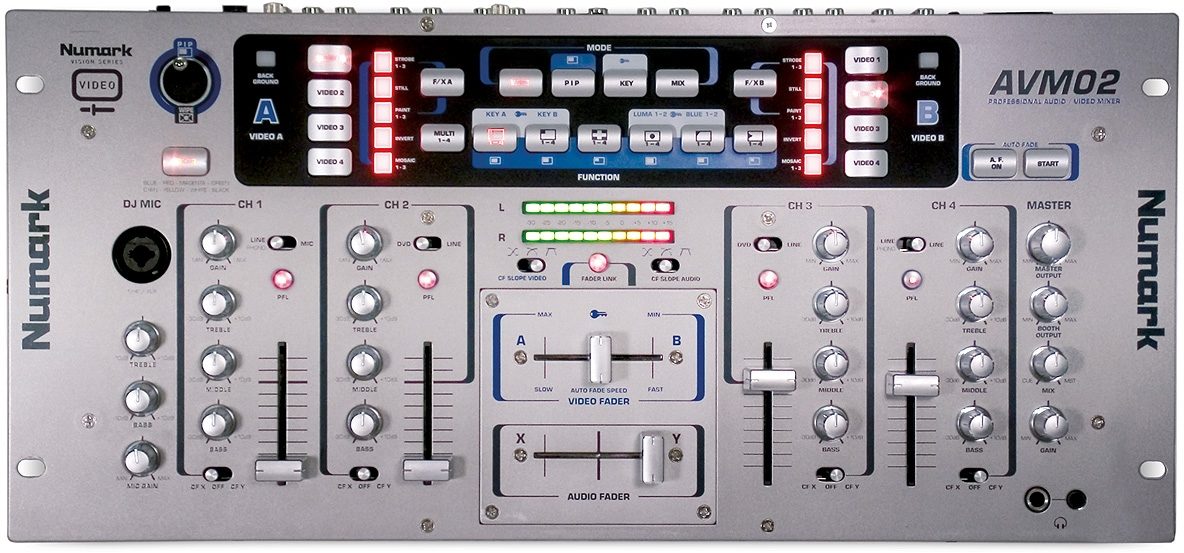

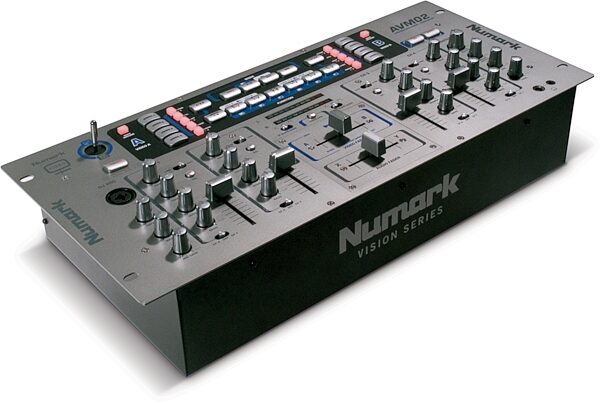

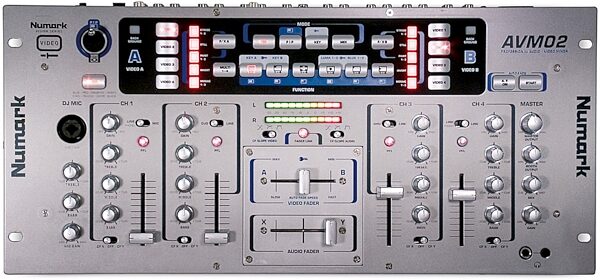

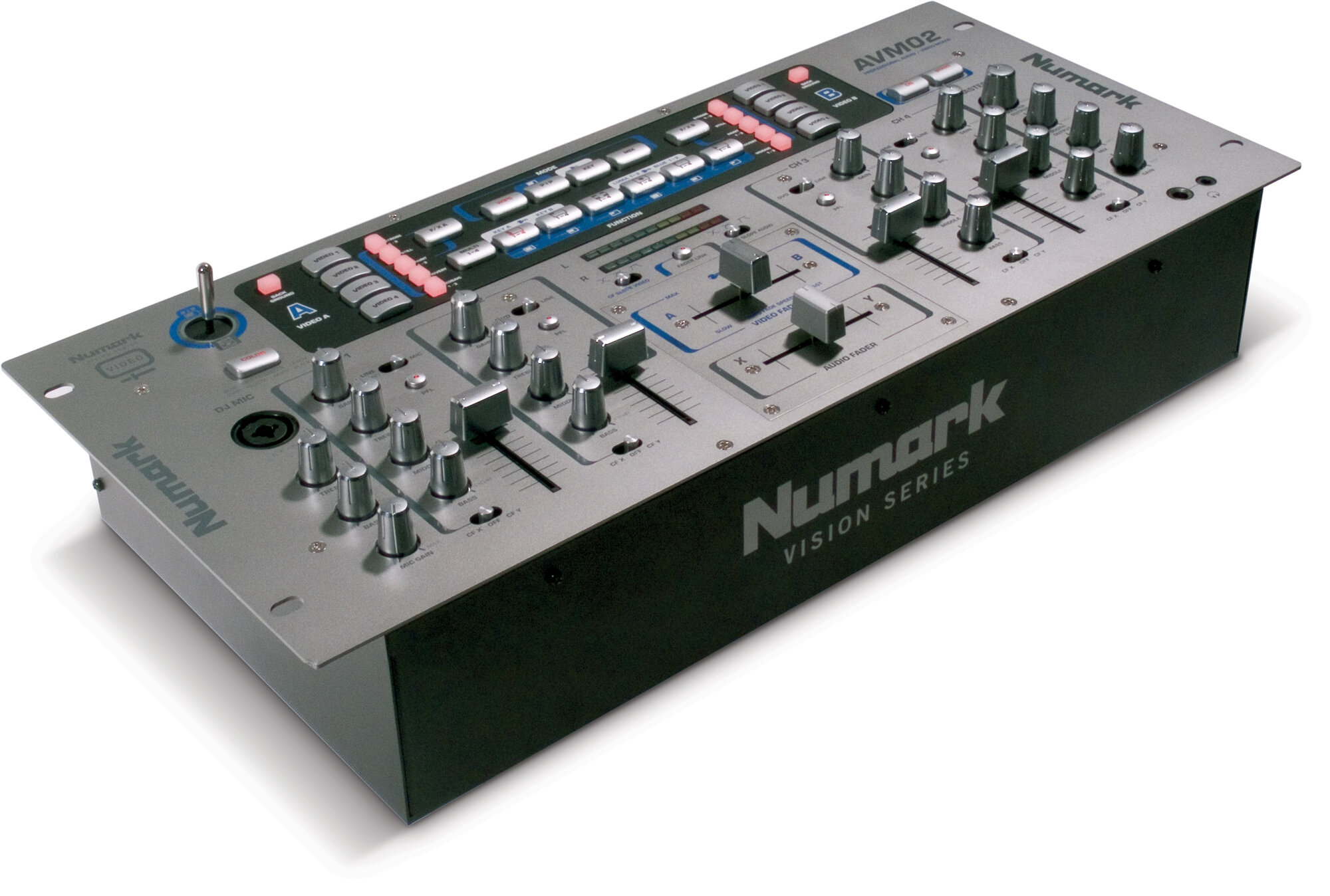

Numark AVM02 Audio/Video Rackmount Mixer

Designed for mobile DJs and club installations, Numark's AVM02 Audio/Video Mixer with multiple simultaneous effects options is optimized for live performance.

The AVM02 offers separate, replaceable DJ crossfaders for audio and video with linked mode operation and slope control, Chroma Key (blue screen) and Luma Key (black screen) capability for superimposing images. The AVM02 also features numerous joystick–controlled fades and wipe patterns, picture–in–picture capability, and boasts two full video effects sections. With seven stereo inputs and two mic inputs, you'll have all the options you've been looking for at your command.

Features

Separate, field-replaceable DJ crossfaders for audio and video with linked mode operation and slope control

3-band EQ on each individual channel

Mixing options include fades, 96 wipe patterns, and picture-in-picture capability

Both Chroma Key (blue screen) and Luma Key (black screen) capability for superimposing images

Two video effects sections with mosaic, strobe, freeze, paint, and invert

Capable of multiple simultaneous effects

Joystick control for wipes and picture-in-picture operations

Seven background color options provided

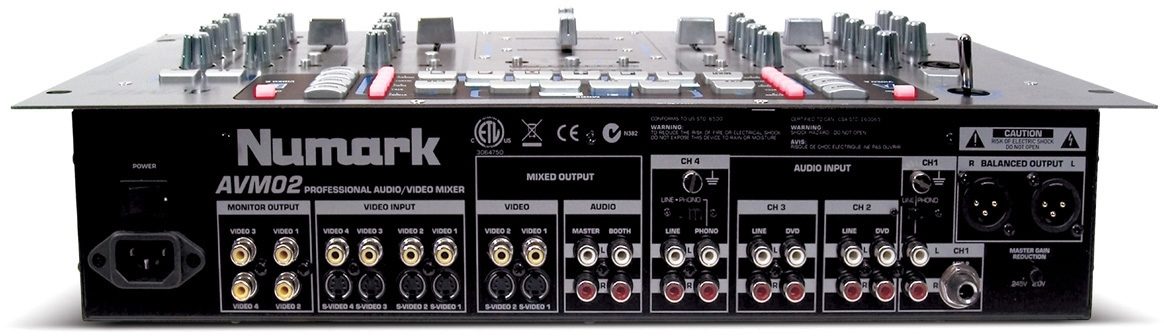

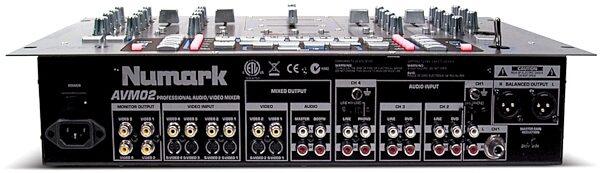

Four video channels with four composite and four S-video inputs

Two S-video, two composite main outputs, and four video monitor outputs

Seven stereo inputs and two microphone inputs with audio cueing section

Both 1/4 in. and 1/8 in. headphone outputs

Provides master balanced, unbalanced, and control booth outputs

Technical Info

Audio

Inputs
Line: 10Kohm input impedance; 80mV rms sensitivity for 0dBm output

Mic: 600ohm input impedance unbalanced; 1.7mV rms sensitivity for 0dBm output; 300mV rms max input

Phono: 47Kohm input impedance; 1.0mV rms sensitivity @1KHz for 1.22V output

Outputs
Line: 7V RMS max

Headphone: 0.5W into 47 ohm

Distortion: Less than 0.01%

Signal to Noise Ratio (maximum output || JIS-A weighted)
Line: Better than 90.dB

Mic: Better than 88dB

Phono: Better than 83dB

Frequency Response
Line: 20Hz-20KHz ±0.5dB

Mic: 20Hz-15KHz ±0.5dB

Phono: ±1dB (except for controlled attenuation of –3dB@20Hz to reduce rumble and feedback)

Channel EQ
Bass: +12/-32dB @60Hz

Mid: +12/-32dB @1.2KHz

Treble: +10/-20dB @15KHz

DJ Mic EQ
Bass: +/-10dB @100Hz

Treble: ±10dB @15KHz

Video

Inputs
Composite Video Input (4): 1.0 Vp-p 75 Ohms NTSC (PAL/SECAM) composite signal

Pin-Jack Y/C Video Input (4) Y signal: 1.0 Vp-p 75 Ohms, Mini Din 4-pin connector

C signal: 0.3 Vp-p 75 Ohms, Mini Din 4-pin connector

Outputs
Composite Monitor output (4): 1.0 Vp-p 75 Ohms NTSC composite signal

Pin-Jack Composite Monitor output (2): 1.0 Vp-p 75 Ohms NTSC (PAL/SECAM) composite signal

Pin-Jacks Y/C Video output (2) Y signal: 1.0 Vp-p 75 Ohms

C signal: 0.3 Vp-p 75 Ohms

Signal to Noise Ratio (Video): 48dB (composite), 50dB (Y/C)

General

Dimensions (WxHxD): 228 x 105 x 482.6 mm

Weight: 5 kg
