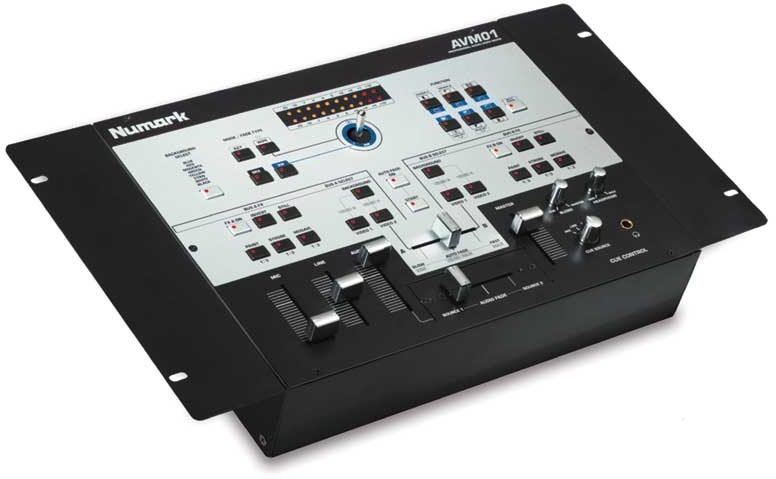

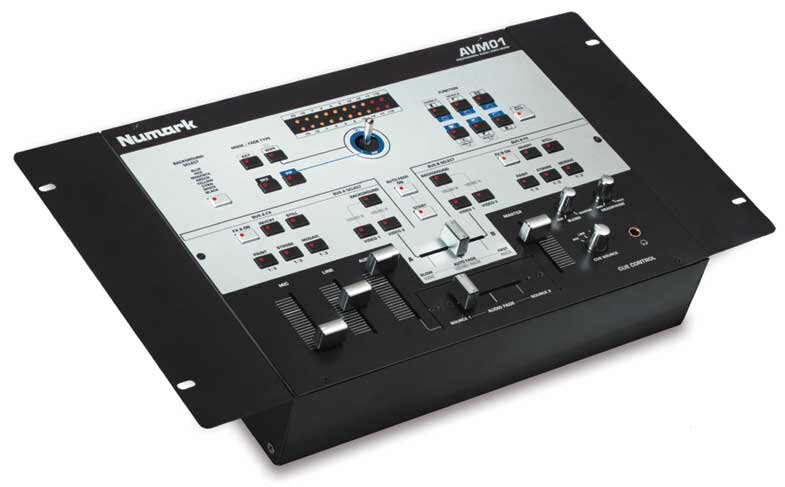

Numark AVM01 Audio/Video Rackmount Mixer

The Numark AVM01 is the first and only audio/video mixer designed specifically for DJ and music production applications. The AVM01 continues Numarks' tradition of providing innovative product development and design for professional DJ's. The AVM01 uniquely incorporates both audio and video mixing in one stand-alone unit that can be either rack mounted or used on a table top.

For DJs who wants to incorporate video into their world, this all-in-one unit provides features and capabilities unheard of at this price. Two separate cross-faders, one for audio and one for video, let you mix audio and video separate from each other. The AVM01 provides professional audio/video effects. Video mixing options include fades, 96 wipe patterns, picture-in-picture, along with chroma key (blue screen), and luma screen (black screen) capability for superimposing images. There are two video effect sections with mosaic, strobe, freeze, paint and invert, which allow for multiple simultaneous effects. With its easy to use joystick, wipes and picture-in-picture effects are simpler to control than ever before.

Other key features include: ten background color options, four video channels with two composite and two S-video inputs (hook up your camera, DVD or VCR), two S-video and two composite outputs, four video monitor outputs, three stereo audio inputs and one mic input with audio cueing section and headphone output, two stereo main audio outputs and a universal power supply.

Features
Professional Audio/Video performance mixer with effects

Separate DJ crossfaders for audio and video

Video mixing options include fades, 96 wipe patterns, picture-in-picture (PIP), and Chroma Key (blue screen) and Luma Key (black screen) capabilities for superimposing images

2 video effect sections with mosaic, strobe, freeze, paint, and invert (multiple simultaneous effects possible)

Joystick control for wipes and picture-in-picture control

10 background color options

4 video channels with 4 composite and 2 S-video inputs

2 S-video, 2 composite main outputs and 4 video monitor outputs

3 stereo audio inputs and 1 mic input with audio cueing section and headphone output

2 stereo main audio outputs

Rack-mountable rugged metal enclosure (rack ears are removable for tabletop use). Ideal for live audio/video performance

Universal power supply
