This product is no longer available at zZounds.
Shop our website for related products:
(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

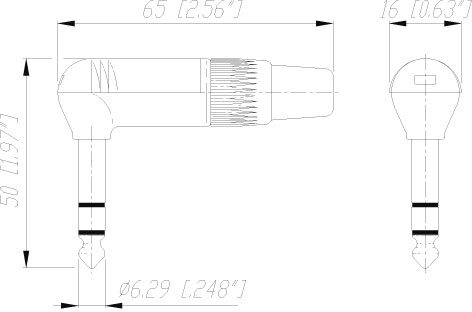

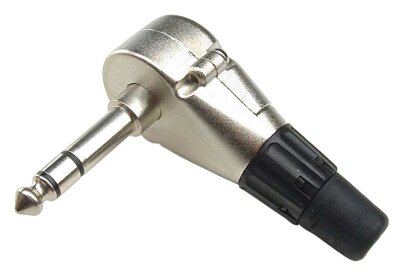

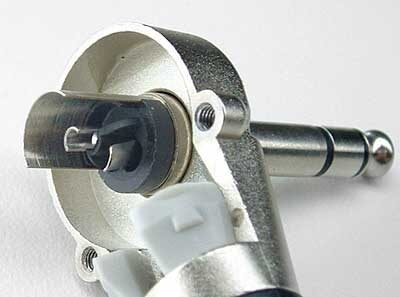

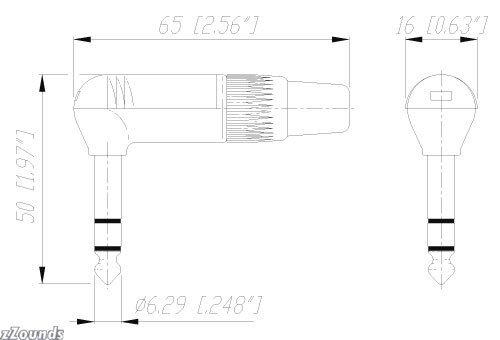

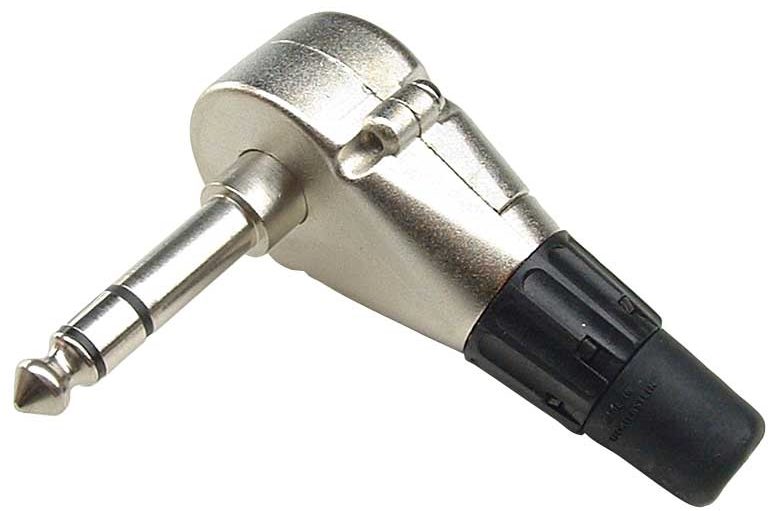

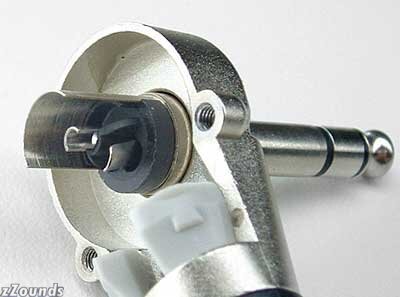

Neutrik NP3RC Male TRS Stereo Right Angle 1/4 in. Connector
Professional phone plug. All metal, no rivets. Super-slim shape. 3-pole.
Additional Images:
Loading...
This item cannot be returned once opened due to the possibility that it has been used. details
About This Product!
Description

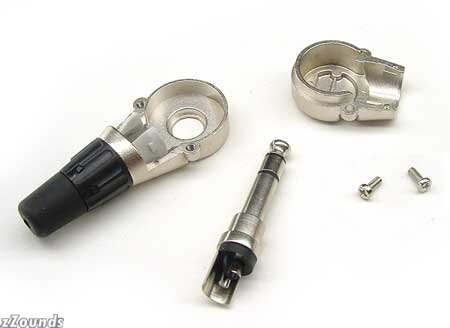

The Neutrik NP3RC features "the lifetime plug" Diecast shell, Neutrik's unique chuck-type strain relief with PU-sleeve for optimal cable protection. This is the right-angle version with super-slim shape, sleeve contact and shell in one piece.
Rated current: depends on mating connector
Contact resistance: depends on mating connector
Insulation resistance - initial: > 2 G ohms
- after damp heat test: = 1 G ohms
Dielectric strength: 1 kV dc
Mechanical
Wiring: solder terminals
Wire size: 1 mm squared / AWG 18
Cable O.D.: 4 - 7 mm
Solderability: complies with IEC 68-2-20
Shell ZnAl4Cu1, Ni or black Cr plated
- RCS: only Ni plated / PA6 50% GR
Insulation: PA 6.6 30% GR
Contacts: CuZn39Pb3, 2 µm Ni (Su) or gold plated
Chuck: POM
Bushing: POM + PU
Temperature range: -20 degrees C to +65 degrees C
Compatibility / Remarks
NP2C with built-in 1:10 transformer to convert mic level to guitar inputs: add suffix "T10AA"
Compatibility: EIA RS-453/IEC 60603-11
Technical Info
ElectricalRated current: depends on mating connector
Contact resistance: depends on mating connector
Insulation resistance - initial: > 2 G ohms
- after damp heat test: = 1 G ohms
Dielectric strength: 1 kV dc
Mechanical
Wiring: solder terminals
Wire size: 1 mm squared / AWG 18
Cable O.D.: 4 - 7 mm
Solderability: complies with IEC 68-2-20
Shell ZnAl4Cu1, Ni or black Cr plated
- RCS: only Ni plated / PA6 50% GR
Insulation: PA 6.6 30% GR
Contacts: CuZn39Pb3, 2 µm Ni (Su) or gold plated
Chuck: POM
Bushing: POM + PU
Temperature range: -20 degrees C to +65 degrees C
Compatibility / Remarks
NP2C with built-in 1:10 transformer to convert mic level to guitar inputs: add suffix "T10AA"
Compatibility: EIA RS-453/IEC 60603-11
