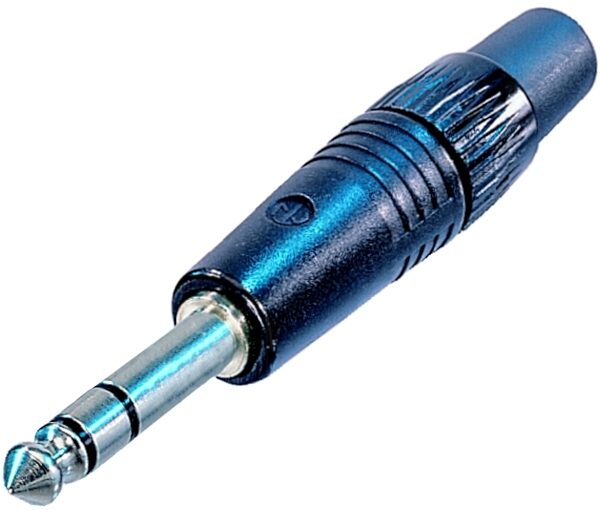

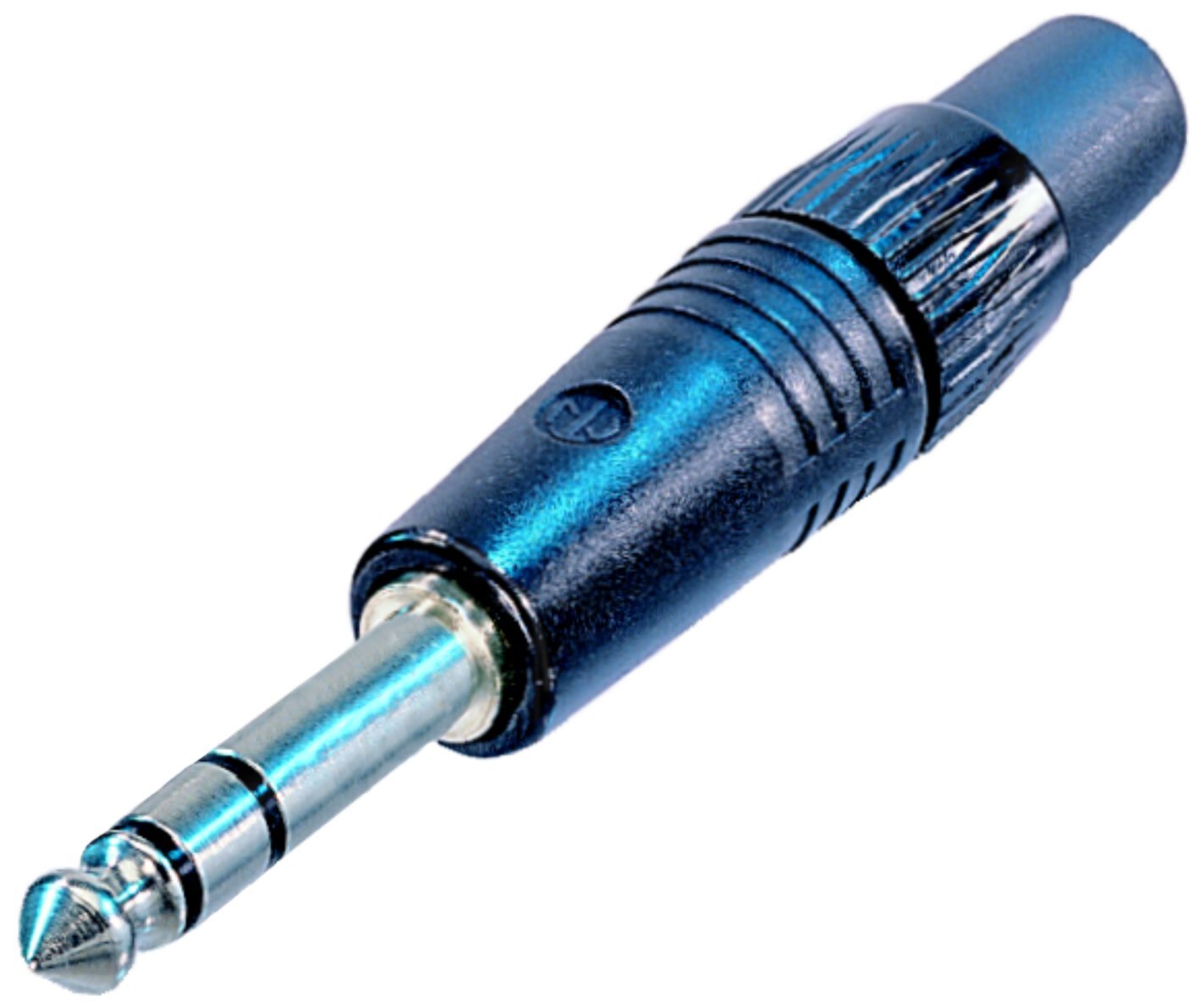

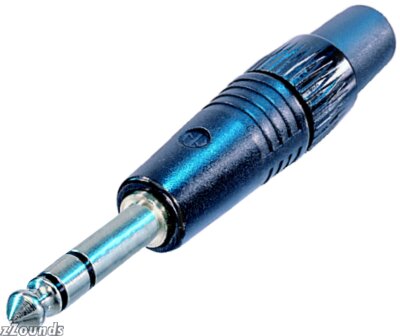

Neutrik NP3CBAG 1/4-inch Male TRS Stereo Connector
1/4 in. professional phone plug. All metal, no rivets. 3-pole.
Our 30-Day 100% Satisfaction Guarantee applies on this item. Buy it, and if it isn't just right for you, return it!
About This Product!
Description
News
"The lifetime plug." Die-cast shell and Neutrik unique chuck-type strain relief with PU-sleeve for optimal cable protection.
Rated current: depends on mating connector
Contact resistance: depends on mating connector
Insulation resistance:
- initial: > 2 G
- after damp heat test: = 1 G
Dielectric strength:
2-pole: 1.5 kV dc
3-pole: 1 kV dc
Mechanical
Wiring: solder terminals
Wire size: 1 mm2 / AWG 18
Cable O.D.: 4-7 mm
Solderability: complies with IEC 68-2-20
Materials
Shell ZnAI4Cu1, Ni or black Cr plated- RCS: only Ni plated / PA6 50% GR
Insulation: PA 6.6 30% GR
Contacts: CuZn39Pb3, 2 µm Ni (Su) plated
Chuck: POM
Bushing: POM + PU
Temperature range: -20ÁC to +65ÁC
Technical Info
ElectricalRated current: depends on mating connector
Contact resistance: depends on mating connector
Insulation resistance:
- initial: > 2 G
- after damp heat test: = 1 G
Dielectric strength:
2-pole: 1.5 kV dc
3-pole: 1 kV dc
Mechanical
Wiring: solder terminals
Wire size: 1 mm2 / AWG 18
Cable O.D.: 4-7 mm
Solderability: complies with IEC 68-2-20
Materials
Shell ZnAI4Cu1, Ni or black Cr plated- RCS: only Ni plated / PA6 50% GR
Insulation: PA 6.6 30% GR
Contacts: CuZn39Pb3, 2 µm Ni (Su) plated
Chuck: POM
Bushing: POM + PU
Temperature range: -20ÁC to +65ÁC
