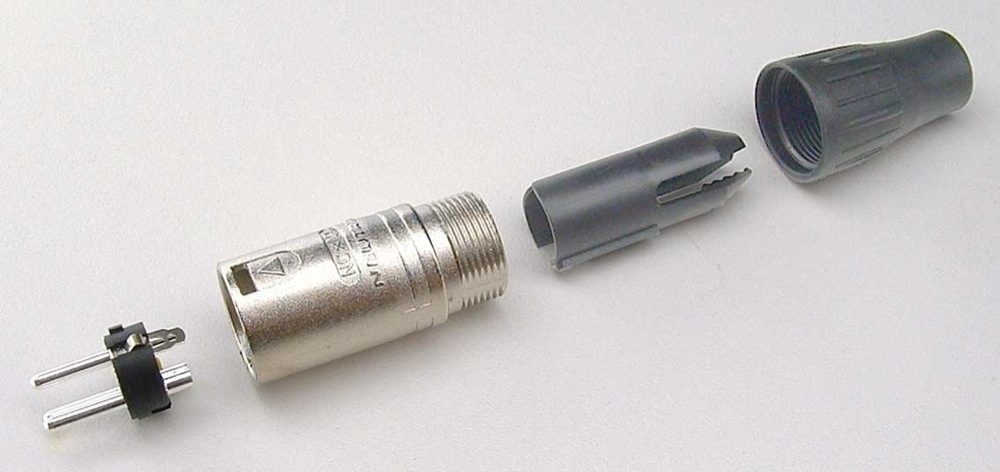

The "industry standard" XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.

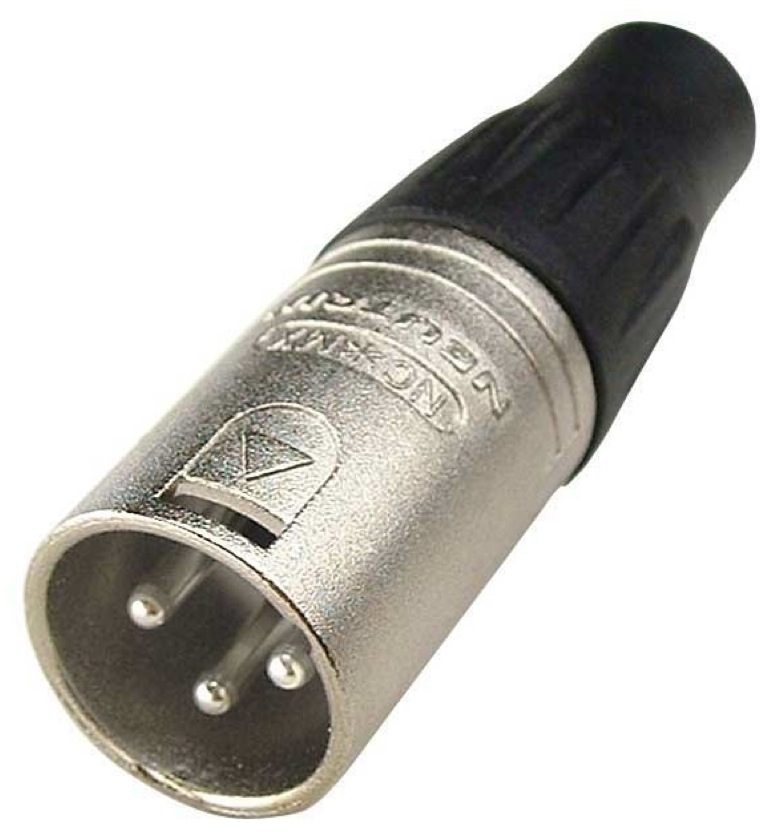

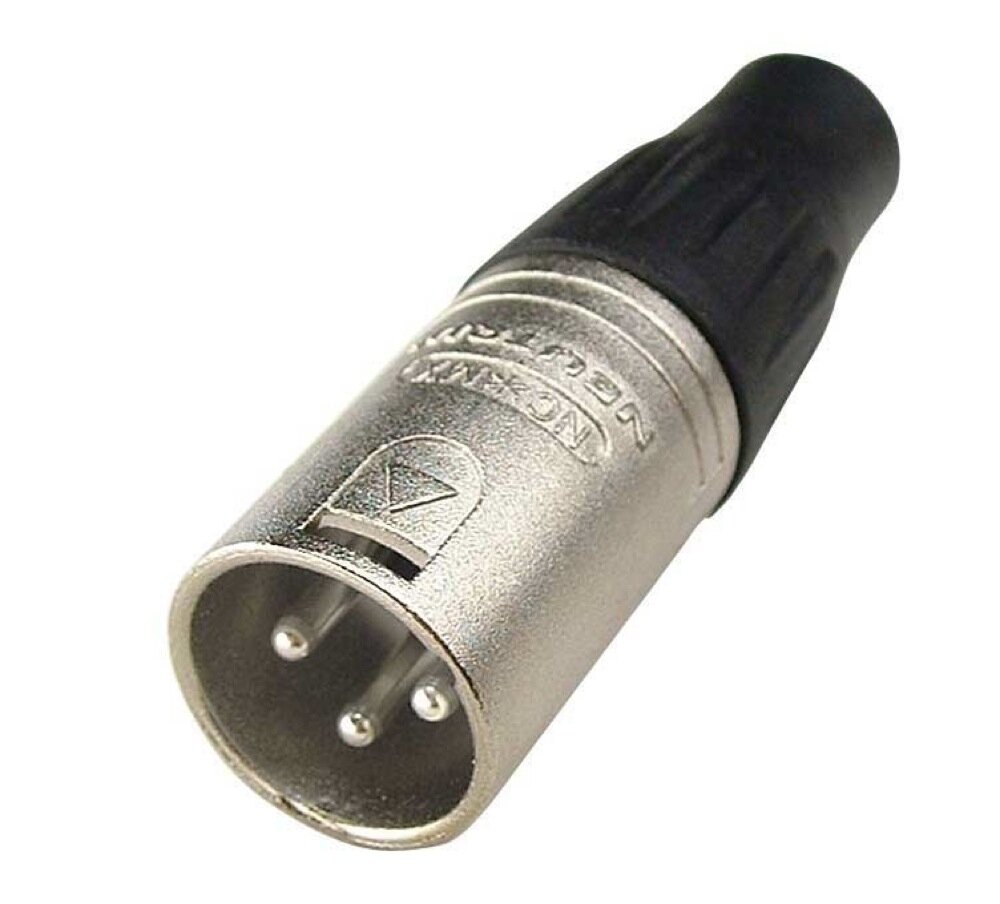

3 pole male cable connector with Nickel housing and silver contacts.
Technical Info
Product
Connector Type: XLR
Gender: male
Electrical
Capacitance between contacts : ≤ 4 pF
Contact resistance: ≤ 3 mΩ
Dielectric strength: 1,5 kVdc
Insulation resistance: > 2 GΩ (initial)
Insulation resistance: > 1 GΩ (after damp heat test)
Rated current per contact: 16 A
Rated voltage: 50 V
Mechanical
Cable O.D.: 3.5 - 8.0 mm
Insertion force: ≤ 20 N
Withdrawal force: ≤ 20 N
Lifetime: > 1000 mating cycles
Wire size: max. 2.5 mm²
Wire size: max. 14 AWG
Wiring: Solder contacts
Locking device: latch lock
Material
Boot: Polyuretan
Bushing: Polyamide (PA6 15% GR)
Contact plating: 2 µm Ag
Contacts: Brass (CuZn39Pb3)
Insert: Polyamide (PA 6.6 30 % GR)
Locking element: St3K32 (latch) / Ck 67 (spring)
Shell: Zinc diecast (ZnAl4Cu1)
Shell plating: Nickel
Strain relief: Polyacetal (POM)
Environmental
Approvals: UL
Flammability: UL 94 HB
Standard compliance: IEC 61076-2-103
Protection class: IP 40
Solderability: Complies with IEC 68-2-20
Temperature range: -30 °C to +80 °C
Manufacturing Standard: IEC 61076-2-103
