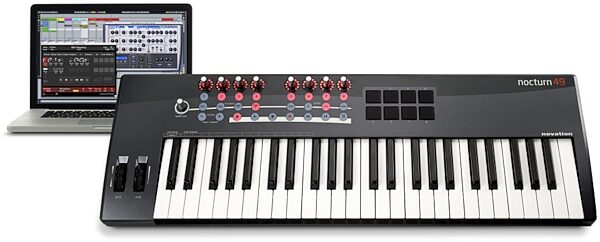

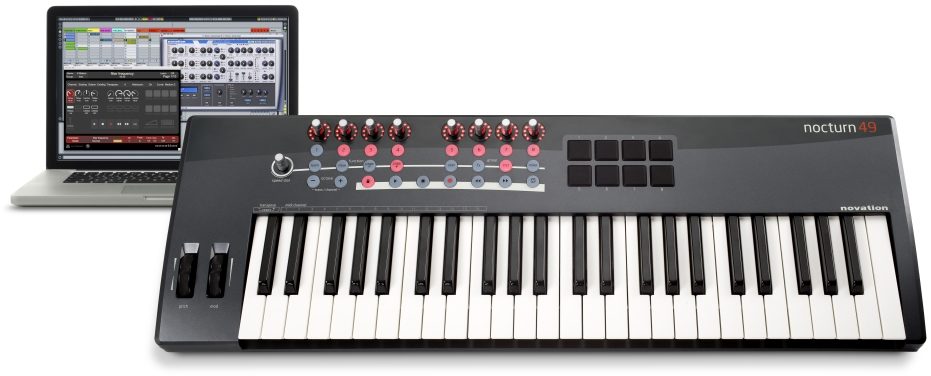

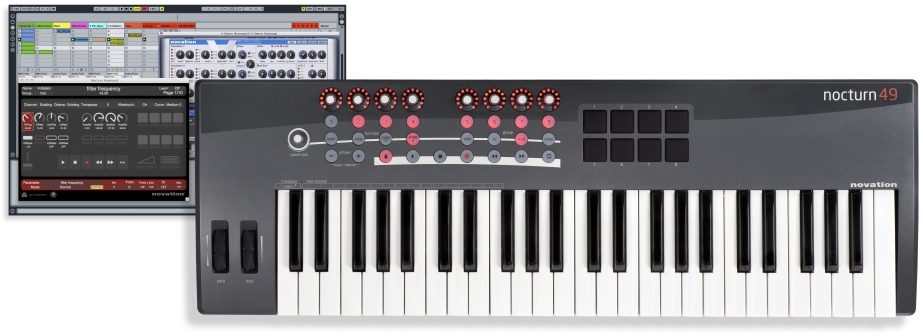

Novation Nocturn 49 49-Key USB MIDI Controller

The Novation Nocturn Keyboard is an intelligent plug-in/sequencer controller. It has a high quality 'Fatar' keyboard, with 8 drum pads and a total of 33 assignable controls, which allow you to get hands-on control of your plug-in instruments, effects and sequencer.

Most keyboard controllers have two big problems: The idea of being able to control software parameters with knobs and buttons sounds great. However, the hassle of assigning them, and remembering what they are assigned to becomes so tedious that you always end up turning back to your mouse.

Nocturn Keyboard's Automap control software solves both these problems. To assign controllers, simply click on the parameter, touch a knob or button, and it is assigned! It also enables you to keep track of what is assigned to what - instead of using a small monochrome LCD screen, Nocturn Keyboard displays control information where you really need it: on your computer monitor. The Automap software graphically displays Nocturn's control surface. The controllers themselves also tell you what is going on: LED rings around the 8 encoders show their current settings, and LED's behind the buttons tell you if they are on or off.

High quality professional keyboard
Velocity-sensitive, keyboard from Fatar, with assignable after-touch. The Nocturn Keyboard feels like playing an instrument rather than a computer peripheral.

Illuminated controls provide instant visual feedback
Brightly lit 11 segment LED rings around the eight smooth encoders, and backlit buttons throughout provide instant visual feedback for every physical control.

Touch-sensitive encoders
All 8 oversized encoders are touch sensitive, bringing up mapping information and allowing you to touch in automation data on DAWs with a touch mode.

Automap control Software
Allows you to instantly 'learn' controllers to plug-ins. The GUI graphically displays Nocturn Keyboard's control surface on your computer monitor, enabling you to see exactly what is assigned to what, without using a tiny LCD screen.

8 Velocity-sensitive drumpads
Nocturn Keyboard features 8 'softfeel' velocity sensitive drum pads. These can do more than just trigger notes and sketch drum patterns, all can be assigned to control software parameters.

Total of 33 MIDI assignable controls
8 trigger pads, 8 dials, 14 buttons, modulation wheel. Sustain and expression pedal control can also be added.

Speed Dial
The 9th encoder is a unique 'Speed Dial' which allows you to instantly change the value of any parameter the cursor is pointing at, with no assignment needed whatsoever.

USB Powered
Nocturn Keyboard is powered by USB saving valuable plug sockets. It can also be powered down without being unplugged, preserving battery power in laptops.

Technical Info

Specifications

Physical controls
Assignable controls:
- 8 Encoders (Infinite Rotation) with touch-sensitivity and 11 segment Led rings
- Touch sensitive Speed Dial
- 14 Buttons with integrated LEDs, 6 of which are lockable transport controls
- 8 soft feel Trigger pads
- Sprung pitch wheel
- Modulation wheel

System buttons:
- General Automap Operation Buttons (Learn, View, Browser Groups etc.)
- Octave up/down buttons with LED indicator
- Button to lock/unlock transport controls

Connectivity

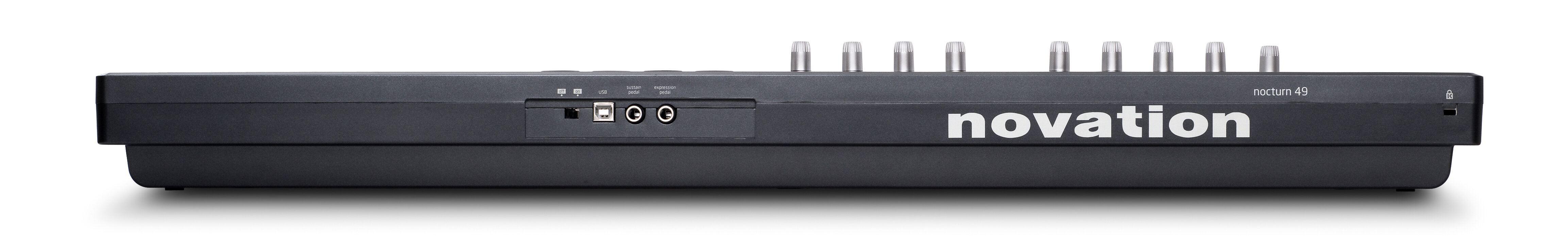

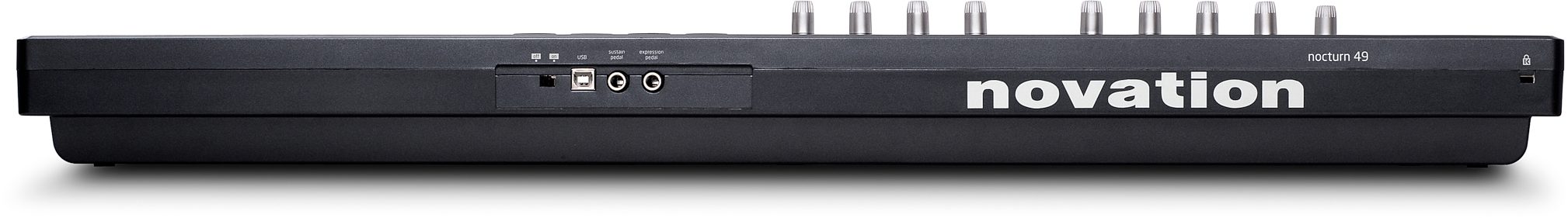

Rear Panel connections are as follows:
- Data Port: 1 x USB (Win XP/Vista and Mac OSX) - Class Compliant
- Sustain Pedal: 1 x 1/4 Jack Input
- Expression pedal: 1 x 1/4 Jack Input
- Power switch: USB

Minimum Operational Requirements:
Mac OSX 10.4.11 or greater (Leopard also supported) or Windows XP with
Service Pack 2 or greater (Vista 32/64 also supported)

Minimum Computer spec: Mac - G4/1GHz, both with 512MB RAM or PC -
Pentium 4/1GHz/512MB RAM (machines running Vista will require a higher spec)

Interfacing: USB 1.1 and USB 2.0 compatible

Dimensions:
- Size (25 key, WxHxD): 472 x 68 x 260 mm
- Size (49 key, WxHxD): 798 x 68 x 260 mm

Weights:
- 25 key net weight: 2.4kg
- 49 key net weight: 3.8kg
