Native Instruments Traktor Scratch Duo DJ System

Manufacturer's Description for Native Instruments Traktor Scratch Duo DJ System

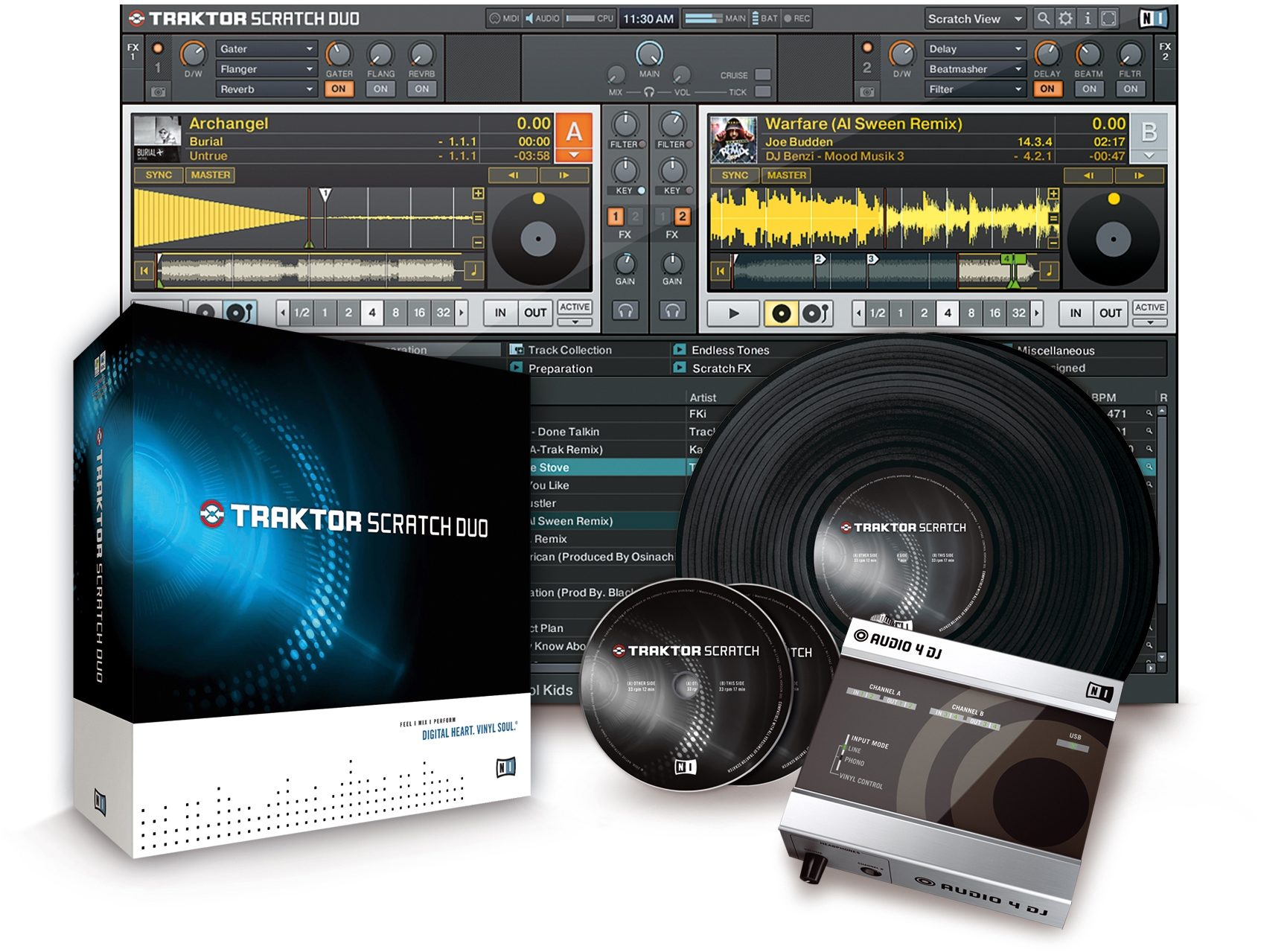

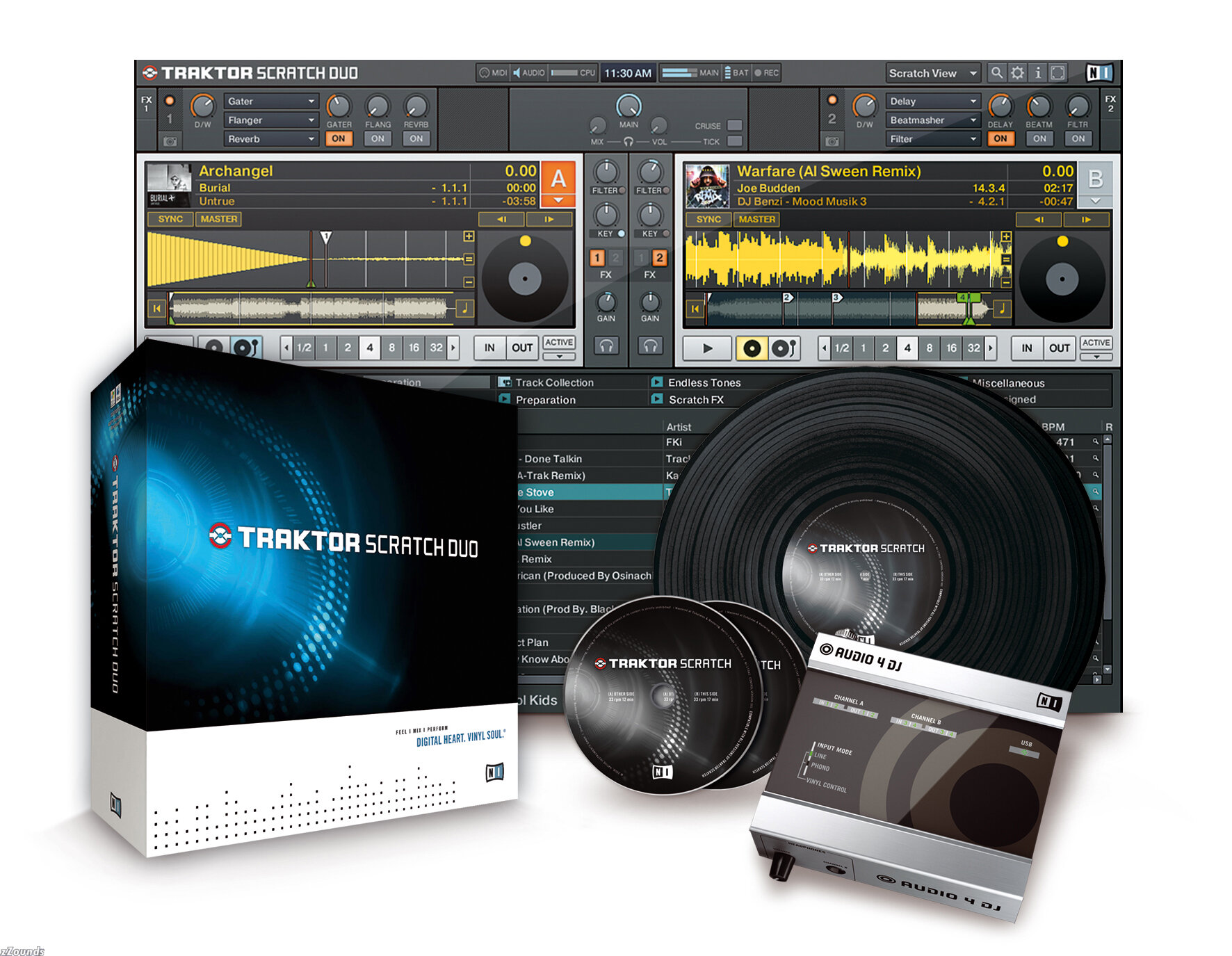

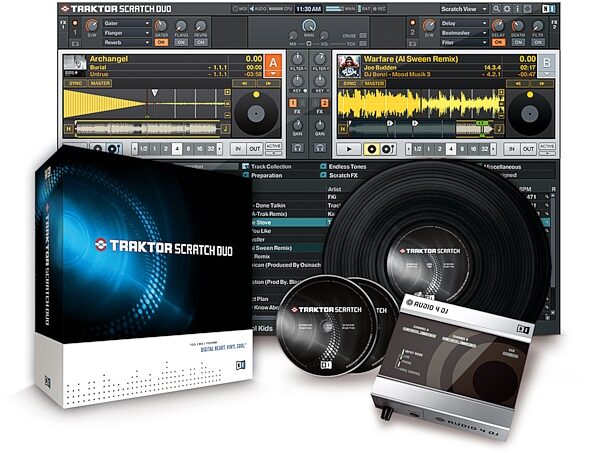

For aspiring DJs who want to start spinning their digital tracks on vinyl and CD, Traktor Scratch DUO is the complete solution that provides both the software and hardware to perfectly fuse the worlds of analog and digital DJing. Traktor Scratch DUO comes with the powerful Traktor PRO-based Traktor DUO software, the professional AUDIO 4 DJ interface, ultra-precise control records and CDs plus many more valuable features to get you spinning in no time.

Features
- Control up to 2 decks using turntables, CD decks or MIDI controllers including advanced looping and cue points

- High-end 24-bit/96 kHz low-latency audio interface with Cirrus Logic(R) AD/DA converters; USB 2.0 bus powered

- 4 high-gain outputs, 4 inputs with optional phono-pre amps with high impedance input mode for perfect audio through quality, 8 individual LEDs for full visual control, high power 1/4" headphone jack with independent volume knob

- 2 control vinyl records and 2 CDs with high-resolution 2 kHz signal for ultra-precise track control

- 2 Multicore cables (patent pending) for easy plug and play connectivity

- Stylish interface utilizing the same engine as the industry leading Traktor PRO-designed for high visibility in club environments

- 6 first-class DJ effects (delay, flanger, reverb, filter, beatmasher, gater), groupable into chains of up to three per channel

- Advanced DJ software based on Traktor PRO includes high-end internal mixer, automatic beat-gridding of tracks, advanced beat detection and Sync Lock for perfect mixing

- Realtime track management with incremental search, Crate-Flick browsing, iPod(R) and iTunes(R) compatibility

- Supports multiple USB controllers and assignments and includes ready-to-use mappings for almost all industry-standard controllers

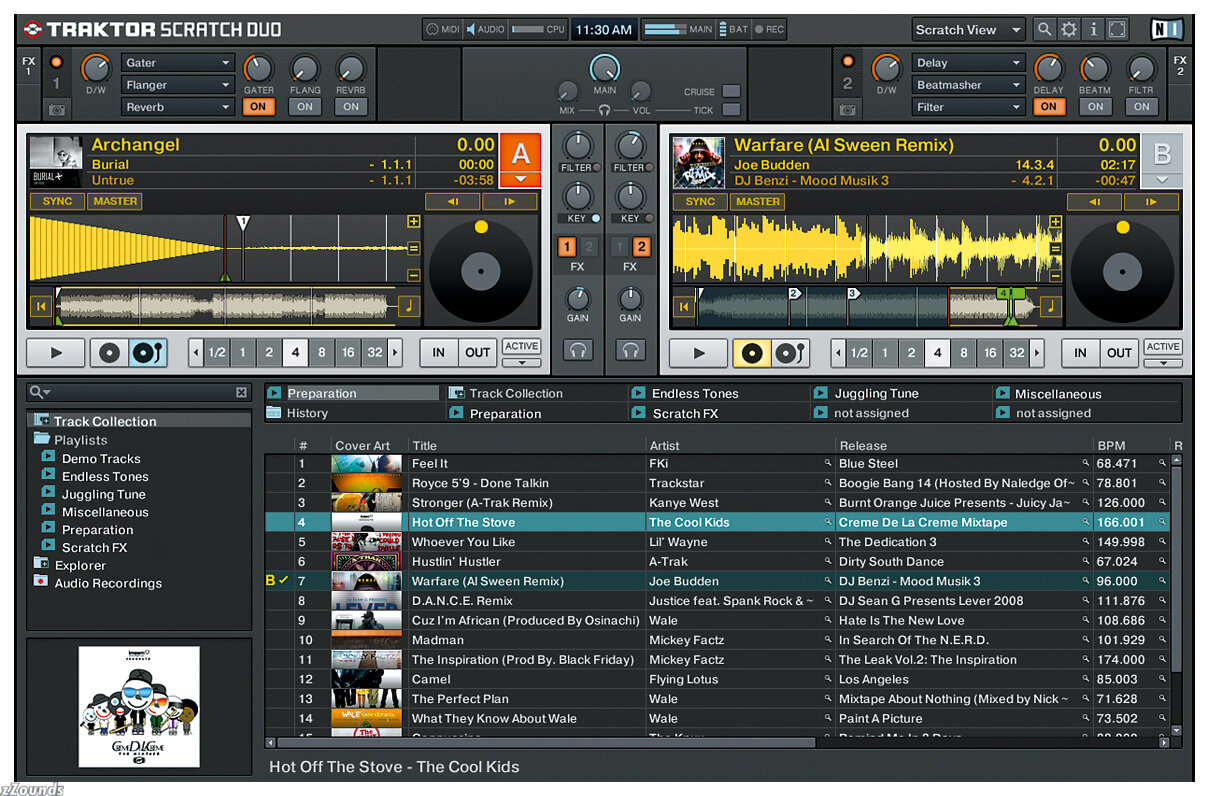

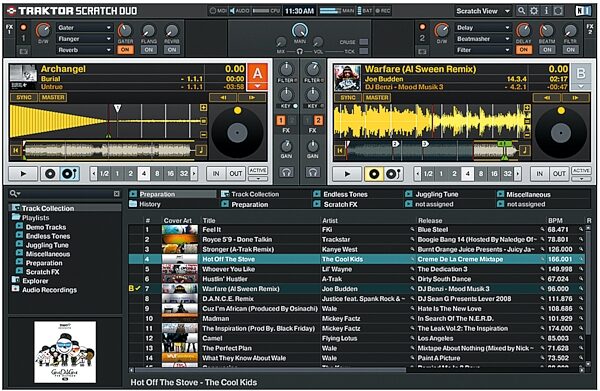

Go Duo

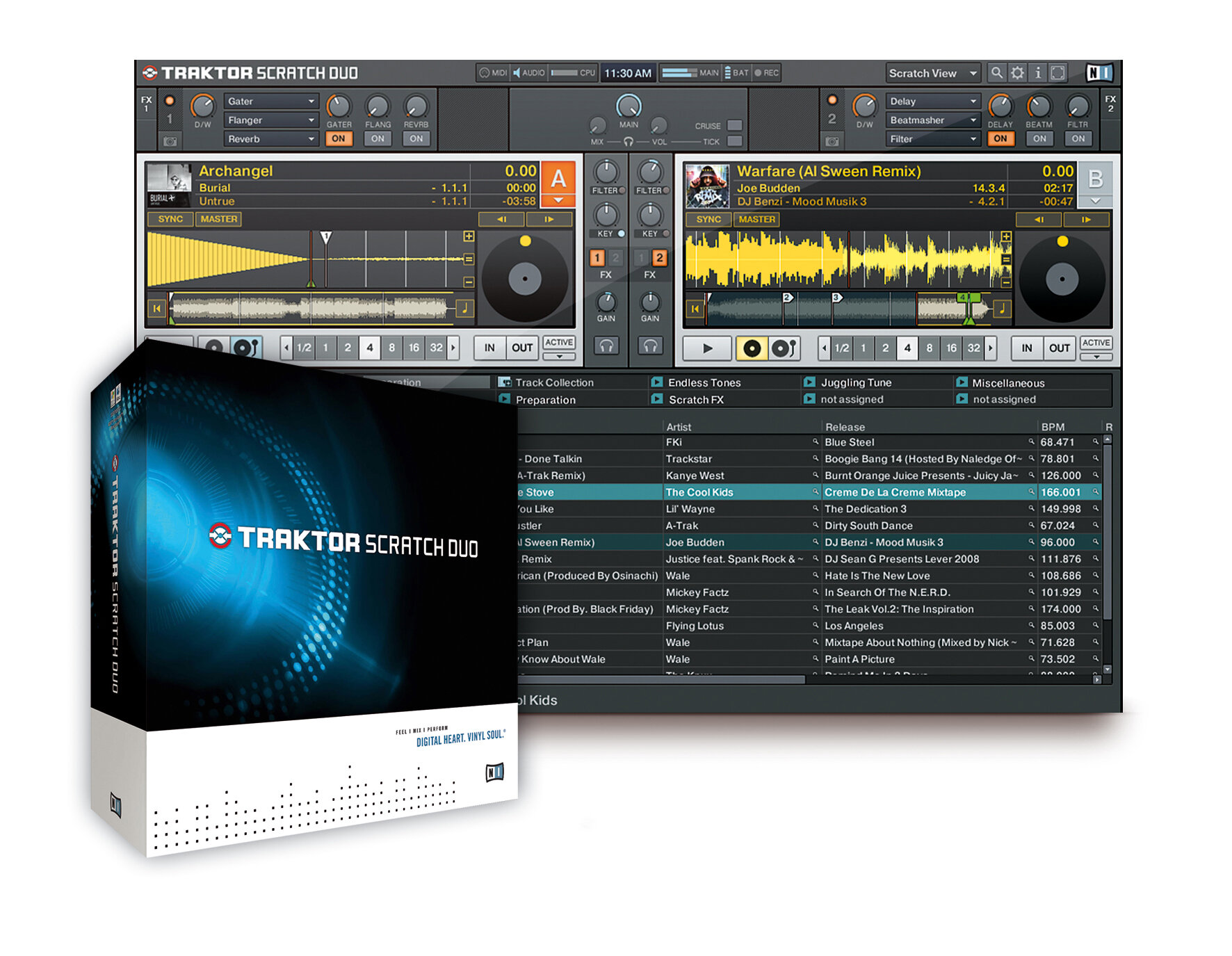

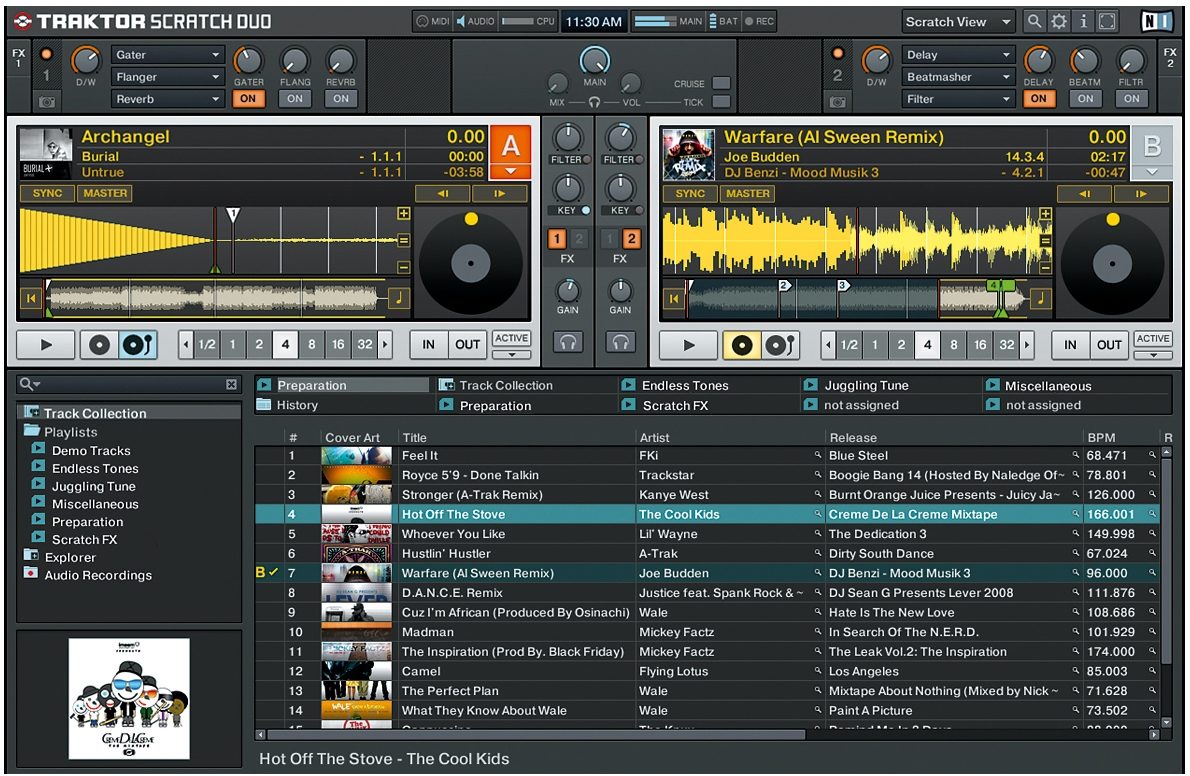

The included Traktor DUO software features two state-of-the-art playback decks, an intuitive graphic interface with a Crate Flick cover art browser. Advanced looping capabilities, with multiple loop and cue points plus up to three chainable tempo sync'd effects per channel let you get deep inside the tracks you spin. Traktor Scratch DUO combines unparalleled creative potential with ease of use and rock-solid dependability.

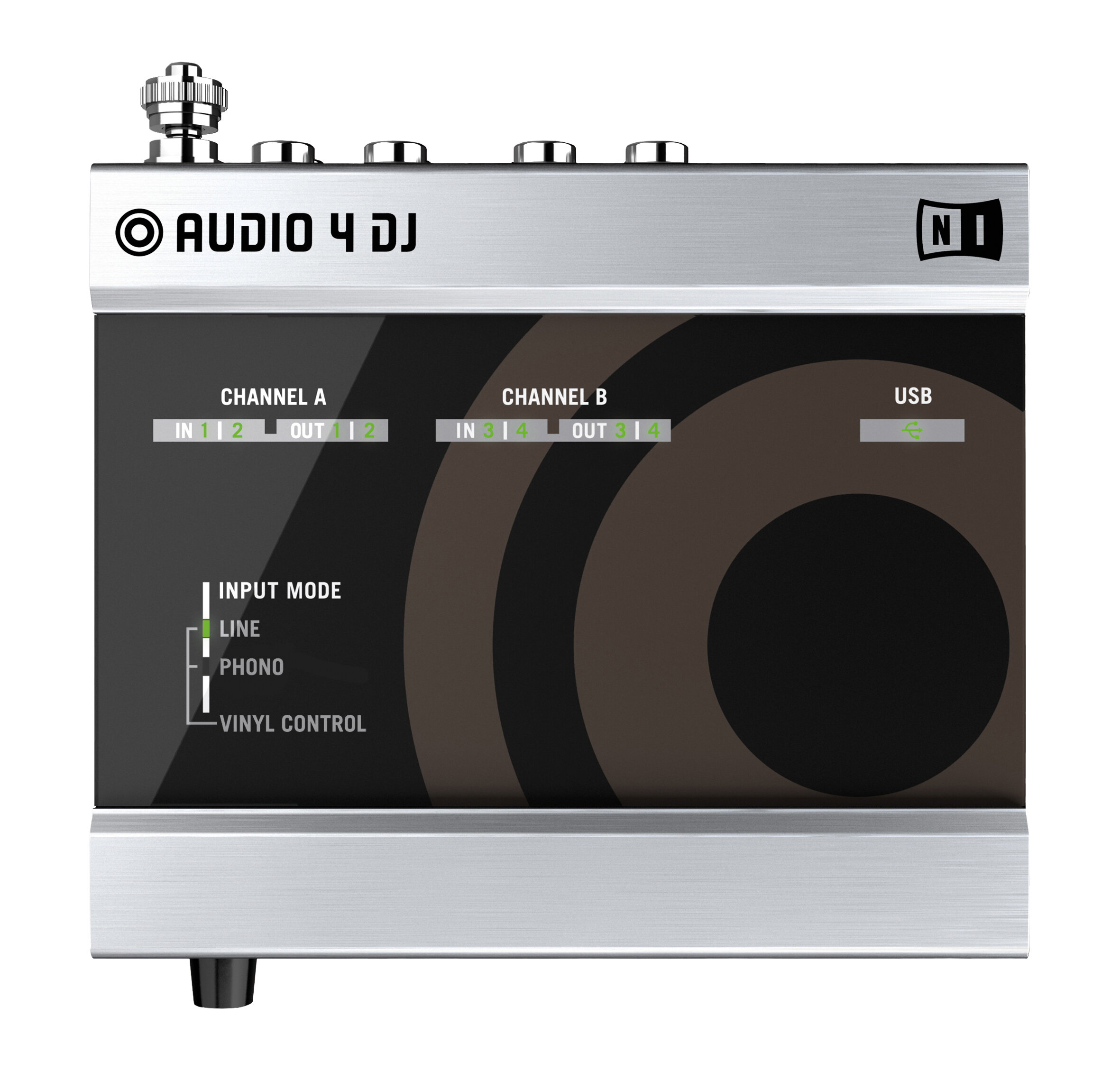

Fab 4

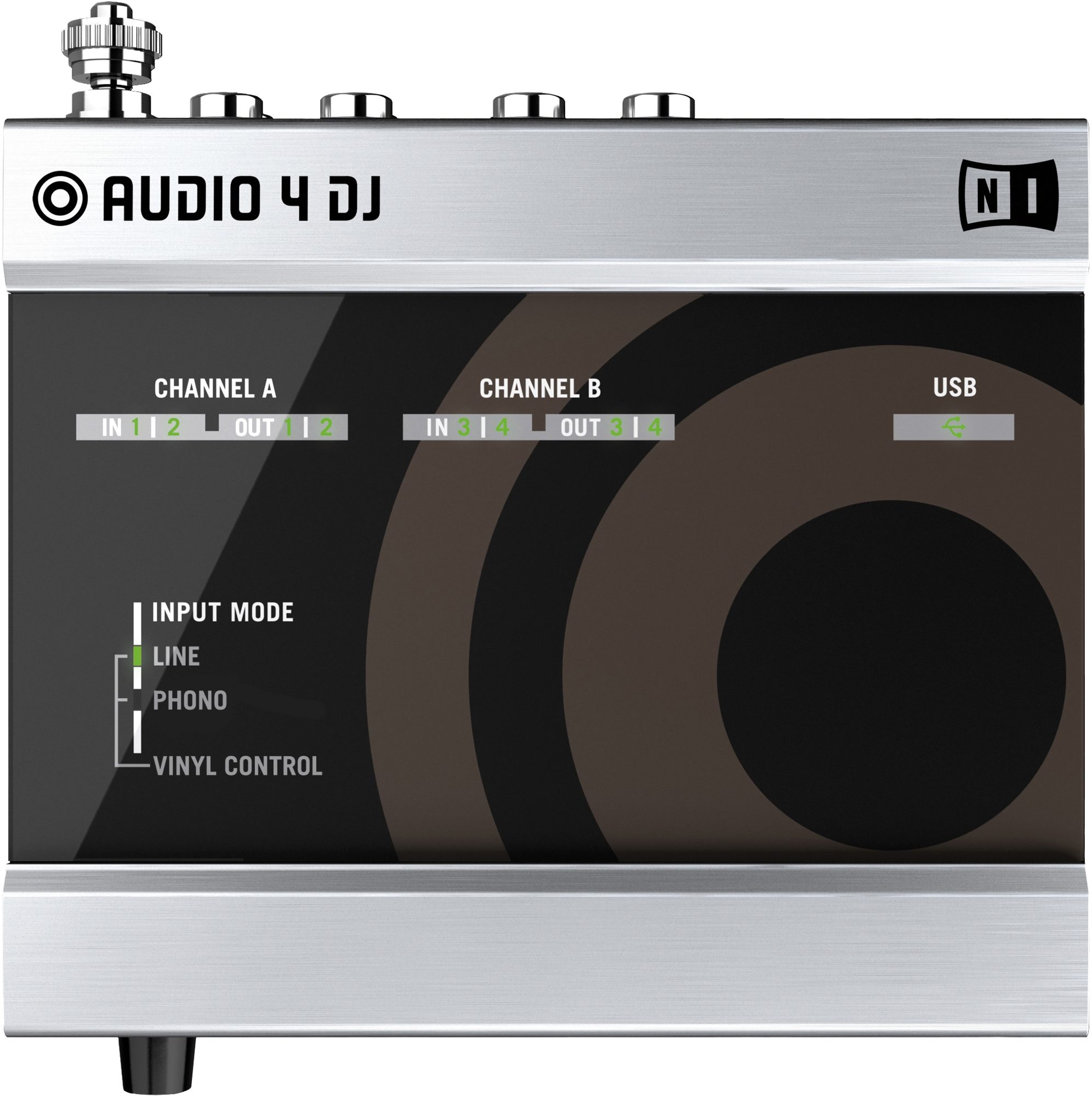

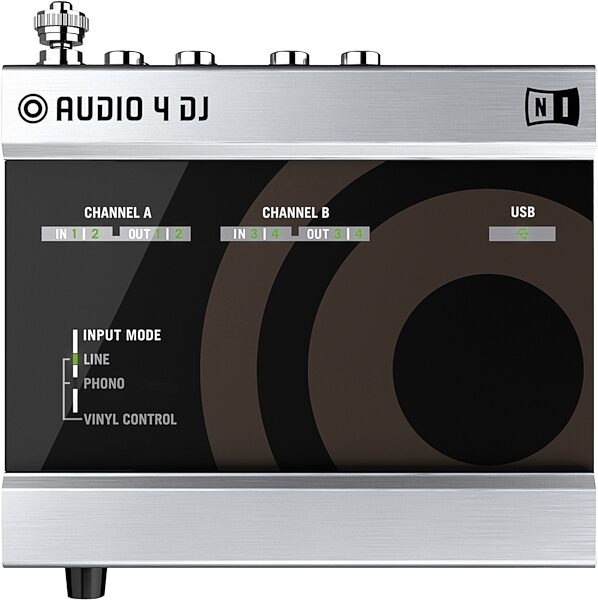

Traktor Scratch DUO comes with AUDIO 4 DJ, a superior USB bus-powered audio interface built specifically for DJing. This low-latency 24-bit/96 kHz interface uses high-end Cirrus Logic(R) AD/DA converters for pristine audio quality - just like its multi award-winning big brother AUDIO 8 DJ. Four switchable inputs and four hi-gain (9.7 dBu) outputs let you connect to an external mixer and turntables or CD decks in seconds.

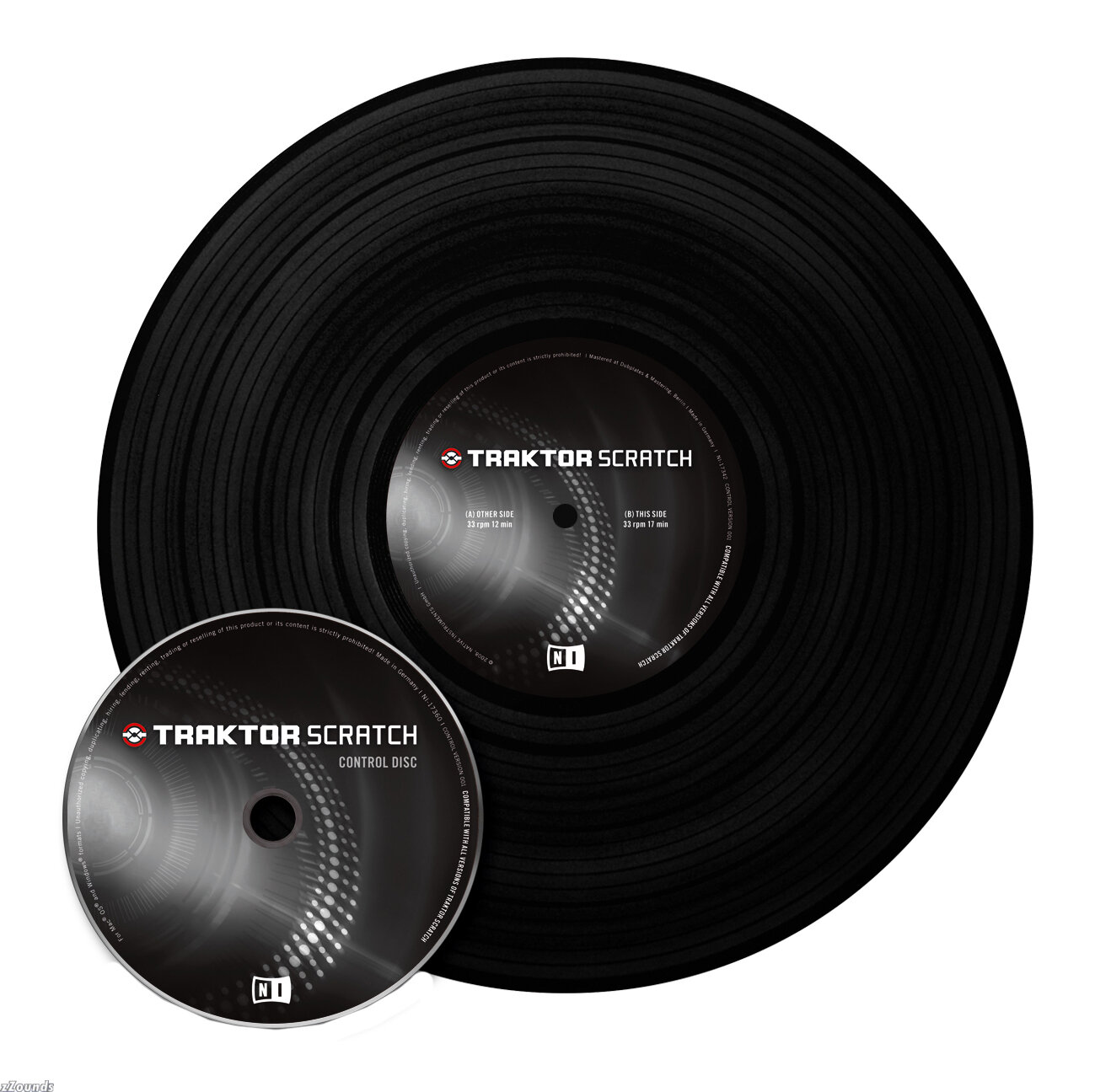

Digital Tracks On Wax

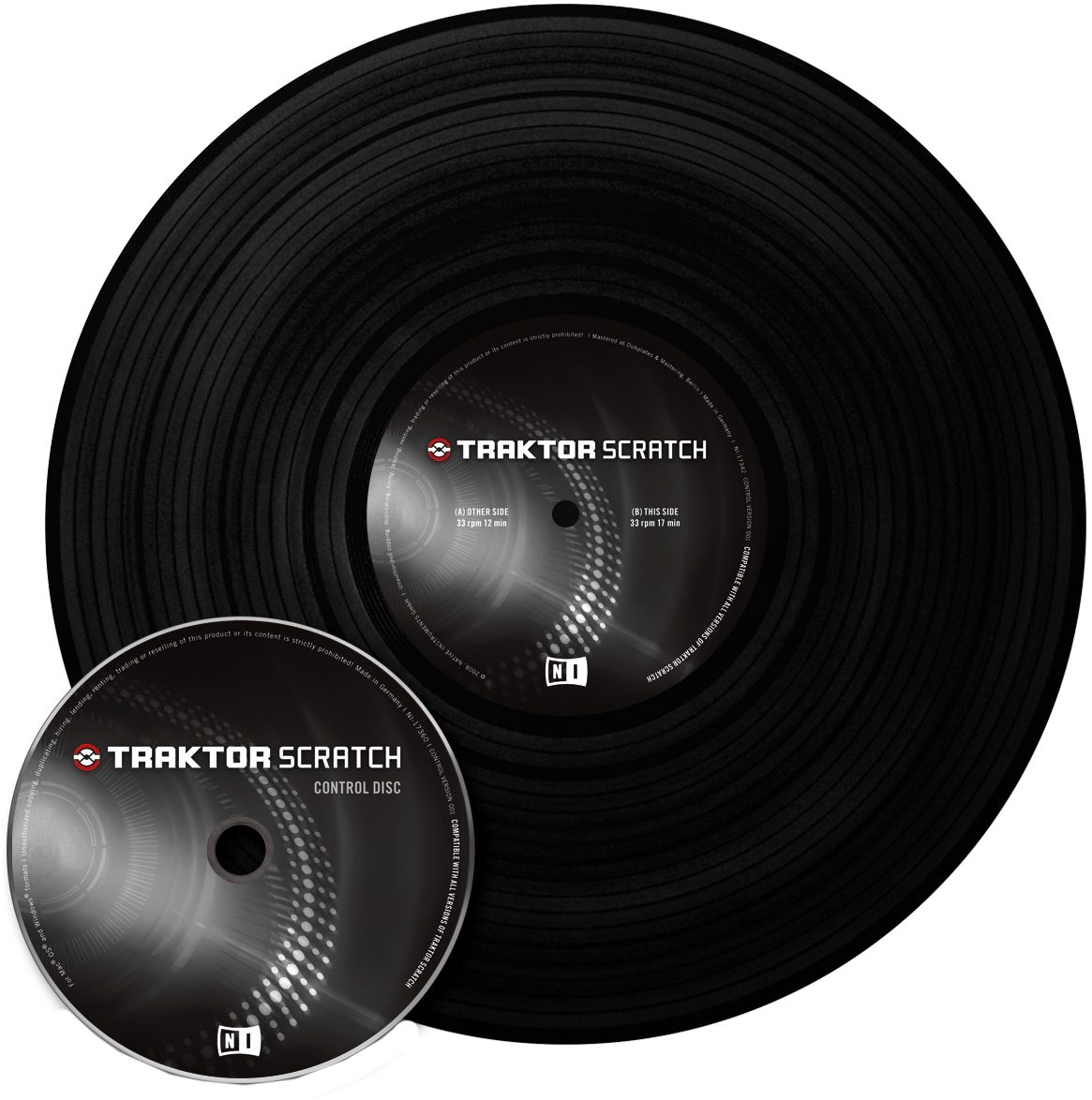

Traktor Scratch DUO enables you to seamlessly fuse analog and digital DJing. The 2 kHz control signal of the included vinyl and CDs is twice the resolution of the competitors. This unmatched responsiveness means that everything from slow rubs to quick backspins and even motor-offs responds just like vinyl. Pressed with extreme care onto high-quality 120g discs, it feels like each digital file is cut into the wax.

Easy Setup
Traktor Scratch DUO is designed for easy set up and comes with a dedicated set of high-quality Multicore cables. Within seconds, you can hook up the AUDIO 4 DJ to your turntables / CD players and mixer and you're ready to rock. And with the included Traktor DUO software you can also spin without CD decks and turntables using the internal mixer- perfect for preparing a set or rocking an after party.

Scratch Library
Traktor Scratch DUO comes with a dedicated Scratch Library. The included exclusive audio material offers instant usability and unique features for all turntablists. Over 700 MB of sounds recorded in 24 bit / 96 kHz audio quality are itching to be Scratched and include many lead sounds for solo Scratching as well as sound FX, endless tones, tunes for juggling, loops and more. zZounds is an authorized dealer of Native Instruments products.

Specifications
Audio Inputs (A/D)
Channels: 4

Sample Rate: 44.1, 48, 88.2, 96 kHz

Bit Resolution: 16, 24-bit

Converter: Cirrus Logic

Line Inputs
Input Impedance: 1 MOhm

Full Scale Level: + 12,5 dBu

SNR (weighted): 99,7 dBu

THD+N: 0,019%

Frequency Response +/-1 dBu: 10 Hz-40 kHz

Dynamic Range codec: 105 dBu

Phono Inputs
Input Impedance: 47 KOhm

Full Scale Level @ 1 kHz: - 21,2 dBu

SNR (weighted) @ 1 kHz: 87,2 dBu

THD+N @ 1KHz: 0,09%

Frequency Response +/-1 dBu: 10 Hz-40 kHz

Audio Outputs (D/A)
Channels: 4

Sample Rate: 44.1, 48, 88.2, 96 kHz

Bit Resolution: 16, 24-bit

Converter: Cirrus Logic

Line Outputs
Output Impedance: 100 Ohms

Maximum Output Level: +9,6 dBu

SNR (weighted): 100 dBu

THD+N: 0,006%

Frequency Response +/- 1 dBu: 10 Hz-40 kHz

Dynamic Range codec: 105 dBu

Headphone Output
Load Impedance: 16 Ohms - 600 Ohms

Maximum Output Level (100 Ohm load): 1,55 V RMS (load 100Ohm), 3,1V RMS (no load)

SNR (weighted): 93 dBu

THD+N (100 Ohms): 0,016%

Frequency Response +/- 1 dBu: 10 Hz-40 kHz

System Requirements
Windows XP (SP3, 32 bit) or Windows Vista (SP1, 32/64 bit) or Windows 7 (32/64 bit), Pentium IV or Athlon 1.4 GHz (SSE1), 1 GB RAM

Mac OS X 10.5/10.6, Intel Core (TM) Duo 1.66 GHz, 1 GB RAM
100 MB free disk space required (minimum), DVD drive

Dimensions
4 (101 mm) x 4.8 (121 mm) x 1.7 in.(42 mm)

Weight: 1.1 lb (511 grams)

Supported Drivers
ASIO(TM), Core Audio(TM), DirectSound(R), WASAPI(TM)

Power Supply
Power Supply Via USB 2.0 interface, 5V 500mA bus power. No additional power supply or battery is needed.
