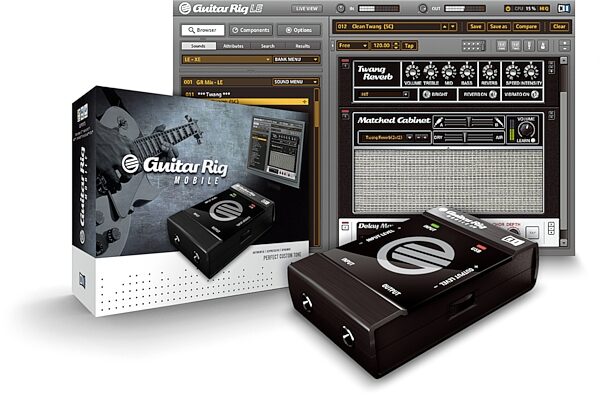

Native Instruments Guitar Rig Mobile Audio Interface

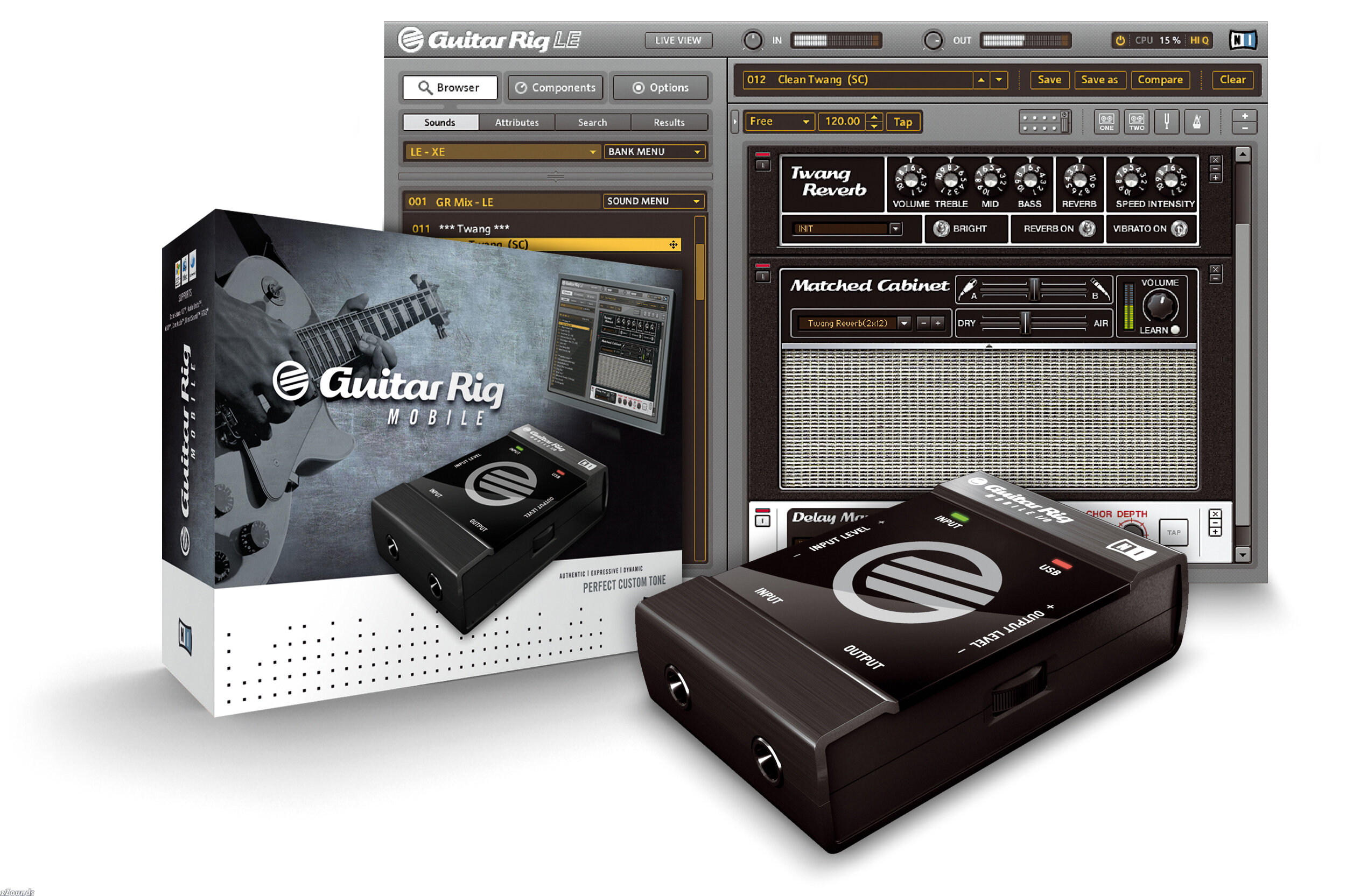

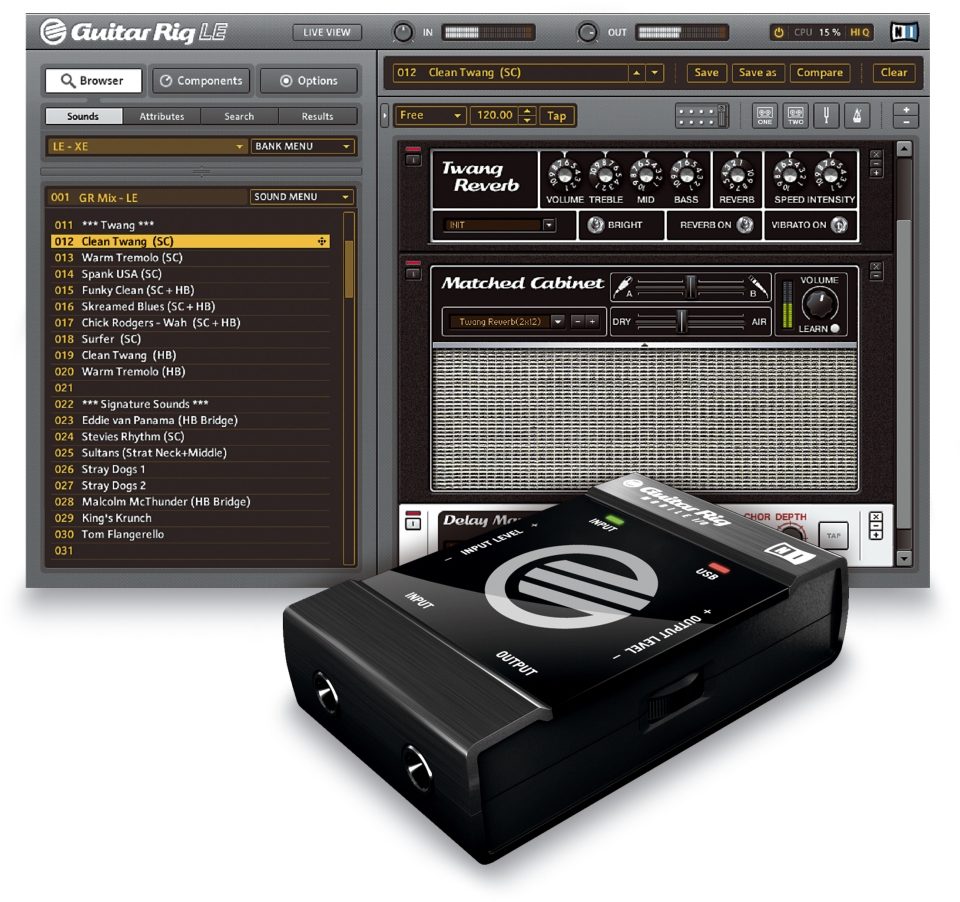

Guitar Rig Mobile brings together an ultra-portable, bus-powered 24-bit/192 kHz audio interface with the powerful selection of amps, cabinets and effects from the GUITAR RIG 3 LE modeling software. The result: perfect custom tone anytime and anywhere you want.

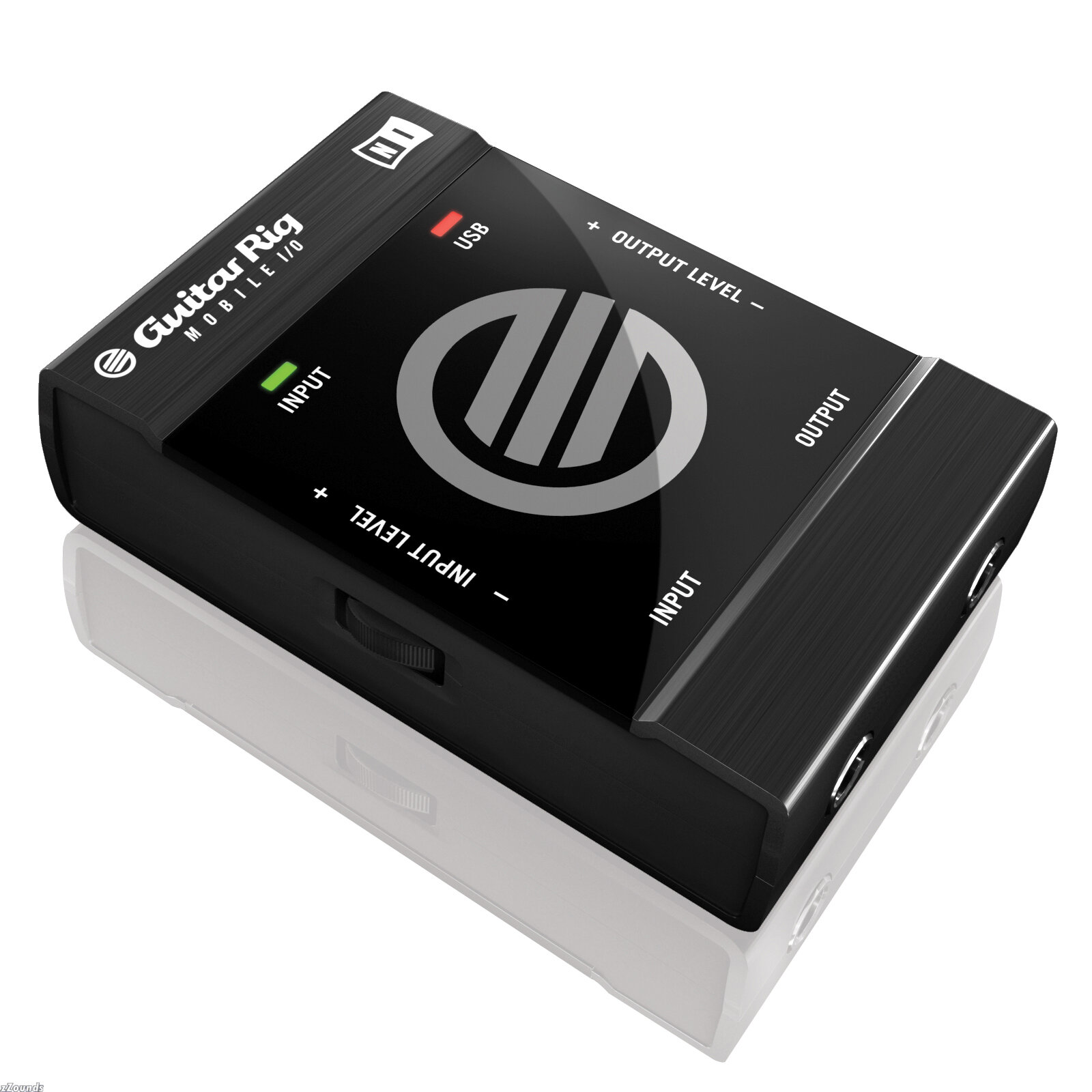

THE Guitar Rig Mobile I/O Audio Interface

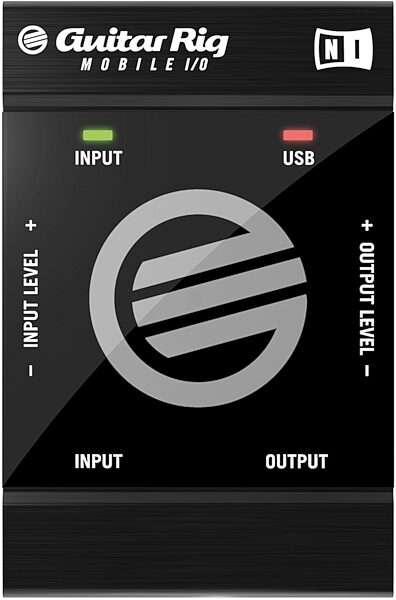

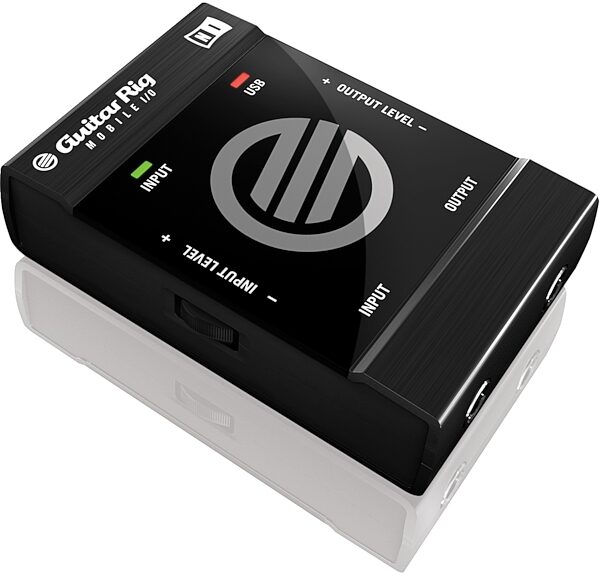

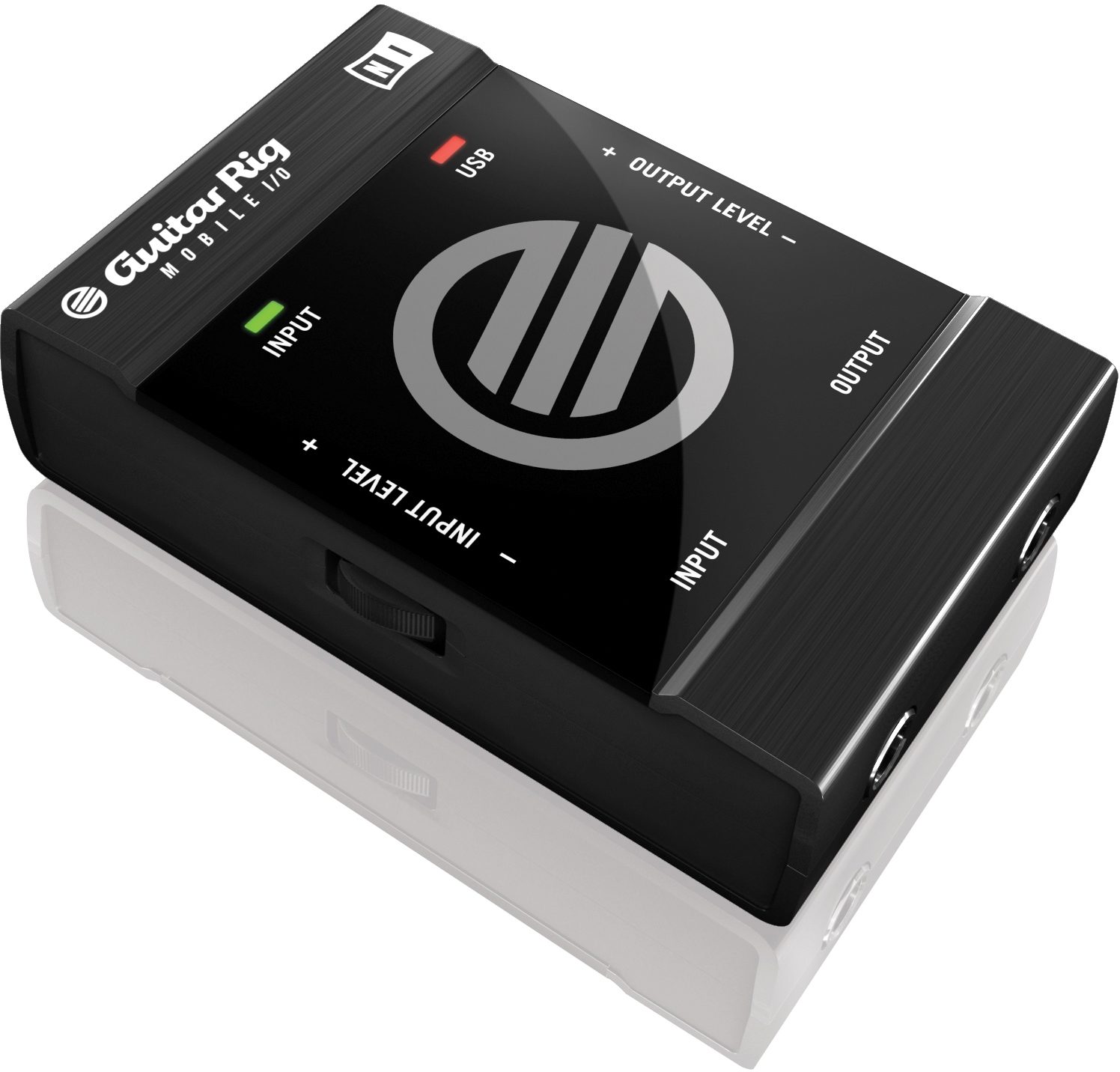

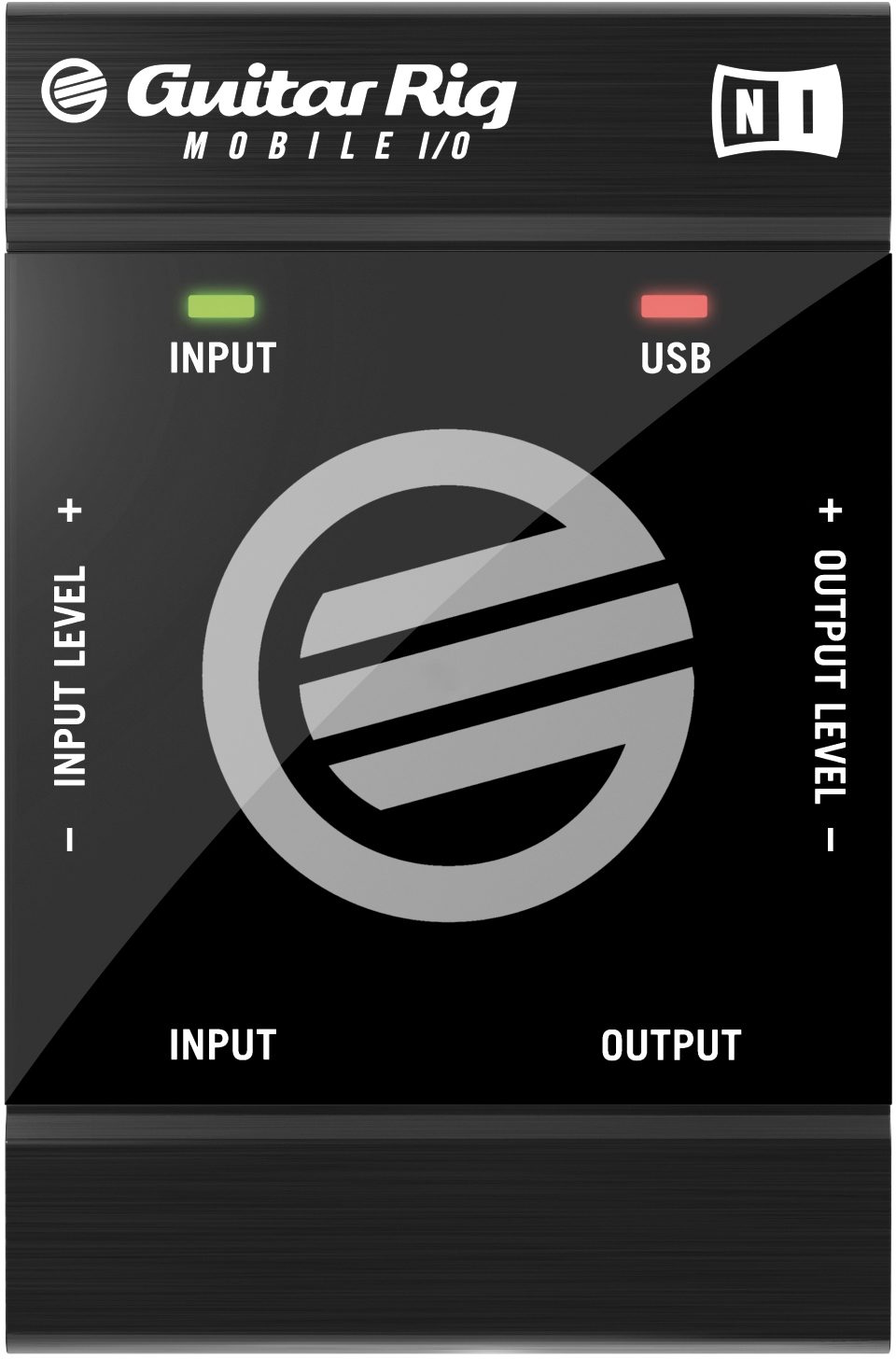

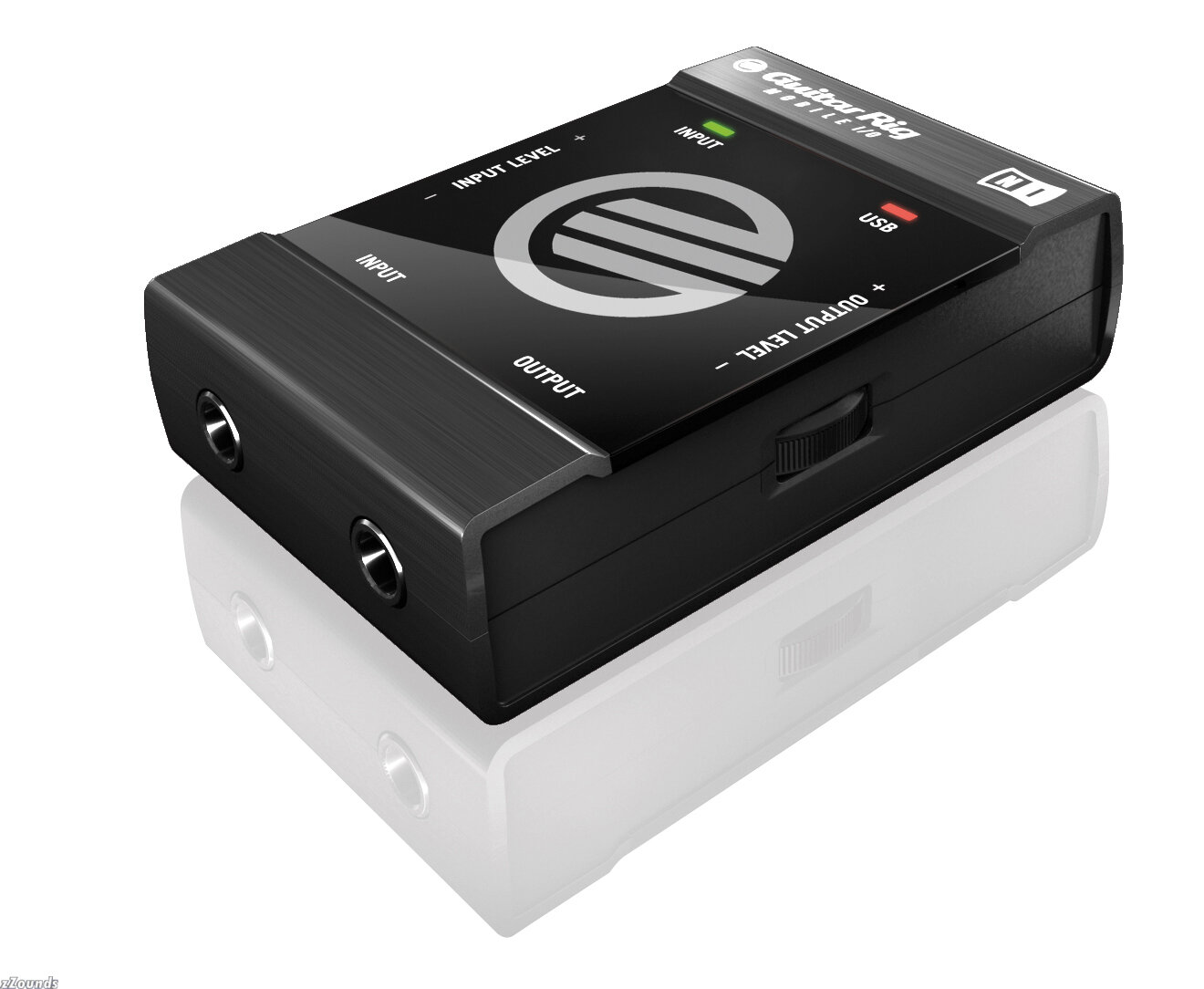

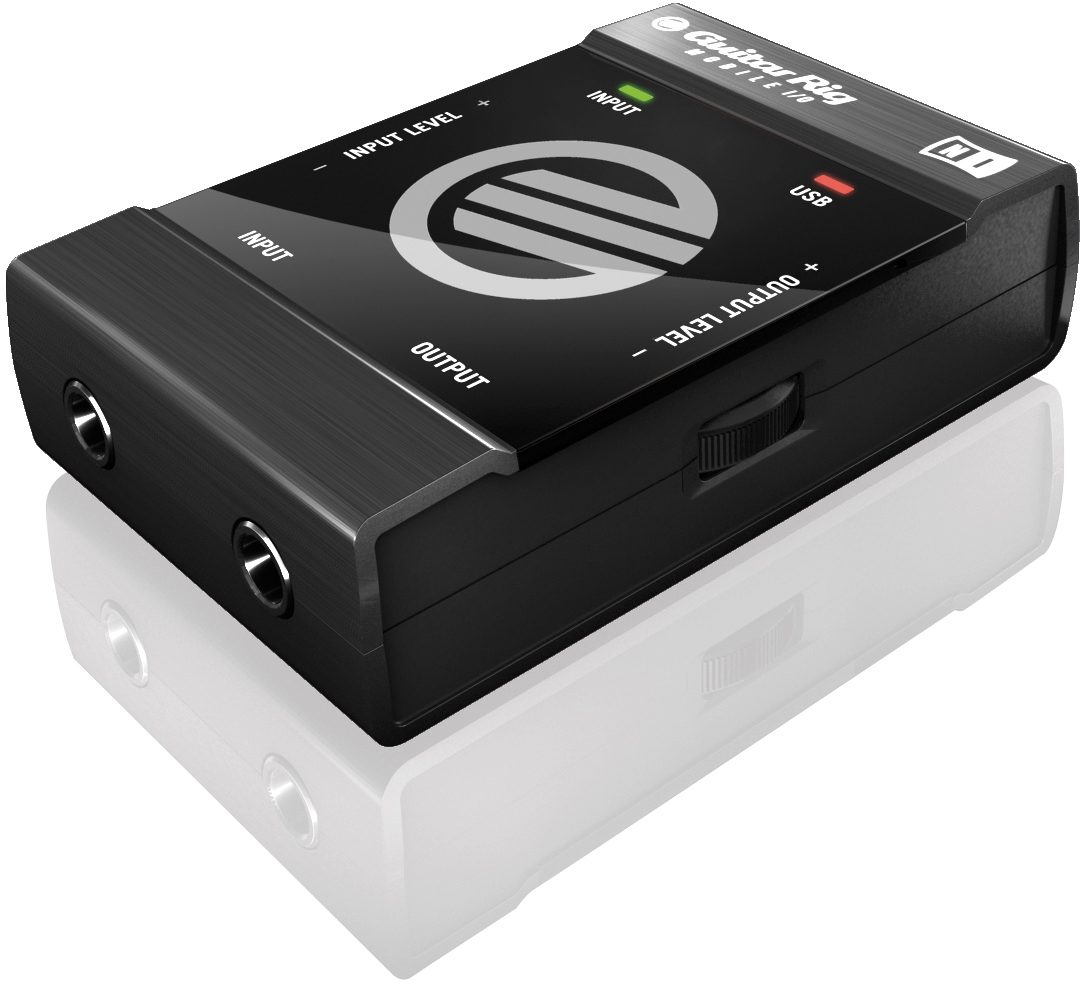

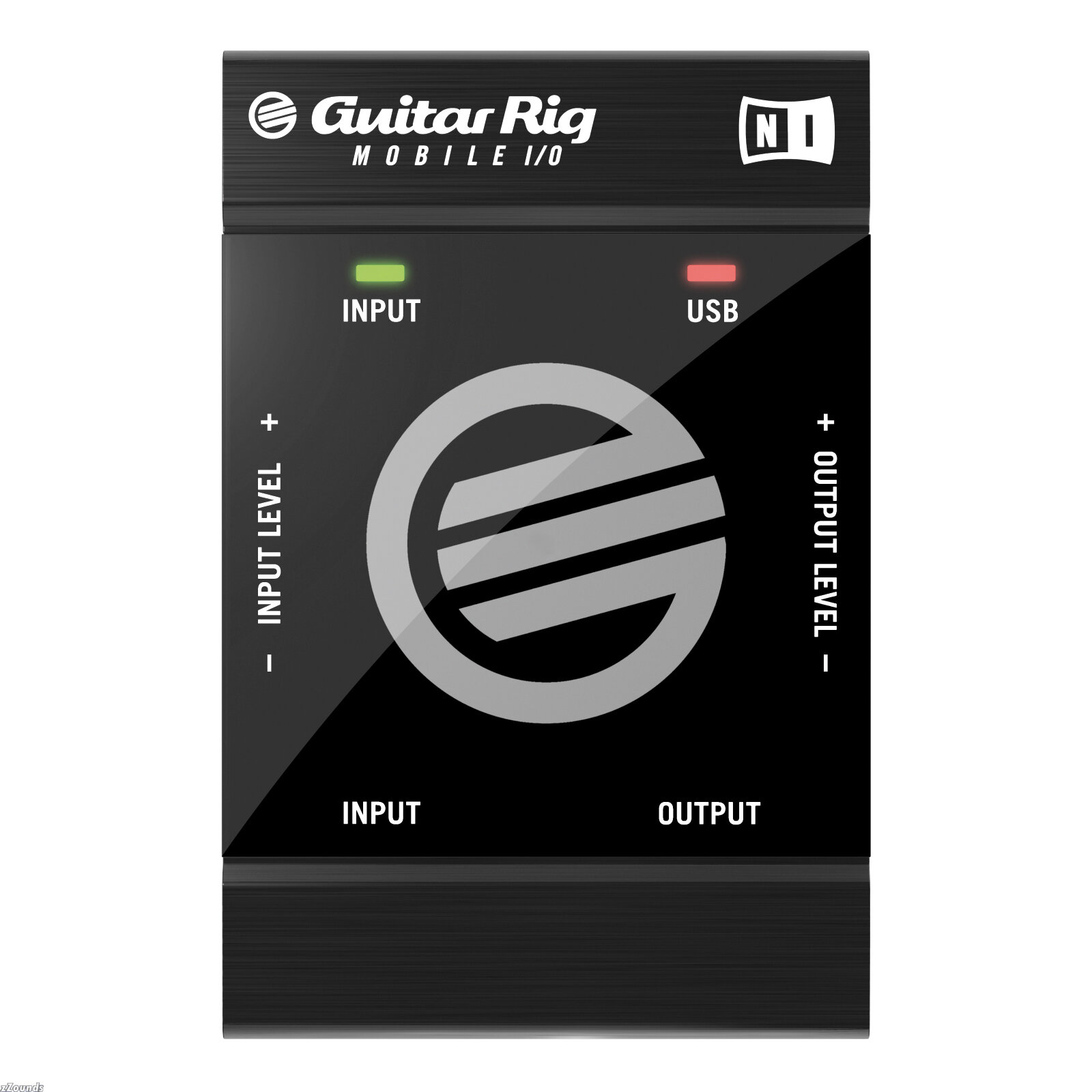

Size: Cigarette box. Weight: Less than a chocolate bar. In spite of that the Guitar Rig Mobile I/O interface is built to the same high standards that the Native Instruments audio interface line is known for, with an eye for stylish and practical design and an ear for high-end quality. To provide maximum sound quality, the ultra-compact Guitar Rig Mobile I/O interface packs the same award-winning 24-bit/192 kHz Cirrus Logic(R) converters used in the GUITAR RIG SESSION I/O and the RIG KONTROL 3. For connectivity it features an instrument input and a stereo output for monitors or headphones.

Authentic Amps and Classic Cabinets

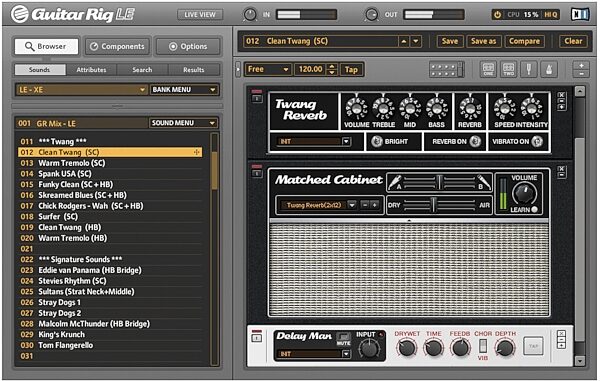

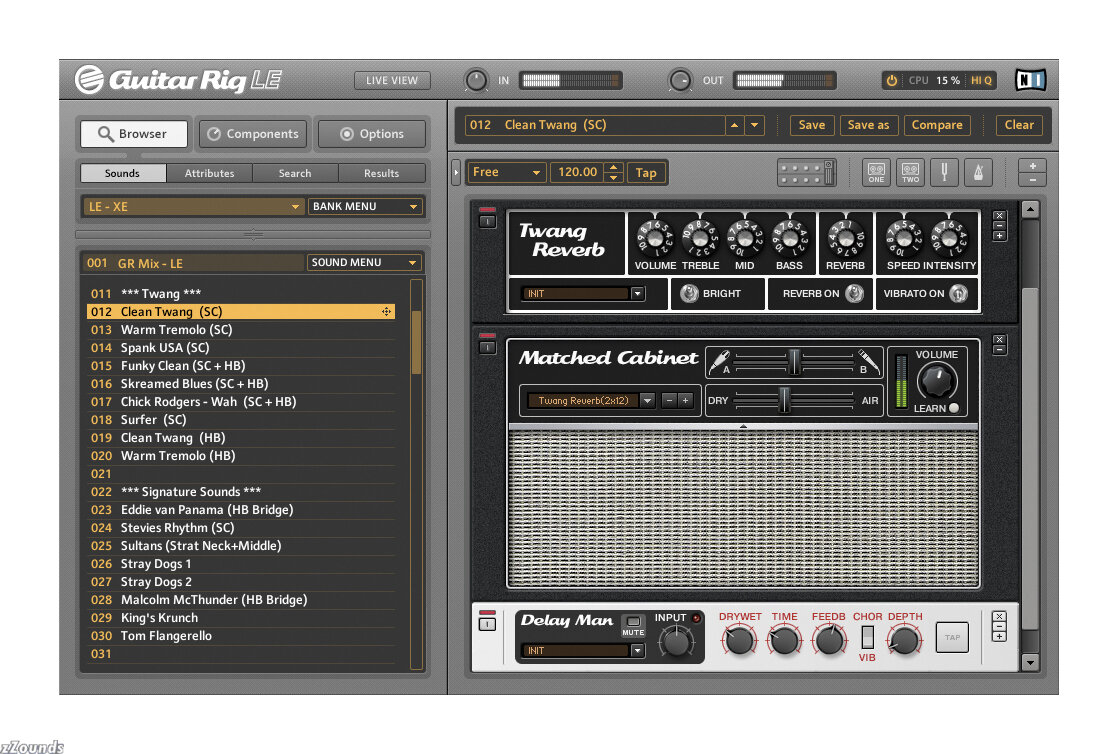

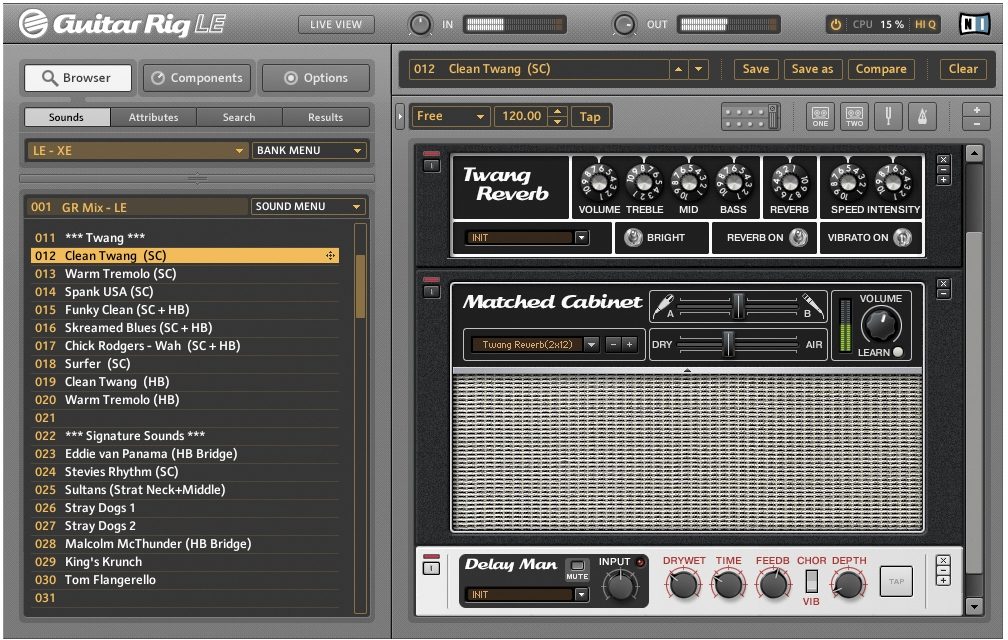

The GUITAR RIG 3 LE software offers three world-class guitar and bass amplifiers and 12 speaker cabinets, and allows you to easily combine them in any way you want.

# Lead 800 produces smooth yet intense lead sounds that offer plenty of flexibility.

# Twang Reverb simulates the rich tube sound of the classic amps from decades ago. It's ideal for screaming blues leads and crunchy rhythm guitar sounds, as well as clean sounds laden with personality.

# Bass PRO is a bass amp delivering a gritty, growling sound that can really make a bass stand out in a mix. In addition to the unique tonal qualities, there's a graphic equalizer to allow the sound to be tailored more precisely.

High Class Effects
With 12 professional effects, GUITAR RIG 3 LE delivers many sonic possibilities. This includes overdrive/ distortion pedals, various models of flanger, chorus, wah-wah, delay, reverb and much more - everything you need to create your own unique tone.

# Time-based Effects: Studio Reverb, Delay Man
# Modulation Effects: Chorus/Flanger, Phaser Nine
# Distortion and Overdrive: Skreamer, Demon
# Filter Effects: Auto Filter, Real Wah, Graphic Equalizer
# Volume Effects: Volume Adjustment Pedal, Noise Gate, Stomp Compressor

Helpful Tools
With onboard tape decks for super-easy recording and playback, a metronome and integrated tuner, the focus is on your creativity.
# Tapedeck 1
# Tuner
# Metronome
# Tapedeck 2

Technical Info

Specifications
Audio Inputs (A/D)
Channels: 2

Sample Rate: 44.1, 48, 88.2, 96, 192 kHz

Resolution: 16, 24-bit

Converter: Cirrus Logic

Instrument Inputs
Input Impedance: 1 mOhm

Full Scale Level: - 4,8 dBu

SNR (weighted): 100 dBu

THD+N: 0,006%

Frequency Response +/-1 dBu: 10 Hz-40 kHz

Dynamic Range codec: 100 dBu

Audio Outputs (D/A)
Channels: 2

Sample Rate: 44.1, 48, 88.2, 96, 192 kHz

Converter: Cirrus Logic

Line Outputs
Output Impedance: 100 Ohms
Maximum Output Level: +14,9 dBu
SNR (weighted): 100 dBu

THD+N: 0,006%

Frequency Response +/- 1 dBu: 10 Hz-40 kHz

Headphone Output
Load Impedance: 16 Ohms - 600 Ohms

Maximum Output Level (100 Ohm load): 2,165 V RMS (load 100 Ohm), 4,345 V RMS (no load)

THD+N (100 Ohms): 0,06%

Frequency Response +/- 1 dBu: 10 Hz-40 kHz

System Requirements
Windows(R) XP (SP2, 32 Bit) / Vista (32 -bit, 64-bit), Pentium III/Athlon XP 1.4 GHz, 1 GB RAM

Mac OS(R) X 10.4, G4 1.4 GHz or Intel(R) Core(TM) Duo 1.66 GHz, 1 GB RAM
Included Software requires activation after installation.

Dimensions
3.5 (90 mm) x 2.3 (58 mm) x 0.9 in.(24 mm)

Weight: 3.2oz (90 grams)

Supported Drivers
Mac OS X: Core Audio(TM), Windows: ASIO(R) (recommended), DirectSound(TM)

Supported Platforms
Mac OS X: stand-alone, VST(R), Audio Units(TM), RTAS(R) (Pro Tools 7/8)

Windows: stand-alone, VST(R), RTAS(R) (Pro Tools 7/8)

Power Supply
Via USB 2.0 interface, 5V 500mA bus power.

The Guitar Rig Mobile I/O USB 2.0 audio interface does not require an external power supply. However, proper operation is guaranteed only when the GUITAR RIG MOBILE I/O is used as a single device on either a USB 2.0 controller or a self-powered USB 2.0 hub.
