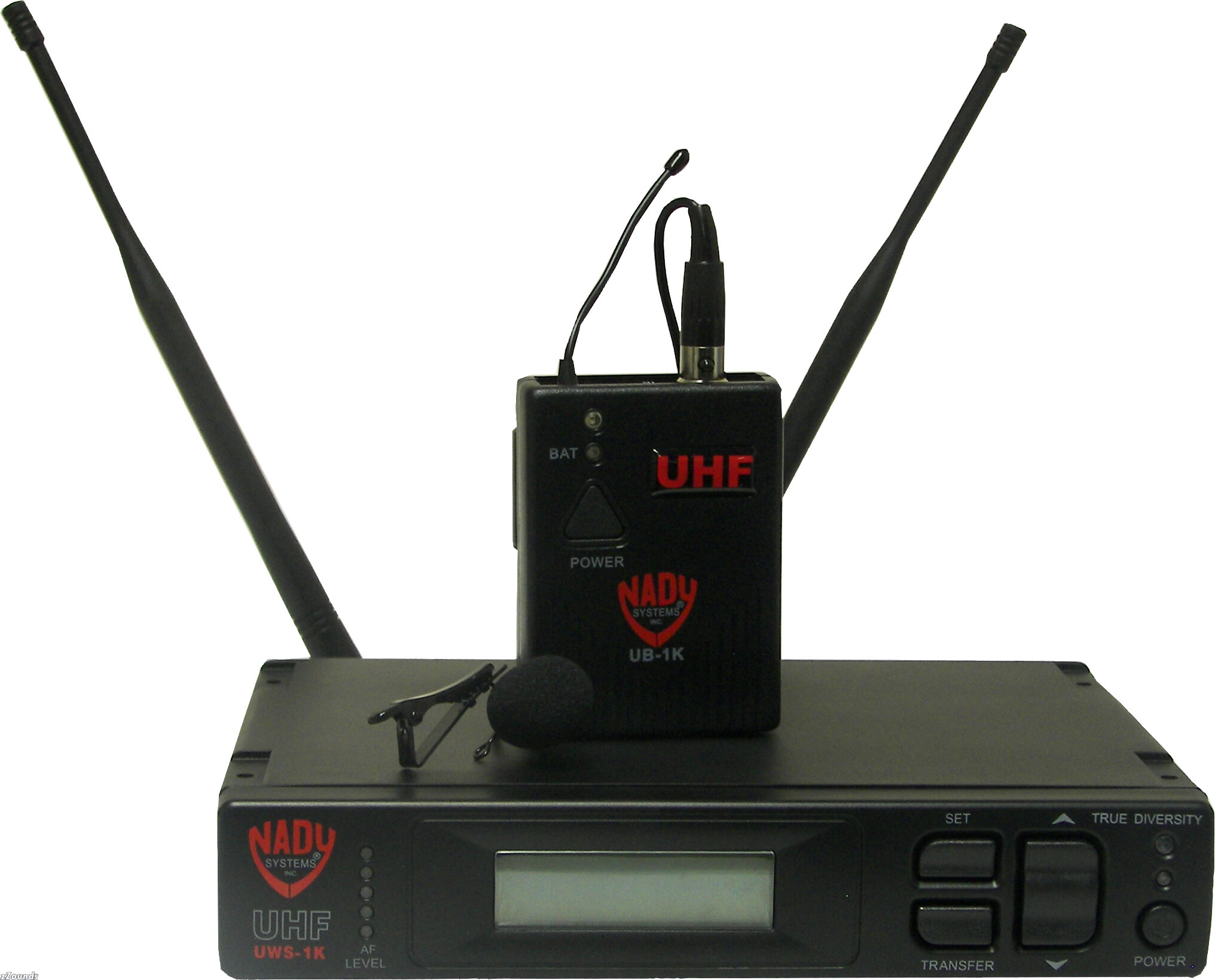

Nady UWS1KLT UHF Lavalier Wireless System

1000 user switchable UHF frequencies per band.

This product is no longer available at zZounds.

Shop our website for related products:

(In most cases, a product is unavailable because it has been discontinued by its manufacturer.)

iconBecause this item is used at your mouth or ear, it cannot be returned once opened due to health reasons. details

About This Product!
Description
Unsurpassed UHF performance with 120dB dynamic range and operation up to 500 feet line-of-sight.

Features:
1000 user switchable UHF frequencies per band

Two complete front end True Diversity™ circuitry for eliminating dropouts and maximizing range

Sophisticated IF filtering for multiple UWS-1K system operation in the same location simultaneously

Tone Squelch circuitry for protection from RF interference

Front panel backlit LCD display indicates the selected channel/frequency, SQL level, receiver RF level, A/B diversity status, and Audio LED bar graph for AF level

Front panel touch control buttons and user friendly configuration menus

Download feature sends channel program to transmitter via IR sender

Back panel balanced XLR mic level and unbalanced 1/4" jack audio outputs, and TNC jacks for dual antennas (with 9VDC/100mA phantom power for powering optional remote powered antennas as needed for longer antenna cable runs)

Rack mountable with optional single or dual (side-by-side) rackmount kits

Externally powered with 16.5V/0.4A DC adapter included

UH-1K and UB-1K Transmitters:
Choice of transmitters: UH-1K handheld or UB-1K bodypack, both 1000-channels selectable

UH-1K handheld is a sleek, durable unit with an internal antenna system and the superior Nady DM-10D neodymium cartridge for clear, powerful audio, and the powerful audio section provides maximum feedback rejection, and minimal handling noise

UB-1K bodypack is a versatile unit with a unique 3-pin Mini XLR input connector for instrument, lavalier mic, or headworn mic (with convenient DC phantom powering)

An input level control allows optimal audio gain adjustment

UH-1K and UB-1K IR link features Infrared downloading of selected group/channel information from receiver for easy channel programming

UH-1K and UB-1K transmitters feature touch power ON/OFF and Mute control button, Low battery status and Mute LED indicator

UH-1K and UB-1K both operate on 2 AA batteries for the longest reliable and economical battery life
