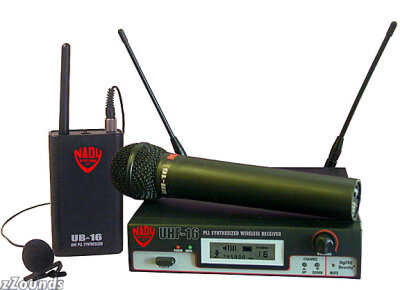

Nady UHF16 Lapel 16-Channel Wireless System (Omnidirectional)

The UHF-16 is the latest generation of UHF synthesized units from Nady, pioneers of this wireless mic technology since 1991. The UHF-16 offers the superior performance, convenience and operational advantages of a top frequency-agile UHF wireless system at an amazingly affordable price. Representing a major breakthrough in both price and performance, the UHF-16 offers the best value available today in multi-channel UHF wireless systems. The UHF-16 delivers 16 user selectable channels in the uncluttered wide-open UHF band, and is loaded with all the features of systems costing several times more.

Unsurpassed UHF performance with 120 dB dynamic range and operation up to 500 feet line-of-sight

Rugged half-rack UHF 16 receiver with dual removable antennas (for convenient optional remote placement), 16 user switchable UHF frequencies and DigiTRU

Diversity proprietary digital processing circuitry for eliminating dropouts and maximizing range

Sophisticated IF filtering for multiple UHF 16 system operation in the same location simultaneously

User-selectable Tone Squelch for protection from RF interference

Front panel back-lit LCD display indicates the channel/frequency selected, received RF and AF levels, A/B diversity status, and transmitter low-battery alert Convenient UP/DOWN buttons for easy operating channel selection.

Front panel ON/OFF button (with Power On LED indicator), Squelch (mute) adjust and Volume control for ease of operation

Back panel balanced XLR fixed mic level and adjustable unbalanced Õ in. jack audio outputs, and BNC jacks for dual antennas

Externally powered with 12 VDC (500 mA) AC adapter

Optional rack kits enable single or side-by-side rack mounting

Technical Info

UHF 16 System

Operating Frequency Range: 16 channels switchable in pre-programmed bands up to 26 MHz wide in the 726-865 MHz range (country dependent)

Freq. Synthesized: PLL system with frequency stability <0.005%

Frequency Response: 30 HZ-15 KHZ ±3 dB

Dynamic Range: 120 dB

Harmonic Distortions: <0.5%

Modulation: FM ±25 KHz nominal

Operating Range: 250 feet typical (depending on site conditions) up to 500+ feet optimum line-of-sight

UHF-16 Receiver

Receiving System: Dual conversion superheterodyne with DigiTRU Diversity

Sensitivity: -107 dBm, nominal

Selectivity: 60 dB nominal ± 75 KHz offset

Image Rejection: -70 dB, minimum

Spurious Rejection: 65 dB, nominal

Mute Threshold: -90 dBm, adjustable

Audio Output Level: Unbalanced output: 360 mV, adjustable

Mic Level Balanced Output: 24 mV

Audio Output Impedance: Balanced and unbalanced: both 600 ohms

Controls: Power On/Off switch, Level control, Up/Down Channel select buttons, Mute (RF squelch) adjust

LED Indicators: Power on, Mute on

LCD Display: Single backlit LCD panel indicating channel/frequency selected, received AF and RF level, A/Bdiversity status, and transmitter low battery alert

Power Requirements: AC-DC adapter, 12 VDC@ 500 mA, 115/230 VAC

Antenna: Right angle BNC or external remote (BNC)

Dimensions: 1.7 in. x 7.5 in. x 8.9 in. (43x190x226mm)

Weight: 1 lb, 14 oz (.9 kg)

UB-16 Transmitter

RF Output Power: 1 mW-50 mW max (country and band dependent)

Harmonic and Spurious Emissions: - 50 dB

Audio Input Level with ± 25 KHz nom. deviation:
UB-16: 75 mV (Lav)

Input Impedance:
UB-16: 10K Ohms (Lav)

Controls:
UB-16: Off/Standby/On switch, Channel Select Up/Down buttons, Input Level Control, 3-way input select switch for: lavalier, head mic, or music instrument

LED Indicator:
Unit 'ON' (single flash), Low Battery Alert (steady), Selected Channel Display, and Transmitter Active.

Connectors:
UB-16: Locking 3.5 mm mini jack

Antenna Type:
UB-16: External permanent, 3 inch

Battery Type: 2 X AA alkaline

Battery Life: 8-12 hours nominal

Dimensions:
UB-16: 4.0 in. x 2.39 in. x 0.9 in. (102 x 61 x 23 mm)

Weight:
UB-16: 3.2 oz (89g)
