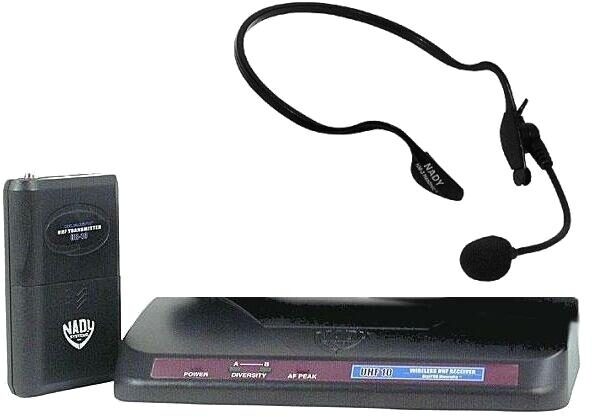

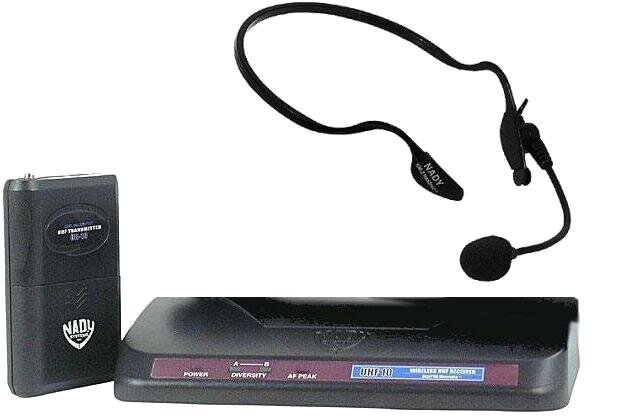

Nady UHF10 Headset Uni-Directional Wireless System

System Includes: UHF-10 Diversity Receiver, UB-10 Bodypack Transmitter, Uni-Directional Headworn Mic. 13 People rated this product:

Rate and Review This Product

Roll Over to Enlarge

Main

overview specifications documents

Manufacturer's Description for Nady UHF10 Headset Uni-Directional Wireless System

System Includes: UHF-10 Diversity Receiver, UB-10 Bodypack Transmitter, Uni-Directional Headworn Mic.

The latest breakthrough in affordable UHF wireless, the Nady UHF-10 Series is the perfect choice for the demanding professional with a limited budget. The UHF-10 and URR-10 offer all the advantages of clear channel operation on the wide-open, uncluttered UHF band at the price of a VHF system — and a fraction of the cost of competing UHF systems! Featuring Nady's unmatched full 120 dB dynamic range, the UHF-10 and URR-10 are the quietest and best sounding UHF wireless systems available, even when compared to systems costing several times more.

Features
DigiTRU Diversity for maximum range and dropout protection

Tone Squelch for locking out potential interference

Noiseless transmitter ON/OFF switching

Full LED status indicators, including Power On and A/B Diversity for both receivers, AF Audio Peak for UHF-10, and 5-segment RF and AF level displays for the URR-10

Fixed balanced XLR and adjustable unbalanced 1/4 in. output with Level High/Low switch (URR-10 only) and volume control

UB-10 Bodypack Transmitter
Maximum versatility — same transmitter can be used for many applications. Unique, easily accessible 3-way switch allows selection of inputs: instrument (guitar, bass, etc.), headworn mic, or lavalier/lapel mic

OFF/STANDBY/ON switch allows convenient audio muting with the transmitter "ON"

Low battery LED indicator flashes once for unit "ON"; lights steady for low battery alert

Locking 3.5 mm mini-jack provides secure connection for audio inputs

Easily accessible input level adjust control for optimum sound

Rear clip can be rotated 90 degrees for attaching transmitter either vertically or horizontally to clothes

Corresponding Nady channels to actual frequencies:

ch 1 - 800.200
ch 2 - 802.300
ch 3 - 803.300
ch 4 - 804.880
ch U5 - 794.900
ch U6 - 797.500
ch U7 - 796.300
ch U8 - 798.800
ch U9 - 804.900 zZounds is an authorized dealer of Nady products.

System Includes: UHF-10 Diversity Receiver, UB-10 Bodypack Transmitter, Uni-Directional Headworn Mic.

Frequency Response: 50 Hz - 15 KHz, +/- 3dB

Dynamic Range: 120 dB

Total Harmonic Distortion: < 0.6%

RF Carrier Frequency Range: UHF, choice of single frequencies from 726-863 MHz, country dependent

Frequency Stability: +/- 0.005% crystal controlled

Modulation: FM (F3E), +/- 20 KHz

Operating Range: up to 250 ft. typical (depending on site conditions); up to 500+ ft. line-of-sight

Reception Mode: DigiTRU Diversity (Dual Antenna)

Squelch: Tone Key (32.768 KHz)

External Controls: Power ON/OFF, Volume Control, Squelch (Mute) Adjust

Connectors: DC in, 1/4 in. (6.3mm) unbalanced phone jack (750 mV/5K Ohm), XLR balanced output (60mV/600 Ohm)

Unwanted Signal Rejection: 60 dB image and spurious

Power Requirements: DC 12-15V @ 300 mA, AC/DC adapter included

LED Indicator: Unit "ON" (single flash), Low Battery Alert (steady)

RF Power Out: 50 mW nominal (maximum allowed by FCC)

Harmonic & Spurious Emissions: < -50dB

Battery: 9V Alkaline

Battery Life 8-10 Hours (35mA draw typical)

Audio Inputs
UB-10 Bodypack: 3.5 mm locking mini-jack with 3-way select switch for inputs: instrument, headworn mic, or lavalier mic

Controls
UB-10 Bodypack: OFF/STANDBY/ON, INSTRUMENT/HEADWORN MIC/LAV MIC, Input level adjust

Dimensions
UHF-10: 8.5 x 4.5 x 1.4 in. (21.6 x 11.4 x 3.5 cm)
UB-10 Bodypack: 4.2 x 2.5 x .88 in. (10.7 x 6.4 x 2.2 cm)

Weight
UHF-10: 1.15 lbs. (0.52 kg)
UB-10 Bodypack: 3 oz. (84 g)

Nady Warranty

Nady Warranty

If you have additional warranty questions, please call the manufacturer at 510-652-2411
