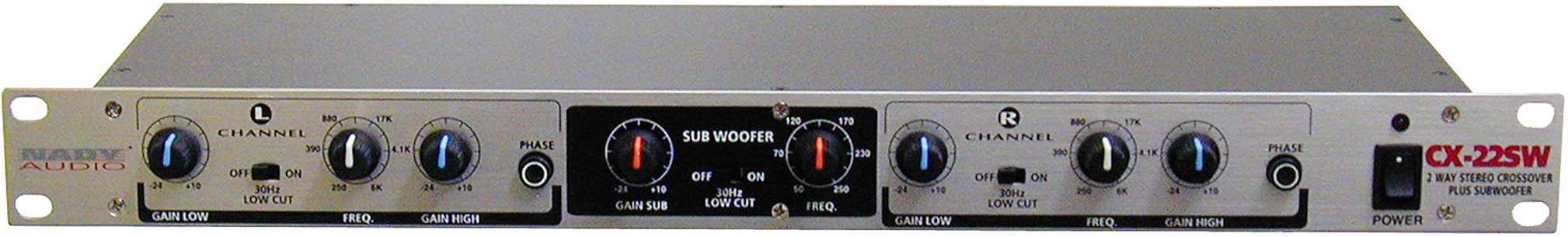

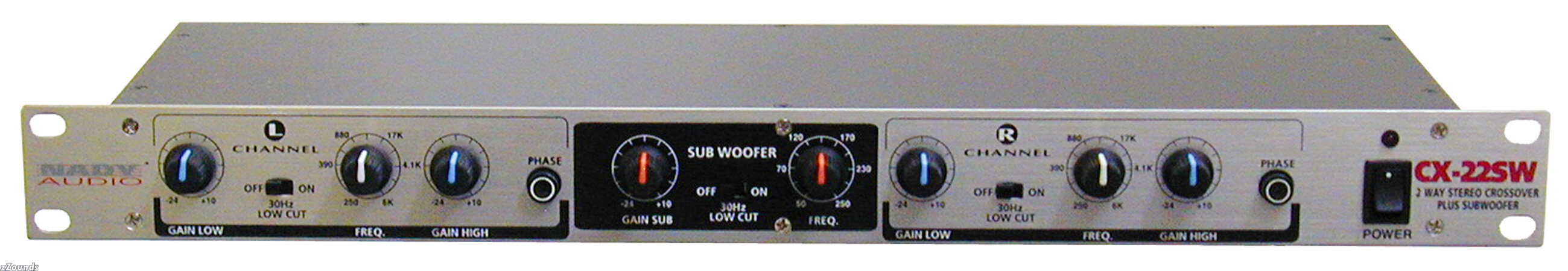

Nady CX22SW 2-Way Stereo Plus Subwoofer Crossover

Crossovers provide precise frequency dividing for multi-amplified speaker applications, and are valuable tools in many professional live sound uses. The CX-22SW offers 2-way active LOW/HIGH outputs for each stereo channel and a mono subwoofer output. It is simple to set up and operate and is the perfect choice for basic multi-amps, multi-speaker stereo installations.

Features
Single rack space (1U)

Shielded internal power supply with AC voltage select switch (~115V/60Hz or ~230V/50Hz)

Phase inversion switches

Low-cut subsonic filters for low frequency driver protection

Servo-balanced XLR inputs

Superior performance with transparent audio

Technical Info

Crossover Type
Stereo 2 ways + Subwoofer

Crossover Range
Subwoofer: 50 - 250Hz, -24/10dB
Low/High: 250-6000Hz, -24/10dB

Filter Type (Slope)
2nd order, 12dB/Octave

Inputs
Type: Balanced XLR and unbalanced 1/4 in.
Impedance: 100 Kohms

Outputs
Type: Unbalanced 1/4 in.
Impedance: 220 Ohms

Low Cut Filters
30Hz/ - 3dB, 12dB/Octave

Frequency Response
20Hz - 25KHz +/-1dB

Total Harmonic Distortion (THD) + Noise
< 0.05%

S/N Ratio
> 95 dB

Fuse
1.0 A/250V, 5mm glass type

Dimensions
19 x 1.73 x 5.9 in. (483 x 44 x 150mm)

Weight
4.4 lbs. (2.2 kg)

Note: For improvement purposes, specifications and design subject to change without prior notice.
